Hisense AS-07HR4SYDDEB Manuel utilisateur

AS-07HR4SYDDEB

AS-09HR4SYDDEB3

AS-12HR4SVDDEB1

Hisense Corporation 2017

Type of contents

1. OPERATION RANGE

2. INSTALLATION

3. REFRIGERANT FLOW DIAGRAM

4. ELECTRICAL DATA

5. CONTROL MODE

6. TROUBLE SHOOTING

NOTE: The figure、size and parameter of the product may not be identical

with the service manual, please take the actual product as the standard.

1. OPERATING

OPERATING RANGE

RANGE

Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp

COOLING Maximum 32℃D.B./23℃W.B. 43 ℃D.B./26℃W.B.

Minimum 21℃D.B./15℃W.B. 21 ℃D.B./15℃W.B.

HEATING Maximum 27℃D.B./18℃W.B. 24 ℃D.B./18℃W.B.

Minimum 20℃D.B/≤15℃W.B -7℃D.B./-8℃W.B.

.INSTALLATION

INSTALLATION

1、How to choose an air conditioner（only for reference）：

a. Choice for reference: 170W/㎡for average rooms;

b. Choice for reference: 160-200W/㎡for small size offices;

c. Choice for reference: 220-350W/㎡for restaurants;

d. Choice for reference: 200-300W/㎡for entertaining venues;

e. Choice for reference: 220-280W/㎡for the top floor.

Note:1W = 3.412btu.

2、Indoor Unit:

2.1. Distance for the indoor unit:

Note: a.The wallboard must be smooth and straight, with its supporting force

of not less than 60 kg.

2.1 Install for the installation template:

.INSTALLATION

INSTALLATION

Note: The installation template should be installed level.

2.3. Drilling:

Note：The tool need to raise 5 degrees when drilling, so that the hole of the

indoor side will be higher than the outdoor side, the water can drain smoothly.

2.4 Bend the evaporator pipe:

Note: When you bend the evaporator pipe, you should use your right hand

hold the pipe tightly at bends, and then use the left hand bend the pipe slowly.

.INSTALLATION

INSTALLATION

3、Outdoor Unit:

3.1. The distance of the outdoor unit:

Note: The wallboard supporting force should be able to withstand four times

the weight of the outdoor unit, and not less than 180 kg.

3.2. Fix for the outdoor unit:

Note: The outdoor unit base must be fixed with the bolts to reduce vibration

and noise, if necessary the shock pad can be used.

4. The height difference and the connection pipe length:

bolt

Shock pad

.INSTALLATION

INSTALLATION

When install the unit, please follow the following principle:

4.1.The height difference between the indoor unit and the outdoor unit

should not exceed 5m;

4.2.The connection pipe length should be not less than 1m;

4.3.The longest connection pipe is 15m for the unit(Recommendation:

The longest connection pipe is 10m for 9K and 12K unit and 15m for 18K,24K

and 30K unit);

4.4. Normally, the connection pipe does not exceed 5m, if the connection

pipe exceed 5m, it should add some gas for the unit, the amount of the gas

that recharged is based on the diameter and length of the liquid pipe, and the

recharged gas Xg=(the liquid pipe length -5m)*(*sheet*g/m), for example, for

one heat pump single split air conditioner, if the diameter of the liquid pipe is

Ф9.53 , and the liquid pipe length is 7m, it means that it should charge

(7m-5m)*50g/m=100g gas for the unit refer to the following sheet:

The diameter for the

connection pipe(mm) single split air

conditioner

Liquid pipe Gas pipe cooling only

（g/m）

heat pump（g/

m）

Ф6.35 Ф9.53 or

Ф12.7 15 20

Ф6.35 or

Ф9.53

Ф15.88 or

Ф19.05 15 50

.REFRIGERANT

REFRIGERANT FLOW

FLOW DIAGRAM

DIAGRAM

3-1. Refrigerant flow diagram ：

CAPILLARY

COMPRESSOR

CHECK VALVE ASS'Y

CAPILLARY

CONDENSER

EVAPORATOR

OUTDOOR

INDOOR

出2

.REFRIGERANT

REFRIGERANT FLOW

FLOW DIAGRAM

DIAGRAM

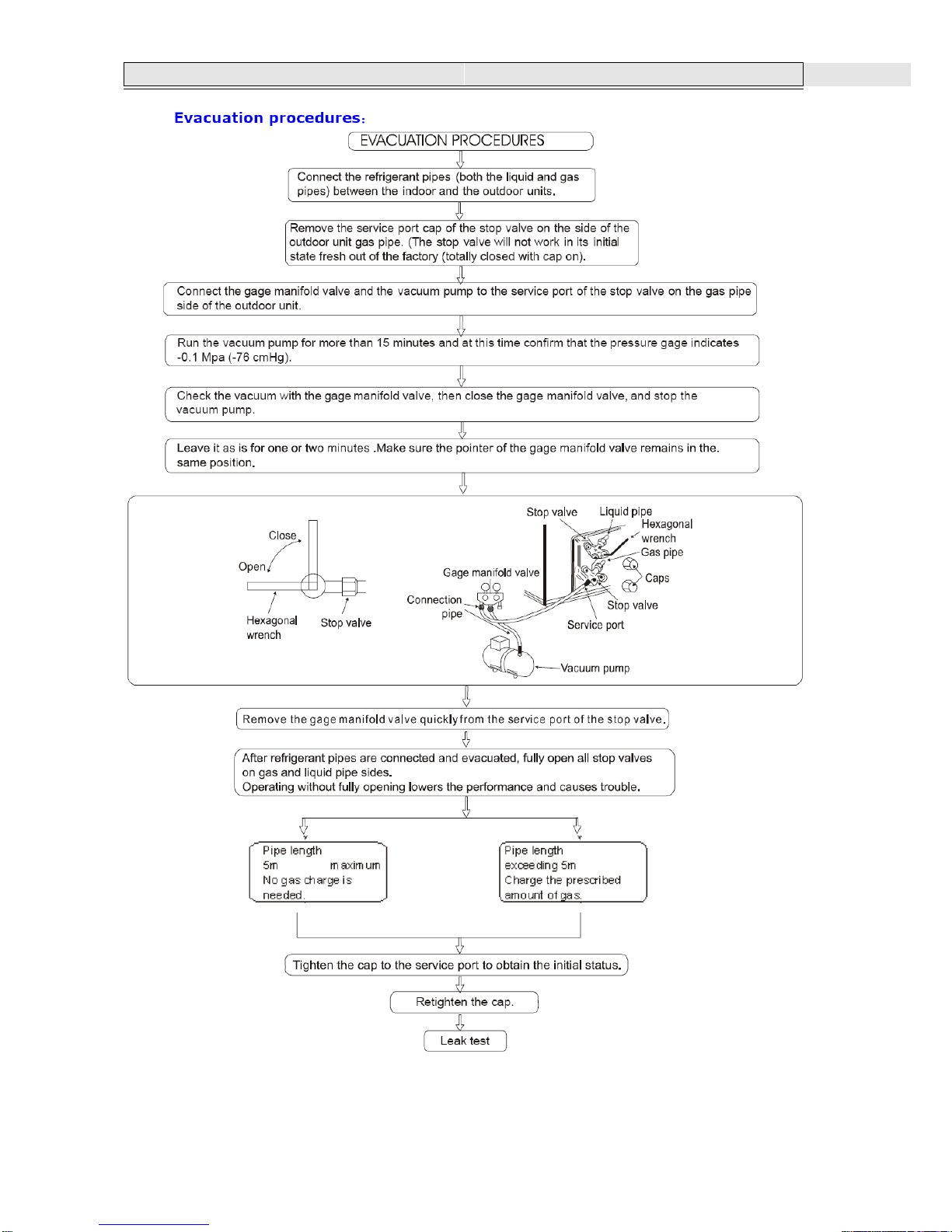

3-2.

.ELECTRICAL

ELECTRICAL DATA

DATA

4-1.Electrical wiring diagrams

NOTE: YE/GN=YELLOW/GREEN, BU=BLUE, BN=BROWN, WH=WHITE,BK=BLACK,VT=VIOLET,OG=ORANGE,

RD=RED

INDOOR：

(1) AS-07HR4SYDDEB AS-09HR4SYDDEB3 AS-12HR4SVDDEB1（INDOOR）:

OUTDOOR

（1）AS-07HR4SYDDEB AS-09HR4SYDDEB3 AS-12HR4SVDDEB1（OUTDOOR）:
