Network Construction with

One Single Instrument

Wiremap

Detect Split Pairs with Wiring Check

Cable Length

Get NVP-Enhanced Measurement Accuracy

Direction

Identify Up to 21 Cable Destinations

Actual Size

Network Construction with

One Single Instrument

LAN CABLE HiTESTER 3665-20

Optical/Telecom Measurement

Network Construction with

One Single Instrument

Actual SizeActual Size

Network Construction with

One Single Instrument

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Both straight-through and crossover cables (10/100BASE,

1000BASE-T and 1000BASE-TX) can be checked.

PASS Display Examples

Detect the existence of

shields or check for shield integrity.

Fully Compatible to

CAT6 LAN Cables

FAIL Display Examples

Pins 1 and 2 are reversed. Pins 3 and 6 have been

incorrectly paired with Pins

4 and 5.

Pin 1 is open at a distance 7

meters from the LAN cable

tester.

Pins 1 and 2 are shorted at a

distance 10 meters from the LAN

cable tester.

A very common mistake - twist

pairs Pins 3+6, and Pins 4+5,

have been incorrectly connected.

For wiring confirmation and locating broken wires after installation.Quick PASS/FAIL reading helps you complete your work faster.

Super-

sensitive

Detection

Caution!

split pairs?split pairs?

Can you find

Split Pair

Proper Wiring

Direction (ID No.)

Wiremap

(Wiring Status)

Cable Length

Just connect a cable, and

press the TEST button

Check all parameters such as wiremap,

direction and cable length at a glance.

Extremely

Intuitive

Wide

LCD

Screen

Identify the terminator ID here.

Obtain a record of the entire

length of the cable, or up to

the point where the cable is

damaged.

Large PASS/FAIL display, cable type, reason for cable failure and shield condition.

LAN cable wires should be connected as shown in the diagram

above, such that Pins 3 and 6 are twisted.

A "Split Pair" is detected when Pins 3 and 6 are not twisted and

paired together as shown above.

FAIL

PASS

Wiremap

UnshieldedShielded

Straight Cable Cross Cable

Split PairShortOpenTransposedReversed

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Have you ever had trouble

installing additional cables?

Take advantage of the conveniences offered by the

tester's capabilities to check wiring while confirming

multiple cable destinations.

Up to 21 terminators can be connected (additional terminators

sold separately.) Convenient for confirming the connection

destinations of multiple cables.

You will never need to go back and forth

again just to change the terminators.

1 2 3

n Activating the NVP function is as simple as 1-2-3

NVP (Nominal Velocity of Propagation) is the ratio of the speed of a signal in the cable relative to the speed of light in a vacuum.

NVP differs according to the type of cable and the manner in which the wire pairs are twisted, so measurement accuracy can be enhanced by setting the NVP value for the particular type of cable to be measured.

Preparation

The HIOKI 3665-20 can do the job for you properly and

accurately by also detecting split pairs.

To properly check LAN cable wiring,

a tester capable of detecting split pairs is indispensable.

Measure for cable length and detect the location of broken or short-circuited wires.

Cable Length

Locate up to 21 unique cable destinations.

Direction

The NVP setting is a cable-length compensation function that enhances the

accuracy of cable length measurements.

Accuracy with NVP activated:

n ± 4% rdg. ± 1m

(vs.previous HIOKI model: 15% rdg. ±1m)

Increased

Precision!

Split pairs appear to be properly

connected to the untrained eye,

and cannot be detected with continuity

testing. OK!

How Can Split Pairs Affect the Network?

◆

Communication speed can be suppressed - 100BASE signals may reach only 10BASE speeds.

◆

Excessive communication errors - data transfer may be intermittent or completely inhibited.

◆

Cables miswired in this way are more susceptible to electrical noise.

Increased

Efﬁ ciency!

Direction

Setting

Finished

On the Settings screen,

select “Length Adjust”.

Press the TEST button to

measure the (already known)

length of the reference cable.

Calibrate the display to the

measured reference cable.

Prepare a reference cable using a

known length of the same type as that

to be measured (at least 100-meter

length recommended).

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

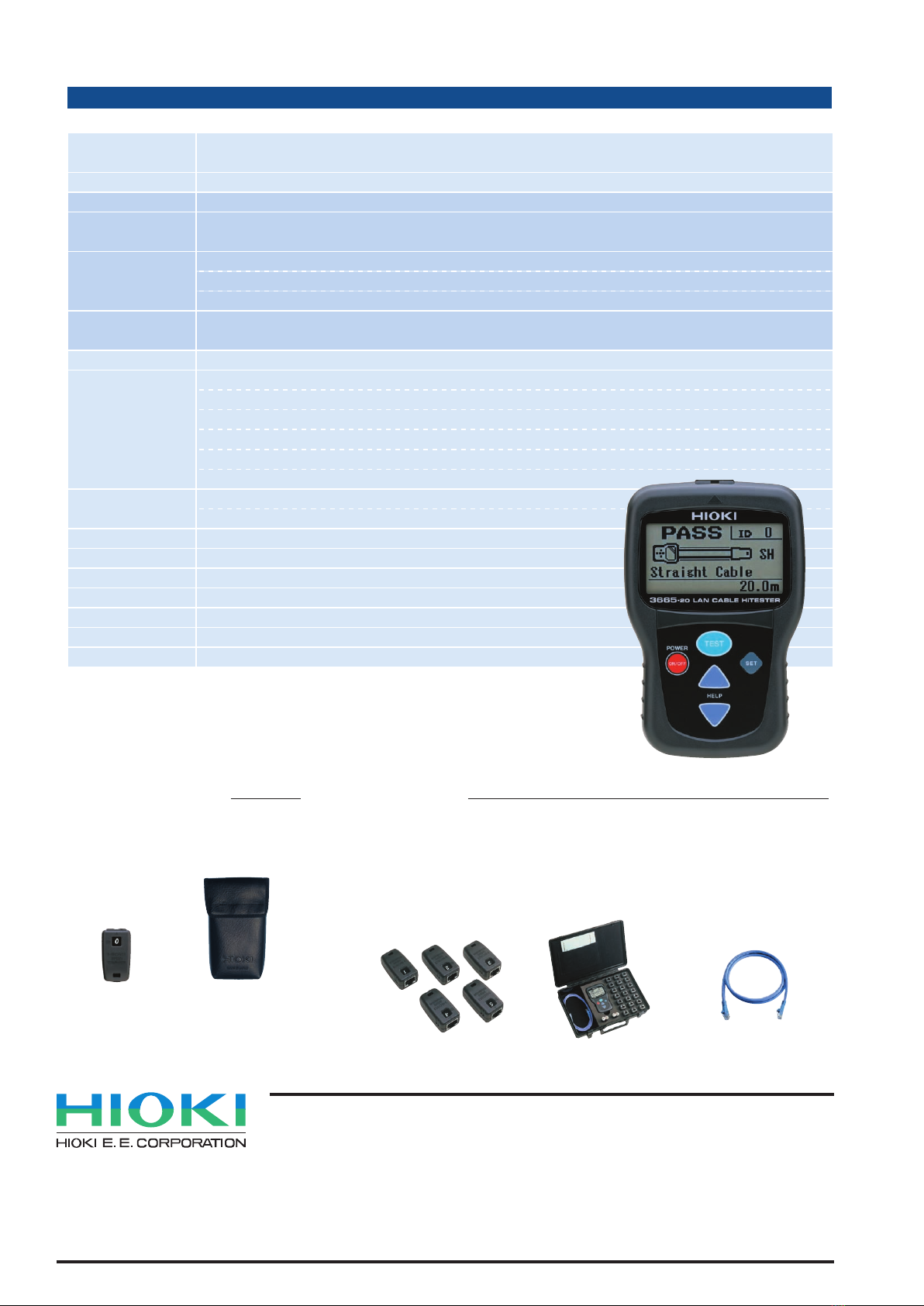

Measurable cables Twisted-pair cable

100 Ω characteristic impedance, shielded and unshielded, CAT 3, 4, 5, 5e and 6

Compatible connectors

RJ-45 plugs

Measurement Items

[Wiremap] Wiring condition and shielding can be confirmed using the HIOKI TERMINATOR 9690

Detectable errors: open, short, reversed, transposed, split pairs and other miswiring

[Cable Length]

Measurable lengths: 2 to 300 m, 6.6 to 984 ft

Measurement accuracy: ±4% rdg. ±1 m, ±4% rdg. ±3.3 ft

Display resolution: 0.1 m

[Destination] Up to 21 cables can be identified using the supplied TERMINATOR 9690 and optional Models 9690-01 to

9690-04 to test multiple cables simultaneously

Display 128 × 64 dot matrix LCD (with backlight)

Functions

Auto Backlight: pressing a button turns the backlight on (it turns off automatically after about 20 seconds)

Beeper: sounds when pressing buttons and when measurement results are displayed

Energy-Saving Mode: enter into energy-saving mode after measurement (and resume when the TEST button is pressed)

Auto Power Save: the 3665-20 turns off automatically about 10 minutes after the last button press

Battery Check: Battery indicator blinks when voltage falls below 2.4 V

Unit Switch: Select between meters or feet

Compliance

Standards

Safety Standard: EN61010-1:2001 Pollution Level 2

EMC Standard: EN61326:1997 + A1:1998 + A2:2001 + A3:2003

Allowable Input 3.3 V peak (between RJ-45 pins)

Operating Temperature & Humidity

0 to 40 °C, 80% RH or less, non-condensating

Storage Temperature & Humidity

–10 to 50 °C, 80% RH or less, non-condensating

Power Source Two AA-size (LR6) alkaline batteries

Maximum Power Consumption

1.4 VA

Operating Time Approx. 50 hours (measuring once per minute)

Size & Weight Approx. 85 W × 130 H × 33 D mm, approx. 160 g

n Specifications (@ 23 ±5 °C, 80% RH or less, non-condensating, with battery indicator unlit)

CARRYING CASE

TERMINATOR 9690-01 (IDs 1 to 5)

TERMINATOR 9690-02 (IDs 6 to 10)

TERMINATOR 9690-03 (IDs 11 to 15)

TERMINATOR 9690-04 (IDs 16 to 20)

CARRYING CASE 9249 (stores the 3665-20, 9690 and 9628 together)

LAN CABLE 9628 (1 m long, with RJ-45 plugs)

nSupplied Accessories nOptions

TERMINATOR 9690

CARRYING CASE

(Stores the HiTESTER 3665 and TERMINATORs 9690)

LAN CABLE HiTESTER

3665-20

(Includes TERMINATOR 9690, CARRYING CASE)

CARRYING CASE 9249

(for storing everything together)

TERMINATOR 9690

TERMINATOR 9690-01 LAN CABLE 9628

HEAD OFFICE :

81 Koizumi, Ueda, Nagano, 386-1192, Japan

TEL +81-268-28-0562 / FAX +81-268-28-0568

http://www.hioki.co.jp / E-mail: os-com@hioki.co.jp

HIOKI USA CORPORATION :

6 Corporate Drive, Cranbury, NJ 08512 USA

TEL +1-609-409-9109 / FAX +1-609-409-9108

http://www.hiokiusa.com / E-mail: hioki@hiokiusa.com

All information correct as of Jul. 14, 2010. All specications are subject to change without notice. 3665E3- 07M

DISTRIBUTED BY

HIOKI (Shanghai) Sales & Trading Co., Ltd. :

1608-1610 Shanghai Times Square Ofﬁce, 93 Huai Hai Zhong Road

Shanghai, P.R.China POSTCODE: 200021

TEL +86-21-6391-0090/0092 FAX +86-21-6391-0360

http://www.hioki.cn / E-mail: info-sh@hioki.com.cn

Beijing Ofﬁce :

TEL +86-10-5867-4080/4081 FAX +86-10-5867-4090

E-mail: info-bj@hioki.com.cn

Guangzhou Ofﬁce :

TEL +86-20-38392673/2676 FAX +86-20-38392679

E-mail: [email protected]m.cn

HIOKI INDIA PRIVATE LIMITED :

Khandela House, 24 Gulmohar Colony Indore 452 018 (M.P.), India

TEL +91-731-4223901, 4223902 FAX +91-731-4223903

http://www.hioki.in / E-mail: info@hioki.in

Note: Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com
