User Manual of Network Camera

Thank you for purchasing our product. If there are any questions, or requests, please do not

hesitate to contact the dealer.

This manual applies to Network Camera.

This manual may contain several technical incorrect places or printing errors, and the content is

subject to change without notice. The updates will be added to the new version of this manual. We

will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security

or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as

outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance

or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS,

WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY

OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

User Manual of Network Camera

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE"

and comply therefore with the applicable harmonized European standards listed

under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed

of as unsorted municipal waste in the European Union. For proper recycling, return

this product to your local supplier upon the purchase of equivalent new equipment,

or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be

disposed of as unsorted municipal waste in the European Union. See the product

documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury

(Hg). For proper recycling, return the battery to your supplier or to a designated collection point.

For more information see: www.recyclethis.info.

User Manual of Network Camera

Safety Warnings and Cautions

Please pay attention to the following warnings and cautions:

Hazardous Voltage may be present: Special measures and precautions must be

taken when using this device. Some potentials (voltages) on the device may

present a hazard to the user. This device should only be used by HIKVISION

Employees with knowledge and training in working with these types of devices

that contain live circuits.

Power Supply Hazardous Voltage: AC mains voltages are present within the power supply assembly.

This device must be connected to a UL approved, completely enclosed power supply, of the proper

rated voltage and current. No user serviceable parts inside the power supply.

System Grounding (Earthing): To avoid shock, ensure that all AC wiring is not exposed and that the

earth grounding is maintained. Ensure that any equipment to which this device will be attached is

also connected to properly wired grounded receptacles and are approved medical devices.

Power Connect and Disconnect: The AC power supply cord is the main disconnect

device to mains (AC power).The socket outlet shall be installed near the equipment

and shall be readily accessible.

Installation and Maintenance: Do not connect/disconnect any cables to or

perform installation/maintenance on this device during an electrical storm.

User Manual of Network Camera

Power Cord Requirements: The connector that plugs into the wall outlet must be a grounding-type

male plug designed for use in your region. It must have certification marks showing certification by

an agency in your region. The connector that plugs into the AC receptacle on the power supply must

be an IEC 320, sheet C13, female connector. See the following website for more information

http://kropla.com/electric2.htm.

Lithium Battery: This device contains a Lithium Battery. There is a risk of

explosion if the battery is replaced by an incorrect type. Dispose of used

batteries according to the vendor’s instructions and in accordance with local

environmental regulations.

Perchlorate Material: Special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate. This notice is required by California Code of

Regulations, Title 22, Division 4.5, Chapter 33: Best Management Practices for Perchlorate Materials.

This device includes a battery which contains perchlorate material.

Taiwan battery recycling:

Please recycle batteries.

Thermal and Mechanical Injury: Some components such as heat sinks, power

regulators, and processors may be hot; care should be taken to avoid contact

with these components.

Electro Magnetic Interference: This equipment has not been tested for

compliance with emissions limits of FCC and similar international regulations. This device is not, and

may not be, offered for sale or lease, or sold, or leased until authorization from the United States

FCC or its equivalent in other countries has been obtained. Use of this equipment in a residential

location is prohibited. This equipment generates, uses and can radiate radio frequency energy

which may result in harmful interference to radio communications. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment on and off, the user is required to take measures to eliminate the interference or

discontinue the use of this equipment.

Lead Content:

Please recycle this device in a responsible manner. Refer to local

environmental regulations for proper recycling; do not dispose of device in

unsorted municipal waste.

User Manual of Network Camera

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid

danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

1. In the use of the product, you must strictly comply with the electrical safety regulations of the

nation and region.

2. Source with DC 12V or AC 24V (Whether supporting AC 24V lies on the specific camera model)

according to the IEC60950-1 standard. Please refer to technical specifications for more details.

3. Do not connect several devices to one power adapter as an adapter overload may cause

over-heating and can be a fire hazard. If use the POE as the power supply, please make sure that

the POE Switch have the sufficient power .(Whether supporting PoE power supply lies on the

specific camera model)

4. Please make sure that the plug is firmly inserted into the power socket.

5. When the product is installed on a wall or ceiling, the device should be firmly fixed.

6. If smoke, odor, or noise rise from the device, turn off the power at once and unplug the power

cable, then contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

User Manual of Network Camera

Notice:

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit

of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put

on the lens cap to protect the sensor from dirt.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear may occur

otherwise (which is not a malfunction however), and affecting the endurance of sensor at the

same time.

5. The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor will not be exposed to the laser beam.

6. Do not place the camera in extremely hot or cold temperatures (the operating temperature

should be between -10°C ~+60°C , dusty or damp locations, and do not expose it to high

electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for a proper operating environment.

8. While shipping, the camera should be packed in its original packing, or packing of the same

texture.

9. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment should be

replaced regularly according to their average life time. The average time varies because of

differences between operating environment and usage history, so regular checking is

recommended for all users. Please contact with your dealer for more details.

10. Improper use or replacement of the battery may result in hazard of explosion. Replace with the

same or equivalent type only. Dispose of used batteries according to the instructions provided

by the battery manufacturer.

User Manual of Network Camera

Table of Contents

Chapter 1 Network Camera Connection...................................................................................................................... 1

1.1 Setting the Network Camera over the LAN............................................................................................. 1

1.1.1 Wiring over the LAN................................................................................................................... 1

1.1.2 Detecting and Changing the IPAddress....................................................................................... 2

1.2 Setting the Network Camera over the WAN............................................................................................ 3

1.2.1 Static IP Connection .................................................................................................................... 3

1.2.2 Dynamic IP Connection............................................................................................................... 3

Chapter 2 Network Access........................................................................................................................................... 6

2.1 Access over IE Browser................................................................................................................................. 6

2.1.1 Live View............................................................................................................................................ 6

2.1.2 Parameters Configuration................................................................................................................... 8

2.1.3 Wireless Parameters Configuration................................................................................................... 19

2.2 Access over Client Software........................................................................................................................ 21

2.2.1 Live View.......................................................................................................................................... 21

2.2.2 Camera Parameters Configuration.................................................................................................... 22

2.2.3 Wireless Parameter Configuration.................................................................................................... 24

Chapter 3Access over Internet.................................................................................................................................. 26

3.1 Access network camera with static IP.......................................................................................................... 26

3.2 Access network camera with dynamic IP .................................................................................................... 27

Appendix 1 SADP Introduction................................................................................................................................. 31

Appendix 2 Port Map ................................................................................................................................................ 33

Appendix 3 Pin Definition......................................................................................................................................... 35

User Manual of Network Camera

Chapter 1 Network Camera Connection

Before you start:

If you want to set the network camera via a LAN (Local Area Network), please refer to Section 2.1 Setting the

Network Camera over the LAN.

If you want to set the network camera via a WAN (Wide Area Network), please refer to Section 2.2 Setting the

Network Camera over the WAN.

1.1 Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with

your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

1.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

To test the network camera, you can directly connect the network camera to the computer with a network cable

as shown in Figure 2-1.

Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router.

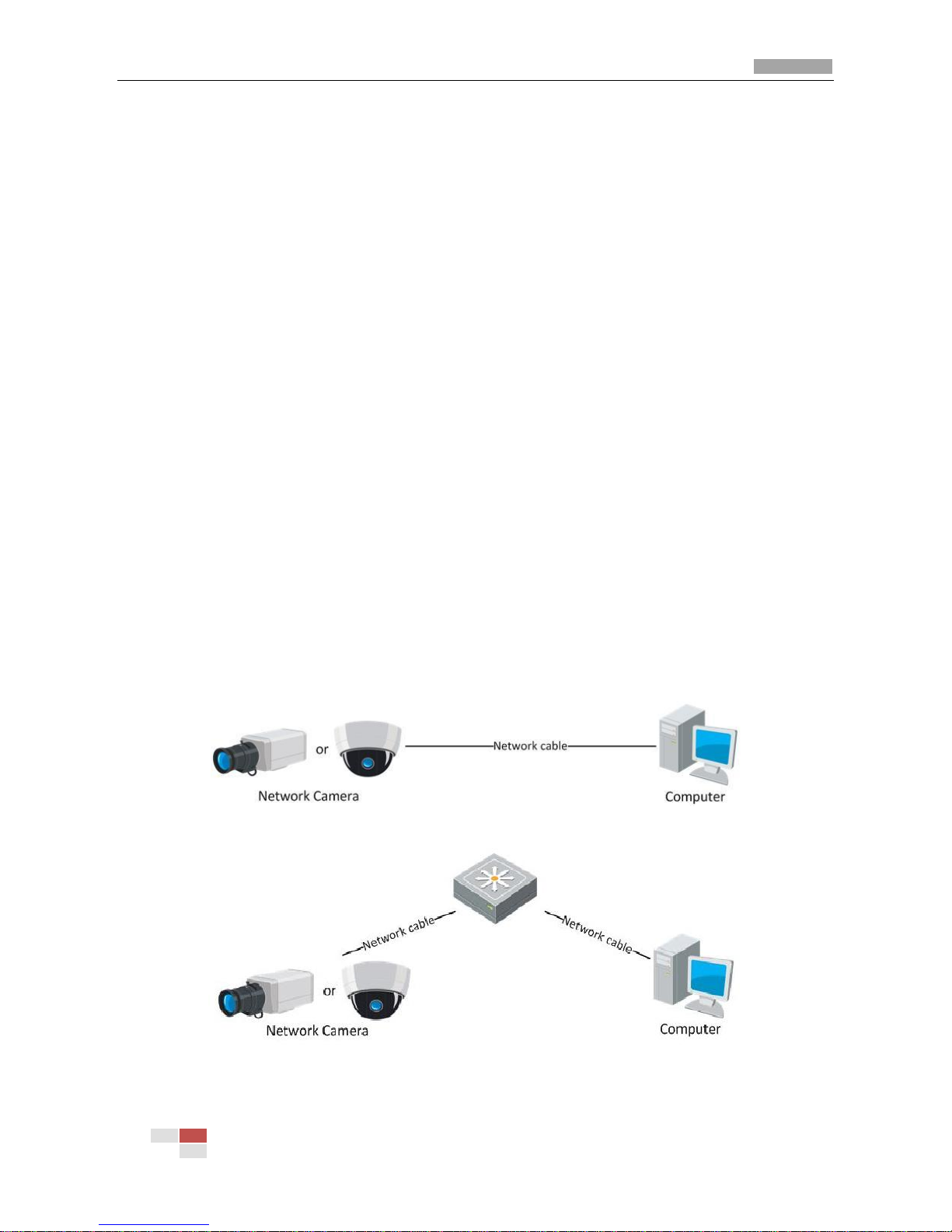

Figure 1-1 Connecting Directly

Figure 1-2 Connecting via a Switch or a Router

User Manual of Network Camera

1.1.2 Detecting and Changing the IP Address

You need the IP address to visit the network camera.

Steps:

1. To get the IP address, you can choose either of the following methods:

Use SADP, a software tool which can automatically detect the online network cameras in

the LAN and list the device information including IP address, subnet mask, port number,

device serial number, device version, etc., shown in Figure 2-3.

Use the client software to list the online devices. Please refer to the user manual of client

software for detailed information.

2. Change the IP address and subnet mask to the same subnet as that of your computer.

3. Enter the IP address of network camera in the address field of the web browser to view the live

video.

Notes:

The default IP address is 192.0.0.64 and the port number is 8000. The default user name is admin, and

password is 12345.

For accessing the network camera from different subnets, please set the gateway for the network camera after

you logged in. For detailed information, please refer to Section 5.3.1 Configuring TCP/IP Settings.

Figure 1-3 SADP Interface

Autres manuels pour NETWORK CAMERA

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION HiWatch Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CC512 P(N)-FB Manuel utilisateur

HIK VISION

HIK VISION DS-2TD2608-2/QA/FP Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16D0T-VFIR3E Manuel utilisateur

HIK VISION

HIK VISION DS-2CD6425G0 Manuel utilisateur

HIK VISION

HIK VISION DS-2TD4166-50/V2 Manuel utilisateur

HIK VISION

HIK VISION PanoVu 6A Series Manuel utilisateur

HIK VISION

HIK VISION DS-2XM6825G0/C-IVSM Manuel utilisateur

HIK VISION

HIK VISION EZVIZ C6T MINI 360 PLUS Guide d'installation

HIK VISION

HIK VISION DS-2XM6222G0-IM-ND-4mm Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2D21G0/M/NF Manuel utilisateur

HIK VISION

HIK VISION DS-2CD8464F-EI Manuel utilisateur

HIK VISION

HIK VISION DS-2TD2 Series Manuel utilisateur

HIK VISION

HIK VISION DS2CD726F-PT(W) Manuel utilisateur

HIK VISION

HIK VISION DS-2CE56H1T-VPIT3Z Manuel utilisateur

HIK VISION

HIK VISION DS-2CD5165G0-IZS Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7153-E Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2763G0-IZS Manuel utilisateur

HIK VISION

HIK VISION DS-2CV2B41G0-ID/4G/C04S05 Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16C5T-AVFIR3 TURBO HD Manuel utilisateur

HIK VISION

HIK VISION DS-2CV2026G0-IDW Manuel utilisateur

HIK VISION

HIK VISION PanoVu PT Series Manuel utilisateur

HIK VISION

HIK VISION UD05531B Manuel utilisateur

HIK VISION

HIK VISION D8T Series Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
