Setting Up IP Intercom For The First Time

With WiFi Room Stations Only

Introduction

This tech guide will step you though the steps to set up the HikVision Villa IP Intercom for

the first time when using the Wi-Fi room stations (1 4-829).

This will allow each of the Sub room stations (Wi-Fi room stations (1 4-829)) to connect to

the system by Wi-Fi rather than using a LAN cable. The Master room station and the door

station still need to be connected by a LAN cable.

There are 2 sections in this tech guide.

Section 1.1 (On page 3) will guide you through the step on how to access the IP Intercom in

the iVMS software.

Section 1.2 (On page 4) will guide you through how to connect 1 door station to many room

stations.

Page 2

Before you egin

Ensure you have the iVMS-42 software version 2.4.2.55 Build 2 1612 9 installed on your

computer. This can be downloaded from the Ness Website.

Before you program your door and room stations ensure you have version 1.4. build

17 3 2 or later installed. You can find the firmware version later on during the setup of the

device.

Notes

These steps are based on factory default settings with the devices not yet activated.

It’s recommend you setup the door station before setting up the room stations.

Your computer’s IP address needs to have the IP address as 192. . .xx (eg. 192. . .1) while

the system is being setup, otherwise it will have issues communicating to the door station

and room stations.

Only the Wi-Fi room stations (1 4-829) can be used. You can’t use the non Wi-Fi room

stations (1 4-828 or 1 4-828B) otherwise you will have video and audio issues.

A maximum of 16 room stations can be used.

(1 Master + 15 Sub Room stations = Total 16 Room Stations)

The Master room station must be connected by LAN to the network so it can talk to the

door station. The Wi-Fi on the master room station will be used to communicate to the sub

room stations. The LAN cable in the master room station will be used to communicate to the

door station.

Page 3

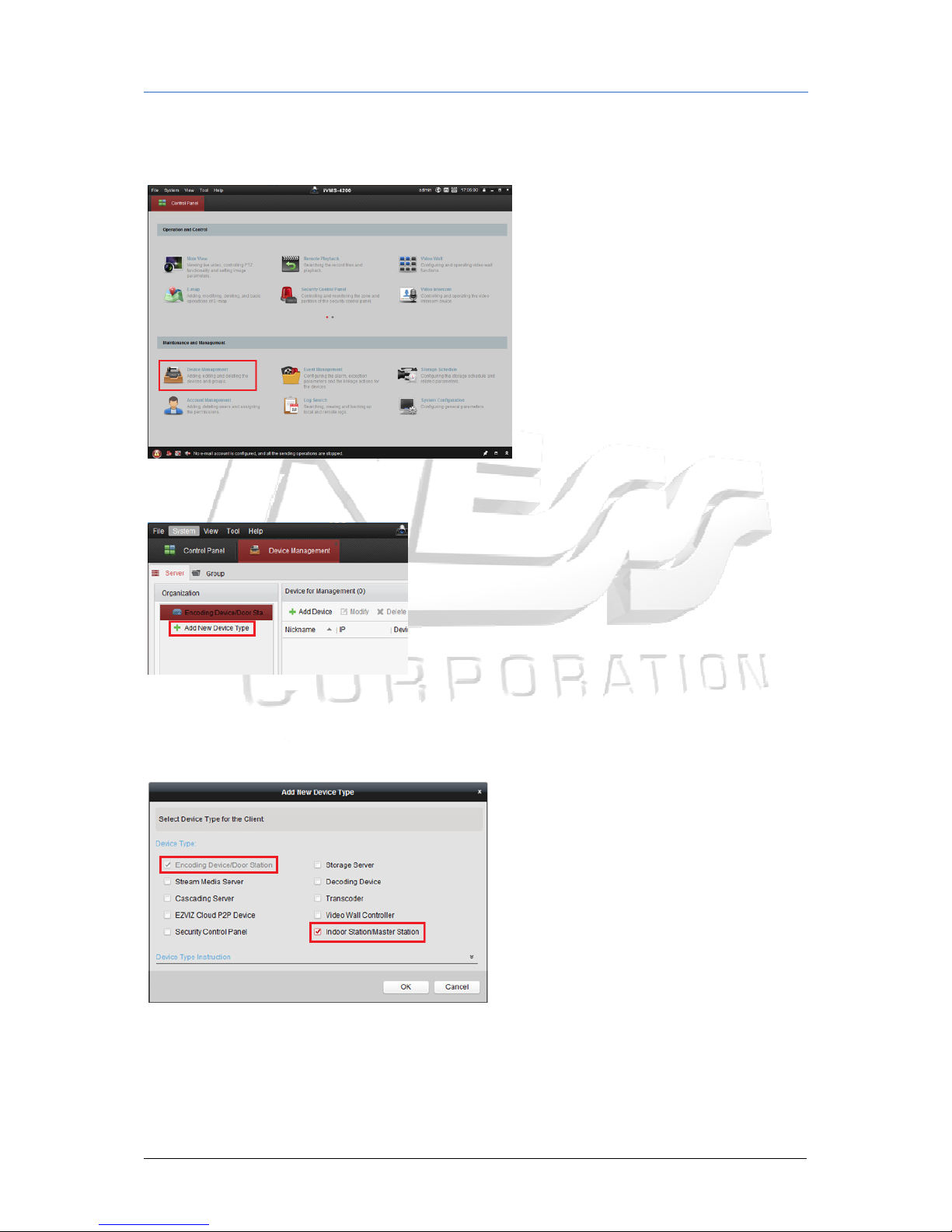

1.1 Setting up the iVMS

1. Click on ‘Device Management’.

2. Click on ‘Add new Device Type’ from the left side menu.

3. Ensure that ‘Encoding Device / Door Station’ and ‘Indoor Station / Master Station’ is

ticked and click on OK.

Page 4

1.2

One Door Station to Many Room Stations Setup

When setting up multiple room stations for the first time, it’s recommend to only connect

one room station at a time. This will make it easy to work out what room station you are

setting up.

It is recommended that you setup the door station before setting up the room stations.

Door Station Setup

1. Connect a LAN cable into the door station and connect it to your network.

2. Power up the door station.

3. Select ‘Encoding / Device / Door Station’ from the left menu in iVMS.

4. Select your Door station from the bottom section and then click ‘Activate’.

Page 5

5. When prompted, enter in a password for this door station. This can be anything you want.

You can use the same password as you use to login to iVMS which will make it easy to

remember.

If you ever want to reconfigure this door station at a later time, you will need to know this

password.

6. Click on the door station from the bottom section and click on ‘Modify NetInfo’

7. Make sure the software version is v1.4. build 17 3 2 or above before continuing. If it’s

not then you will need to update the firmware before setting up the system. Refer to the

firmware update tech note for steps on how to update the firmware.

Page 6

8. Make sure the IP says 192. . .65 and then enter in the password you used to activate the

door station, and then click on OK.

9. Select the Door station from the bottom section and then click on ‘Add to Client’.

1 . Now you need to set some settings for this door station.

Nickname – Give the door station a name. In my example, it’s going to be called ‘Door

Station’.

Address – Leave this as 192. . .65

Port – Leave this as port 8

Username – set this as admin

Password – Enter the password you used to activate the door station

Leave the Export to group ticked, once the above is set click on Add.

Page 7

11. Click on ‘Remote Configuration’ from along the top.

12. Select ‘Intercom’ > ‘Dial’ from the left side menu.

13. Enter in a Room number for this door station to call, then click Save.

In my example, its going to call room number 1.

14. Click on ‘Network’ > ‘Linked Network Configuration’ from the left menu.

Page 8

15. Set the SIP Server IP address to be your door station’s IP address. (192. . .65). Leave all

the other settings as default.

Once the IP has been set, press Save.

16. You now need to reboot the room station. Click on ‘System’ > ‘System Maintenance’

then click on ‘Reboot’.

17. Close the remote configuration window.

Page 9

Master Room Station Setup

Handy tip when setting up room stations, connect the room station you are configuring

only, then plug the next one in etc. Connecting them all in together will make it hard to

work out what room station you are configuring since they are all displaying in the list with

the same IP address.

1. Connect a LAN cable into the Master room station and connect it to your network.

Only the master room station needs to connect by the LAN. (the Wi-Fi will be used to

connect the other sub room stations to it)

2. Wait for the touch screen to fully power up, then select ‘Indoor Station / Master Station’

from the left menu in iVMS.

3. Select the room station from the bottom list and click on ‘Activate’

Page 1

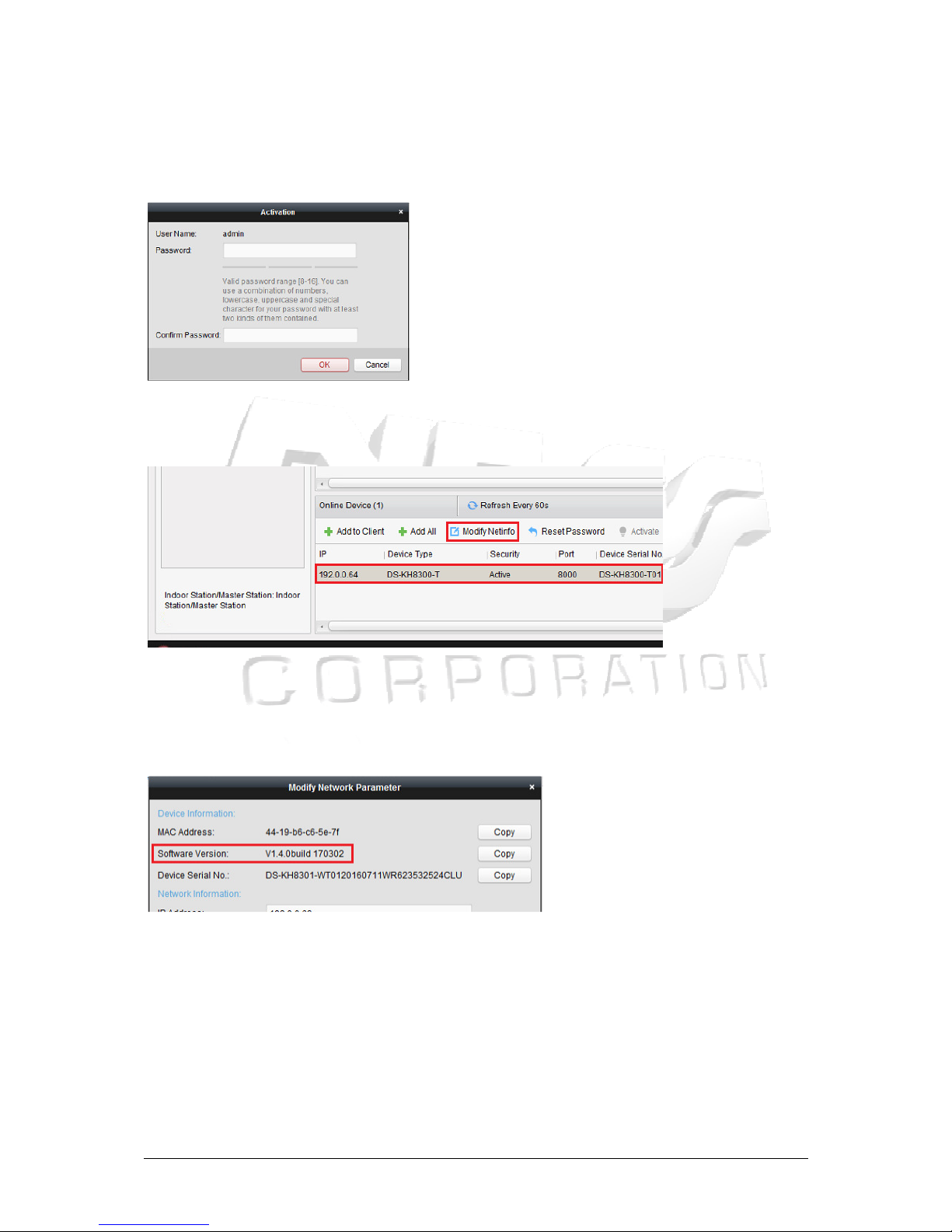

4. When prompted, enter in a password for this door station. This can be anything you want.

You can use the same password as you use to login to iVMS which will make it easy to

remember.

If you ever want to reconfigure this door station at a later time, you will need to know this

password.

5. Select the door station you just activated and click on ‘Modify NetInfo’.

6. Make sure the software version is v1.4. build 17 3 2 or above before continuing. If it’s

not then you will need to update the firmware before setting up the system. Refer to the

firmware update tech note for steps on how to update the firmware.
