1 Appearance ................................................................................................ 1

2 Terminal and Wiring Descripon ................................................................ 3

2.1 Terminal Descripon ......................................................................................... 3

2.2 Wiring Descripon ............................................................................................ 3

3 Installaon .................................................................................................. 5

3.1 Wall Mounng Plate ......................................................................................... 5

3.2 Wall Mounng with Juncon Box ..................................................................... 5

A. Cables ........................................................................................................ 7

Network Indoor Staon Installaon Guide



i - I







󳐆󶌄󶈊󶀕󵤐

 󳐆󶌄󶈊󶀕󵤐

1 Display Screen

2 Microphone

Network Indoor Staon Installaon Guide







󳐆󶌄󶈊󶀕󵤐

 󳐆󶌄󶈊󶀕󵤐

3 Debugging Port

4 Network Interface

5 Loudspeaker

6 TF Card Slot

7 Alarm Terminal

8 Reserved

9 Network Interface and Power Supply



The debugging port is used for debugging only.

Network Indoor Staon Installaon Guide



󳐆󶌄󶈊󶀕󵤐

󳐆󶌄󶈊󶀕󵤐

There are 20 pins in the terminal on the rear panel of the indoor staon: 2 RS-485

pins, 5 reserved pins, 4 relay output pins, 8 alarm input pins, and 1 GND pin.

󳐆󶌄󶈊󶀕󵤐

󳐆󶌄󶈊󶀕󵤐

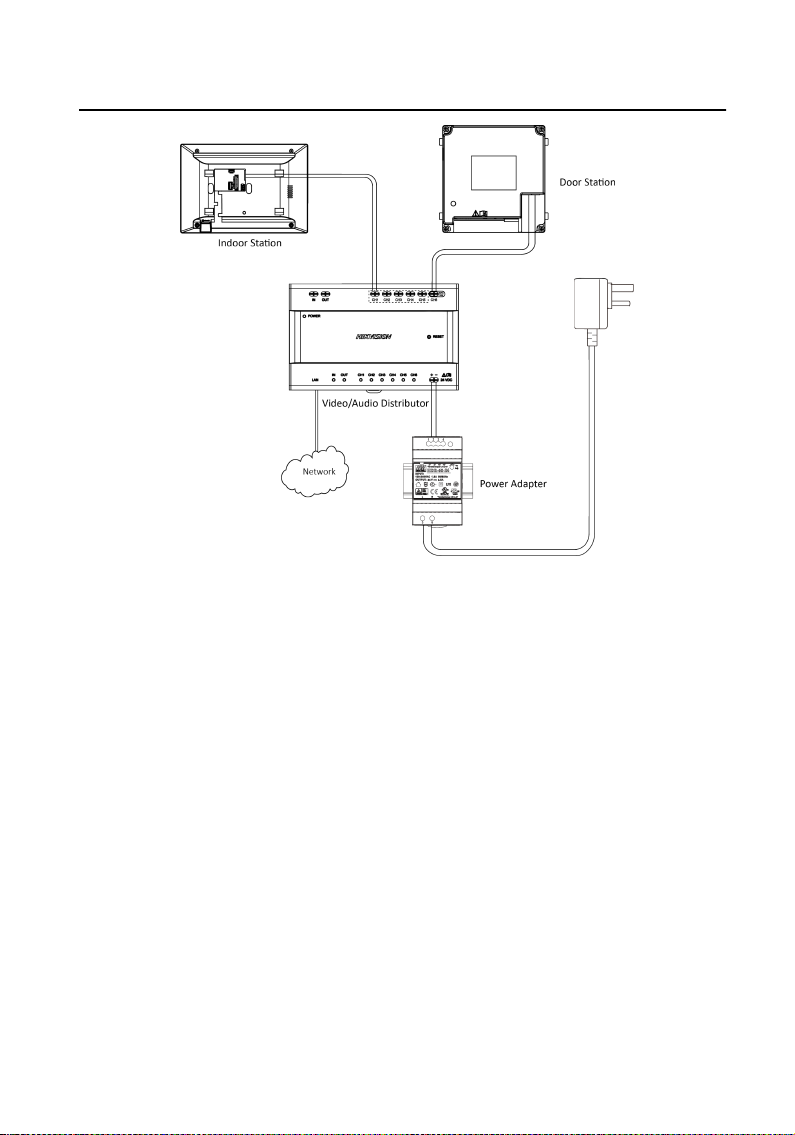

Wire the devices with power supply cables as picture shown below.

Door staon should be connected to CH6 of the video/audio distributor with two-

wire cables.

Indoor Staon should be connected to any terminal of CH1 to CH5 of the video/

audio distributor with two-wire cables.

󳌂󶔕󵤐

Make sure all the related equipment is power-o during the installaon.

Network Indoor Staon Installaon Guide



󳐆󶌄󶈊󶀕󵤐

Network Indoor Staon Installaon Guide



󵄍󵰂󶐊󵼏

Indoor staon supports wall mounng.

󳴐󶔏󶐊󵸈

The wall mounng plate and the juncon box are required to install the indoor

staon onto the wall.

The dimension of juncon box should be 75 mm (width) × 75 mm (length) × 50 mm

(depth).

The dimension of wall mounng plate is shown.

󳴐󶔏󶐊󵸈

󳴐󶔏󶐊󵸈󳨖󵸄󶐊󵼏

Network Indoor Staon Installaon Guide







•Make sure the device in the package is in good condion and all the assembly

parts are included.

•The power supply the indoor staon supports is 12 VDC. Please make sure your

power supply matches your indoor staon.

•Make sure all the related equipment is power-o during the installaon.

•Check the product specicaon for the installaon environment.



 Chisel a hole in the wall. The size of the hole should be 76 mm (width) × 76 mm

(length) × 50 mm (depth).

 Insert the juncon box to the hole chiseled on the wall.

 Fix the wall mounng plate to the juncon box with 2 screws.

 Hook the indoor staon to the wall mounng plate ghtly by inserng the plate

hooks into the slots on the rear panel of the indoor staon, during which the

lock catch will be locked automacally.

󳴐󶔏󶐊󵸈󳨖󵸄󶐊󵼏

Network Indoor Staon Installaon Guide



 



󵼖󶐊󵸈 























DS-KAD706 -

DS-KAD706-S

Transmission

Distance ≤ 60

Transmission

Distance ≤ 60

Transmission

Distance ≤ 60

Transmission

Distance ≤ 35

DS-KAD706-S -

DS-KAD706-S

Transmission

Distance ≤ 60

Transmission

Distance ≤ 60

Transmission

Distance ≤ 60

Transmission

Distance ≤ 35

DS-KAD706-

DS-KD8003-

IME2

Transmission

Distance ≤ 35

Transmission

Distance ≤ 60

Transmission

Distance ≤ 60

Transmission

Distance ≤ 35

DS-KAD706-

DS-KH6320-

WTE2

Transmission

Distance ≤ 35

Transmission

Distance ≤ 60

Transmission

Distance ≤ 60

Transmission

Distance ≤ 35

Network Indoor Staon Installaon Guide


