HIK VISION DS-8004HSI-S Manuel utilisateur

Hikvision Technical Manual

DS-8000HSI-S Series Net DVR

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does

not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any

liability whatsoever for incorrect data that may appear in this documentation. The

product(s) described in this documentation are furnished subject to a license and

may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for

the purposes for which it is supplied. It may not be reproduced in whole or in

part, in any form, or by any means or be used for any other purpose without prior

written consent of HIKVISION and then only on the condition that this notice is

included in any such reproduction. No information as to the contents or subject

matter of this documentation, or any part thereof, or arising directly or indirectly

therefrom, shall be given orally or in writing or shall be communicated in any

manner whatsoever to any third party being an individual, firm, or company or any

employee thereof without the prior written consent of HIKVISION. Use of this

product is subject to acceptance of the HIKVISION agreement required to use this

product. HIKVISION reserves the right to make changes to its products as

circumstances may warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

Contents

1. Overview

2. Model Description

3. Features

4. Specifications

Hikvision Technical Manual

1.Overview

DS-8000HSI-S series Network Digital video Recorder is an excellent digital

surveillance product adopts embedded MCU (Microprocessor Control Unit) and an

embedded Real-Time Operating System (RTOS), along with the most advanced

technology in the Information technology Industry such as video encoding/decoding,

hard disk recording and TCP/IP transmission. The firmware is burned into the flash,

making it more stable and reliable than software programs running from a standard

disk drive.

DS-8000HSI-S series combines the advantages of Digital Video Recorder (DVR)

and Digital Video Server (DVS). It is widely applied as a stand-alone unit or a part of

a powerful surveillance system.

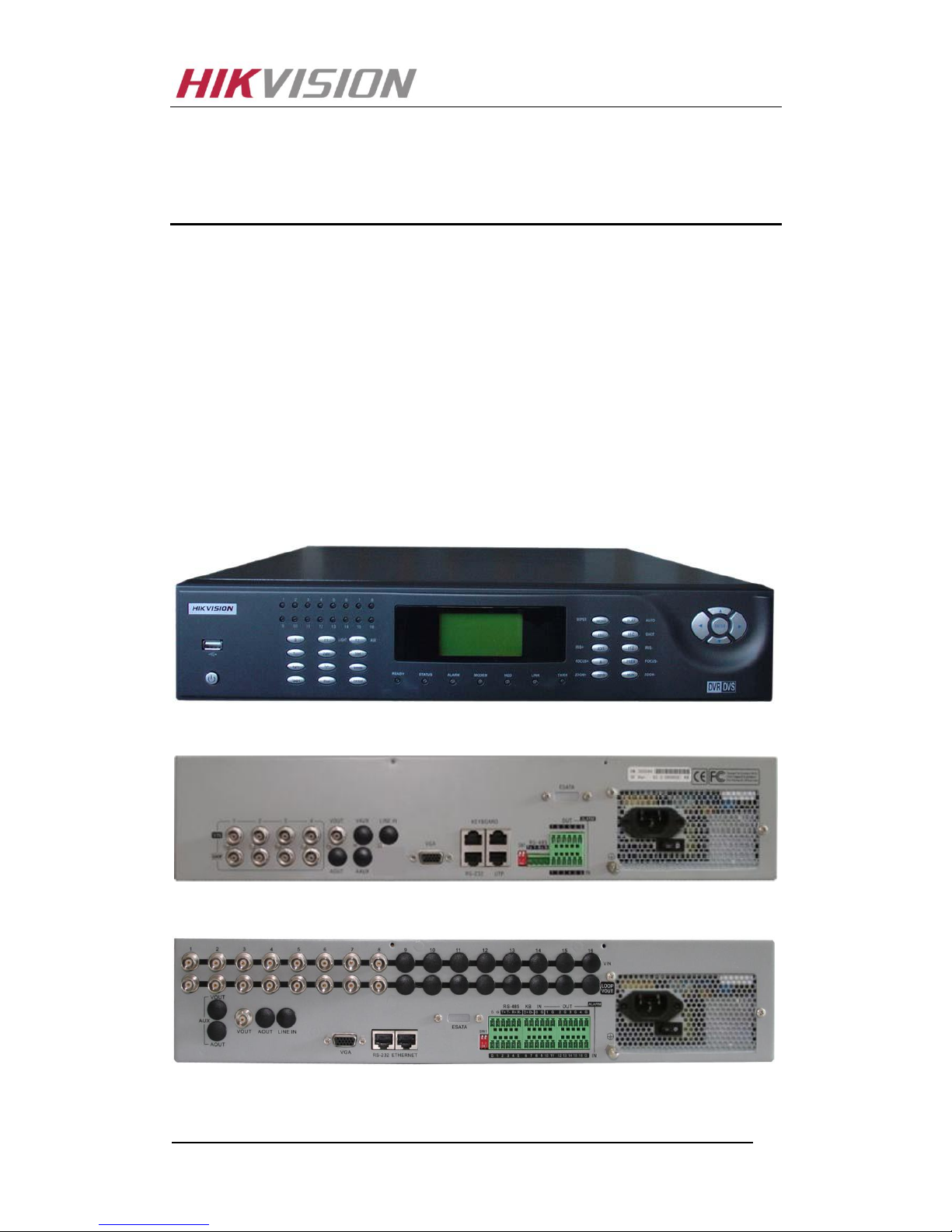

Front Panel

DS-8004HSI-S Rear Panel

DS-8008HSI-S Rear Panel

Hikvision Technical Manual

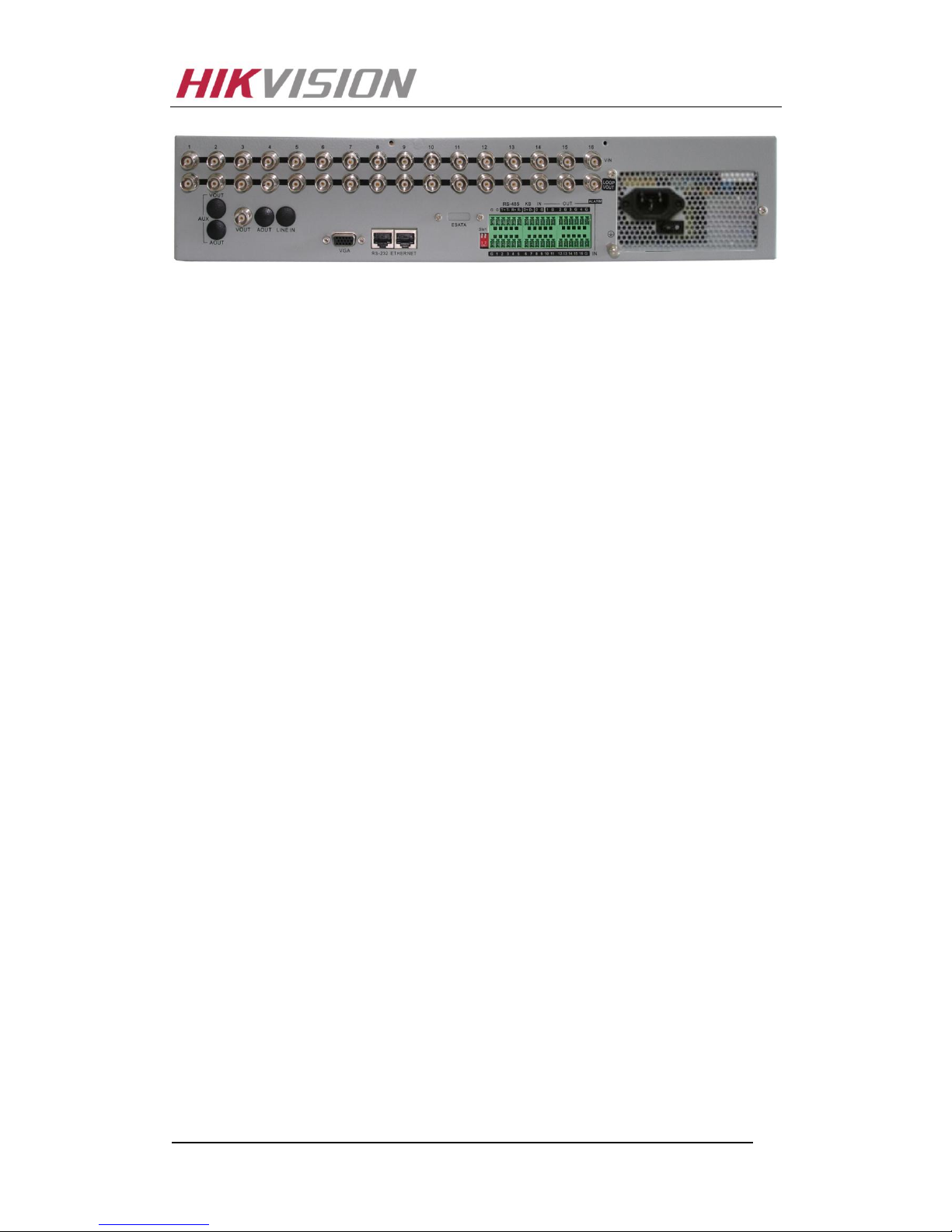

DS-8016HSI-S Rear Panel

Hikvision Technical Manual

2.Model Description

DS-8004HSI-S: 4-ch video input and 4-ch video loop out. No audio input. Each

channel can max support CIF encoding resolution real time. It has 4 SATA

interfaces.

DS-8008HSI-S: 8-ch video input and 8-ch video loop out. No audio input. Each

channel can max support CIF encoding resolution real time. It has 8 SATA

interfaces.

DS-8016HSI-S: 16-ch video input and 16-ch video loop out. No audio input.

Each channel can max support CIF encoding resolution real time. It has 8 SATA

interfaces.

Note: 1. The default DVRs are without HDD or CD-R/W.

2. A factory recommended HDD should be used for this device.

Hikvision Technical Manual

3.Features

3.1 Compression:

Support up to 16 video channels (NTSC/PAL). Each channel is independent

with H.264 hardware compression in real time (NTSC 30FPS, PAL 25FPS).

Support both variable bit rate and frame rate

Support 4CIF, DCIF, 2CIF, CIF and QCIF resolution.

Support multi-area motion detection

Support OSD and changeable OSD position

3.2 Local functions:

3.2.1 Recording:

Support multiple recording types, including schedule recording, manual

recording, motion detection, external alarm, motion & alarm and motion |

alarm, etc.

Support 8 HDDs. Each HDD can support 2000GB maximum.

Support FAT32 file system

Support NAS Recording.

Support Event Recording Para. Setup.

Support HDD S.M.A.R.T technology

Support continuous (overwrite) and linear (stop when full) record modes

Support backup recorded files and video clips with USB memory stick

(thumb drive), USB HDD, USB CD-R/W, USB DVD-R/W or SATA HDD.

3.2.2 Preview and playback:

Support BNC analog monitor and VGA output for main output

Support multiple live view modes

Support video loop output.

Support Privacy Mask

Support view tampering alert.

Support video signal loss alert.

Support play forward, backward, pause, frame-by-frame, etc

Support play back by files or by time/date

Displays local record status

3.2.3 PTZ:

Support multiple PTZ protocols

Support preset, sequence and cruise

Hikvision Technical Manual

3.2.4 Alarms:

Support exception alarm, motion detection alarm, external alarm, etc

3.3 Miscellaneous:

Support IR Remote control

Support RS-485 keyboard

Support multi-level user management

Support Mouse Operation Menu.

Support multiple upgrade modes, including FTP, USB and CD.

3.4 Network:

Support Advanced Network Function: NTP, DDNS and E-mail.

Support TCP, UDP, RTP, Multicast for network viewing

Support PPPoE for broad band dialup

Support PSTN for standard dialup

Support remote parameters setup

Alarm information can be sent to remote center

Network control PTZ

Network download and playback recorded files from the DVR

RS-232 supports transparent channel function

Support IE preview and configuration

Support SADP protocol

Support remote log query

3.5 Development support:

Provide network SDK (Software Development Kit)

Provide client demo source code

Hikvision Technical Manual

4.Specifications

Model

DS-8004HSI-S

DS-8008HSI-S

DS-8016HSI-S

Video standard

H.264

Preview

resolution

4CIF (PAL: 704*576, NTSC: 704*480)

Playback

resolution

(PAL/NTSC)

4CIF/DCIF/2CIF/CIF/QCIF

2CIF/CIF/QCIF

Video input

interface

BNC (1.0Vp-p, 75Ω)

Video loop

output

Video output

1 channel, BNC (1.0Vp-p, 75Ω)

Frame rate (per

channel)

4CIF: 8fps

DCIF: 8fps

2CIF: 15fps

CIF: 25(P)/30(N) fps

2CIF: 8fps

CIF: 25(P)/30(N) fps

Stream type

Video

Bit rate

32Kbps~2Mbps, user-defined (Max. 8Mbps)

Communication

interface

1 RJ45 10M/100M Adaptive Ethernet Interface

RS-232 Port

1 RJ45 RS-232 port

PTZ control

1 RS-485 port (T+, T-, R+, R-)

Keyboard

interface

2 RJ45 ports

1 port (D+, D-)

SATA interface

E-SATA

(optional)

1st internal SATA interface can be extended to be E-SATA

USB interface

1 USB interface, can support USB disk, USB HDD, USB

DVD-R/W and CD-R/W

VGA interface

1 VGA interface, support resolution: 800x600/60Hz,

1024x768/60Hz, 1280*1024/60Hz

External alarm

Relay output

Power supply

100~240VAC, 6.3A, 50~60Hz

Power

consumption

≤70W (without HDD)

Hikvision Technical Manual

Working

temperature

-10°C ~ +55°C

Working

humidity

10% ~ 90%

Size

470mm(D)*441mm(W)*90mm(H)

Weight

≤8Kg (without HDD)

PAL: 176×144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF);

NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF).
