HIK VISION DS-72 Series Manuel utilisateur

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 1

DS-72xx Series

Installation Guide and Quick Start Guide

Version 1.2.2

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 2

Verify Contents

Verify that the package contents are correct by checking the

items against the packing list.

Note: Please contact your dealer for damaged or missing

items.

DVR Pre-Installation

The DS-72xx Series DVR is highly advanced surveillance

equipment that should be installed with care. Please take into

consideration the following precautionary steps before

installation of the DVR.

1. Keep all liquids away from the DVR.

2. Install the DVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory

specifications.

4. Install a manufacturer recommended HDD.

DVR Installation

During the installation of the DVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the

cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable. (Note: For

some models there are no these two kinds ports.)

5. Allow at least 2cm (~0.75in) of space between racks

mounted devices.

6. Ensure the DVR is grounded.

7. Environmental temperature should be within the range of

-10C ~ 55C, 14F ~ 131F.

8. Environmental humidity should be within the range of

10% ~ 90%.

Hard Disk Installation

Before installing a hard disk drive (HDD), please make sure

the power is disconnected from the DVR. A factory

recommended HDD should be used for this installation.

Tools Required: Screwdriver.

To install a HDD on your DVR:

1. Remove the cover from

the DVR by unfastening

the screws on the back

and side.

2. Install the HDD in the

HDD rack using the

provided screws. Fasten

the screws on the button

to fix the HDD.

3. Connect the HDD to the

motherboard of the

DVR with the included

data cable.

4. Connect the power cable

to the HDD.

5. Re-install the cover of

the DVR and fasten

screws.

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 3

Rear Panel Diagram

DS-7204HVI-ST, DS-7204HFI-ST Rear Panel:

DS-7204HVI-ST/RW and DS-7204HFI-ST/RW Rear Panel:

DS-7204HVI-ST/L Rear Panel:

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 4

No.

Item

Description

VIDEO IN

BNC connectors for analog video input

VIDEO OUT

BNC connector for video output.

AUDIO IN

RCA connectors for analog audio input

LINE IN

RCA connector for audio input

AUDIO OUT

RCA connector for audio output

LAN

Connector for LAN (LocalArea Network)

VGA

DB15 connector for VGA output. Display local video output

and menu

USB

Connector for USB devices

RS-232 Interface

DB9 connector for RS232 devices.

ALARM IN

Connector for alarm input

ALARM OUT

Connector for alarm output

RS-485 Interface

Connector for RS-485 devices. T+, T- pin connects to PTZ

POWER

Switch for turn on/off the device

12V

12VDC power supply

GND

Ground(needs to be connected when DVR starts up)

Notes:

DS-7204HVI-ST/M and DS-7204HVI-ST/E have almost the same rear panel of DS-7204HVI-ST,

except that:

1. DS-7204HVI-ST/M doesn’t have RS-232 port.

2. DS-7204HVI-ST/E doesn’t have RS-232 port, alarm input or output ports and RS-485 ports.

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 5

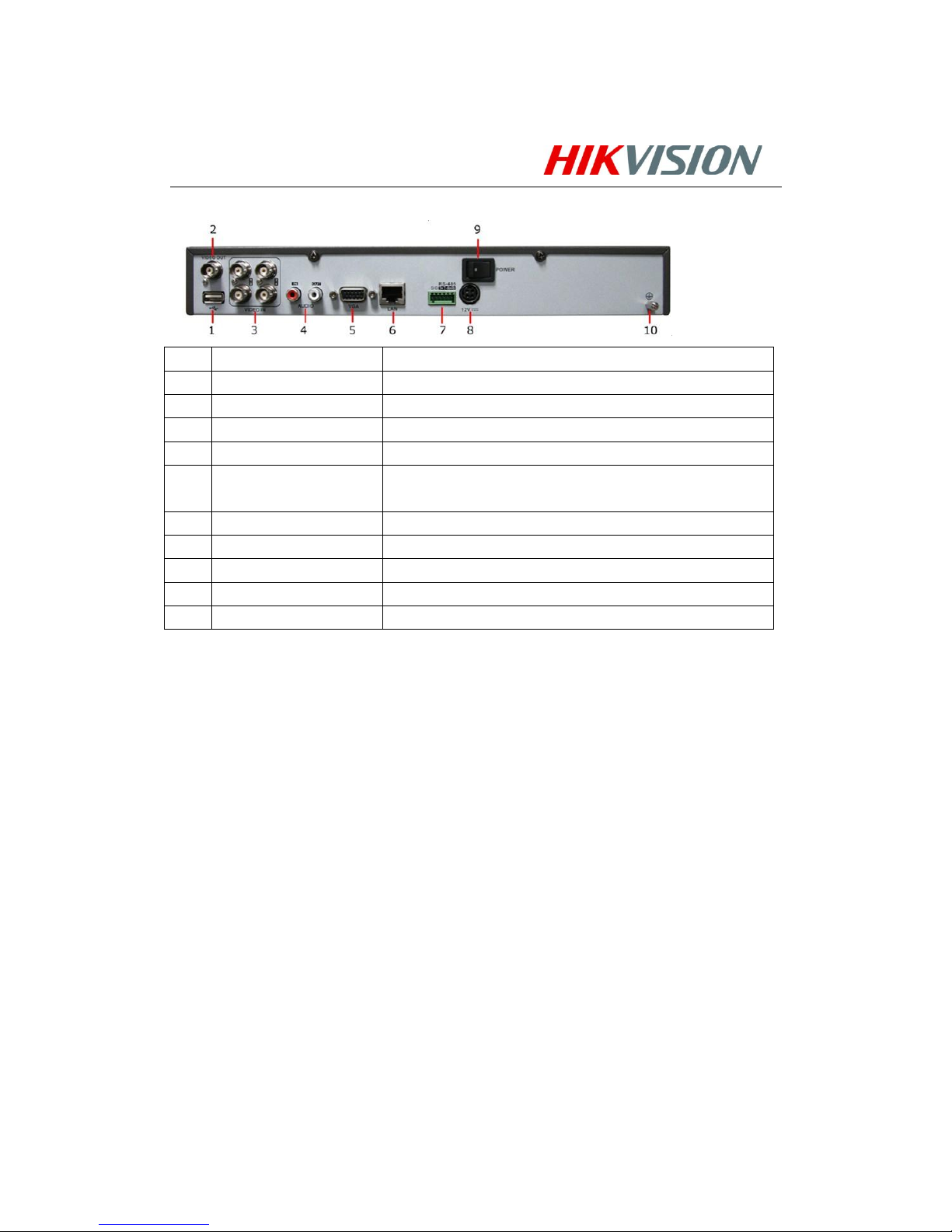

DS-7204HVI-ST/SE, DS-7204HFI-ST/SE Rear Panel:

No.

Item

Description

USB

Connector for USB devices

VIDEO OUT

BNC connector for video output.

VIDEO IN

BNC connectors for analog video input

AUDIO IN/OUT

RCA connectors for analog audio input/output

VGA

DB15 connector for VGA output. Display local video output

and menu

LAN

Connector for LAN (LocalArea Network)

RS-485 Interface

Connector for RS-485 devices. T+, T- pin connects to PTZ

12V

12VDC power supply

POWER

Switch for turn on/off the device

GND

Ground(needs to be connected when DVR starts up)

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 6

DS-7208HVI-ST Rear Panel:

DS-7208HVI-ST/RW Rear Panel:

DS-7208HFI-ST/RW Rear Panel:

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 7

No.

Item

Description

MAIN VIDEO OUT

BNC connectors for main video out

SPOT VIDEO OUT

BNC connectors for spot video out

VIDEO IN

BNC connectors for analog video input

AUDIO IN

RCA connectors for analog audio input

LINE IN

RCA connector for audio input

AUDIO OUT

RCA connector for audio output

VGA

DB15 connector for VGA output. Display local video output and

RS-232 Interface

DB9 connector for RS-232 devices.

LAN

Connector for LAN (LocalArea Network)

USB

Connector for USB devices

POWER

Switch for turn on/off the device

ALARM IN

Connector for alarm input

ALARM OUT

Connector for alarm output

RS-485 Interface

Connector for RS-485 devices. T+, T- pin connects to PTZ

12V

12VDC power supply

GND

Ground(needs to be connected when DVR starts up)

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 8

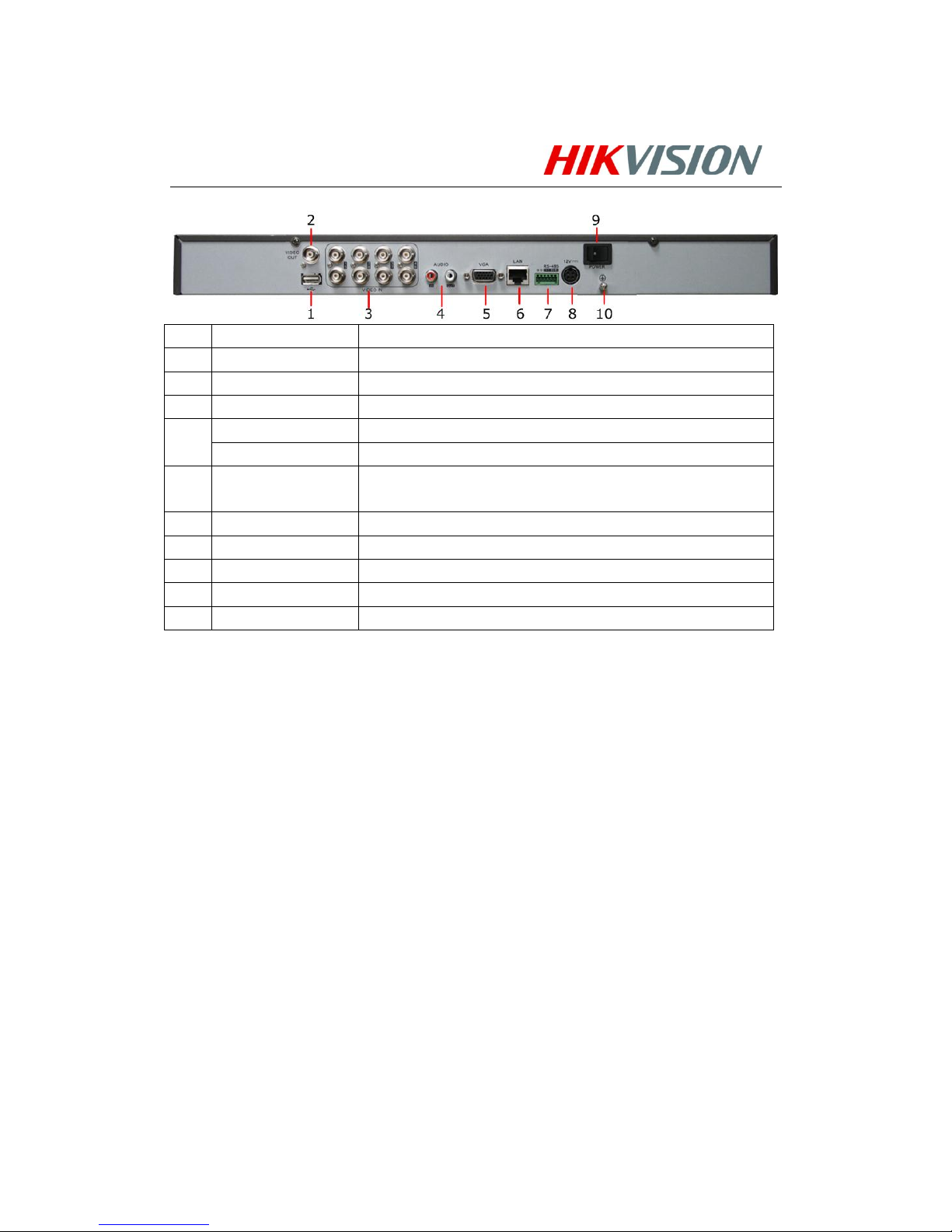

DS-7208HVI-ST/SE Rear Panel:

No.

Item

Description

USB

Connector for USB devices

VIDEO OUT

BNC connectors for main video out

VIDEO IN

BNC connectors for analog video input

AUDIO IN

RCA connectors for analog audio input

AUDIO OUT

RCA connector for audio output

VGA

DB15 connector for VGA output. Display local video output and

LAN

Connector for LAN (LocalArea Network)

RS-485 Interface

Connector for RS-485 devices. T+, T- pin connects to PTZ

POWER

Switch for turn on/off the device

12V

12VDC power supply

GND

Ground(needs to be connected when DVR starts up)

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 9

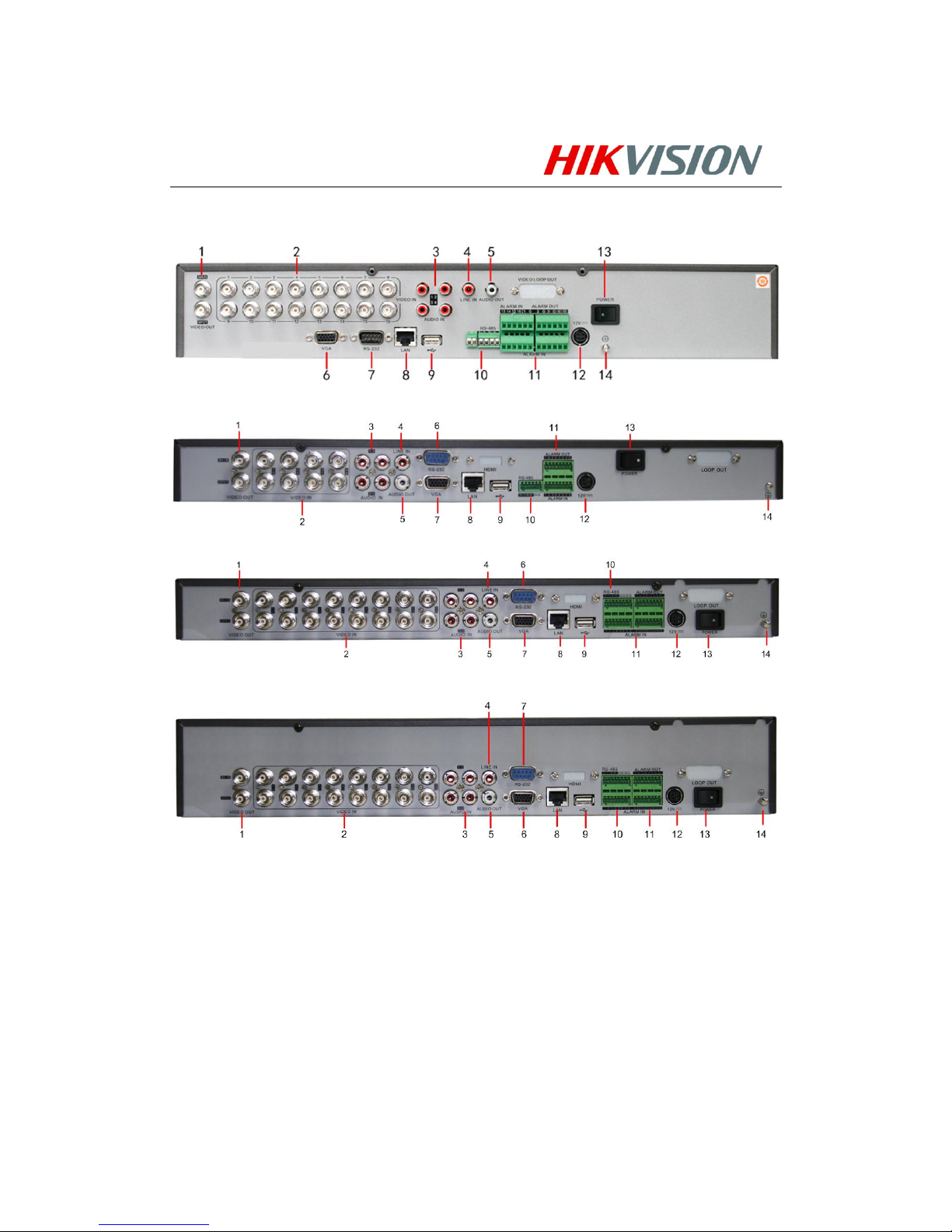

DS-7216HVI-ST (/RW) Rear Panel:

DS-7208HFI-ST Rear Panel:

DS-7216HFI-ST Rear Panel:

DS-7216HFI-ST/RW Rear Panel:

Installation Guide

DS-72xx Series DVR

Hikvision EURO, Inc. DS-72xx Series Embedded Net DVR Installation Guide and Quick Start Guide 10

No.

Item

Description

MAIN VIDEO OUT

BNC connectors for main video out

SPOT VIDEO OUT

BNC connectors for spot video out

VIDEO IN

BNC connectors for analog video input

AUDIO IN

RCA connectors for analog audio input

LINE IN

RCA connector for audio input

AUDIO OUT

RCA connector for audio output

VGA

DB15 connector for VGA output. Display local video output and

RS-232 Interface

DB9 connector for RS-232 devices.

LAN

Connector for LAN (LocalArea Network)

USB

Connector for USB devices

RS-485 Interface

Connector for RS-485 devices. T+, T- pin connects to PTZ

ALARM IN

Connector for alarm input

ALARM OUT

Connector for alarm output

12V

12VDC power supply

POWER

Switch for turn on/off the device

GND

Ground(needs to be connected when DVR starts up)
