HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Secure KVM Extenders | QUICK SETUP GUIDE

HDC19412 Rev. 1.0

Models:

FICE11PH-M DP/HDMI Secure Copper KVM Extender

FVCE11PH-M DP/HDMI Secure Copper Video Extender

FICE11CH-M USB Type-C to DP/HDMI Secure Copper KVM Extender

FIFE11PH-M DP/HDMI Secure Fiber KVM Extender

FVFE11PH-M DP/HDMI Secure Fiber Video Extender

Secure KVM Extenders

Highseclabs.com

their respective owners. Images for demonstration purposes only. This document may contain confidential and/or proprietary information of HSL

Corporation, and its receipt or possession does not convey any right to reproduce, disclose its contents, or to manufacture or sell anything that it may

describe. Reproduction, disclosure, or use without specific authorization from HSL Corporation is strictly prohibited.

HDC19956 Rev. 2.0

Secure KVM Extenders | QUICK SETUP GUIDE

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Table of Contents

SECTIONS 12 3

TABLE OF CONTENTS

Introduction

HSL Secure KVM Extenders

Installation

Connecting the Secure KVM Extender

Operation

Running an EDID Capture

Safety and Regulatory Statements

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Table of Contents SECTIONS 12 3

INTRODUCTION

HSL Secure KVM Extenders Family

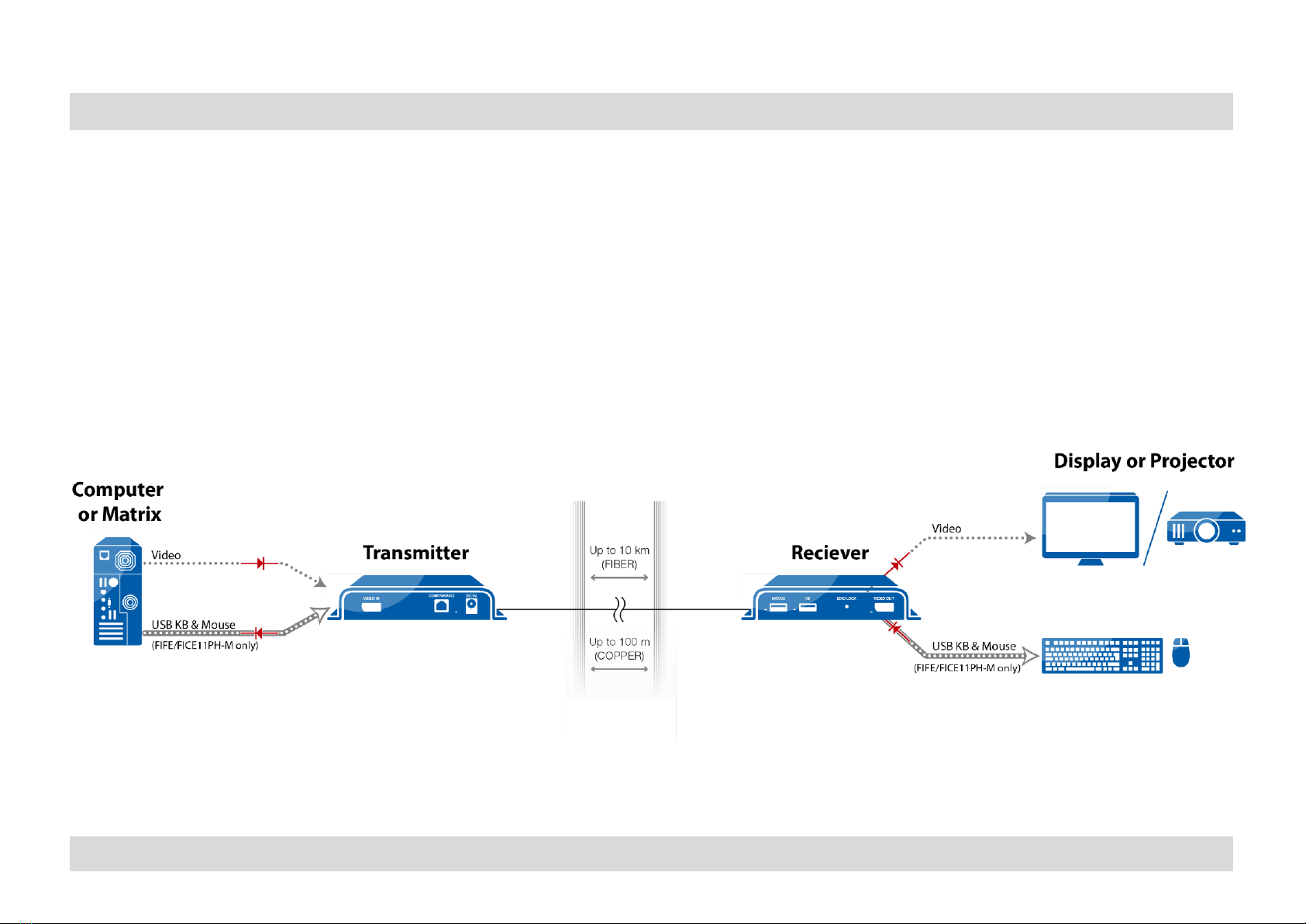

The Secure KVM Extender extends video, audio and

Keyboard/Mouse signals up to hundreds of meters while

it prevents vulnerable peripherals from mediating

between compromised and secure computers by

ensuring that video, audio and KM flow are in a single

direction.

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Table of Contents SECTIONS 123

INSTALLATION

Step 1 - Connect the Secure KVM Extender’s Receiver

and the Transmitter parts

The device’s Receiver and Transmitter may be

located in different rooms or even different

buildings.

Connect the two parts with a suitable cable

through the connection port:

Models FICE11PH-M, FVCE11PH-M and

FICE11CH-M - with a Copper Cable

Models FIFE11PH-M and FVFE11PH-M - with

Optical Fiber Cable

Note: If either LED remains OFF, the Isolator does not

recognize the

device. Use an alternative device!

EDID LEDs

KB LEDs

Transmitter

Receiver

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Table of Contents SECTIONS 123

INSTALLATION

Step 2 –Connecting the Transmitter (PC side) to the PC

1. Video connection: For all models, connect the PC

to the Isolator Extender’s VIDEO IN port, using the

HDMI or DP video cable

2. PC Keyboard and Mouse connection: For

FICE11PH-M, FIFE11PH-M models, connect the PC

to the Isolator using a USB A to USB B cable.

Connect the USB A end to the PC and the USB B

end to the Isolator Extender’s COMP/MOUSE port.

Power LED

Video transfer

LED

Rx to Tx

connection

LED

EDID LED

Video Inport

HostKeyboard/Mouse

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Table of Contents SECTIONS 123

INSTALLATION

Step 3 –Connecting the peripherals to the

Secure KVM Extender Receiver ( CONSOLE SIDE)

1. Video connection: For all models, connect

the monitor/projector cable to the Isolator’s

VIDEO OUT port.

2. PC keyboard and mouse connection: For

FICE11PH-M, FIFE11PH-M models, connect a

USB mouse and keyboard, to the Isolator

Extender Receiver’s corresponding MOUSE

and KB ports.

Both mouse and keyboard LEDs should light

continuously green when KB and Mouse

are connected and device is turned on.

Note: If either LED remains OFF, the Extended Isolator

does not recognize the device.

Use an alternative device!

Video

Transfer LED

KB/Mouse LEDs EDID LED

Power LED

Rx to Tx

connection

LED

EDID Lock

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Table of Contents SECTIONS 123

INSTALLATION

Step 4 - Power ON

1. For all models, connect the power adapters on

both the Secure KVM Extender’s Transmitter

and Receiver at the PC SIDE, DC IN port.

Power ON the unit by plugging it into an AC

wall outlet.

2. The PC SIDE Power LED should light green

continuously. If not, check the connections.

Step 5 - Make sure the connected PC on the

Transmitter side and Display or Projector on

the Receiver side are powered ON.

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

Transmitter

Receiver

Table of Contents

SECTIONS 123

OPERATION

Running an EDID Capture

Before using the Extender, run a one-time EDID capture on both sides –Transmitter

and Receiver. This prevents the continuous transfer of potentially malicious data -

from the display to the PC –that could infect the PC, cause data leakage, and so on.

Preparation:

•Connect the PC and all peripherals to both the units, according to the

Installation Instructions.

•Make sure the PC, display, and the units are ON.

To run an EDID capture:

1. On the Transmitter, short-click the EDID Lock button –for less than one

second.

Warning: Long-clicking the EDID Lock button sends the unit into an

undesired loop. If this happens, restart the unit and repeat the

procedure.

At first, the EDID LED flickers for a few seconds and then, once captured

lights green continuously.

2. Make same on the Receiver, short-click the EDID Lock button –for less

than one second and wait until the EDID LED will light green continuously.

Note: If the EDID LED is OFF, check the connections and that the PC or

the Display are powered ON. Then, repeat the procedure.

3. Restart both units.

Note: An EDID capture needs to be

performed for new installations and

when changing a display.

EDID Lock button

EDID LED

Table of Contents SECTIONS 123

HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0

SAFETY AND REGULATORY STATEMENTS

Safety Symbols

One or more of the following symbols may be included in your

product documentation and/or on the product.

Instructions: This symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the product user manual.

Dangerous Voltage: This symbol is intended to alert the user to the presence of uninsulated

dangerous voltage within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

Power On: This symbol indicates the principal on/off switch is in the ON position.

Power Off: This symbol indicates the principal on/off switch is in the OFF position.

Protective Grounding Terminal: This symbol indicates a terminal which must be connected

to earth ground prior to making any other connections to the equipment.

Safety Precautions

WARNING: To avoid a potentially fatal shock hazard and possible damage to equipment, please observe the

following precautions.

•Do not disable the power grounding plug. The grounding plug is an important safety feature.

•Plug the power cord into a grounded (earthed) outlet that is easily accessible at all times.

•Disconnect the power from the product by unplugging the power cord from either the electrical

outlet or the product. The AC inlet is the main disconnect for removing power to this product.

For products that have more than one AC inlet, to remove power completely, all AC line cords

must be disconnected.

•This product has no serviceable parts inside the product enclosure. Do not open or remove

product cover.

This product is for use with other products that are Listed or Certified by a Nationally Recognized

Testing Laboratory (NRTL).

NIAP Protection Profile

This product is certified to the NIAP Protection Profile PSD version

4.0 certification for peripheral sharing switch devices.

Installation Precautions

Note: HSL Secure Extended Isolators are protected with Holographic Tamper-Evident Labels on

the product’s enclosure to provide a visual indication in case the enclosure has been opened or

compromised.

Do not connect this product to computing devices that:

•are TEMPEST computers

•include telecommunication equipment

•include frame grabber video cards

•include special audio processing cards.

WARNING: Peripherals' Warning - For security reasons, this product does not support wireless keyboards. It is

recommended not to connect a microphone or headset to the audio output port.

Security Vulnerability

If you are aware of a potential security vulnerability while installing this product, contact Technical

Support immediately by:

•Web form: www.highseclabs.com/support/case/

•Email: security@highseclabs.com

•Tel: +972-4-9591191/2

WARNING: Unit Enclosure Warning - If the unit’s enclosure appears disrupted or if all LEDs flash continuously,

remove the product from service immediately and contact Technical Support.
