ASSEMBLY INSTRUCTIONS

IM-560en

Vers. 05

22/09/2021

PH-300

VERTICAL LIFTING PLATFORM

ORIGINAL INSTRUCTIONS

ASSEMBLY INSTRUCTIONS

PH-300 VERTICAL LIFTING PLATFORM

IM-560en

Vers. 05

Page 1

Contents

1. Tools and equipment............................................................................................................... Page 2

2. Shaft check............................................................................................................................. Page 3

3. Guide assembly...................................................................................................................... Page 12

4. Assembly of the machine cabinet ........................................................................................... Page 15

5. Hydraulic installation............................................................................................................... Page 16

6. Electrical installation ............................................................................................................... Page 17

6.1. Guide electrical installation........................................................................................ Page 17

6.2. Machine cabinet electric installation.......................................................................... Page 17

7. Vehicle installation .................................................................................................................. Page 18

8. Landing push button panels.................................................................................................... Page 24

9. Upper landing door assembly................................................................................................. Page 26

10. Protective bellows (optional)................................................................................................. Page 35

11. Electrical adjustment............................................................................................................. Page 36

11.1. Adjustment of the circuit breaker ............................................................................. Page 36

11.2. Adjustment of the stop nal limit switches ............................................................... Page 36

11.3. Adjustment of the opening angle of the automatic door........................................... Page 37

12. Hydraulic adjustment ........................................................................................................... Page 38

12.1. Description of the group .......................................................................................... Page 38

12.2. Hydraulic diagram.................................................................................................... Page 38

12.3. Adjustment of the descent speed ............................................................................ Page 39

13. Adjustment of the overload detection system ....................................................................... Page 39

14. Final tests ............................................................................................................................. Page 40

IM-560en

Vers. 05

Page 2

ASSEMBLY INSTRUCTIONS

VERTICAL LIFTING PLATFORM PH-300

1. Tools and equipment

●Safety goggles

●Gloves

●Safety boots

●Drill with several bore bits for concrete Ø6, Ø10 and Ø16

●Manual resin aplicator HILTI HDM330 for the supplied anchorages

●Spirit level

●Bob plumb

● Complete at spanner or star spanner set

●Torque wrench for 5 Nm

●Star screwdriver

●Slot head screwdriver

●Funnel

●Ruler with a 1.5 m aproximate length

Personal protection

Tools and equipment

ASSEMBLY INSTRUCTIONS

PH-300 VERTICAL LIFTING PLATFORM

IM-560en

Vers. 05

Page 3

2. Shaft check

1 Install suitable protections to prevent risks of falling during assembly.

2 Check that the supplied anchorages are appropriate for the type of wall the guide

shall be xed upon. The chemical anchorages are appropriate for walls made of

structural concrete, solid bricks or hollow brick.

3 Verify the characteristics of the wall to which the guide shall be xed. The guide is

designed to be xed to the oor, to the slab of the upper landing level and on the

upper end of the guide. In case a resistant enough support is not available for the

xation on the upper end of the guide the two upper xations may be moved to the

central xation plate to the slab. The reaction forces of the guide assembly on the

oor and xation wall are indicated in the following drawing.

With xation on the upper

end of the guide

Only with xation to the slab

of the upper landing level

2.5 kN

2 kN

0.6 kN

2 kN

0.6 kN

2 kN

R 1100

2.5 kN

2 kN

20 kN

R 1100

20 kN

IM-560en

Vers. 05

Page 4

ASSEMBLY INSTRUCTIONS

VERTICAL LIFTING PLATFORM PH-300

4 Check that the following dimensions are within the specied limits. Should this not

be case, get in touch with our aftersales department.

- R Platform travel. Permissible deviation of ± 50 mm

- E0 Minimum space for access on lower level: ≥2040

Upper

level

Lower

level

- E1 Minimum space on upper level with 180º access: ≥1200

Upper levelLower level

- E1 Minimum space on upper level with 90º access: ≥1200

Upper level

Lower level

ASSEMBLY INSTRUCTIONS

PH-300 VERTICAL LIFTING PLATFORM

IM-560en

Vers. 05

Page 5

5 Check adjacent surface requirements:

- Upper access side. Vertical, continuous, solid and without projections; throughout

the dimension of the platform

- Guide side. Vertical, continuous, solid and without projections

- Side without access. According to the value of the travel (R) and the distance to the

platform (d):

R≤500 R>500 Surface

- d=20 Vertical, continuous, solid and without projections;

throughout the dimension of the platform

20≤d<120 80≤d<120 Vertical, continuous, solid and without projections

120≤d<400 Vertical, continuous and solid

d≥400 No specic requirements

Vertical, continuous and solid, throughout the dimension of the platform, for R>500 (d=20)

Permitted projection dimensions for

wall without projections

d=20A

1100

d=20

1.5÷5≤1.5

≤15º

IM-560en

Vers. 05

Page 6

ASSEMBLY INSTRUCTIONS

VERTICAL LIFTING PLATFORM PH-300

Vertical, continuous and solid, for R>500 (d= 80÷400)

1.5÷5≤1.5

≤15º

d=80÷400A

d=80÷400

1100

Permitted projection dimensions

for wall without projections

(for d=80÷120 only)

Vertical, continuous and solid, for R≤ 500 (d= 20÷400)

1.5÷5≤1.5

≤15º

Permitted projection dimensions

for wall without projections

(for d=20÷120 only)

d=20÷400

d=20÷400A

ASSEMBLY INSTRUCTIONS

PH-300 VERTICAL LIFTING PLATFORM

IM-560en

Vers. 05

Page 7

No specific requirements (d≥400)

d≥400A

40 (for R>500 only)

d≥400

IM-560en

Vers. 05

Page 8

ASSEMBLY INSTRUCTIONS

VERTICAL LIFTING PLATFORM PH-300

6 For the lower protection option, check that the pit dimensions are correct.

- F Pit depth

R (mm) F (mm)

≤ 400 ≥30

400< ≤ 700 ≥45

700< ≤1000 ≥60

1000< ≤1300 ≥75

1300< ≤1500 ≥90

Upper

level

Lower

level

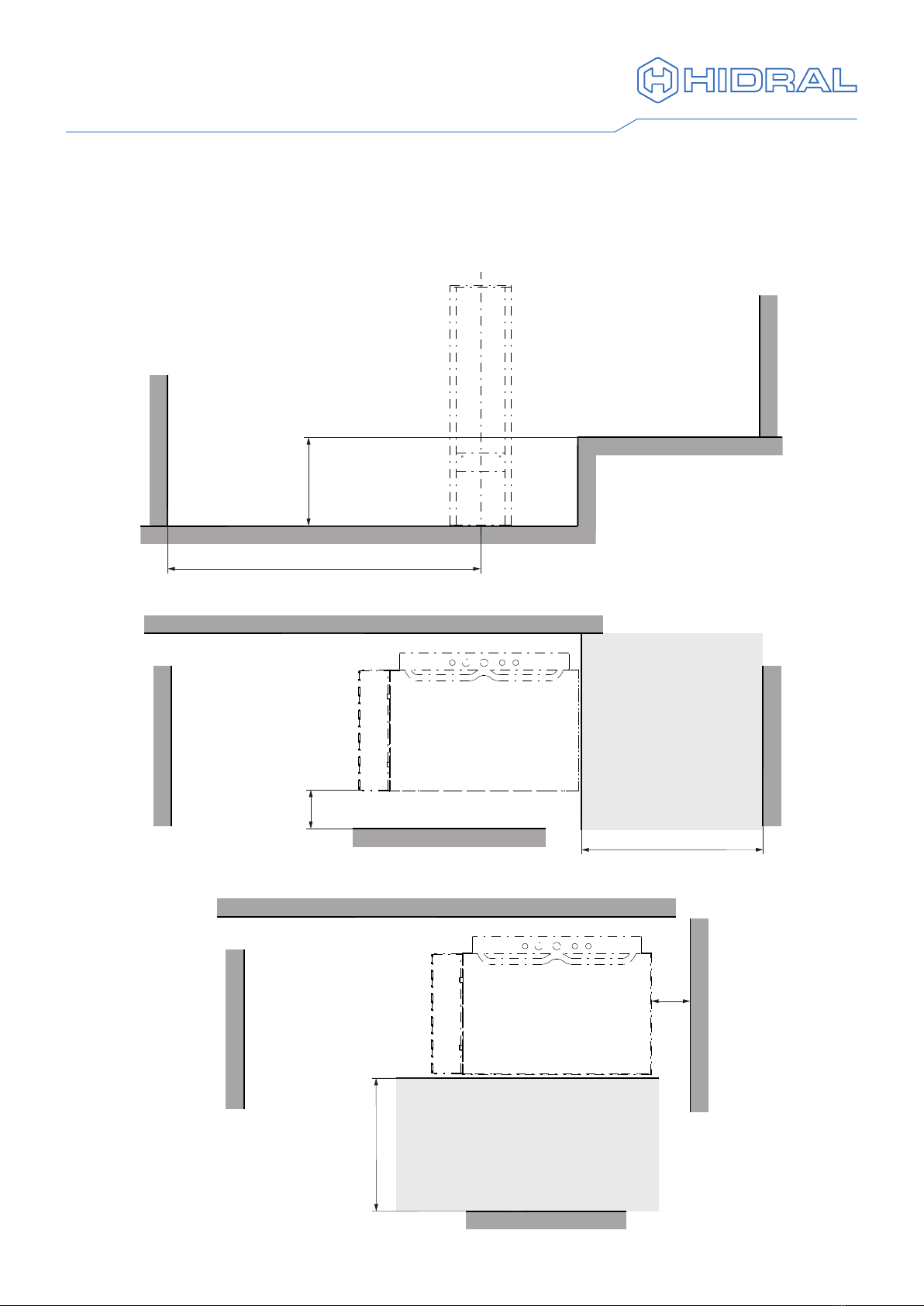

- Pit dimensions for 180º access: (A+255) x 1220

Upper levelLower level

1220

A+255

- Pit dimensions for 90º access: (A+255) x 1150

Upper level

Lower level

1150

A+255
