Herutu BN920 Manuel utilisateur

Wireless Call Systems

BN920

Instruction Manual V1.20

Please use this Instruction manual correctly on reading well.

Please keep it carefully to be able to read immediately, when required.



Table of Contents

1.Overview....................................................................................................................................... 1
1-1.Introduction........................................................................................................................... 1
1-2.Main Unit and Accessories.................................................................................................. 3
1-3.Safety Precautions (Be Sure to Read This)....................................................................... 4
1-4.General .................................................................................................................................. 6
1-5.System Configuration.......................................................................................................... 7
2.Specification................................................................................................................................ 8
2-1．General Specification ......................................................................................................... 8
2-2．Transmitter AN920T........................................................................................................... 8
2-3．Receiver BN920R/BNW920R.............................................................................................. 9
3.Part Names And Descriptions.................................................................................................. 10
3-1.AN920T ................................................................................................................................ 10
3-2．BN920R/BNW920R.............................................................................................................11
4．Drawing..................................................................................................................................... 12
4-1．AN920T............................................................................................................................... 12
4-2．BN920R/BNW920R............................................................................................................ 12
5. Settings ..................................................................................................................................... 13
5-1.Transmitter Setting............................................................................................................. 13
5-2.Display Setting.................................................................................................................... 16
6.Installation.................................................................................................................................. 19
6-1. Installation of Transmitter............................................................................................. 19
6-1-1.External Input............................................................................................................... 19
6-1-2. Input Circuit................................................................................................................. 19
6-2.Installation of Receiver...................................................................................................... 20
6-2-1. Input / Output Terminal Block................................................................................... 20
6-2-2．Output circuit.............................................................................................................. 22
7. Description of Operation......................................................................................................... 23
8.Speaker (Optional) .................................................................................................................... 26
8-1.Speaker Operation.............................................................................................................. 26
8-2.Dimensions of Receiver with Speaker............................................................................. 26
8-3.Sound Selection ................................................................................................................. 27
9. Keyboard................................................................................................................................... 29
9-1.Connect Keyboard Unit ..................................................................................................... 29
9-2.Name and Function of Keyboard Unit.............................................................................. 30
9-3.Operation of Keyboard Unit .............................................................................................. 30
10．After Service and Warranty................................................................................................... 31

BN920

1.Overview

1-1.Introduction

This instruction manual describes the information required for using this product including overview,

installation, and operation of this product. Read this manual carefully before using this product. Keep this

manual handy so that you can take it out immediately.

A wireless module "RN2903" built in this product obtained the transmitter approval of Federal

Communication Commission (FCC), CFR 47 Telecommunication, Part 15.212 Modular Transmitters, and the

module approval of Part15, Subpart C "International Radiators" based on the above approval.

The "RN2903" module is also approved for use in Canada according to the Radio Standards Specification

(RSS) RSS-210 and RSS-GEN of Industry Canada (IC).

■FCC Warning

■IC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and annunciator.

• Connect the equipment into an outlet on a circuit different from that to which the annunciator is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Industry Canada licenseexempt RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)

'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

BN920

■External Antenna Types

Type

Gain(dBi)

Impedance

Sleeve Dipole

Under 6dBi

50Ω

1.Do not use this product for the application that may cause harm to human body or damage to other

devices and equipment.

Do not use this product near the devices that may malfunction due to radio waves emitted from this

product.

2.Disassembly or modification of the device having an approval is prohibited by the law.

3.This product is available only in Canada and USA.

4.Because the communication performance is changed depending on the surrounding environment, be sure

to confirm the communication is established before installation of this product and then use it.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or

lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than

that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avecune antenne d'un

type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.

Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, ilfaut choisir le type

d'antenne et son gain de sorte quela puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by

Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna

impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the

maximum gain indicated for that type, are strictly prohibited for use with this device.

Conformément à la réglementation d'Industrie Canada,le présent émetteur radio peut fonctionner avecune antenne d'un

type et d'un gain maximal (ouinférieur) approuvé pour l'émetteur par Industrie Canada.

Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, ilfaut choisir le type

d'antenne et son gain de sorte quela puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

BN920

DC5V COM

AN920T

MODE

UNIT

SET

AN920T

1-2.Main Unit and Accessories

■AN920T

■BN920R（Number Indicator Type）

※BNW-920R is same.

Receiver main unit BN920R

Antenna × 1

AC adapter ×1

(Cable: DC-code approx. 1.5 m + AC-cord

approx. 1.8 m)

Transmitter main unit

“AN920T” ×1

AC adapter ×1

Cable Approx. 1.5 m

Anntena ×1

BN920

1-3.Safety Precautions (Be Sure to Read This)

This section describes the matters to be observed in order to prevent harm to the users and other persons

and damages to the property.

■The following marks and displays classify and describe the extent of harm and damage caused by failing

to observe the display content and using this product wrongly.

This display column shows "a failure to do observe it could result in death or

serious personal injury".

This display column shows "a failure to do observe it could result in only the

personal injury or property damage".

■Common matters in handling

●Avoid using this product in the humid or dusty place. Dusts or water enters the product,

which may cause the fault, fire, or electric shock.

■Handling this product

●This product is the wireless communication equipment made of precision parts. Do not

disassemble or modify it. Or the accident or fault may occur.

■Handling this product

●Do not use this product for application that requires the extremely high reliability affecting

the human life.

●Do not use this product in the area which the radio wave reaches or not.

■Handling the power supply

Be sure to observe the followings in order to prevent the accidents such as heat generation, damage, or

ignition ofAC adapter and power cord.

●Do not place the AC adapter and power cord close to fire or insert them into fire. Or they

may be burst and ignited, resulting in the accident.

●Use the AC adapter and main body only at the specified power supply voltage in order to

prevent burst and ignition accidents.

●Do not use the AC adapter and main body at the location where they easily get wet. Or the

accidents including heat generation, ignition, or electric shock and faults may occur.

! Warning

! Caution

! Warning

BN920

●Do not touch the AC adapter, main body, power cord, and outlet with wet hands. Or the

accident such as an electric shock may occur.

●Do not damage the power cord. Short-circuit or heat generation may cause fire or electric

shock.

●Do not use the power plug with dusts attached. Short-circuit or heat generation may cause

fire or electric shock.

●Do not give a strong shock to the AC adapter.

Or the accident or fault may occur.

●If you find a deformation in theAC adapter, do not use it.

Or the accident or fault may occur.

●Do not charge the main body at the location where the flammable gas is generated.

Or the ignition accident may occur.

●Never disassemble the AC adapter.

Or the accident or fault may occur.

■Never disassemble the AC adapter.

Remove the power plug from the outlet because it may cause fire and electric shock. Request the dealer

or our company to repair it.

●When smoke comes or there is a strange smell, immediately stop usage and remove the

power plug from the outlet because it may cause fire and electric shock. Request the dealer

or our company to repair it.

●If the cord is damaged, do not use it. Using the cord damaged continuously may cause fire

or electric shock.

■Reliability of wireless communication

As wireless communication has properties that are different from those of wired communication,

communication errors may occur due to the following.

・Exceeds the communication distance.

・Enters a dead zone.

・Interfered by strong jamming

If signals are often jammed, or being jammed leads to operational problems, stop using the systems and

restart using the systems after removal of the cause.

Radio waves may not be received due to various reasons other than the above. Please understand this

before using the systems.

*A dead zone is an area where the radio wave transmitted from the transmitter becomes extremely weak

due to radio waves reflected from walls or other objects.

BN920

1-4.General

BN920 series are wireless call systems using “LoRa Technology” for wireless communication.

The wireless call systems comprise a transmitter and a receiver. The transmitter transmits a code in

response to a button input or a terminal block input. The receiver receives signals from each transmitter, and

indicates numbers according to the input from the transmitter.

BN920 can be used for calling distant people and objects. Examples include operators notifying a shortage

of parts or an abnormal event in the assembly process.

The receiver has two display modes: 1-Digit mode and 2-Digit mode. The number of corresponding

transmitters is different depending on the display mode.

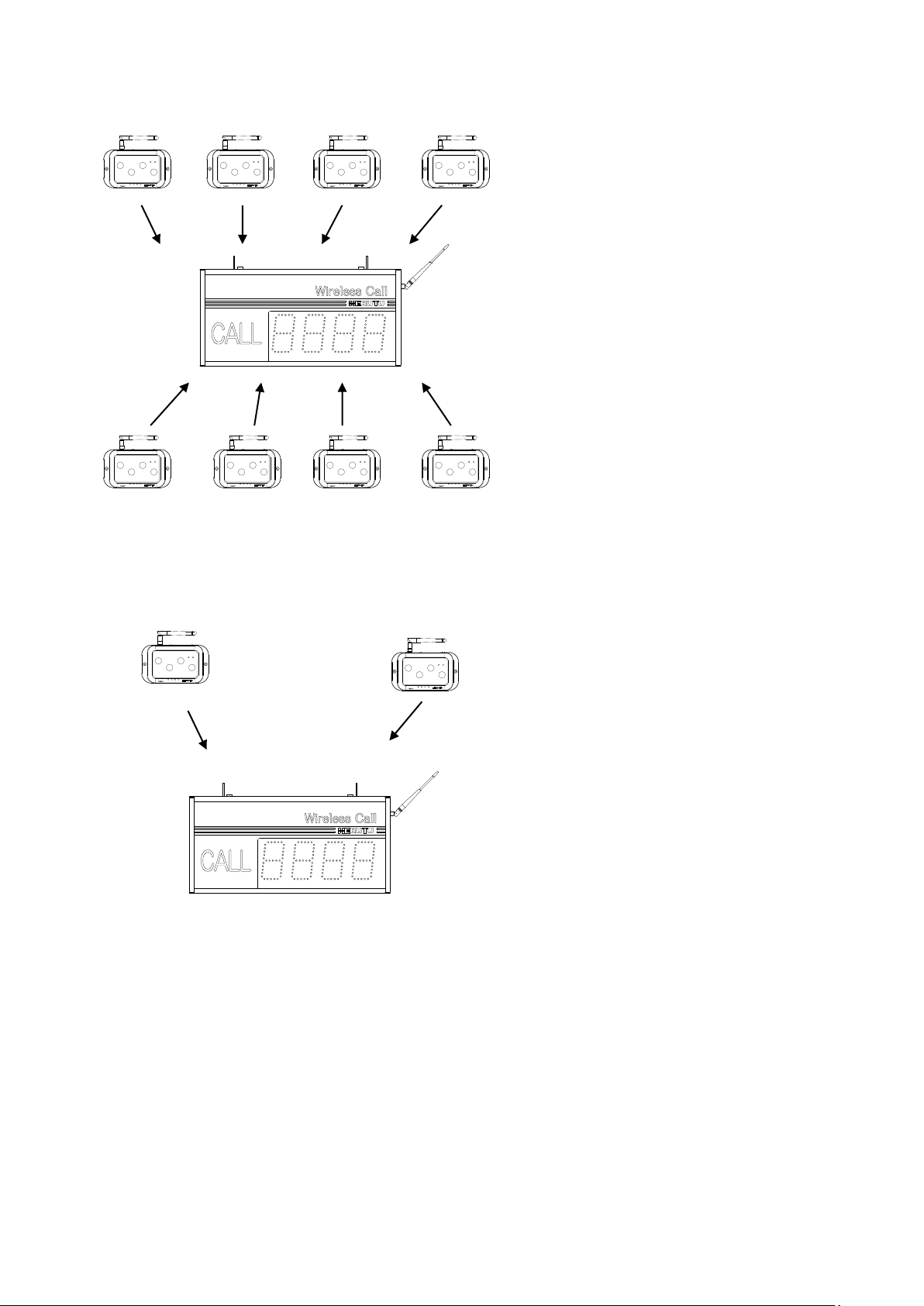

Display

modes

Device configuration

Indicator numbers that

can be indicated

simultaneously

Indicator numbers

1-Digit

1 receiver supporting max. 8

transmitters

Max. 4

1 –8

2-Digit

1 receiver supporting max. 64

transmitters

Max. 2

1 –64

1.The communication distance is approx.500m indoors and approx. 1km outdoors.

It can be extended further by setting the wireless output settings to “Long Range”.

2.Set a desired communication method. (With/Without answerback)

3.Wireless channels can be selected from 16 types, and code settings can be selected from 100 types.

Totally, a maximum of 160 configurations can be set.

4.The transmitter is equipped with 4 buttons (Orange/Red/Green/White) and 4 external inputs

(Orange/Red/Green/White). *Green(button and external input) is not available.

5.The included AC adapter is used for the power source for the transmitter and the receiver. (100 –240

VAC)

6.There are Single-sided indicator type and Double-sided indicator type.

7.An optional speaker enabling sound notifications can be installed on the receiver.

BN920

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T Max. 8nit : BN920R 1 unit

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T

MODE

UNIT

SET

AN920T

DC5V COM

Tx Rx

AN920T Max. 64 units : BN920R 1 unit

1-5.System Configuration

■1-Digit mode

■2-Digit mode

・・・・・・

Table des matières

Autres manuels Herutu Système de conférence

Herutu

Herutu TW-800R-EXC Manuel utilisateur

Manuels Système de conférence populaires d'autres marques

Kramer

Kramer VIA GO Manuel utilisateur

AVT

AVT MAGIC AC1 Go Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur

Sony

Sony PCS-I150 Manuel utilisateur

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuel utilisateur

Prentke Romich Company

Prentke Romich Company Vanguard Plus Mode d’emploi

Speakerbus

Speakerbus iD 712 Manuel utilisateur

Trelleborg

Trelleborg SafePilot CAT PRO Manuel utilisateur

Sennheiser

Sennheiser ADN Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7100 Manuel utilisateur

AINA

AINA PTT Voice Responder Manuel utilisateur

Yamaha

Yamaha ProjectPhone PJP-100H Manuel utilisateur

vissonic

vissonic VLI Series Manuel utilisateur

Panasonic

Panasonic KX-VC500 Manuel utilisateur

Poly

Poly Trio 8300 Manuel utilisateur

Crestron

Crestron Mercury CCS-UCA-SMK Dessin dimensionnel

Inmarsat

Inmarsat mini M Manuel utilisateur

Tenveo

Tenveo ALL-IN-ONE Manuel utilisateur
