Herman Miller FT194.A Instructions d'installation

® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.

Illustrations and specifications are based on the latest product information available at the time of publication.

The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

Part no. 1b2t8s rev D.

YCanvas Office Landscape® Cable Shield Installation and

Disassembly for Recycling Instructions

FT194.A

FT194.B

Vertical Cable Shield (12)

Horizontal Cable Shield (12)

Parts Included

Vertical Cable Shield:

Press Vertical Cable Shield into each side of pass-through

opening in back-to-back Frame Stiles.

Vertical Cable Shield

Vertical Cable

Shield

Frame Stile

Assembly Instructions:

IMPORTANT: Save these instructions for layout changes.

® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.

Illustrations and specifications are based on the latest product information available at the time of publication.

The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

Part no. 1b2t8s rev D.

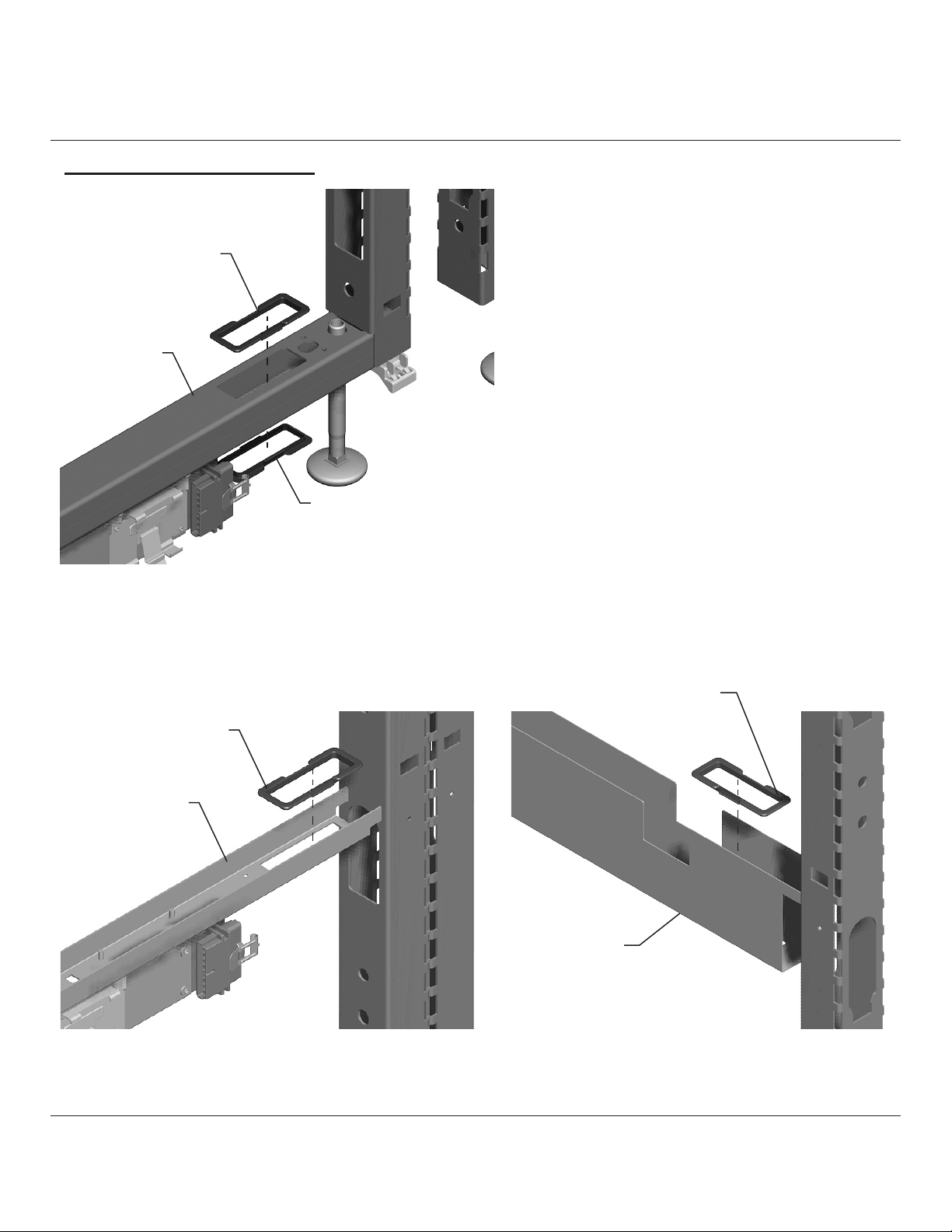

Horizontal Cable Shield:

Horizontal Cable

Shield

Horizontal Cable

Shield

Horizontal Cable

Shield

Cable Trough

Wire Harness

Support Rail

Horizontal Cable

Shield

Frame Rail

Press Horizontal Cable Shield into opening

in each side of Frame Rail.

Press Horizontal Cable Shield into opening

in Wire Harness Support Rail.

Press Horizontal Cable Shield into

opening in Cable Trough.

® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.

Illustrations and specifications are based on the latest product information available at the time of publication.

The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

Part no. 1b2t8s rev D.

Disassembly for Recycling:

Materials Identication and Segregation:

Where possible, plastic components are marked with ASTM recycling codes.

Use these codes to identify material type for recycling. Non marked components

should be treated as mixed plastic. Ferrous metals can be identied using a

small magnet for recycling. Non-ferrous metals should be separated and recycled

separately.

To disassemble product, reverse the above installation steps.
