GOLEDO-T 32 LED (LT2037.882-US)

19.5 lbs

https://heperlighting.com/us/lt2037.882-us/

2/3

3/3

English ( USA )

Safety

- The product must be installed in accordance with applicable

NEC standards by a qualified electrician familiar with the

installation of exterior lighting fixtures.

- The product must be operated under specified voltage at all

times.

- Do not install if parts are damaged.

- Power must be disconnected while installing or servicing to

avoid electrical shock.

- Failing to comply with warnings and installation steps in this

document might void warranty.

- Do not touch the light source.

- Make sure that temperature of the product is at a safe level before

touching.

- Do not allow cables to touch sharp edges of metal parts or other sharp

objects to avoid damage or abrasion.

- Check all of the cable connections including grounding before

powering the product.

- Check the proper grounding of the metal housing before powering the

product.

- Only use the product for its intended purposes.

- Do not use accessories not approved or recommended by

HEPER.

- Weight of the luminaire: 8kg / 17.5 lbs (40 LED) , 10.5kg / 23.2 lbs (80

LED)

- The luminaire should be positioned at a distance of less than 6.2m, in

a position that does not allow long-term gaze.

- Maximum mounting height: 7m / 23 ft

- If any external cable of this luminaire is damaged, it should be

exclusively replaced by the manufacturer or his service agent or a

similar qualified person in order to avoid a hazard.

- The light source of the luminaire and any other components related

with the luminaire should only be replaced by manufacturer, service

agent or a similar qualified person.

- Since the product is provided with supply cable, the terminal block to

be used shall be approved according to IEC/EN 60998-2-1 standard.

Rated current and voltage of the terminal are 3A (min) and 220-240 VAC

and it needs to be placed inside of a IP 66 rated box.

- Replace any broken/cracked protective surface with a new

one

- The luminaire should be positioned so that prolonged staring

into the luminaire at a distance <2m is not expected

Installation

- The surface on which the product will be mounted must be flat and

level

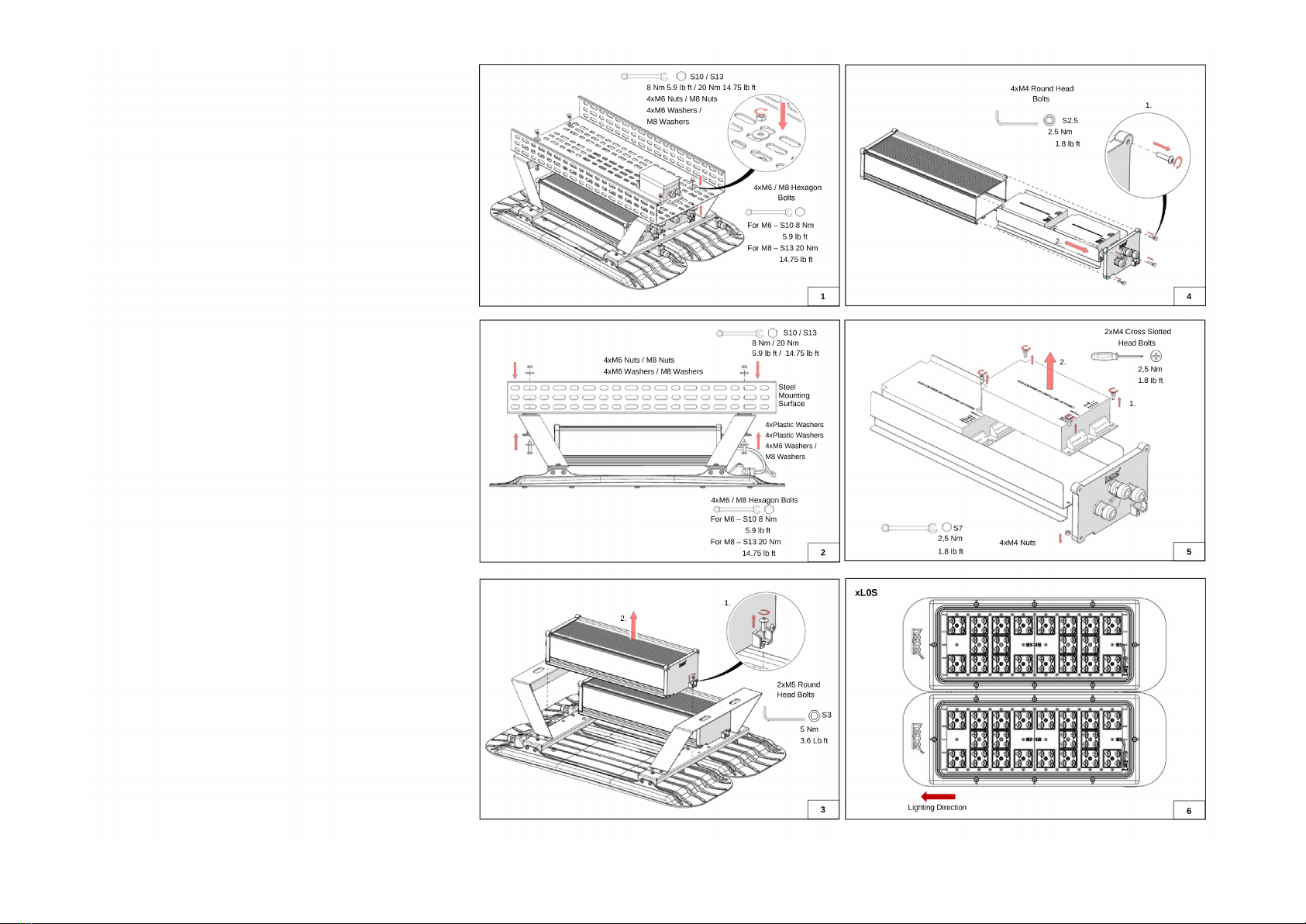

- The product should be mounted, with the related types of equipment

as shown in the visual.

- The red arrow shows the lighting direction. Please consider your layout

before installation!

Replacement of the control gear

- To release the driver box from luminaire, screws should be removed

as shown on the visual.

- To reach to the driver, pull the driver box like drawer after unscrewing

screws as shown on the visual.

- To detach the driver from the plate unscrew the screws as shown on

the visual.

Cleaning - Maintenance

- The product was designed and manufactured to operate for a long

period of time. To ensure maximum lifespan of the product, regular (i.e.

every six months) visual inspection and cleaning with a solvent-free

cleaner using a soft cloth is recommended.

- Do not clean or service while the product is power connected.

Disposal

- In accordance with EU Directive WEEE (Waste Electrical and

Electronic Equipment), luminaires must not be disposed of with

other household waste. At the end of their life, luminaires must

be taken to the appropriate local facility available for the

disposal or recycling of electronic products.

Wiring Color Codes

- Ground - GREEN

- Line - BLACK

- Neutral - WHITE

- Dim(+) - RED/PURPLE

- Dim (-) - GRAY/ORANGE

Disclaimer

- HEPER reserve the right to make technical and design changes.
