HELLER DAYNE Manuel utilisateur

CEILING FAN INSTALLATION MANUAL

Models: DAYNE & EBONY

Fan picture is for illustration purposes only. Styles will vary according to the particular models.

READ AND SAVE THESE INSTRUCTIONS

MUST BE INSTALLED BY A LICENSED ELECTRICIAN

The appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

PREPARATION:

 Unpack your ceiling fan carefully, then remove all parts and components, and lay on a cloth or

soft surface to avoid damage. DO NOT lay the motor housing on its side, the housing may get

damaged.

 Before commencing installation, check that all parts are included. NB: You may need to remove

all foam packaging material to ensure there are no missing components.



mounting the motor to the ceiling.

Unlike most ceiling fans, The Ceiling Fan requires you to attach the blades to the motor BEFORE

SELECTING A LOCATION:

vChoose a location for mounting the fan where the blades will have at least 2.1 metres of

clearance from the floor.

vMake sure that the installation site will not allow the rotating fan blades to come into contact with

any object and that there is a minimum clearance of 150mm (6”) from the blade tip to the wall or

ceiling. Please note that the bigger this clearance is the better the airflow from your fan will be.

vDO NOT use outdoors. Installing the fan in a position where it could be exposed to water or

moisture is dangerous.

vIf the location you have chosen does not have a suitable support beam capable of supporting

45Kg, install a brace 2” x 4” between the ceiling joists as a support medium.

ASSEMBLY:

Ifin

stalling more than one ceiling fan, ensure that the blades do not get mixed up between units, as

each set is dynamically balanced.

BLADE ATTACHMENT:

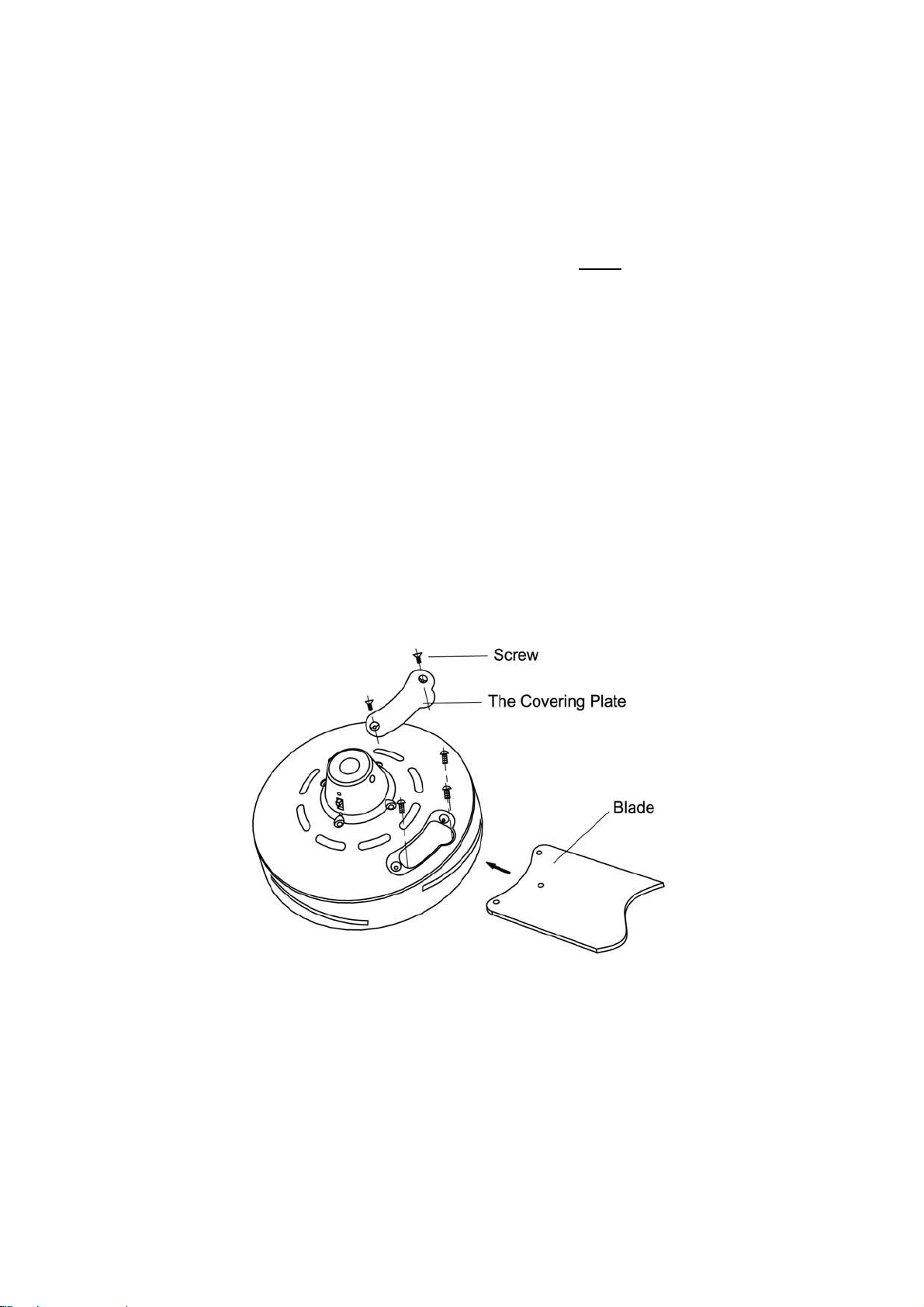

1. Remove the two screws from the covering plate on top of the motor housing (Fig. 4), and

remove the plate.

2. Insert the blade through the slots around the motor. Align the blade with the three holes, and

secure the three screws through the opening exposed when the covering plate was removed. If

the holes do not align, the blade is upside down. The blade is designed to fit snugly, the screws

should be vertical with the blade.

3. Tighten all blade screws evenly and securely to ensure quiet, wobble free operation of the fan.

4. Replace the covering plate on top of the motor housing by reversing step 1.



INSTALLATION:

CAUTION: Before installing the fan, make sure you have turned OFF the electricity supply.

1. Secure the hanging bracket to the ceiling joist or suitable structure that is capable of carrying a

load of at least 45Kg, with the two long fixing screws provided. Ensure that at least 30mm of

the screw is threaded into the support.

NB: The fixing screws included are designed for use when ceiling fan is secured onto timber joists.

For all other surfaces, additional and suitable fixing screws for that surface will need to be

purchased.

2. Make sure that the position of installation will not allow the blades to come into contact with

any object. The fan must be mounted so that the tips of the blades are at least 2.1 metres

above the floor.

3. Carefully lift the fan, and place the down rod ball assembly into the mounting plate ensuring

that the ball correctly locks into place.

4. Refer to the following section detailing “Electrical Connection” for details on how to wire this

product correctly.

5. After the fan has been wired to the power supply, carefully position all excess cable inside the

boundaries of the hanging bracket.

6. Carefully slide the canopy up to cover the hanging bracket and ball joint, taking care not to

damage wires. Once in position, secure the canopy with the screws provided.



ELECTRICAL CONNECTIONS:

For your convenience, and to assist in easy installation & cleaning, your ceiling fan is connected

with Mawson’s easy connect system. Simply connect the male and female couplings, and then

ensure all excess wiring is retained inside the ceiling canopy.

The appliance must have a means for disconnection from the supply mains having a contact

separation in all poles that provide disconnection under overvoltage category III conditions. A

means for disconnection must be incorporated in the fixed wiring in accordance with the wiring

rules.

REVERSE SWITCH:

The “Summer / Winter” switch should be in the forward position to make the fan rotate in an anti-

clockwise direction during summer. In winter,, this switch should be reversed (move to UP position)

so that the blades now move in a clockwise direction.

10.





Select the desired position of the reverse switch on the lower canopy of the fan.

Warmer Weather ---Have the airflow directed downwards.

Cooler Weather ---Have the airflow directed upwards.

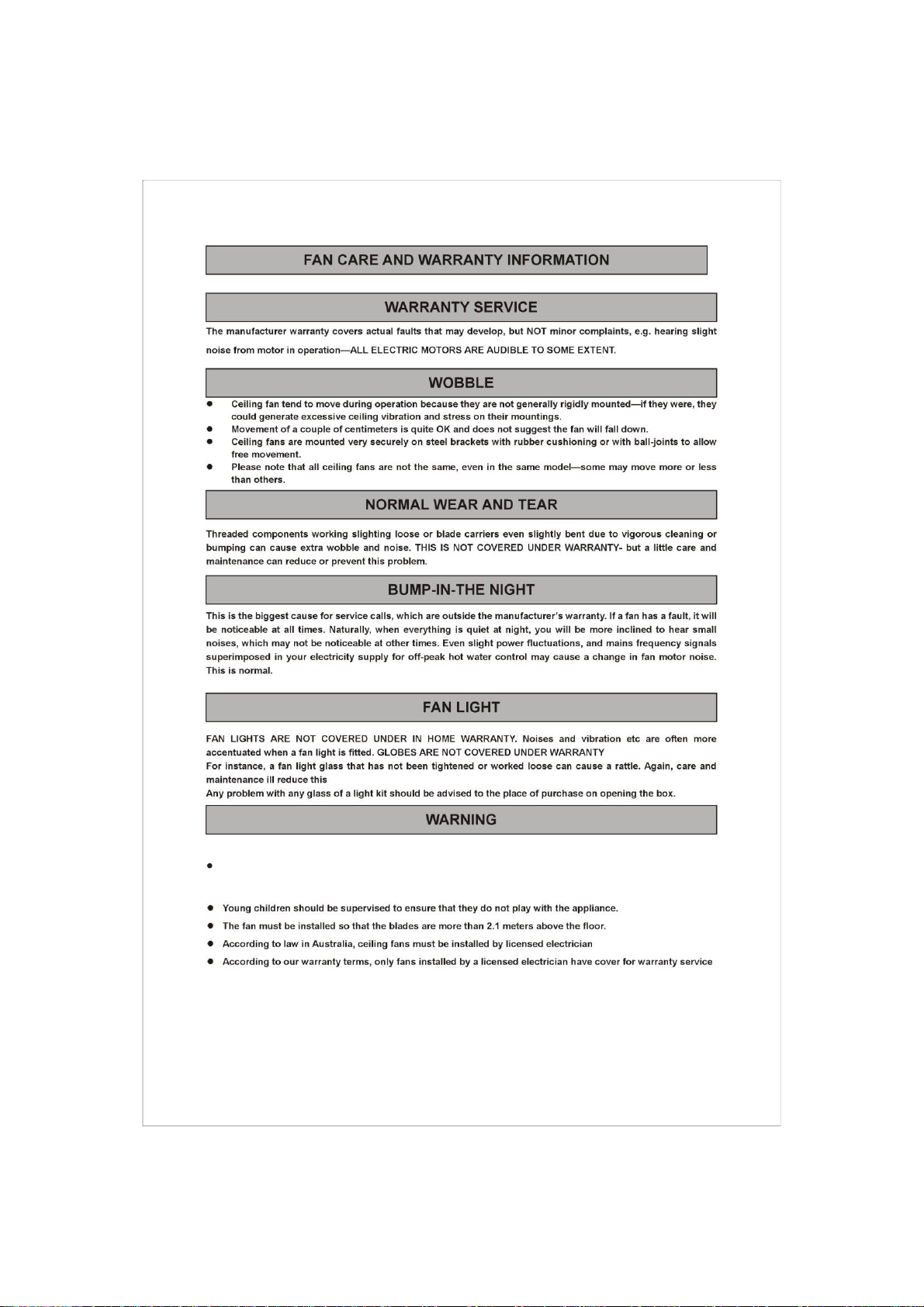

Threaded components which are slightly loose

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

A/ Fuse or circuit breaker has

blown.

A/ Check main and branch circuit

breakers.

B/ Loose wire connections to

the fan.

B/ Check line wire connections to

fan.

C/ Speed controller not in the

correct position. C/ Check speed controllers position.

A/ Fan blades are not horizontal

to the ceiling.

A/ Retighten all screws on blades.

Do not make any adjustments by

applying pressure up or down on

blades.

B/ Blade screws are loose. B/ Make sure all screws are

tightened.

B/ Loose fan blades. B/ Retighten all screws on fan.

C/ Ceiling fan not secured

against ceiling.

C/ Retighten all screws in the

hanging bracket.

D/ Incorrect speed controller. D/ Change speed controller to the

one supplied with the unit.

Mechanical noise A/ Fan has not settled in fully. A/ Allow at least 8 hours settling in

period.

Fan will not start

Fan wobbles

Fan sounds noisy

TROUBLE SHOOTING:
