Heden IPCAM Manuel utilisateur
IP C amera
Us er Manual
V 3.3
V
3
.
3
Reference :
CAMH04IPWE
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! IPCAM User Manual
- 2 -
Contents
1 WELCOME ............................................................................................................................... - 1 -
1.1 Features ................................................................................................................................ - 1 -
1.2 Packing List.......................................................................................................................... - 2 -
1.3 Product views....................................................................................................................... - 2 -
1.3.1 Front View................................................................................................................. - 2 -
1.3.2 Interface .................................................................................................................... - 3 -
1.4 PC System Requirements..................................................................................................... - 3 -
1.5 Hardware Instruction............................................................................................................ - 4 -
1.6 Software installation ............................................................................................................ - 4 -
2 SOFTWARE OPERATION....................................................................................................... - 6 -
2.1 IP Camera Tool .................................................................................................................... - 6 -
2.2 Camera Login....................................................................................................................... - 9 -
2.3 For Visitor.......................................................................................................................... - 10 -
2.4 For operator.........................................................................................................................- 11 -
2.5 For Administrator............................................................................................................... - 12 -
2.5.1 Multi-Device Settings ............................................................................................. - 13 -
2.5.2 Network Settings..................................................................................................... - 14 -
2.5.3 DDNS Service Settings ........................................................................................... - 16 -
2.5.4 Mail and FTP Service.............................................................................................. - 17 -
2.5.5 Motion Detection .................................................................................................... - 18 -
3 HOW TO USE ......................................................................................................................... - 20 -
3.1 Step by step to use.............................................................................................................. - 20 -
3.2 Setting Wi-Fi of IP Camera................................................................................................ - 20 -
3.3 Connected to the Internet through ADSL directly ............................................................. - 21 -
3.4 Using a router to access the Internet .................................................................................. - 22 -
3.5 Static IP user ...................................................................................................................... - 22 -
3.6 How to use DDNS.............................................................................................................. - 24 -
4 APPENDIX................................................................................................................................... - 26 -
4.1 Frequently Asked Questions .............................................................................................. - 26 -
4.1.1 I have forgotten the administrator username and/or password................................ - 26 -
4.1.2 IP Address configuration......................................................................................... - 26 -
4.1.3 Network Configuration ........................................................................................... - 26 -
4.1.4 No pictures Problems with ActiveX Controller ...................................................... - 26 -
4.1.5 Problems with network bandwidth.......................................................................... - 27 -
4.1.6 For example: Register procedure from a DDNS web ............................................. - 27 -
4.1.7 Why pop-up the prompt”Fail to connect to the device…”? .................................... - 30 -
4.1.8 Can’t access the IPCAM in the internet? ................................................................ - 30 -
4.1.9 Problems of using the firefox browser .................................................................... - 31 -
4.2 Default Parameters............................................................................................................. - 32 -
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! IPCAM User Manual
- 3 -
4.3 Specification....................................................................................................................... - 33 -
5 OBTAINING TECHNICAL SUPPORT ...................................................................................... - 34 -
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 1 -
1WELCOME
IPCAM is an integrated wireless IP Camera solution. It combines a high quality digital
video Camera with network connectivity and a powerful web server to bring clear to your
desktop from anywhere on your local network or over the Internet.
The basic function of IPCAM is transmitting remote video on the IP network. The high
quality video image can be transmitted with 30fps speed on the LAN/WAN by using
MJPEG hardware compression technology.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could
support Internet Explore. Therefore the management and maintenance of your device
become more simply by using network to achieve the remote configuration, start-up and
upgrade firmware.
You can use this IPCAM to monitor some special places such as your home and your
office. Also controlling the IPCAM and managing image are simple by clicking the website
through the network.
NOTE: You can use the IP Camera Step by Step(details: 3.1).
1.1 Features
!Powerful high-speed video protocol processor
!High-sensitivity 1/4" CMOS sensor
!300K Pixels
!IR night vision(Range:3~5m)
!Optimized MJPEG video compression for transmission
!Multi-level users management and passwords definition
!Embeded Web Server for users to visit by IE
!Support wireless network (Wi-Fi/802.11/b/g)mobile
!Supporting Dynamic IP (DDNS)and UPnP LAN and Internet(ADSL,Cable Modem)
!Giving alarm in cause of motion detection
!Support one-way (I/O) alarm connection
!Supporting image snapshot
!Support multiple network protocols:HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
!Support remote system update
Advanced Features
Multi-Protocol support and Transportation
IPCAM supports Multi-Protocol such as TCP/IP, SMTP and HTTP. Sending the image to
your mailbox automatically when the IPCAM is triggered.
Motion Detection
Your may use the internal Motion Detection function or external sensor to trigger images
recording and transportation.
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 2 -
Alarm sensor input/output
The detection sensor sends an alarm and records it by itself when there is a fire or
accident. A message as an email is send to you by this sensor. (The input/output
discreteness can be chosen)
DDNS support
Using the IPCAM in the condition which including ADSL and IP change often is more
convenient, because IPCAM provides dynamic DNS function.
Advanced User Management
Only allowing authorized users access to real-time images of the IP Camera.
1.2 Packing List
Untie the pack and check the items contained against the following list:
!IP Camera"1
!Wi-Fi Antenna"1(only wireless IPCAM user)
!DC Power Supply"1
!User Manual"1
!CD"1#Include!Wireless IP Camera Driver$IP camera tool%!
!Network!Cable"1!
!Mounting bracket"1(option)!
Optional : One Wire for alarm input/output
NOTE:Contact us immediately in the case of any damaged or short of contents.
1.3 Product views
1.3.1 Front View
Figure 1.1
1 Sensitive Hole
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 3 -
2 Infrared LED
3 Network Indicator LED If there is network activity, the LED will blink.
4 LENS CMOS sensor.You can turn around the lens manually to adjust the focus
range.
5 Built-in Mic

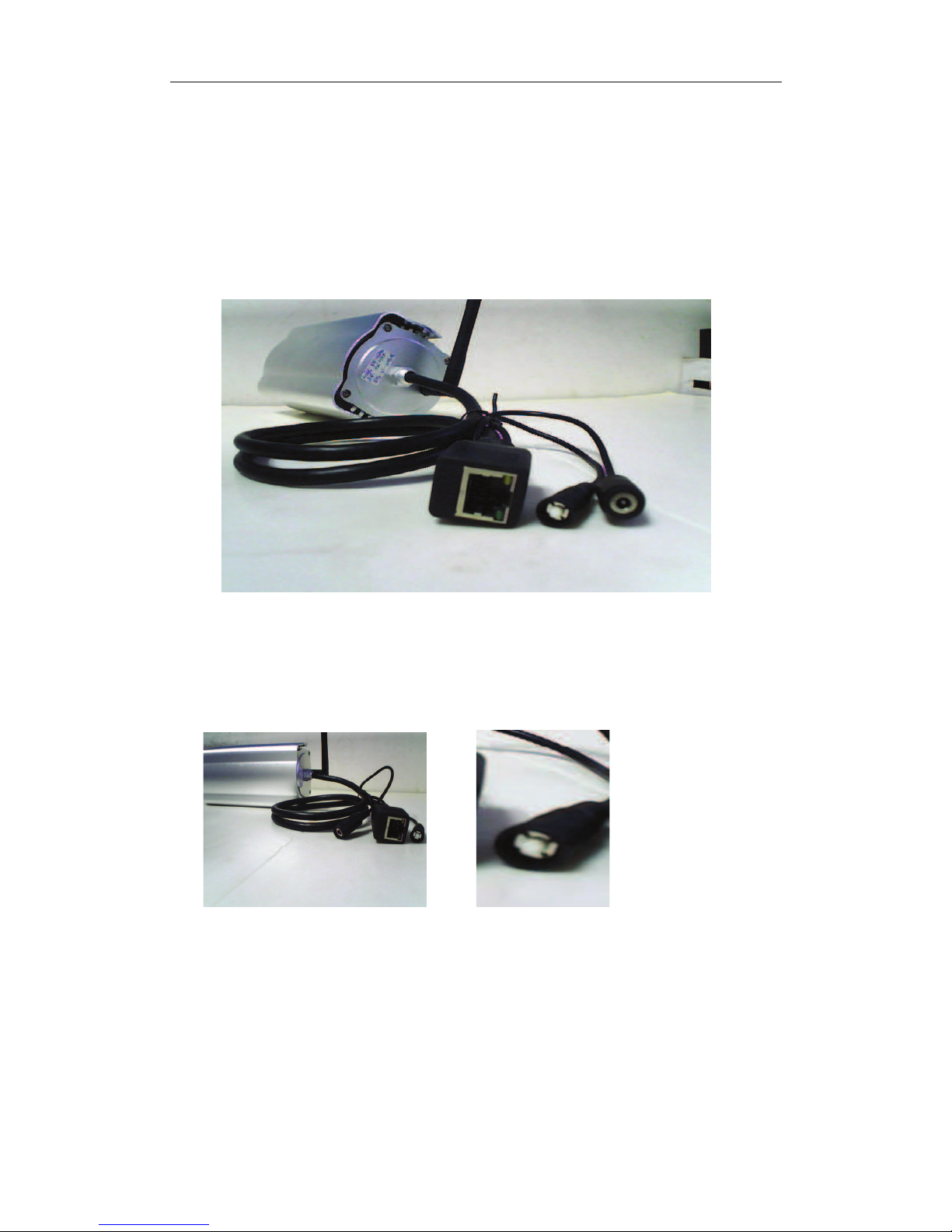

1.3.2 Interface
Figure 1.2
LAN : RJ-45/10-100 Base T
DC5V : 5V/2A Power supply
Figure 1.3
RESET BUTTON: Press and hold down the RESET BUTTON for 5 seconds.Release the
power button and IP camera will be reset back to the factory default parameter.
1.4 PC System Requirements
System configuration requirements: ( Example for view four IP Camera )
CPU: 2.06GHZ or above Memory: 256M or above
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 4 -
Network Card:
Recommendable Operating System: Windows2000 or Windows XP
1.5 Hardware Instruction
Follow the steps below to set up your camera hardware. Make sure to follow each step
carefully to ensure that the camera operates properly.
1) Plug the network cable into the camera and then into your Cable/DSL router.
2) Plug the power adapter into the camera and then into the power outlet.
100M or above Display Card: 64M or above memory
CAUTION: Make sure to only use the power adapter supplied with IPCAM. Using a
non-approved power adapter may damage the camera.
3) The camera takes approximately 30 seconds to start up before it displays an IP
address on the IP Camera Tool(details: 2.1).
4) When the camera is powered and network cable plug correctly.It’s head will turn
around and the Network Indicator LED is blank.
1.6 Software installation
Software installation is the key to the successful use of this product.
1 Open the CD,find the software as instruction;
2 Double click IPCamSetup.exe and install the software as instruction.
!
Figure 1.4
3 Only click Next,you will complete the software installation.
Figure 1.5
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 5 -
!
Figure 1.6
The computer restarts upon installation completion and an icon
appears on the
desktop automatically.
NOTE:Before installing and using the product, please read the following precautions
carefully and make sure they are fully understood.
Use only the power adapter attached with the product. Use of unauthorized power
adapter may cause damage to your IP Camera.
IP Camera terminal shall be installed in an indoor environment.
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 6 -
2 SOFTWARE OPERATION
2.1 IP Camera Tool
When the Device has been mounted properly, you can double click the icon “IP Camera Tool”
!
and a dialog box as Figure 2.1 will pop up.
!
Figure 2.1
Note: The software searches IP Servers automatically over LAN.
There are 3 cases:
1No IP Camera found within LAN. After about 1 minute search, the Result Field will show
“not found IP Server” and the program shut automatically;
2IP Cameras having been installed within LAN. All the IP Cameras will be listed and the
total number is displayed in the result field as shown in Figure 2.1.
3The IP Cameras installed within LAN do not share the same subnet with the monitoring
PC. A prompt as shown in result field (prompt: Subnet doesn’t match,dbclick to change!).
Click the left mouse button to choose the prompt and click the right mouse, choose
Network Configuration to set the IP address of the Camera to the same subnet as LAN.
Five Options
Choose the IP Camera list and Click right mouse button,there are five options,Basic
Properties, Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp
Buffer as shown 2.2.
