Heckler Design WindFall KIOSK Manuel utilisateur
WindFall®
KIOSK
The Beautiful, Secure, Commercial-Grade Tablet Kiosk
June 2016 Rev01
WindFall Kiosk Floor Stand Parts
WindFall Frame Hardware
(Frame sold separately)
Phillips Head Screwdriver
Floor Bolt
(up to 1/2” diameter)
Kensington ClickSafe Cable Lock
(sold separately)
Additional Tools
WindFall® Frame
(sold separately)
WindFall® Kiosk
Floor Stand
N1
N2
N3
Assemble neck to feet
Remove neck cover
Professional Installation: to add additional
security and stability, consult a professional
about installing a floor bolt to secure your Kiosk.
N7
Floor Bolt (up to
1/2” diameter)
OPTION A
OPTION B

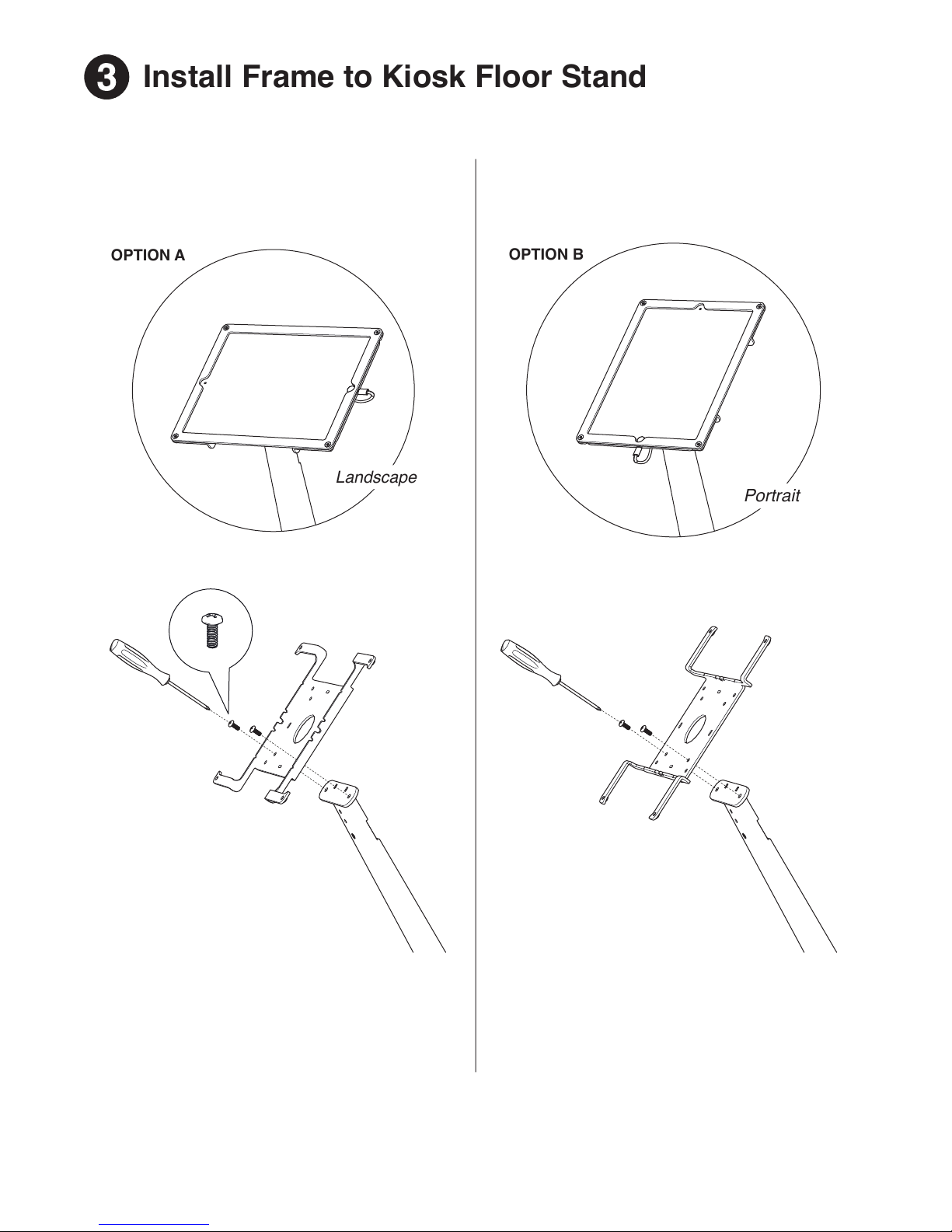

Install Frame to Kiosk Floor Stand
Landscape
Portrait
OPTION A OPTION B
Install tablet
Install fit adapters and channel lightning cable
This step is for iPad mini, iPad Air 2, 9.7-inch iPad Pro and Surface Pro 4. Proceed to Step 5 if
using another tablet.
Route power cord and install screw caps
Reinstall neck cover
Route power and Kensington cables
