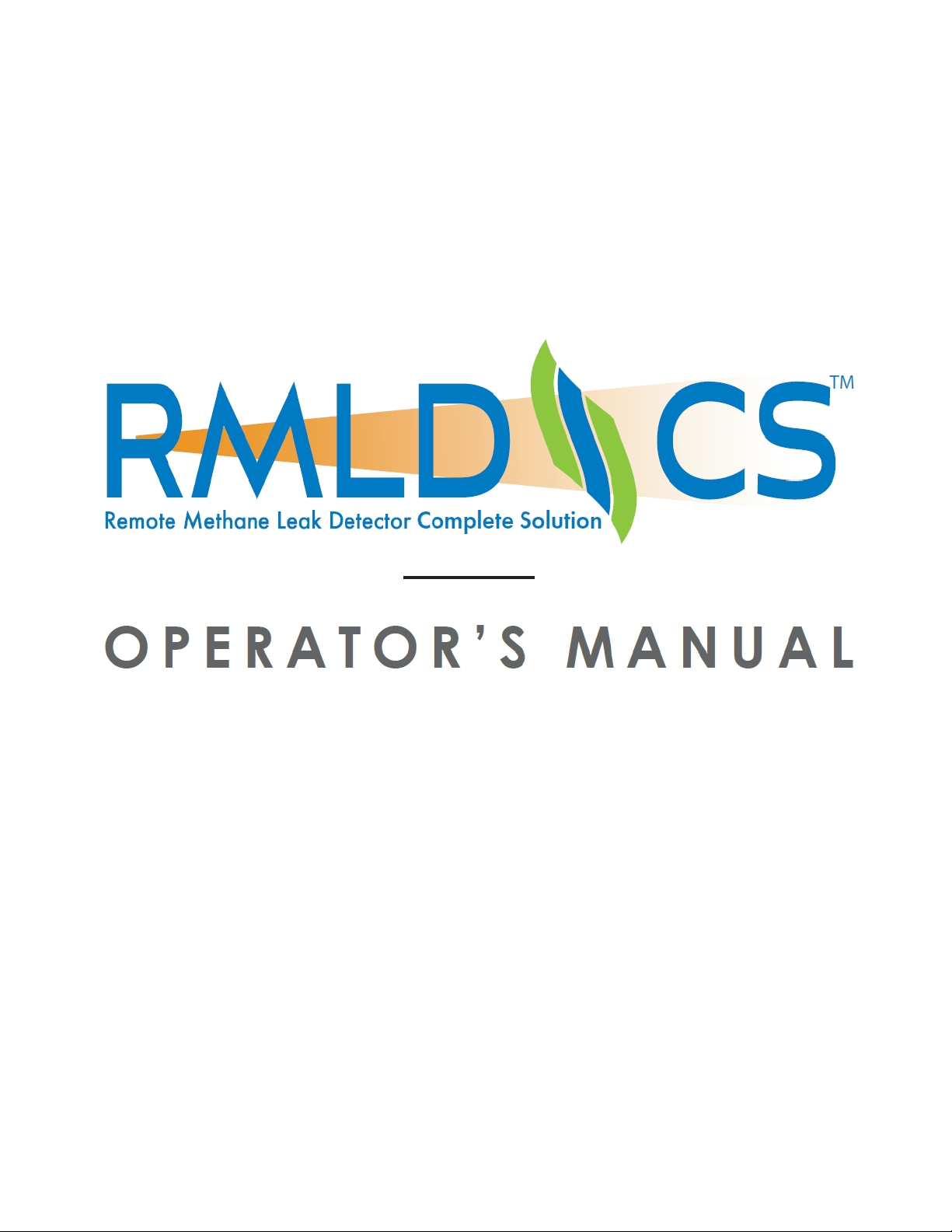

Heath Consultants RMLD-CS Manuel utilisateur

OPERATOR

MANUAL

Complete Solution

RMLD-CS Operator Manual

2 / 56

Table of contents

Overview ........................................................................................................................... 4

Proprietary Notice .............................................................................................................. 5

Warnings & Definitions ....................................................................................................... 6

Safety and Warning Information ...................................................................................... 6

Definitions ..................................................................................................................... 7

Symbols Used ................................................................................................................. 7

Specifications .................................................................................................................... 9

RMLD-CS Instrument and Accessories ............................................................................... 11

Battery, Charger and Charging Procedure .......................................................................... 14

Battery Pack ................................................................................................................. 14

Dual Bay Battery Charger .............................................................................................. 14

Charging Procedure ...................................................................................................... 15

Operating the RMLD-CS .................................................................................................... 17

Turning on the Instrument ............................................................................................ 17

Working with the Menu Items ........................................................................................ 17

Instrument Self Test .................................................................................................. 18

Audio Modes ............................................................................................................. 20

DMD (Digital Methane Detection) ........................................................................... 20

Real Time (Geiger) ................................................................................................ 20

Audio Warning Indications ...................................................................................... 21

Alarm Levels ............................................................................................................. 23

Spotter Control .......................................................................................................... 24

USB File Transfer ....................................................................................................... 26

Bluetooth .................................................................................................................. 28

WiFi .......................................................................................................................... 30

Data Logging ............................................................................................................ 32

Timezone .................................................................................................................. 33

User Profiles .............................................................................................................. 34

About Screen ............................................................................................................ 38

Additional Features ....................................................................................................... 39

Screen Mode - Survey ................................................................................................ 40

Screen Mode - Graph ................................................................................................. 41

Screen Mode - Image ................................................................................................ 42

Surveying with the RMLD-CS ............................................................................................. 43

Long Range Scanning ....................................................................................................... 45

Dealing With False Detections .......................................................................................... 47

How Does the RMLD-CS Measure Gas? .............................................................................. 48

Troubleshooting ............................................................................................................... 50

Maintenance .................................................................................................................... 52

Notes .............................................................................................................................. 53

Warranty and Repair ........................................................................................................ 54

Return Procedure ............................................................................................................. 55

Contact Information ......................................................................................................... 56

RMLD-CS Operator Manual

3 / 56

RMLD-CS Operator Manual

4 / 56

Overview

The HEATH Remote Methane Leak Detector - Complete Solution (RMLD-CS) is a highly advanced

technology, capable of detecting methane leaks from a remote distance. This technology makes it

possible to detect leaks without having to walk the full length of the pipe line, thus creating safer

surveys in areas that may be difficult to reach such as busy roadways, yards with dogs, fenced off

areas, and other hard to access places.

The RMLD-CS employs the same technology as the RMLD, known as Tunable Diode Laser Absorption

Spectroscopy (TDLAS). As the laser passes through the gas plume, the methane absorbs a portion of

the light, which the instrument then detects. Based on the local meteorological conditions, a given

amount of gas escaping from the ground will produce a plume that varies in size and uniformity of

concentration levels. The plume, by nature, is variable and dependent on the soil conditions,

temperature, wind, and leak rate.

The RMLD-CS operates under a variety of field conditions including a wide temperature range, light

rain and fog. Its rugged design will stand up to normal field use and operating conditions. Its



The RMLD-CS includes many new features which reduce costs and improve usage. These advanced

features include, but are not limited to:

User Interface Light Weight

Internal Data Logging Rechargeable and Replaceable Battery

WiFi Dual Charger

GPS Mobile App Support

Bluetooth BLE Vest Support

Color Camera Ergonomic Housing

Color Display

RMLD-CS Operator Manual

5 / 56

Proprietary Notice

The contents of this instruction manual are proprietary to Heath Consultants Incorporated.

Reproduction of this manual, in whole or in part, is prohibited without the express written

consent of Heath Consultants Incorporated.

Heath Consultants Incorporated operates under a continual product improvement program and

reserves the right to make improvements and / or changes without prior notification.

This manual supersedes all previous manuals for this instrument.

RMLD-CS Operator Manual

6 / 56

Warnings & Definitions

Safety and Warning Information

It is essential that users of this instrument read, understand and follow the instructions for operation

and maintenance. The precautions contained in this manual insure that the instrument is used in a

proper and safe manner.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious

injury.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious

injury.

CAUTION

Indicates a hazardous situation, which if not avoided, could result in minor or moderate injury.

DANGER: Do not use the device in an explosive environment.

DANGER:To reduce the risk of ignition of a flammable or explosive atmosphere, batteries must be

recharged only in a location known to be non-hazardous.

WARNING:Read and understand this manual fully before use.

WARNING:Follow the manual instructions and testing methods.

WARNING: The visible green Spotter laser is a Class IIIa (3R) laser product. Do not stare into beam or

view directly with optical instruments.

WARNING:Avoid direct eye exposure to the laser and do not point in the direction of others. Visible

and Invisible Lasers are deployed by this instrument.

WARNING: Substitution of components may impair intrinsic safety. No user serviceable components

contained within this instrument.

RMLD-CS Operator Manual

7 / 56

CAUTION: Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

CAUTION: No attempt should be made to repair the instrument. Should the instrument not work

properly, or indicate a fault or warning, refer to the troubleshooting section of this manual.

Definitions

Beam Skip: Occurs when the IR beam jumps between a near object and a far away object. This may

cause a false detection. This can also occur on highly reflective surfaces (windows, water, ice, etc).

Control Module: The portion of the RMLD-CS with the keypad and display that clips onto a harness.

Dark Zone: An area not being scanned due to an obstruction. This may be an elevation change, the

side of a building, behind a curb, etc.

DMD (Digital Methane Detection): An advanced detection mode which, when activated, will only

alert the operator when there is a probable detection of methane.

Footprint: The surface area covered by the IR beam, increasing with distance. At 100 ft., this area is

22in diameter when shined against a vertical wall.

Infrared (IR): A wavelength of light just outside the range of the visible spectrum.

Laser Calibration Drift: A normal characteristic of tunable diode lasers is that the wavelength

calibration can drift slowly overtime. The RMLD-CS has a built in Self-Test/Calibration feature to

automatically maintain proper calibration.

ppm-m (Parts Per Million Meter): The product of the methane concentration times the width of the

plume.

Real Time: A mode that will emit a variable (continuous) Geiger beep rate relative to the

concentration of gas.

Spotter Laser: The green, blinking laser which guides the operator as to the location of the IR beam.

This laser can be activated through the button located on the keypad.

Tunable Diode Laser Absorption Spectroscopy: A method of gas detection that utilizes a laser that,

when shined through a cloud of methane, will be partially absorbed by the gas which can be

measured for gas concentration.

Symbols Used

Caution

RMLD-CS Operator Manual

8 / 56

Information

Consult Instructions for use

IP54 Ingress protection

Do not dispose of this product in the unsorted municipal waste stream. Dispose of

this product according to local regulations

Measurement Laser Radiation: Class I

Visible (Green) Laser Radiation: Class IIIa (3R)

Do not stare into beam. Avoid direct eye exposure.

RMLD-CS Operator Manual

9 / 56

Specifications

 Tunable Diode Laser Absorption Spectropscopy (TDLAS)

Measurement Range 0 to 99,999 ppm-m

 5 ppm-m at distances from 0 to 100 ft (30m)

 IECEx 60079-1,-11; ATEX, UL913 (PENDING)

 100 ft (30m) nominal. Actual distance may vary due to

background type and conditions.

 Conical in shape with a 22diameter at 100 ft (55cm at 30m)

Detection Alarm Modes Digital Methane Detection (DMD): Audible tone when detection

threshold exceeded Adjustable Detection Alarm Level 1 to 999.

Real Time (RT):Continuous audio beep relative to concentration.

 Unique audible pitch and indication on the display.

Self Test Built-in Self Test function verifies operation and adjusts laser

wavelength for maximum sensitivity. Test gas cell integrated

within carrying case.

Compliance EMC (EN61000-6-2, EN6100-6-4)

Radio Equipment Directive (2014/53/EU)

ETSI EN 301 489-1 v2.2.0

EN 61326-1:2013

47 CFR Part 15 & ICES-003

Laser Eye Safety IR Laser: Class I

Green Spotter Laser : Class IIIa (3R)

Do not stare into beam or view directly with optical instrument

Communications Bluetooth 4.2 BLE, WiFi, USB Dual Mode

Display 3.5" LCD

Operating Temperature 0° to +122° F (-17° to 50° C)

Humidity 5 to 95% RH, non-condensing

Instrument Protection IP54 (water splash and dust resistant)

 3 lbs (approx)

RMLD-CS Operator Manual

10 / 56

Carry Case 21" x 17.5" x 9.5"

Battery Removable, rechargeable Li Ion pack, 10.8 VDC

2.6Ah

 8 hours at 32 F (approx)

Battery Charger External, 110-240 VAC, 50/60 Hz Universal

 2-3 hours full charge (approx)

 Integrated into Dual Battery Charger
