Heatco DF Series Manuel utilisateur

OEM INSTALLATION INSTRUCTIONS

ANSI Z83.25 (2017) –CSA 3.19 (2017)

Direct gas-fired process air heaters

DF Series Modules are a Recognized Furnace Component

Design Certified by both Intertek Testing Services (ITS / ETL)

and Underwriters Laboratories (UL)

For Indoor or Outdoor Installation

This Product is intended for installation by Original Equipment Manufacturers

Of Listed Heating Equipment in duct or cabinet mounted applications

on the Negative pressure side of the circulating air blower.

The direct gas-fired heater modules covered by these instructions become a component

of a “Listed” product, subject to the guidelines of application provided in these

instructions and as designated by the Certifying Agency in the Manufacturer’s Listing Procedure

Manufactured by:

Heatco Inc

50 Heatco Court

Cartersville, Ga. 30120DF-OEM-MAN-LIST-Z83.25-1

DF Series

Direct Gas-Fired Heater Modules

Inspection on Arrival

This direct gas-fired heater module was test fired and inspected at the factory prior to crating and was in satisfactory working

order. A copy of the Test and Inspection sheet is included in the information package provided. Inspect the packaging on delivery

for any signs of damage. Report any damage immediately to the transporting agency. After uncrating inspect direct gas-fired

heater module for any concealed damage.

Table of Contents

I. General Instructions for DF Series Modules. . . . . . . 3

II. General Information to include in Installation and Operating Instructions. . . 3 - 4

III. Direct-Fired Heat Module Application. . . . . . . 4 –5

IV. Paint Booth Application. . . . . . . . . 6

V. Airflow Distribution & Multiple Heaters Application. . . . . . 6

VI. Cabinet Installation Guidelines. . . . . . . . 7

VII. Temperature Limit and Airflow Proving Switch. . . . . . 7

VIII. Circulating Air Supply. 8

IX. Burner Air Pressure Differential Adjustment . . . . . . 8

X. Maximum / Minimum Airflow (VAV). . . . . . . . 9 - 10

XI. Gas Supply, Piping and Connections. . . . . . . 10 - 11

XII. Direct Gas-Fired Heat Module Controls. . . . . . . 12

XIII. Electrical Controls & Wiring.. . . . . . . . 12 - 13

I. General Instructions for DF Series Direct Gas-Fired Modules

This product MUST BE INSTALLED IN A NON-COMBUSTIBLE cabinet. See clearance to combustibles on

ratings label.

This product is intended to be installed upstream of any cooling coils.

A Nameplate / Rating Plate is attached to the direct gas-fired heater module to identify the model and serial

number of this product. This plate must be left attached when the module is installed in the end product for

identification purposes. This plate also contains information including gas type, maximum and minimum input rating,

manifold pressure, maximum and minimum inlet gas pressure, maximum and minimum airflow requirements, and

electrical ratings for this module.

The final determination of the safety and suitability of this product for the specific application shall be the

responsibility of the manufacturer of the “Listed” equipment and the listing Agency.

This product must be applied in accordance with the requirements of the listed product in which it is installed.

Consider maximum input ratings, maximum and minimum temperature rise and maximum and minimum airflow.

Equipment access panels and doors should be sized and located to provide easy access for servicing, adjustment

and maintenance of the direct gas-fired units installed. Consideration should be given to components that might

require replacement during the life of the product. All set-up and test points as well as operating controls should be

visible and readily accessible from the front of the vestibule or access opening.

II. General Information to include in Installation and Operating Instructions

The “Listed” equipment manufacturer’s Installation and Operating Instructions shall provide all necessary

information, instructions and labels as required by ANSI Z83.25 –CSA 3.19 Standard for Non-recirculating Direct

Gas-fired and Forced Ventilation Appliances for Commercial and Industrial application.

Reference to the following information must be included in the instructions that the OEM provides with the finished

product.

oAll unit installations shall conform to all applicable local codes and ordinances, or in the absence of local codes

must be in accordance with the National Fuel Gas Code ANSI Z223.1 (NFPA 54) in the US and Can/CGA-

B149.1 Natural Gas and Propane Installation Code in Canada..

oFor module(s) to be installed in an airplane hangar, refer to ANSI/NFPA 409. For module(s) to be installed in a

parking garage, refer to ANSI/NFPA 88A. For module(s) to be installed in a service garage, refer to ANSI/NFPA

88B.

oA WARNING that the direct gas-fired heater modules are not designed for use in hazardous atmospheres

containing, flammable vapors or combustible dust, in atmospheres containing chlorinated or halogenated

hydrocarbons, or in applications with airborne substances containing silicone.

oA WARNING: The use and storage of gasoline or other flammable vapors and liquids in the vicinity of this

appliance is hazardous.

oWARNING labels attached to exterior of cabinet as required by ANSI Z83.25 –CSA 3.19.

oSafety, lighting, operating and shutdown instructions.

oAn electrical disconnect switch having adequate ampacity (See heater marking for voltage and ampacity), if not

provided as part of heater module assembly, shall be installed in accordance with Article 430 of the National

Electric Code, ANSI/NFPA 70. All electrical equipment must be grounded and wired be in accordance with

NFPA 70 in the US and the Canadian Electric Code (CSA C22.1) in Canada.

oA statement to cover replacement wiring “If any original wire as supplied with the appliance must be

replaced, it must be replaced with wiring material having a temperature rating of at least 105 oC (221

oF).”

Additionally, the Original Equipment Manufacturer of the “Listed” equipment shall provide the following in

accordance with its product listing:

An enclosed vestibule area to house and protect gas controls, burner assemblies, gas trains, and electrical controls

from direct water spray, rain or dripping water.

An airflow switch in the cabinet or duct to prove circulating airflow. The device should prevent operation of the gas

heater in the event of failure of the circulating air fan. An airflow probe should be installed upstream of the heating

section (See Figure 1).

A manual reset temperature limit to prevent overheating of the heating unit in the event of improper operation, a

circulating air fan failure, low airflow conditions due to filter blockage, coil blockage and or damper failure. (See Figure

1 for location)

Removable access panels or access doors in cabinet or duct immediately upstream and downstream of duct

furnace to allow for inspection of the direct-fired gas burners. These openings should be large enough to observe

the burners in their entirety. Attach covers so as to prevent air leakage.

Clearances to combustibles as appropriate for the product category, but in no case less than the following unless

determined by test as part of the manufacturer’s equipment listing:

▪Sides .…………………………………. 8 in. (203mm)

▪Bottom ………………………………… 6 in. (152mm)

▪Top ……………………………………. 10 in. (254mm)

It is up to manufacturer to test these clearances in the end product to verify proper dimensions.

III. Direct-Fired Heat Module Application

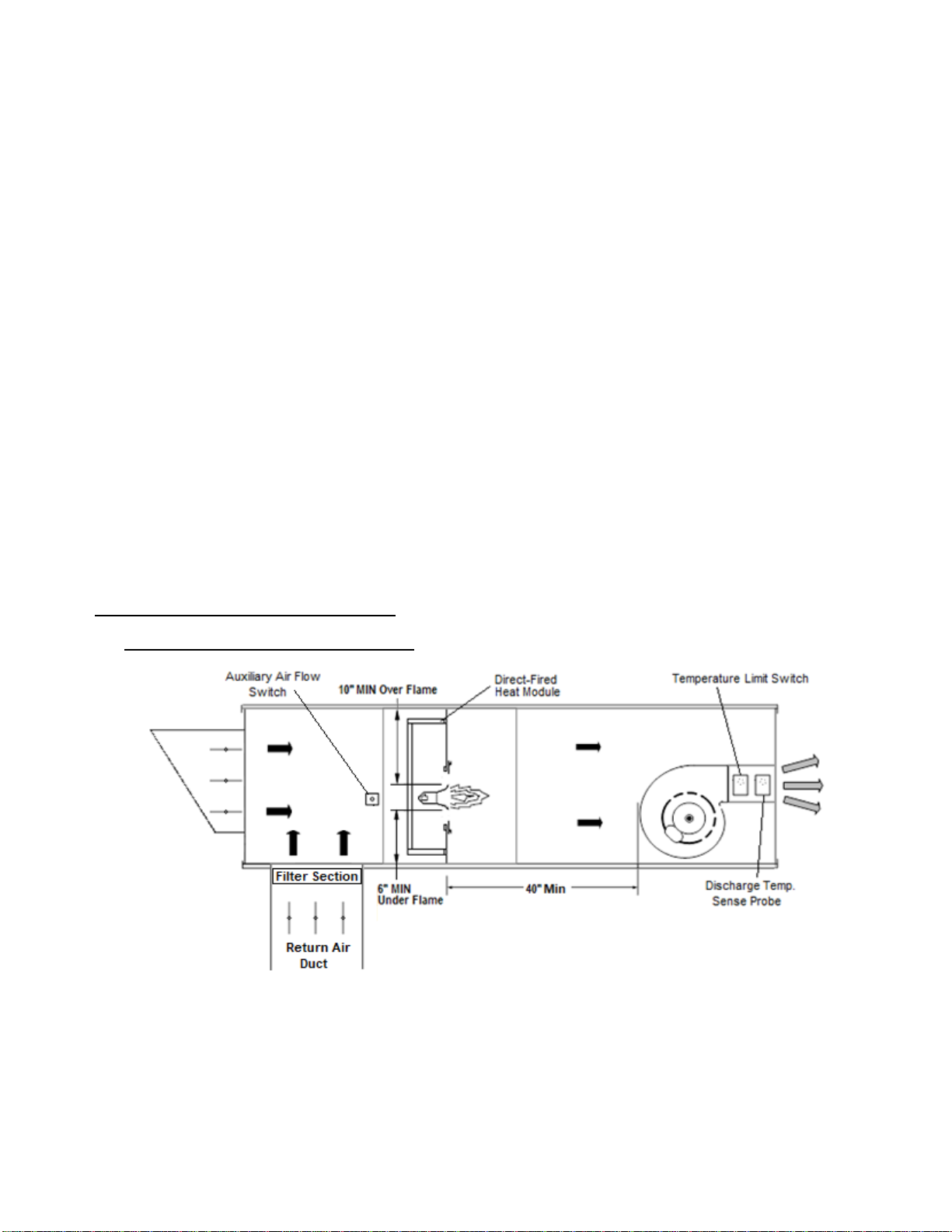

Figure 1 –Typical Pull-Thru Installation

When the heater is operated as a process air heater in a paint booth application or other applications with

airborne particulate matter that could be detrimental to the operation of the heater in the recirculating mode,

the recirculated air must be filtered to remove particulates from the air.

Filters must be installed in the return air duct system and have the means to facilitate inspection, maintenance,

cleaning, and access to fire protection devices.

Filters are required upstream of the direct gas-fired burner assembly. Particulate removal filters are not provided by

Heatco and must be approved by the authority having jurisdiction.

Minimum distance between the burner and blower should ensure proper stratification of the combustion air. Uniform

airflow MUST be directed over the profile plate opening.

The direct gas-fired heater module must be installed to fire with, and parallel to, the air flow.

The burner performance is dependent on its application and installation in the air handler. Manufacturer

does not guarantee combustion results prior to performing actual combustion tests. The supply fan is positioned to

draw air across the burner. The burner is designed to operate on 100% outside (fresh) air. Airflow across the burner

must be laminar and velocity must be within the specified range to insure desired capacity and turndown.

The direct gas-fired heater module profile plate mounting rails and profile plate sheet metal must be securely

fastened in the ductwork or cabinet. Provisions should be made so that downstream materials within 40” to 60” are

rated for at least 300oF.

The direct-fired heat module should be centered with the circulating air blower.

The heat module must be sheeted off to provide an air tunnel properly sized to direct airflow over the

burner, profile plate and optional dampers to eliminate unwanted by-pass air, as shown in Figure 2.

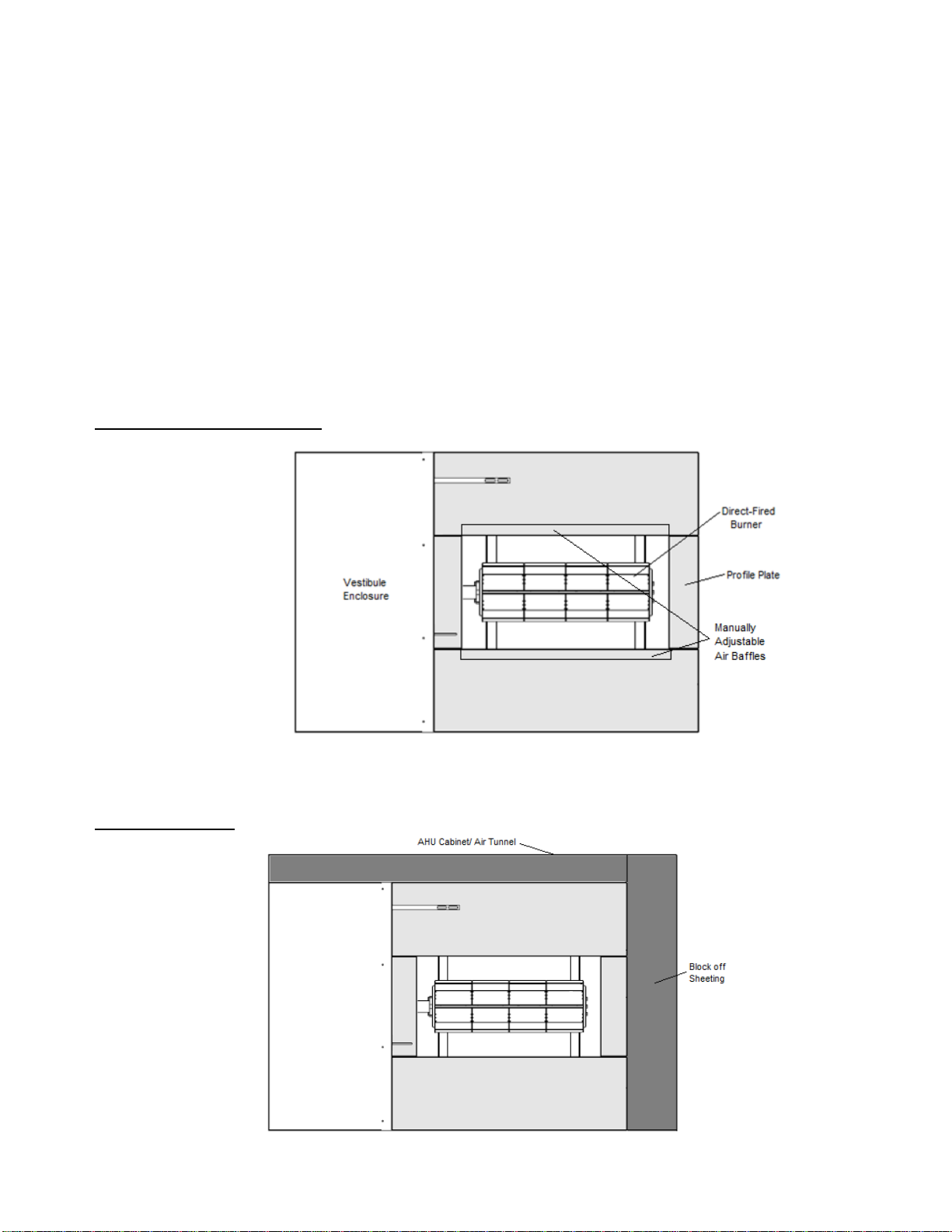

Figure 2 –Heat Module Air Tunnel

If air tunnel opening is larger than module profile, provide panels to block by-pass air and direct all airflow

over the designed burner, profile plate, and optional dampers as shown in Figure 3.

Figure 3 –Air Tunnel

IV. Paint Booth Application

In a paint booth application, an interlock shall be installed in the field to lock out the paint spraying equipment unless

the process heater is operated in the ventilation air mode. The customer safety interlock should be wired in series

with the heat enable signal. See supplied wiring diagram.

An interlock shall be installed in the field so that when the heater is operated in the ventilation air mode for an

minimum of three (3) minutes at the start of the bake or drying cycle with the paint spraying equipment locked out.

The purge period is field adjustable by setting the Time delay relay purge (TDRP) on the heater module control.

An interlock shall be installed in the field to initiate the operation of the heater fan in conjunction with the operation of

the exhaust fan. This interlock is provided by others and may be validated by an air flow proving switch. An air flow

proving switch should be wired in series with the heat enable and other customer safety interlocks.

V. Airflow Distribution & Multiple Heaters Application

Selection of direct gas-fired heater modules to provide desired conditions requires careful consideration of

necessary discharge air temperature, airflow (volume), airflow (direction), pressure drop across burners, air tunnel

dimensions and module configurations. Modules may be installed individually or in parallel. Refer to examples in

Figure 4 for suggested configurations. The maximum allowable discharge air temperature is 160 oF for direct gas-

fired heater module,

Figure 4 –Recommended Heater Installations

Single Unit –Side View

Parallel Unit –Side View

19841 CFM

45 oF Entering

Air Temp

1,100,000 Btuh

Input

45 oF Rise

90 oF

Discharge

Air Temp

1,100,000 Btuh

Input

45 oF Rise

39682 CFM

45 oF Entering

Air Temp

90 oF

Discharge

Air Temp

Design Pressure Drop 0.6”

w.c.

Design Pressure Drop 0.6” w.c.

Based on equal airflow of 19841

cfm thru each section

1,100,000 Btuh

Input

45 oF Rise

VI. Cabinet Installation Guidelines

Verify the following before installing the direct gas-fired heater module:

1. Electrical supply and gas supply match ratings and gas type marked on the direct gas-fired heater module

rating plate before installing the module.

2. Direct gas-fired heater module is installed in orientation marked on vestibule. Orientation is specific to airflow

direction through the burners of the direct gas-fired heater module.

3. Direct gas-fired module section must be installed in a non-combustible duct or cabinet.

Carefully support and lift module into position and slide into cabinet. Provide proper support or rigging using vest

panel and profile plate support brackets to support module during installation into cabinet. Fasten to cabinet.

The following must be included as part of the installation in the heating unit:

1. An air flow proving switch wired to prove operation of the correct system circulating air blower capacity.

2. A Manual Reset Temperature Limit to shut-off heater in the event of low airflow conditions due to filter

blockage, coil blockage and or damper failure.

3. Electrical control panels mounted away from heated surfaces.

4. Completed electrical connections from direct gas-fired heater module to the control panel.

5. Properly supported wiring in vestibule area. Wiring should not contact metal surfaces which may be hot

during direct gas-fired heater module operation.

6. Pipe sealant resistant to LP gases on all thread gas connections.

7. For gas regulators located indoors and not equipped with vent limiters, a properly sized vent to the outdoors.

8. Properly sized and located equipment access panels and doors to provide easy access for servicing, adjustment

and maintenance of the heating units installed.

VII.Temperature Limit and Airflow Proving Switch

An airflow proving switch and manual reset temperature limit must be installed in the duct direct gas-fired

heater module application.

The airflow proving switch prevents operation of the gas direct gas-fired heater module in the event of failure or

restriction of the circulating air fan. The airflow probe should be installed upstream of the heating section (See Fig.

1) to detect a negative pressure. The airflow switch would open the heat enable circuit to the flame safeguard

control if the correct minimum pressure is not detected by the switch. An airflow proving switch kit is available for this

module.

A manual reset temperature limit provides additional protection from overheating of the appliance or air handler in

the event of improper operation or a circulating air fan failure. Under such conditions the integral primary high limit

would cycle the heater resulting in heat build-up and possible damage to the module or appliance. A properly

located temperature limit is critical (See Fig. 1). The temperature limit will function to shut-off the gas supply to the

burners by opening the temperature safety circuit to the flame safeguard control.

WARNING !

Do not use burners, gas train, or manifold pipe as load bearing support during handling or

installation of direct gas-fired heater module in cabinet. Severe damage may result to burners,

profile plate, gas train, or pilot line assembly that result in unsafe operation, severe personal

Injury, death or significant property damage.

VIII. Circulating Air Supply

DF Series Direct gas-fired heater modules should ALWAYS be installed with burners in parallel with the

circulating airflow direction.

The circulating air is to be uniform across the full length of profile plate opening.

The direct gas-fired module is designed to operate with all circulating air passing over the burners taken

directly from outdoors.

IX. Burner Air Pressure Differential Adjustment

The direct gas-fired heater modules have an ideal standard design airflow condition of 2850 fpm and a flame length

of 15” at high fire (full input capacity 550 MBtuh per foot of burner) with 70 oF air.

Proper air velocity over the burner is critical to satisfactory operation of direct gas-fired units. If air velocity is not

within specifications, the unit may not operate efficiently or maintain satisfactory combustion emissions levels. To

obtain the desired operating condition, the proper pressure differential across the burner should be set as follows:

•Natural Gas: 0.60 in. w.c. (+/- .02”)

•Propane Gas: 0.75” in. w.c. (+/- .02”)

Connect a manometer to the burner differential pressure sensing probes (See Fig. 7) to measure the pressure drop

across the burner.

Adjust circulating air fan RPM with adjustable motor sheaves or VFD (if equipped) to achieve proper pressure drop.

Be sure motor amp draw does not exceed motor nameplate Full Load amperage (FLA).

Burner profile plates come with manually adjustable air baffles. These baffles may be used in the field at final

installation to optimize the circulating air velocity and pressure drop across the burners. The profile plate baffles are

constructed such that the width is fixed, and adjustments are incorporated above and below the burner (typical

adjustment is +/- 2” per baffle). If fan RPM cannot be adjusted, evenly adjust the baffles above and below the

burner, keeping the burner centered in the opening until the required pressure is obtained. To increase the static

pressure, lessen the opening size. To decrease the static pressure, increase the opening size.

If the burner baffles have been adjusted, this process may need to be repeated until the proper pressure drop is

obtained. This adjustment will change the air quantity delivered by the unit, so recheck delivered air quantity.

A direct gas-fired heater module rated for 100 oF temperature rise and 70 oF outlet temperature at a design velocity

of 2850 fpm and a design pressure drop of 0.6”w.c., will actually have a velocity of 2300 fpm over the burner with a

0.36” w.c. pressure drop when air enters at -30 oF. Therefore the burner has an allowable pressure drop range of

the burner is 0.2” w.c. to 1.2”w.c., and velocity across the burner of 1,500 fpm to 3,500 fpm. Careful design and

implementation of the direct gas-fired heater module is necessary to provide expected operation and

performance in the field.

X. Maximum / Minimum Airflow (VAV)

A variable air volume (VAV) option is recommended when a building’s exhaust volume may vary. This option

enables the make-up air volume to track the exhaust volume, providing only the required volume of make-up air.

A burner bypass damper is required for proper operation of variable volume units. It functions to maintain proper

combustion by providing constant airflow over the burner as the air volume traversing the burner changes.

At design airflow, the bypass damper will be fully open and approximately 50% of the total airflow will pass through

damper area, while the remaining air will flow over the burner. As the supply air is reduced, the bypass damper will

begin to close. This reduces the amount of air passing through the damper area and maintains a constant volume of

air passing over the burner. At minimum airflow the bypass damper will be closed and all the air will flow through the

burner profile plate opening. Thus, airflow through the burner profile stays comparatively constant throughout the

range of operation.

A damper bypass with damper control monitoring burner pressure drop may be installed to ensure proper operating

burner pressures. A two-position damper with potentiometer or modulating damper with Photohelic control may be

used.

When providing a variable speed blower fan, the burners can operate normally at a 50% turndown without adding

dampers. Design burner pressure drop should be 1.0” w.c. When the blower is turned down 50% the burner pressure

drop will be close to 0.25” w.c. These operating parameters are within the combustion air switch high and low limits

(0.2” w.c. to 1.2” w.c.).

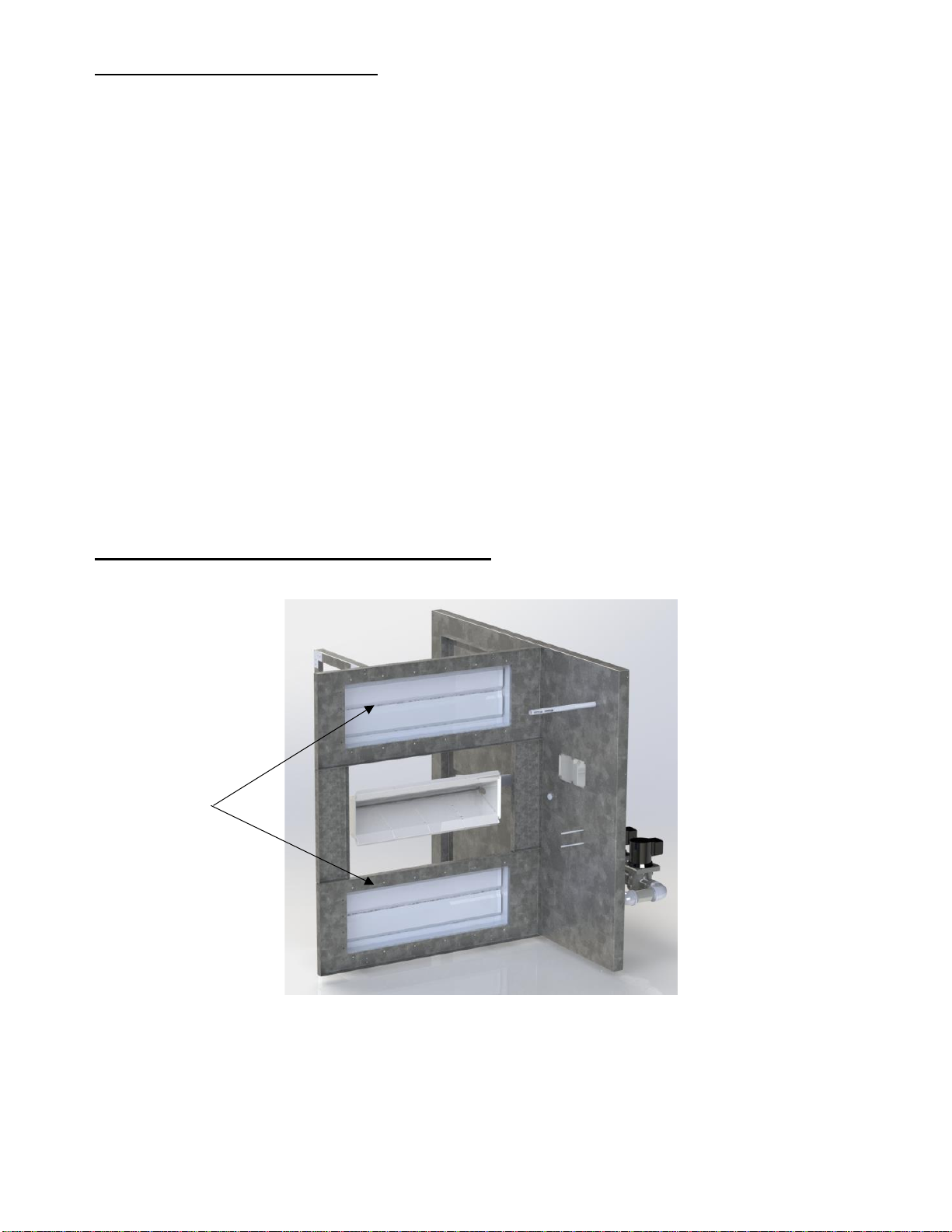

Figure 6 –Variable Profile Plate Damper Construction

Profile

Modulating

Dampers

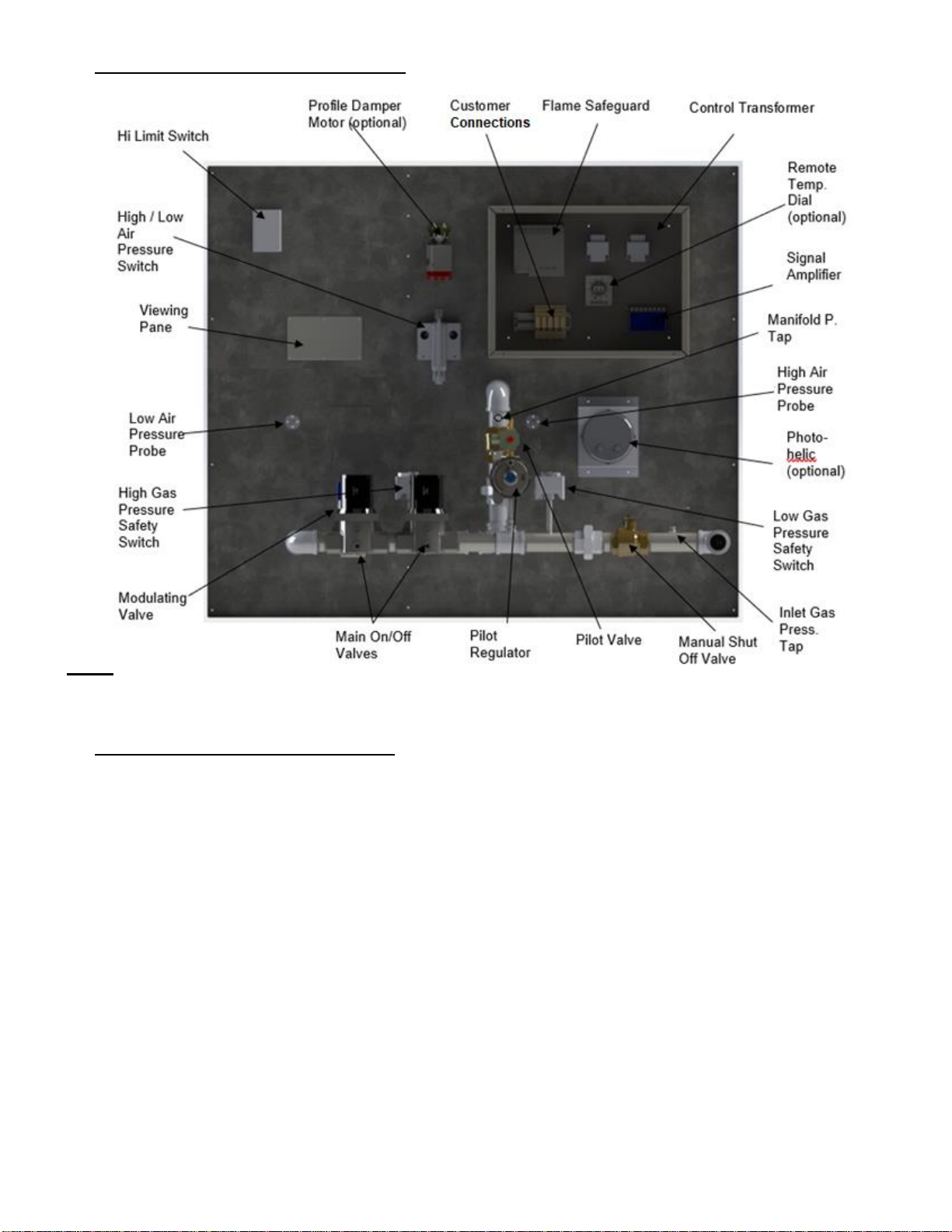

Figure 7 –Component Locations (Typical)

XI. Gas Supply, Piping and Connections

1. Installation and sizing of piping must conform with local building codes and ordinances, or with ANSI Z223.1 the

National Fuel Gas Code. In Canada, installation must be in accordance with CAN/CGA –B149.1 Installation

Codes.

2. Use a pipe sealant resistant to LP gases on Gas supply connections to heater.

3. Properly support gas train components with back-up wrench, during supply pipe installation to prevent

loosening valve or damage to burner assembly or manifold.

4. Gas piping must be sized for the total Btu input of all units (heaters) serviced by a single supply.

5. Be sure that gas regulators servicing more than one heater have the proper pipe and internal orifice size for the

total input of all heating units serviced by the regulator. (See Figure 8)

6. Direct Gas-Fired modules require a minimum inlet gas pressure. These pressure values are specific to the job

site location. See burner module ratings plate.

7. Connect a fitting suitable for connection to a pressure gauge capable of measuring gas pressure to 1/8” NPT tap

provided on the inlet side of the gas valve or manual shut-off valve tapping (See Figure 7). Measure inlet

pressure to each module serviced by a single regulator with all modules in operation. (See Figure 8)

Autres manuels pour DF Series

Table des matières

Autres manuels heatco Chauffage

heatco

heatco HP Series Guide d'installation et d'utilisation

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur

heatco DF Series Manuel utilisateur

Manuels Chauffage populaires d'autres marques
