Heat-N-Glo 8000TVC Instructions de montage

- Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

-What to do if you smell gas

 Do not try to light any appliance.

 Do not touch any electrical switch.

 Do not use any phone in your building.

 Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

 If you cannot reach your gas supplier, call the

fire department.

- Installation and service must be performed by a

qualified installer, service agency, or the gas

supplier.

Heat-N-Glo

Model:

8000TVC Installers Guide

WARNING: IMPROPER

INSTALLATION, ADJUSTMENT,

ALTERATION, SERVICE OR

MAINTENANCE CAN CAUSE INJURY

OR PROPERTY DAMAGE. REFER TO

THIS MANUAL. FOR ASSISTANCE OR

ADDITIONAL INFORMATION

CONSULT A QUALIFIED INSTALLER,

SERVICE AGENCY, OR THE GAS

SUPPLIER.

258-900C 10/99

READ THIS MANUAL BEFORE INSTALLING

OR OPERATING THIS APPLIANCE. THIS

INSTALLERS GUIDE MUST BE LEFT WITH

THE APPLIANCE FOR FUTURE REFERENCE.

Please contact your Heat-N-Glo dealer with

any questions or concerns. For the number

of your nearest Heat-N-Glo dealer, please

call 612-985-6000.

Heat-N-Glo, a division of Hearth Technologies Inc.

20802 Kensington Blvd., Lakeville, MN 55044

This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;

4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)

543790;586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

Underwriters

Laboratories Listed

WARNING

IF THE INFORMATION IN THESE

INSTRUCTIONS IS NOT

FOLLOWED EXACTLY, A FIRE OR

EXPLOSION MAY RESULT

CAUSING PROPERTY DAMAGE,

PERSONAL INJURY, OR DEATH.

SAFETY AND WARNING INFORMATION

READ and UNDERSTAND all instructions carefully before starting the installation.

FAILURE TO FOLLOW these installation instructions may result in a possible fire

hazard and will void the warranty.

Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the

Owners Guide.

DO NOT USE this appliance if any part has been under water. Immediately CALL a

qualified service technician to inspect the unit and to replace any part of the control

system and any gas control which has been under water.

THIS UNIT IS NOT FOR USE WITH SOLID FUEL.

Installation and repair should be PERFORMED by a qualified service person. The

appliance and venting system should be INSPECTED before initial use and at least

annually by a professional service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. It is IMPERATIVE that the

units control compartment, burners, and circulating air passageways BE KEPT

CLEAN to provide for adequate combustion and ventilation air.

Always KEEP the appliance clear and free from combustible materials, gasoline, and

other flammable vapors and liquids.

NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the

appliance CLEAR of all obstacles and materials for servicing and proper operations.

Due to the high temperature, the appliance should be LOCATED out of traffic areas

and away from furniture and draperies. Clothing or flammable material SHOULD

NOT BE PLACED on or near the appliance.

Children and adults should be ALERTED to the hazards of high surface temperature

and should STAY AWAY to avoid burns or clothing ignition. Young children should be

CAREFULLY SUPERVISED when they are in the same room as the appliance.

These units MUST use one of the vent systems described in the Installing the

Fireplace section of the Installers Guide. NO OTHER vent systems or components

MAY BE USED.

This gas fireplace and vent assembly MUST be vented directly to the outside and

MUST NEVER be attached to a chimney serving a separate solid fuel burning

appliance. Each gas appliance MUST USE a separate vent system. Common vent

systems are PROHIBITED.

INSPECT the external vent cap on a regular basis to make sure that no debris is

interfering with the air flow.

The glass door assembly MUST be in place and sealed, and the trim door assembly

MUST be in place on the fireplace before the unit can be placed into safe operation.

DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.

Replacement of the glass door should be performed by a licensed or qualified

service person. DO NOT strike or slam the glass door.

The glass door assembly SHALL ONLY be replaced as a complete unit, as supplied

by the gas fireplace manufacturer. NO SUBSTITUTE material may be used.

DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to

clean the glass door when it is hot.

Turn off the gas before servicing this appliance. It is recommended that a qualified

service technician perform an appliance check-up at the beginning of each heating

season.

Any safety screen or guard removed for servicing must be replaced before operating

this appliance.

Table of

Contents

Safety and Warning Information .......................... i

Section 1: Approvals and Codes ...................... 1

Approval Listings and Codes ..................................... 1

Appliance Certification ............................................... 1

Installation Codes ...................................................... 1

High Altitude Installations ........................................... 1

Section 2: Getting Started .................................. 2

Introducing the Heat-N-Glo Gas Fireplaces ............... 2

Pre-installation Preparation ....................................... 2

Section 3: Installing the Fireplace ..................... 4

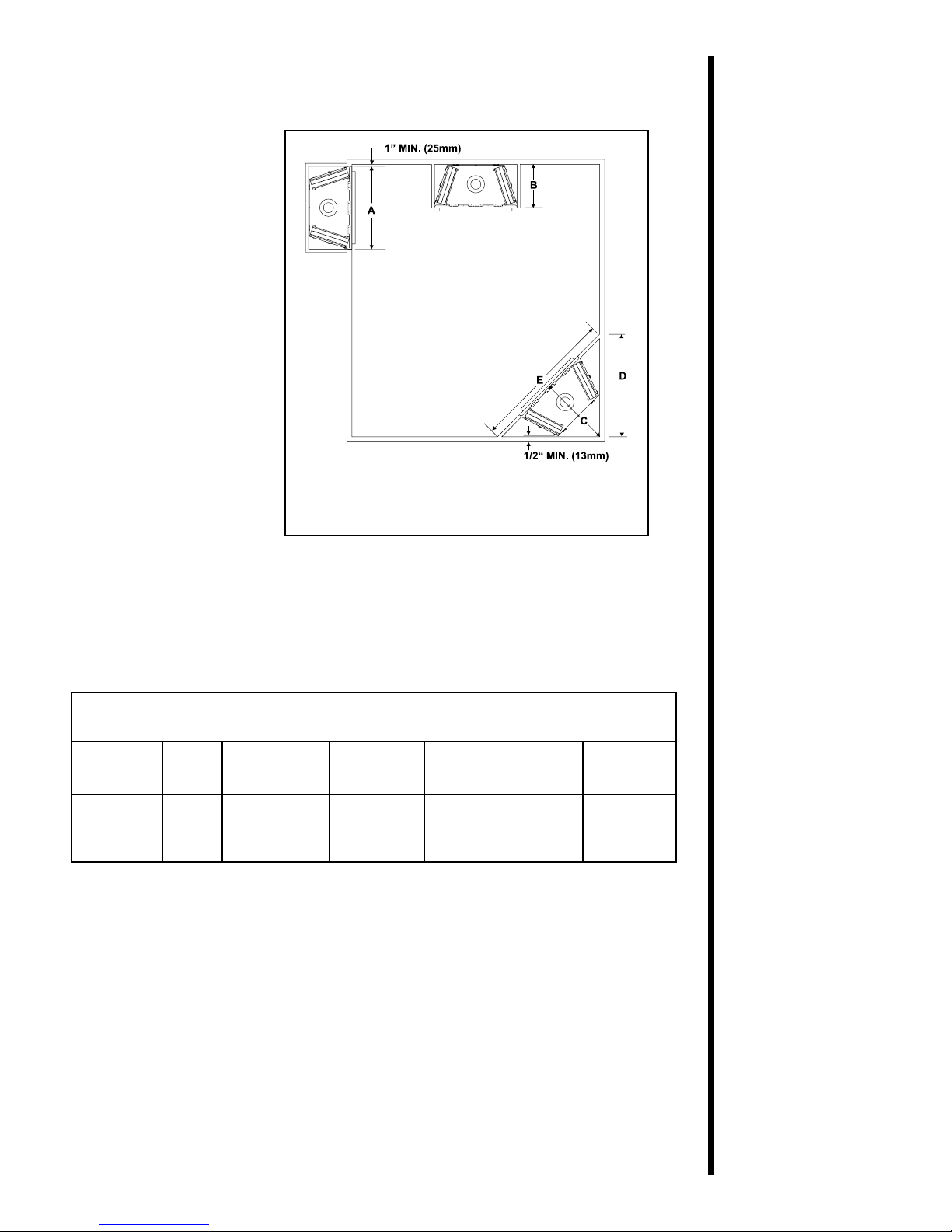

Step 1 Locating the Fireplace ................................... 4

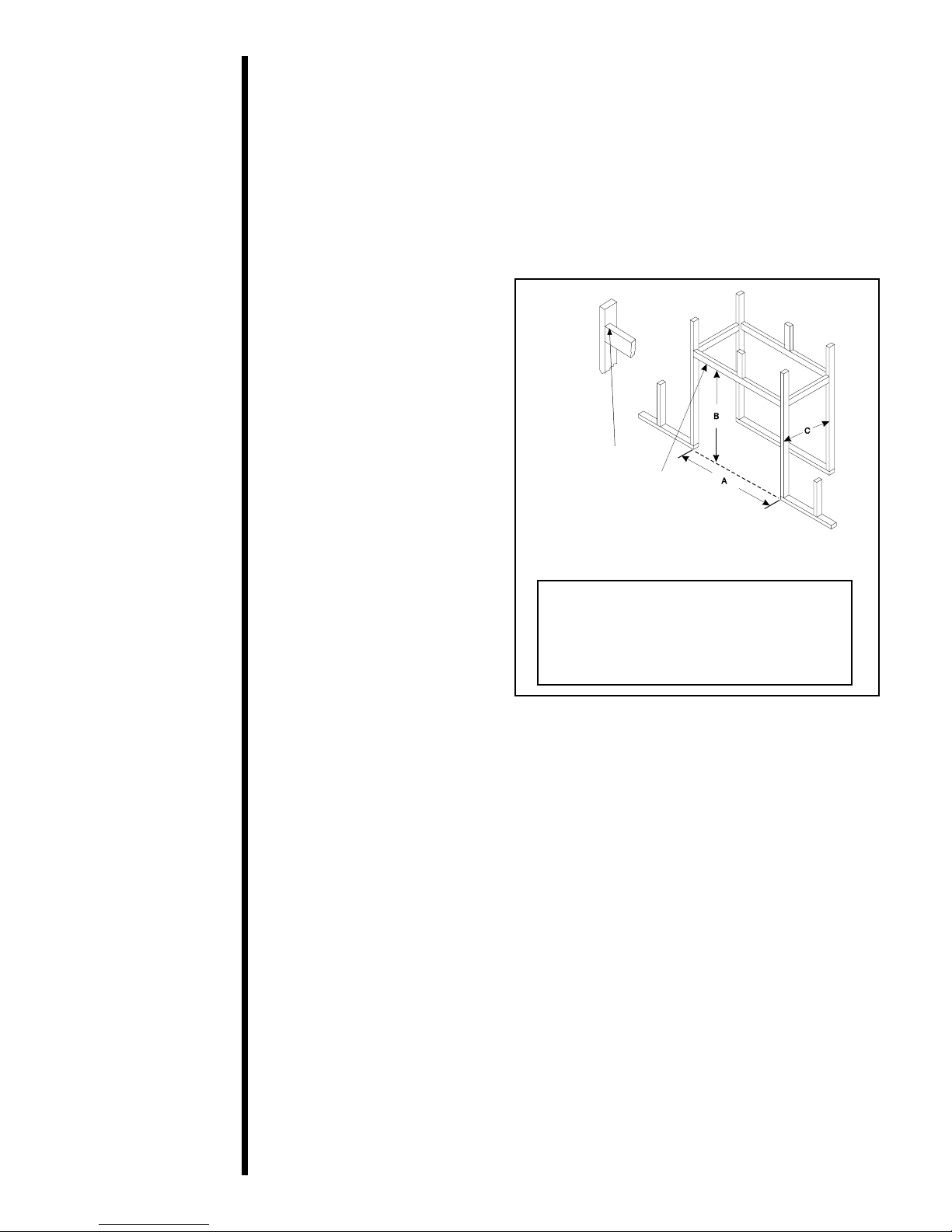

Step 2 Framing the Fireplace ................................... 5

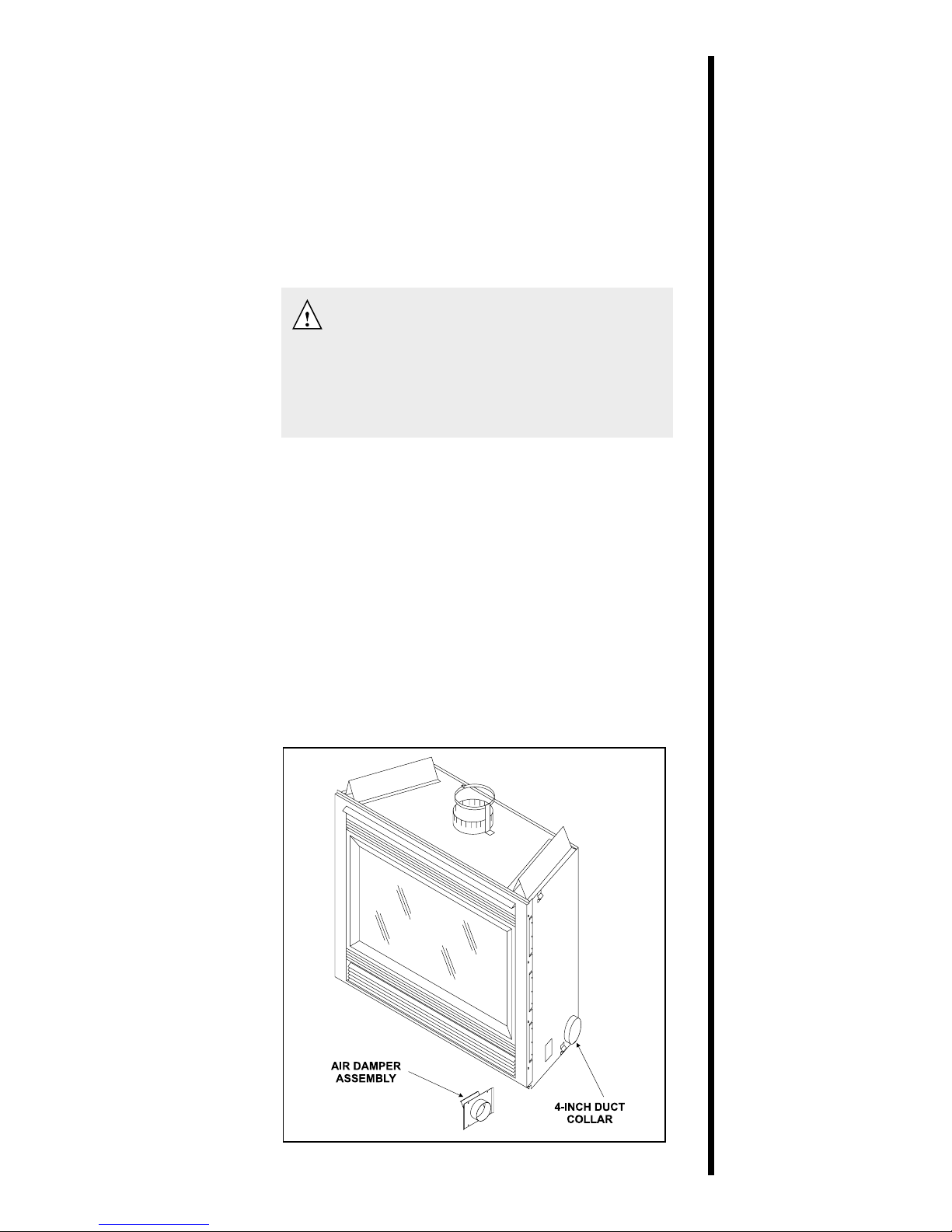

Step 3 Negative Pressure Make-up Air ..................... 5

Step 4 Installing the Vent System ............................. 7

A. Vent System Approvals ............................. 7

B. System Components................................ 7

C. Bedroom Installation in Canada ................ 9

D. Vent Termination ....................................... 9

Step 5 Positioning, Leveling, and

Securing the Fireplace ................................ 10

Step 6 The Gas Control Systems .......................... 10

Step 7 The Gas Supply Line ................................... 12

Step 8 Gas Pressure Requirements ...................... 13

Step 9 Wiring the Fireplace .................................... 14

Step 10 Finishing ...................................................... 17

Step 11 I

nstalling Trim, Logs, and Ember Materia

l ..... 18

Installing the Trim ........................................ 18

Positioning the Logs .................................... 18

Placing the Ember Material ......................... 18

Step 12 Before Lighting the Fireplace ...................... 20

Step 13 Lighting the Fireplace .................................. 20

Section 4: Maintaining and Servicing

Your Fireplace ................................. 21

Section 5: Replacement Parts

and Accessories .............................. 23

Replacement Parts ................................................. 23

Accessories ............................................................ 28

i i

u= Contains updated information.

Approval Listings

and Codes

Appliance Certification

The Heat-N-Glo fireplace models discussed in this

Installers Guide have been tested to certification

standards and listed by the applicable laboratories.

CERTIFICATION

MODEL LABORATORY TYPE STANDARD

8000TVC Underwriters Vented ANSIZ21.50CGA2.2

Laboratories Gas Fireplace

Installation Codes

The fireplace installation must conform to local codes. Before installing the

fireplace, consult the local building code agency to ensure that you are in

compliance with all applicable codes, including permits and inspections.

In the absence of local codes, the fireplace installation must conform to the

National Fuel Gas Code ANSI Z223.1 (in the United States) or the CAN/CGA-

B149 Installation Codes (in Canada). The appliance must be electrically

grounded in accordance with local codes or, in the absence of local codes with

the National Electric Code ANSI/NFPA No. 70 (in the United States), or to the

CSA C22.1 Canadian Electric Code (in Canada).

These models (natural gas and propane) can be installed in a bedroom (in the

United States) which has a total volume of unconfined space appropriate to the

particular installation. Refer to the National Fuel Gas Code ANSI Z223.1/NFPA54

(current edition). The Uniform Mechanical Code - (current edition), and local

Building Officials for the options allowed in obtaining an effective bedroom

volume of unconfined space.

These models (natural gas and propane) can be installed in a bedroom (in

Canada) if a thermostat (Model WH-STAT) is installed with the unit. Consult

local code authorities. Detailed installation instructions for Model WH-STAT are

included with the kit.

High Altitude Installations

U.L. Listed fireplaces are tested and approved for elevations from 0 to 2,000 feet

in the U.S.A. and are tested and approved for elevations from 0 to 4,500 feet in

Canada.

When installing this fireplace at an elevation above 2,000 feet (in the United

States), it may be necessary to decrease the input rating by changing the

existing burner orifice to a smaller size. Input should be reduced four percent

(4%) for each 1,000 feet above sea level, unless the heating value of the gas has

been reduced, in which case this general rule will not apply. To identify the proper

orifice size, check with the local gas utility.

When installing this fireplace at an elevation between 2,000 and 4,500 feet (in

Canada), the input rating must be reduced by ten percent (10%).

When installing this fireplace at an elevation above 4,500 feet (in Canada), check

with local authorities.

Consult your local gas utility for assistance in determining the proper orifice for

your location.

Approvals

and Codes

Getting

Started

Introducing the

Heat-N-Glo

Gas Fireplaces

Heat-N-Glo B-type vent gas fireplaces are designed to

operate with all exhaust gases expelled to the outside

of the building.

The information contained in this Installers Guide,

unless noted otherwise, applies to all models and gas

control systems.

Gas fireplace diagrams, including the dimensions, are

shown in this section.

Pre-installation

Preparation

This gas fireplace and its components are tested and

safe when installed in accordance with this Installers

Guide. Report to your dealer any parts damaged in

shipment, particularly the condition of the glass. Do

not install any unit with damaged, incomplete, or

substitute parts.

The vent system components and trim doors are

shipped in separate packages. Log installation

instructions are provided in the manual bag assembly

shipped with unit. Read all of the instructions

before starting the installation. Follow these

instructions carefully during the installation to

ensure maximum safety and benefit. Failure to

follow these instructions will void the owners

warranty and may present a fire hazard.

The Heat-N-Glo Warranty will be voided by, and

Heat-N-Glo disclaims any responsibility for, the

following actions:

 Installation of any damaged fireplace or vent system

component.

 Modification of the fireplace or vent system.

 Installation other than as instructed by Heat-N-Glo.

 Improper positioning of the gas logs or the glass

door.

 Installation and/or use of any component part not

manufactured and approved by Heat-N-Glo, not

withstanding any independent testing laboratory or

other party approval of such component part or

accessory.

ANY SUCH ACTION MAY POSSIBLY CAUSE A

FIRE HAZARD.

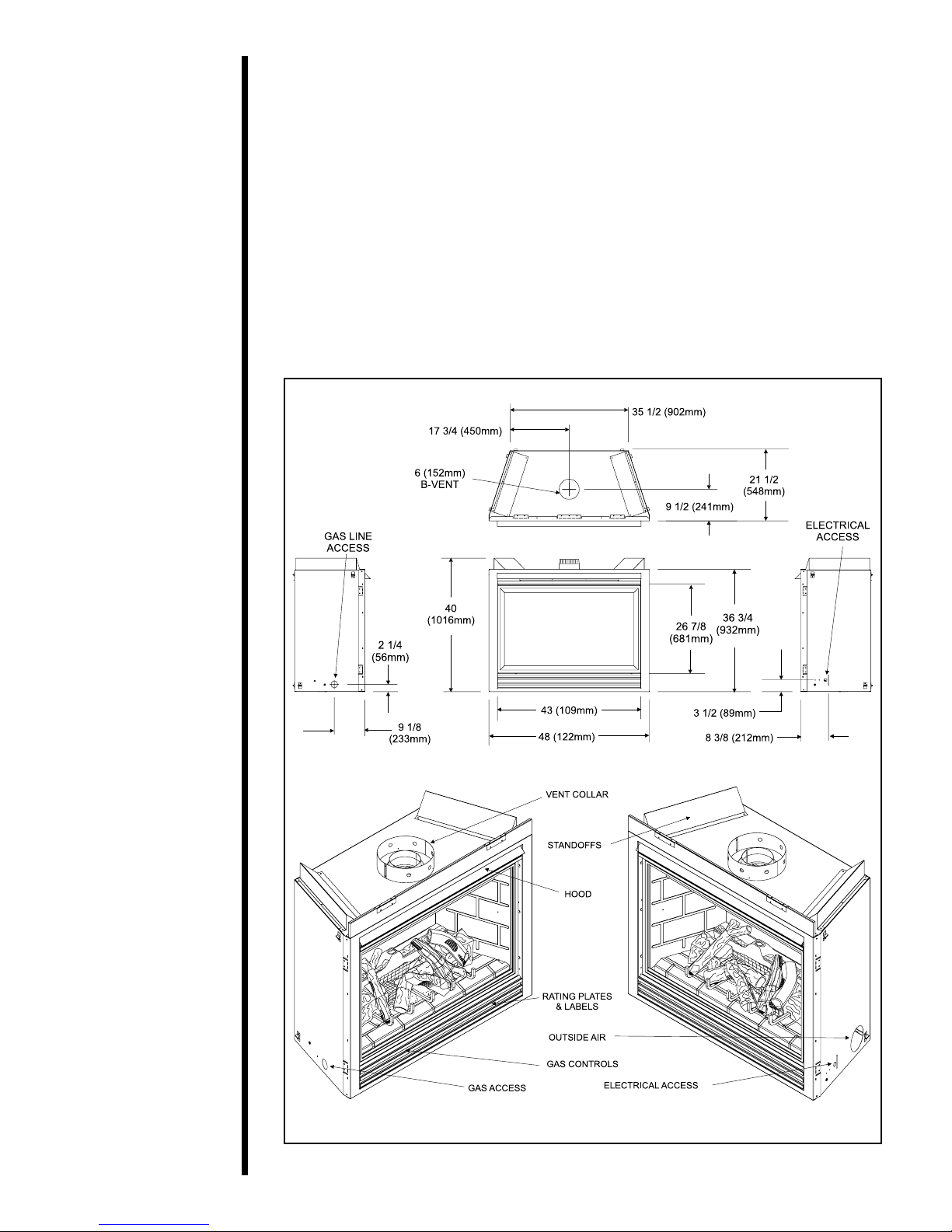

Figure 1. Diagram of 8000TVC

When planning a fireplace installation, its necessary to determine:

Where the unit is to be installed.

The vent system configuration to be used.

Gas supply piping.

Electrical wiring.

Framing and finishing details.

Whether optional accessoriesdevices such as a fan, wall switch, or remote

controlare desired.

If the fireplace is to be installed on carpeting or tile, or on any combustible

material other than wood flooring, the fireplace should be installed on a metal or

wood panel that extends the full width and depth of the fireplace.

Figure 2. Fireplace Dimensions, Locations, and

Space Requirements

Clearance Requirements

The top, back, and sides of the fireplace are defined

by stand-offs.

Minimum Clearances from the Fireplace to

Combustible Materials

Glass Back of Sides of Top of

Front Floor Fireplace Fireplace Fireplace Ceiling

36 inches 0 1/2 inch 1/2 inch 31/2 inches (89mm) 31 inches

(914 mm) (13 mm) (13 mm) (787 mm)

The minimum clearance to a perpendicular wall extending

past the face of the fireplace is one inch (25mm).

The minimum clearance from the top face of the fireplace

to combustible finishing materials such as drywall, is one

inch (25mm).

The back of the fireplace may be recessed 21 1/2

inches (546mm) into combustible construction.

Minimum Clearances from the B-Type Vent

Pipe to Combustible Materials is 1 inch (25mm)

all around the pipe.

MODELS A B C D E

8000TVC 49 22 39 1/2 56 79

Step 1

Locating the

Fireplace

The diagram below shows space and clearance

requirements for locating a fireplace within a room. 3

Installing the

Fireplace

Framing should be constructed of 2 X 4 lumber or heavier.

Models A B C

8000TVC 49 40 1/2 22

NOTE: DIMENSIONS SHOWN IN INCHES

Figure 3. Framing Dimensions

Fireplace framing can be built before or after the

fireplace is set in place. Framing should be

positioned to accommodate wall coverings and

fireplace facing material. The diagram below shows

framing reference dimensions.

CAUTION MEASURE FIREPLACE DIMENSIONS, AND

VERIFY FRAMING METHODS AND WALL

COVERING DETAILS BEFORE FRAMING

CONSTRUCTION BEGINS.

Step 2

Framing the

Fireplace

WARNING:

To ensure proper

clearances the front

framing header must be

installed on its narrow

edge and to the front of

the frame.

Negative Pressure warning: When negative

pressure is present, an atmospherically vented

fireplace (with a draft hood) may not function

properly and it may down draft. In the case of a

gas appliance, spillage of the combustion gases

may occur. This may create a dangerous

carbon monoxide situation in the house.

The causes of negative pressure to a house can

include the following:

 Stack effect in the building.

 Exhaust only appliances (mechanically and

atmospherically vented).

 Inadequate make-up air (which is increasingly

more prevalent in new construction).

It is recommended that all natural venting non-air

tight gas fireplaces have outside air connected

to them. It is also recommended that the building

be mechanically or passively balanced to allow

atmospherically vented appliances, such as top

Step 3

Negative

Pressure

Make-up Air

Air Damper

Before lighting the burner, open the damper. Close

the damper when the burner is off.

Detailed installation instructions for Model AK-TV

Outside Air kit are found in the kit.

Figure 4. Make-up Air

vented gas fireplaces with draft hoods, to draft

properly. If the home experiences negative pressure

or is likely to experience negative pressure,

connection to an outside air source is mandatory.

Installing Optional Outside Make-up Air:

This unit is equipped to accept outside air. By using

outside make-up air, the amount of room air used for

combustion will be reduced. It is recommended that

an AK-TV air kit be used with this appliance.

WARNING: IN A NEGATIVE PRESSURE

CONDITION (LIKELY TO OCCUR IN

NEW HOMES THAT DO NOT HAVE ADEQUATE

MAKE-UP AIR) THE OUTSIDE AIR KIT MUST

BE INSTALLED TO OBTAIN PROPER

PERFORMANCE AND TO HELP PREVENT

SPILLAGE OF COMBUSTION GASES.

A 4-inch side collar/damper (found in AK-TV Kit)

must be installed on the fireplace by attaching the

side collar to the outer wrap of the fireplace at the

right-hand rear corner using sheetmetal screws.

See Figure 4. Attach one end of a 4-inch flexible air

duct (not provided in the AK-TV Kit) to the side collar

and the other end of the duct to the make-up air

termination cap. Use plastic tie straps to secure the

ends of the flex duct to each collar.

Step 4

Installing the

Vent System

A. Vent System Approvals

Model 8000TVC is approved to use 6-inch (152mm)

diameter B-type vent. B-type vent must be used

when the vent system is within combustible

construction.

These models may also use single wall rigid or flexible

gas vent IF and ONLY IF the vent system is installed

within non-combustible construction such as a masonry

chimney. The same diameter noted above for B-type

vent must be used for single-wall vent. See Figure 5.

For B-type vent the clearance to combustibles is

1-inch. Follow vent manufacturers REQUIRED

clearances.

The flame and ember appearance may vary

based on the type of fuel burned and the venting

configuration used.

B. System Components.

Vent System Configuration

RISE TO RUN RATIO = 2:1

MAXIMUM TOTAL HORIZONTAL RUN = 15 FT.

MINIMUM TOTAL VERTICAL RISE = 9 FT.

MAXIMUM NO. Of ELBOWS: 2 - 90oor 4 - 45o

Plan and install the vent system using the parameters

shown above.

WARNING: YOU MUST NOT EXCEED

THESE PARAMETERS.

Connect a B-Type vent component to the flue outlet collar.

Look at the vent pipe through the holes in the 10 5/8

ring to check that the vent pipe is attached.

NOTE: It is always better to first attach a straight

section of

vent to the unit before attaching an elbow.

Avoid using elbows in the vent system if possible.

A 90-degree elbow can be attached directly to the unit.

If it is, it can be followed by a MAXIMUM 15-feet

horizontal run, a second 90-degree elbow ending in a

minimum 30 foot vertical.

A minimum of 9 foot vertical rise ending in a listed

termination cap is required for the unit.

Continue to add vent components, until the vent run is

completed.

WARNING: YOU MUST NOT EXCEED A

TOTAL MAXIMUM HORIZONTAL RUN

OF 15 FEET FOR THE ENTIRE VENT

SYSTEM.

Table des matières

Autres manuels Heat-N-Glo Cheminée intérieure

Heat-N-Glo

Heat-N-Glo SL-Insert Manuel utilisateur

Heat-N-Glo

Heat-N-Glo SL-350TV Instructions de montage

Heat-N-Glo

Heat-N-Glo CFX-DA Instructions de montage

Heat-N-Glo

Heat-N-Glo CBS-41 Manuel utilisateur

Heat-N-Glo

Heat-N-Glo ENERGY MASTER EM-415R Manuel

Heat-N-Glo

Heat-N-Glo 8000TV Manuel utilisateur

Heat-N-Glo

Heat-N-Glo SL-36 Instructions de montage

Heat-N-Glo

Heat-N-Glo BAY-INS Instructions de montage

Heat-N-Glo

Heat-N-Glo CFX-ZC Instructions de montage

Heat-N-Glo

Heat-N-Glo GRAND-50 Instructions de montage

Heat-N-Glo

Heat-N-Glo WS-150 Instructions de montage

Heat-N-Glo

Heat-N-Glo SL-750TRS-C Instructions de montage

Heat-N-Glo

Heat-N-Glo SL-3000 Manuel utilisateur

Heat-N-Glo

Heat-N-Glo ST-38GTV Instructions de montage

Heat-N-Glo

Heat-N-Glo 8000TRD Instructions de montage

Heat-N-Glo

Heat-N-Glo Pier-PV-IPI Instructions de montage

Heat-N-Glo

Heat-N-Glo BAYFYRE-TRS Instructions de montage

Heat-N-Glo

Heat-N-Glo ST-38GTV Instructions de montage

Heat-N-Glo

Heat-N-Glo ATS-AUST Manuel de service

Heat-N-Glo

Heat-N-Glo 8000TVFL Instructions de montage

Heat-N-Glo

Heat-N-Glo RSW-41 Manuel

Heat-N-Glo

Heat-N-Glo 8000 DVTFL Instructions de montage

Heat-N-Glo

Heat-N-Glo SL-550TV-C Instructions de montage

Heat-N-Glo

Heat-N-Glo 7000XLS Instructions de montage

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
