Heat Controller Comfort-Aire BG-101A Manuel utilisateur

Through-The-Wall

Air Conditioning

Important Information

•Please read carefully and thoroughly this manual before operating this unit.

•Contact a qualified sevice technician for installation, repair and maintenance of this unit.

•The appliance is not intended for use by young children or those who require supervision.

•Young children should be supervised to ensure that they do not play with the appliance.

HEAT CONTROLLER, INC.

Models: BG-81A

BG-101A

BG-123A

2Room Air Conditioner

Window-Type Air Conditioner Owner’s Manual

TABLE OF CONTENTS

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■Staple your receipt to this page in the event you need it

to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first,youmaynotneedtocallfor

service at all.

PRECAUTION

•Contact the authorized service technician for repair

or maintenance of this unit.

• Contact the installer for installation of this unit.

• The air conditioner is not intended for use by young

children or invalids without supervision.

• Young children should be supervised to ensure that

they do not play with the air conditioner.

• When the power cord is to be replaced, replacement

work shall be performed by authorized personnel only

using only genuine replacement parts.

• Installation work must be performed in accordance

with the National Electric Code by qualified and

authorized personnel only.

Safety Precautions..........................3

Before Operation.............................7

Introduction ....................................8

Electrical Safety ..............................9

Installation ....................................11

Operating Instructions .................18

Maintenance and Service ............21

Owner’s Manual 3

ENGLISH

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness

is classified by the following indications.

■Meanings of symbols used in this manual are as shown below.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

WARNING

■Installation

Be sure not to do.

Be sure to follow the instruction.

Don’t use a power cord, a

plug or a loose socket which

is damaged.

•Otherwise, it may cause a fire

or electrical shock.

Always plug into a grounded

outlet.

•Otherwise, it may cause a fire

or electrical shock.

Do not modify or extend the

power cord length.

•It will cause electric shock or fire

due to heat generation.

Do not disassemble or

modify products.

•It may cause failure and

electric shock.

Be caution when unpacking

and installing.

•Sharp edges may cause

injury.

Do not use the power cord near

flammable gas or combustibles

such as gasoline, benzene,

thinner, etc.

•It may cause explosion or fire.

Gasolin

4Room Air Conditioner

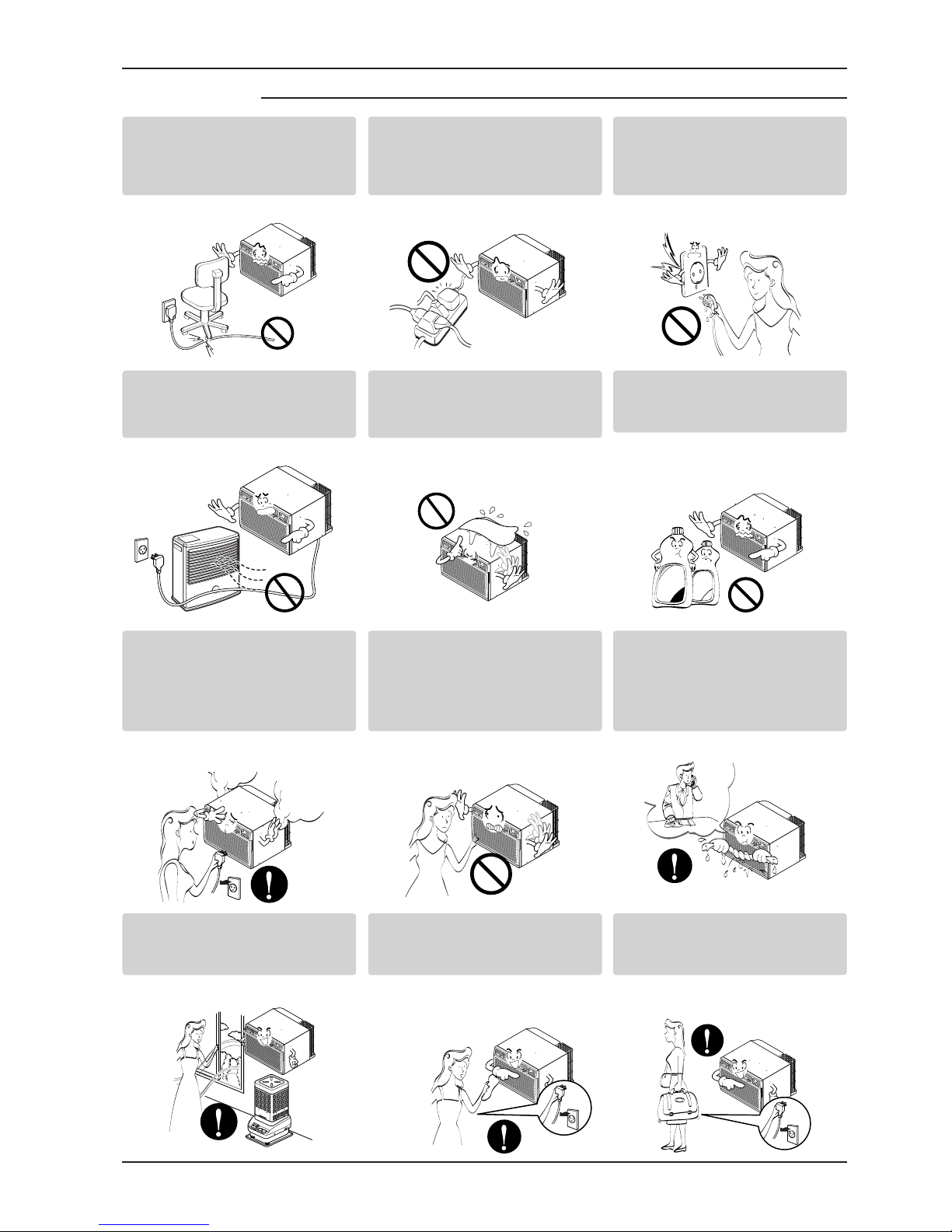

Safety Precautions

■Operation

Do not place the power cord

near a heater.

•It may cause fire and electric

shock.

Do not allow water to run

into electric parts.

•It will cause failure of machine or

electric shock.

Use a soft cloth to clean. Do

not use wax, thinner, or a

strong detergent.

•The appearance of the air

conditioner may deteriorate,

change color, or develop surface

flaws.

Wax

Thinner

Ventilate the room well when

using this appliance

together with a stove, etc.

•An oxygen shortage may occur.

Turn off the power and

breaker firstly when

cleansing the unit.

•Since the fan rotates at high

speedduringoperation,itmay

cause injury.

Turn off the main power

switch when not using it for

alongtime.

•Prevent accidental startup and

the possibility of injury.

Unplug the unit if strange

sounds, odors, or smoke

come from it.

•Otherwise it may cause fire and

electric shock accident.

Do not open the suction

inlet grill of the product

during operation.

•Otherwise, it may electrical

shock and failure.

If water enters the product, turn

off the the power switch of the

main body of appliance. Contact

service center after taking the

power-plug out from the socket.

Do not place heavy object

on the power cord and take

care so that the cord should

not be pressed.

•Thereisdangeroffireorelectric

shock.

Do not share the outlet with

other appliances.

•It will cause electric shock or fire

due to heat generation.

Take the power plug out if

necessary, holding the head

of the plug and do not touch

it with wet hands.

•Otherwise, it may cause a fire

or electrical shock.

Owner’s Manual 5

ENGLISH

Safety Precautions

CAUTION

■Installation

Do not operate or stop the

unit by inserting or pulling

out the power plug.

•It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

•It will cause electric shock or fire.

Do not operate with wet

hands or in damp

environment.

•It will cause electric shock.

Hold the plug by the head

when taking it out.

•It may cause electric shock and

damage.

When gas leaks, open the

window for ventilation

before operating the unit.

•Otherwise, it may cause

explosion, and a fire.

Never touch the metal parts

of the unit when removing

the filter.

•They are sharp and may cause

injury.

Install the product so that the noise or hot

wind from the outdoor unit may not cause

any damage to the neighbors.

•Otherwise, it may cause dispute with the

neighbors.

Keep level parallel in installing the product.

•Otherwise, it may cause vibration or water

leakage.

6Room Air Conditioner

Safety Precautions

■Operation

Be cautious not to touch the

sharp edges when

installing.

•It may cause injury.

Avoid excessive cooling and

perform ventilation

sometimes.

•Otherwise, it may do harm to

your health.

Do not insert the hands or

bars through the air inlet or

outlet during operation.

•Otherwise,itmaycause

personal injury.

Do not put a pet or house

plant where it will be

exposedtodirectairflow.

•It may cause injury.

Do not block the inlet or

outlet of air flow.

•It may cause product failure.

Useasoftclothtoclean.Do

not use wax, thinner, or a

strong detergent.

•Theappearanceoftheair

conditioner may deteriorate,

change color, or develop surface

flaws.

Do not step on the

indoor/outdoor unit and do

notputanythingonit.

•It may cause an injury through

dropping of the unit or falling

down.

Always insert the filter

securely.

Clean it every two weeks.

•Operation without filters will

cause failure.

Do not drink water drained

from air conditioner.

•It contains containments and will

make you sick.

Before Operation

Owner’s Manual 7

ENGLISH

Before Operation

1. Contact an installation specialist for installation.

2. Plug in the power plug properly.

3. Use a dedicated circuit.

4. Do not use an extension cord.

5. Do not start/stop operation by plugging/unplugging the power cord.

6. If the cord/plug is damaged, replace it with only an authorized replacement

part.

1. Being exposed to direct airflow for an extended period of time could be

hazardous to your health. Do not expose occupants, pets, or plants to direct

airflow for extended periods of time.

2. Due to the possibility of oxygen deficiency, ventilate the room when used

together with stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purposes (e.g.

preserving precision devices, food, pets, plants, and art objects). Such usage

could damage the items.

1. Do not touch the metal parts of the unit when removing the filter. Injuries can

occur when handling sharp metal edges.

2. Do not use water to clean inside the air conditioner. Exposure to water can

destroy the insulation, leading to possible electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned

off. The fan rotates at a very high speed during operation. There is a

possibility of injury if the unit’s power is accidentally triggered on while

cleaning inner parts of the unit.

For repair and maintenance, contact your authorized service dealer.

Preparing for Operation

Usage

Cleaning and Maintenance

Service

8Room Air Conditioner

Introduction

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to

the air conditioner.

This symbol indicates special notes.

NOTICE

This appliance should be installed in accordance with the National Electric Code.

Introduction

Symbols Used in this Manual

Features

CABINET

FRONT GRILLE

INLET GRILLE

(Air Intake)

AIR FILTER

HORIZONTAL AIR DEFLECTOR

(Vertical Louver)

VENT CONTROL

VERTICAL AIR DEFLECTOR

(Horizontal Louver)

AIR DISCHARGE

SLEEVE ASSEMBLY

(Including Aluminum Rear grille)

THE SLEEVE AND THE REAR GRILLE

(optionally supplied with your unit)

THE UNIT

REAR GRILLE

(Aluminum Rear grille)

Electrical Safety

Owner’s Manual 9

ENGLISH

Electrical Safety

Electrical Data

115V~ 230V~

Power cord may include a current

interrupter device. A test and reset button is

provided on the plug case. The device

should be tested on a periodic basis by first

pressing the TEST button and then the

RESET button. If the TEST button does not

trip or if the RESET button will not stay

engaged, discontinue use of the air

conditioner and contact a qualified service

technician.

Use Wall Receptacle Power Supply

Standard 125V, 3-wire grounding

receptacle rated 15A, 125V AC

Standard 250V, 3-wire grounding

receptacle rated 15A, 250V AC

Use 15 AMP. time

delay fuse or 15 AMP.

circuit breaker.

Use 20 AMP. time

delay fuse or 20 AMP.

circuit breaker.

Standard 250V, 3-wire grounding

receptacle rated 20A, 250V AC

Never push the test button during

operation

Otherwise this plug can damaged.

This device contains chemical, including

lead, known to the State of California to

cause cancer, and birth defects or other

reproductive harm.

Wash hands after handling.

Do not remove, modify or immerse this plug.

If this device trips, the cause it to be

corrected before further use.

The conductors inside this cord are

surrounded by shields, which monitor

leakage current.

These shields are not grounded.

Periodically examine the cord for any

damage. Do not use this product in the

event the shields become exposed.

Avoid shock hazard, this unit can not

be user serviced opening the tamper

resistant. Sealed portion of the unit

voids all warranties and performance

claims. This unit not intended for use

as an on-off switch.

The shape may be different according to its model.

NOTICE

DO NOT USE AN EXTENSION CORD on 230,

208, and 230/208 Volt units.

All wiring should be made in accordance with local

electrical codes and regulations.

Aluminum house wiring may pose special

problems. Consult a qualified electrician.

NOTICE

10 Room Air Conditioner

Electrical Safety

IMPORTANT

(PLEASE READ CAREFULLY)

FOR THE USER'S PERSONAL SAFETY, THIS

APPLIANCE MUST BE PROPERLY GROUNDED

The power cord of this appliance is equipped with a

three-prong (grounding) plug. Use this with a standard

three-slot (grounding) wall power outlet to minimize the

hazard of electric shock. The customer should have the

wall receptacle and circuit checked by a qualified

electrician to make sure the receptacle is properly

grounded.

DO NOT CUT OR REMOVE THE THIRD (GROUND)

PRONG FROM THE POWER PLUG.

A. SITUATIONS WHEN THE APPLIANCE WILL BE

DISCONNECTED OCCASIONALLY:

Because of potential safety hazards, we strongly

discourage the use of an adapter plug. However, if you

wish to use an adapter, a TEMPORARY CONNECTION

may be made. Use UL-listed adapter, available from

most local hardware stores.

The large slot in the adapter must be aligned with the

large slot in the receptacle to assure a proper polarity

connection.

Attaching the adapter ground terminal to the wall

receptacle cover screw does not ground the appliance

unless the cover screw is metal, and not insulated, and

the wall receptacle is grounded through the house

wiring. The customer should have the circuit checked

by a qualified electrician to make sure the receptacle

is properly grounded.

Disconnect the power cord from the adapter, using one

hand on each. Otherwise, the adapter ground terminal

might break. DO NOT USE the appliance with a broken

adapter plug.

B. SITUATIONS WHEN THE APPLIANCE WILL BE

DISCONNECTED OFTEN.

Do not use an adapter plug in these situations.

Unplugging the power cord frequently can lead to an

eventual breakage of the ground terminal. The wall

power outlet should be replaced by a three-slot

(grounding) outlet instead.

USE OF EXTENSION CORDS

Because of potential safety hazards, we strongly

discourage the use of an extension cord. However, if

you wish to use an extension cord, use a CSA

certified/UL-listed 3-wire (grounding) extension cord,

rated at 15A, 125V.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Heat Controller Climatiseur

Heat Controller

Heat Controller M series Instructions d'installation et d'utilisation

Heat Controller

Heat Controller PE-121A Manuel utilisateur

Heat Controller

Heat Controller RG-51M Manuel utilisateur

Heat Controller

Heat Controller REG-253H Guide d'application

Heat Controller

Heat Controller RAH-123G Manuel utilisateur

Heat Controller

Heat Controller DMC12SB-0 Manuel utilisateur

Heat Controller

Heat Controller Comfort-Aire BGE-103A Manuel utilisateur

Heat Controller

Heat Controller Comfort-Aire RAD-61A Instructions de construction

Heat Controller

Heat Controller CD-101G Manuel utilisateur

Heat Controller

Heat Controller V series Manuel utilisateur

Heat Controller

Heat Controller BG-81G Manuel utilisateur

Heat Controller

Heat Controller HDG18 Manuel utilisateur

Heat Controller

Heat Controller DMC24CA-1 Manuel utilisateur

Heat Controller

Heat Controller Comfort-Aire RG-51B Manuel utilisateur

Heat Controller

Heat Controller DMH24DB-1 Manuel utilisateur

Heat Controller

Heat Controller REG-81J Manuel utilisateur

Heat Controller

Heat Controller PTAC07A230A Manuel utilisateur

Heat Controller

Heat Controller RADS-61M Manuel utilisateur

Heat Controller

Heat Controller A-VMH18DC-1 Service Manuel utilisateur

Heat Controller

Heat Controller SDAH 24 Manuel utilisateur

Heat Controller

Heat Controller Comfort-Aire BGE-123A Manuel utilisateur

Heat Controller

Heat Controller Comfort-Aire BG-81A Manuel utilisateur

Heat Controller

Heat Controller Comfort-Aire BD-81 Manuel utilisateur

Heat Controller

Heat Controller SMA Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
