Adjusting the Flame Height -
Operates in ON or THERMO mode
This remote control system allows the user to control the
heightoftheFLAME whenthe gasvalveisfactoryequipped
with a FLAME CONTROLLER.
1. Pressand release FLAMEbutton tochange flameheight
to HI (see Figure 8, Location #5), (a second flame icon
appears).
2. Press again to return flame to normal state.
Low/Battery Indicator
An “X” outlined by a battery on the right side of the LCD
screen will appear when battery power has dropped sig-
nificantly.At this time, approximately two weeks of battery
power remains.
Child Proof Lockout (CP)
The transmitter contains a “Child Proof” lockout feature that
preventsunauthorizeduse oftheremotecontrol. Toaccess
the “Child Proof” activation button, remove cover on BACK
of transmitter. To activate LOCKOUT:
1. Pressand holdin the “settingbutton” for5seconds.The
letters CP will display on the LCD screen (see Figure
8). This prevents the activation of fireplace. When any
function button is pressed ON/OFF etc. the letter CP
will display on the LCD screen.
To deactivate LOCKOUT:
1. Pressand holdin the “settingbutton” for5seconds.The
LCD will display CP until 5 seconds have elapsed, and
then the LCD screen will return to its normal state.
TRANSMITTER SAFETY FEATURES
It is recommended that the TRANSMITTERS always be
located within a 20 foot operating range of the fireplace,
preferably in the same room in which the fireplace system
is located. The TRANSMITTER features several safety
features that alert the user when the TRANSMITTER is
placed outside the 20 foot normal operating range.
Thermo-Updating and Communication-Safety Fea-
tures
This remote control has a COMMUNICATION-SAFETY
function built into its software. It provides an extra margin
of safety when the TRANSMITTER is out of the normal
20 foot operating range of the receiver. It is also activated
when the batteries become weak or are removed from the
transmitter.
In the THERMO-UPDATING feature (only in the THERMO
or TIMER modes) the transmitter normally reads the ROOM
temperature every 2 minutes. In addition to checking the
temperature,thetransmittersendsa signalto thereceiver in-
dicating that the transmitter and its batteries are still active.
In the COMMUNICATION-SAFETY feature, at all times
and in all OPERATING MODES the transmitter sends a
signal every fifteen (15) minutes to the receiver, indicating
that the transmitter is within the normal operating range
of 20 feet.
SYSTEM CHECK

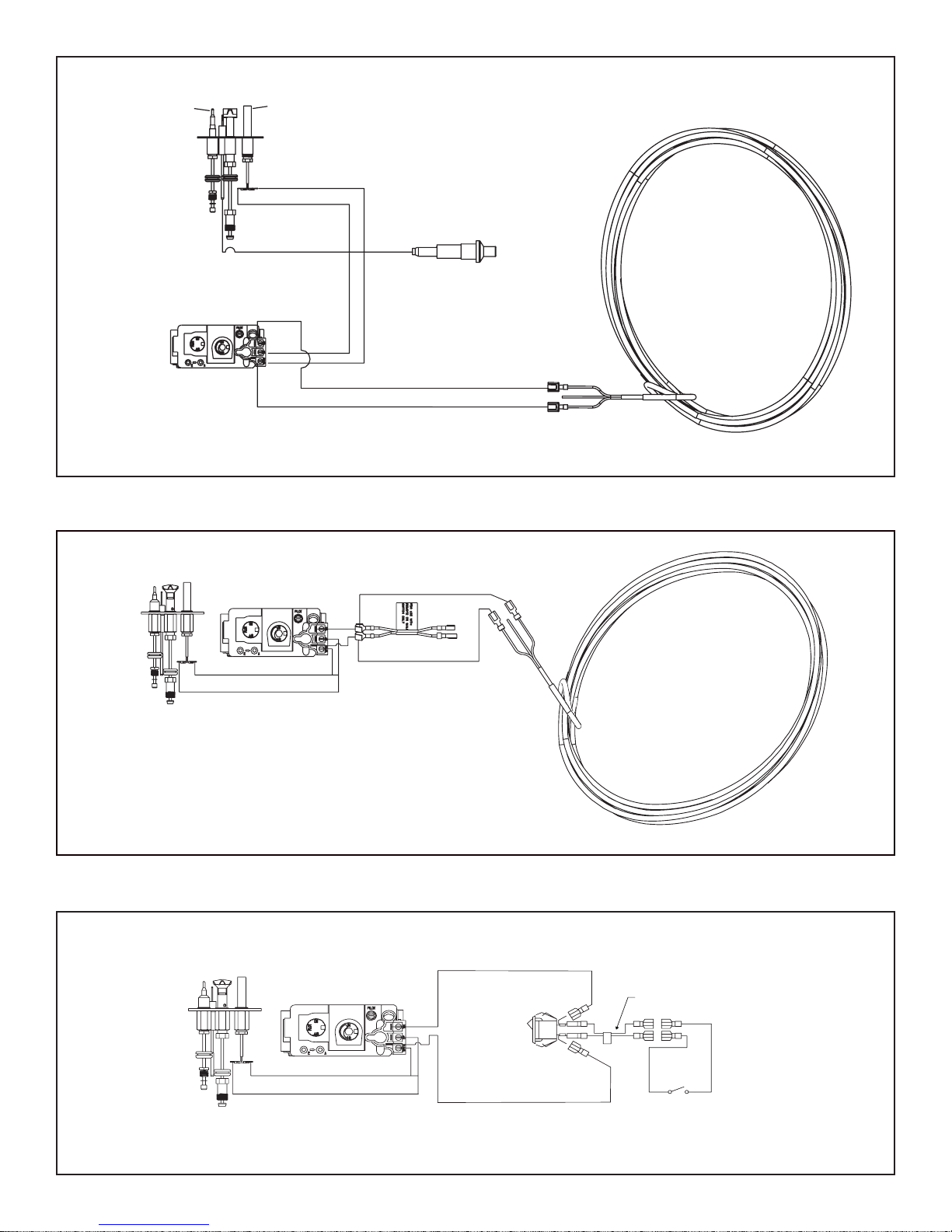

Millivolt Valves
Light the appliance following the lighting instructions that
came with the fireplace. Confirm that the pilot flame is on.
It must be in operation for the main gas valve to operate.
1. Slidethe 3-positionbutton onthe remotereceiver to the
ON position. The main gas flame (i.e., the fire) should
ignite.
2. Slide the button to OFF. The flame should extinguish
(the pilot flame will remain on).
3. Slide the button to REMOTE (the center position), then
press the MODE button on the transmitter to change
the system to ON. The main gas flame should ignite.
4. Press the MODE button on the transmitter to change
the system to OFF. The flame should extinguish (the
pilot flame will remain on).
5. Press the MODE button on the transmitter to change
the system to THERMO.
6. Advance the SET temperature on the transmitter to a
temperature of at least 2º F (1º C) above the ROOM
temperature displayed on the LCD screen and the
system flame will ignite.
Should the receiver NOT receive a transmitter signal every
15minutes(COMMUNICATION-SAFETYfeature), theRE-
CEIVERwill begina 2HOUR (120minute) countdowntim-
ing function. If during this 2 hour period, the receiver does
not receive a signal from the transmitter, the RECEIVER
willshutdown thefireplacebeingcontrolled bythereceiver.
The RECEIVER will then emit a series of rapid “beeps”.
Then, after 10 rapid “beeps”, the RECEIVER will continue
to emit a single “beep” every 4 seconds until a transmitter
signalis againreceived.Theintermittent 4second beeping
will go on indefinitely until reset.
To “reset” the RECEIVER and operate the fireplace system:
1. Press the MODE button on the transmitter. The word
ONmustdisplayontheLCD screen.TheCOMMUNICA-
TION-SAFETYoperation isoverridden andthe system
willreturn tonormal operationdepending onthe MODE
selected at the transmitter.
We recommend the user check the batteries in the
TRANSMITTER to make sure the voltage is no less than
2.7 volts.
Auto Shutdown
This remote control has an Auto Shutdown feature incor-
porated into its system. When the transmitter MODE is
in the ON position the fireplace will continuously operate
for 9 hours. After 9 hours, the fireplace will shut down. To
relight the fireplace:
1. Press the MODE button. The fireplace will operate
continuously for up to 9 hours before Auto Shutdown
repeats cycle. The Auto Shutdown signal comes from
the transmitter. The transmitter must be positioned
within a 20 foot operating range for theAuto Shutdown
feature to operate.
