Hearth and Home Technologies Simplifyre SFE-35 Instructions de montage

Service Parts

09/10

SFE-35 & SFE-35C

Beginning Manufacturing Date: Dec 2006

Ending Manufacturing Date: Active

7

4

10

12

11

8

6

9

13 14

15

16

2

1

5

3

Part number list on following page.

Service Parts

09/10

SFE-35 & SFE-35C

Beginning Manufacturing Date: Dec 2006

Ending Manufacturing Date: Active

Service Parts Diagram

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement

parts for your appliance please provide model number and serial number. All parts listed

in this manual may be ordered from an authorized dealer. Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

1 Viewing Screen 4050-144 Y

2 Back Log 4050-177 Y

3 Front Log Set/ Ember Bed Assembly 4050-178 Y

4 Smoke Shield 4050-176 Y

5 Grate 4050-141 Y

6 Projector Assembly 4050-002 Y

7 Front Screen Assembly 4050-008 Y

8 Bulb 4050-123 Y

9 Remote Transmitter 4050-105 Y

10 120V Heater Assembly 4050-104 Y

11 Power Assembly 4050-001 Y

12 Remote Receiver 4050-108 Y

13 LED Assembly 4050-013 Y

14 Optional lWall Switch ***

15 Optional Wall Thermostat ****

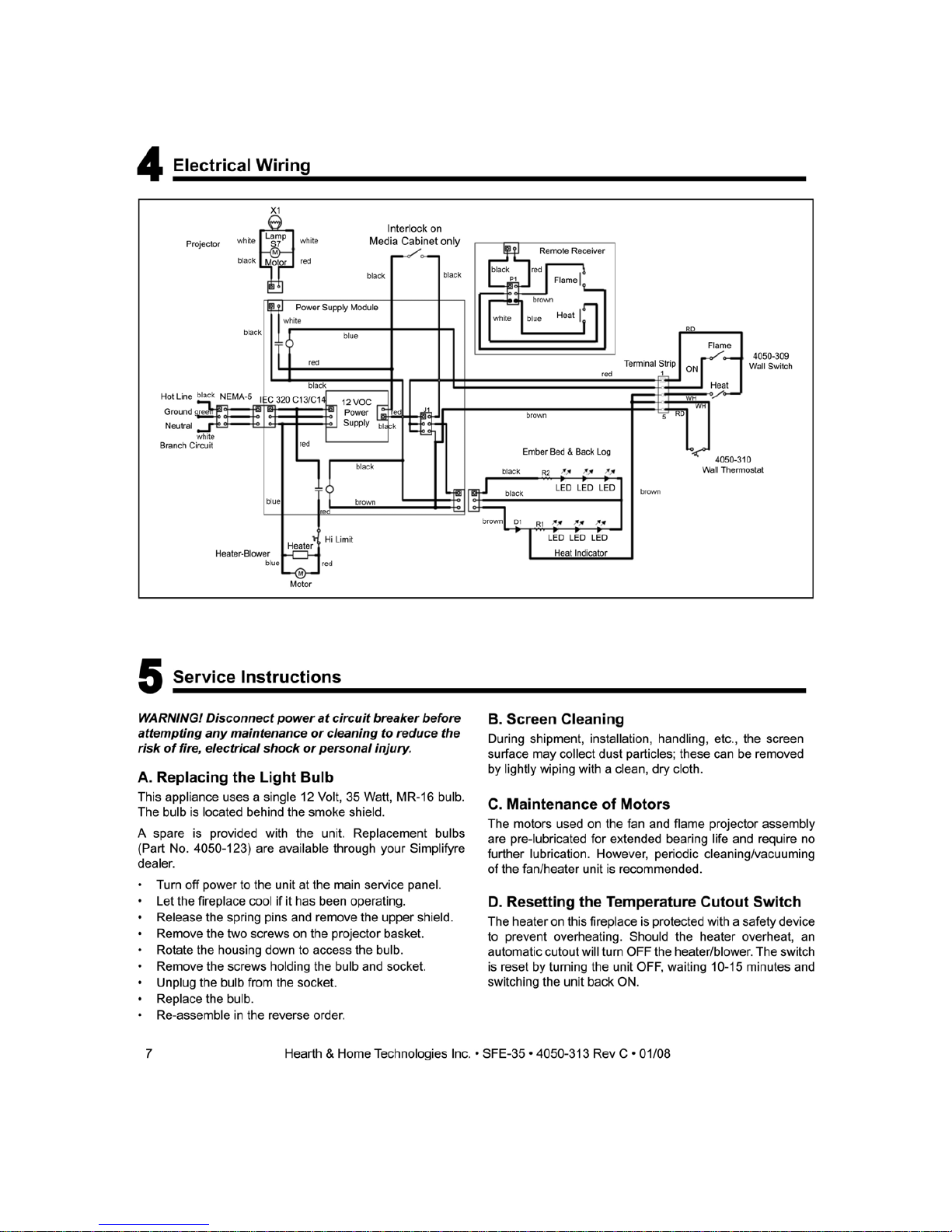

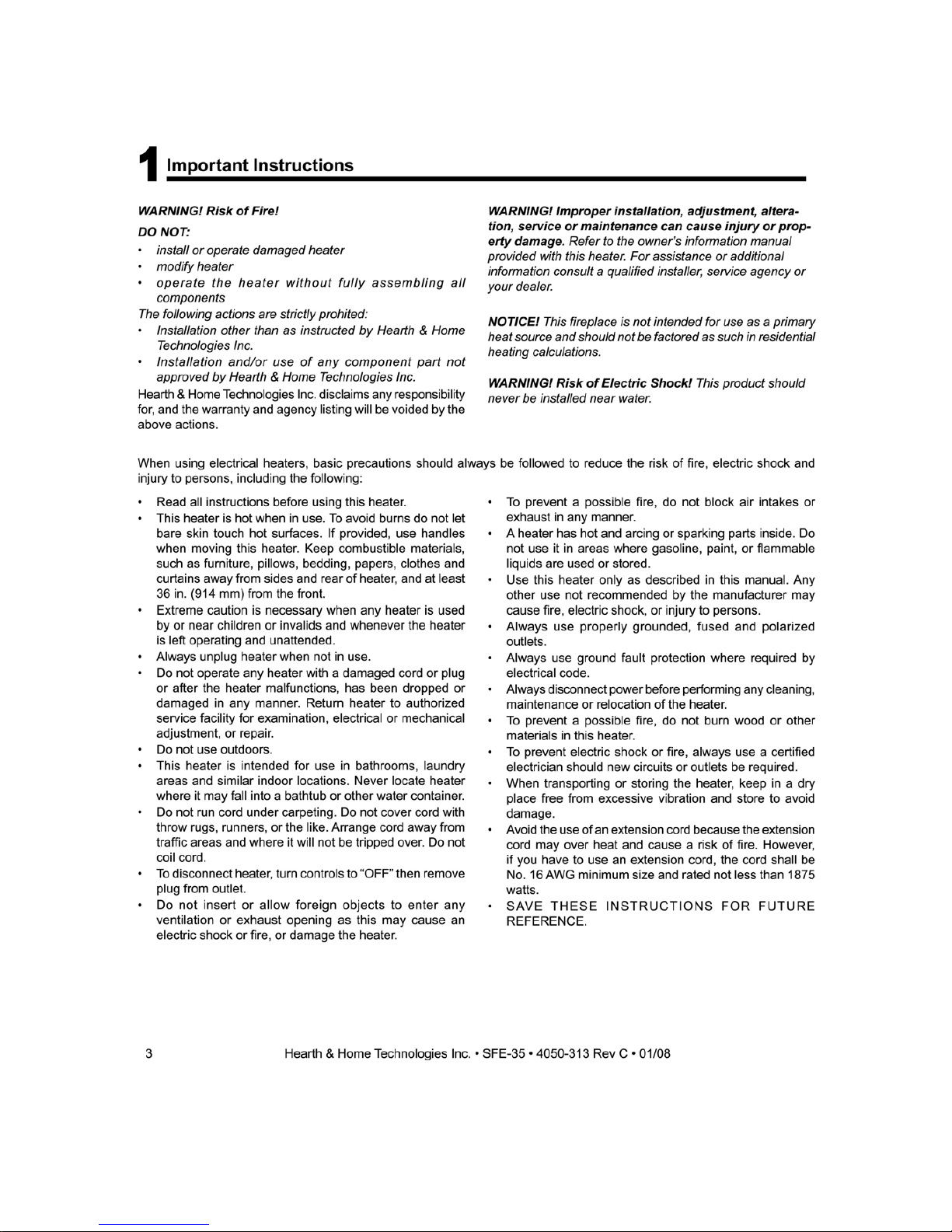

16 Installation Manual (SFE-35) 4050-313

Installation Manual (SFE-35C) 4050-314

Power Cord 4050-148 Y

Top Pan 4050-050 Y

Right Refractory 4050-171 Y

Left Refractory 4050-172 Y

Right Rear Refractory 4050-173 Y

Left Rear Refractory 4050-174 Y

Sheet Rock Ledge 4050-211 Y

Back Refractory 4050-175 Y

Hardwire Power Cord (SFE-35 only) 4050-005 Y

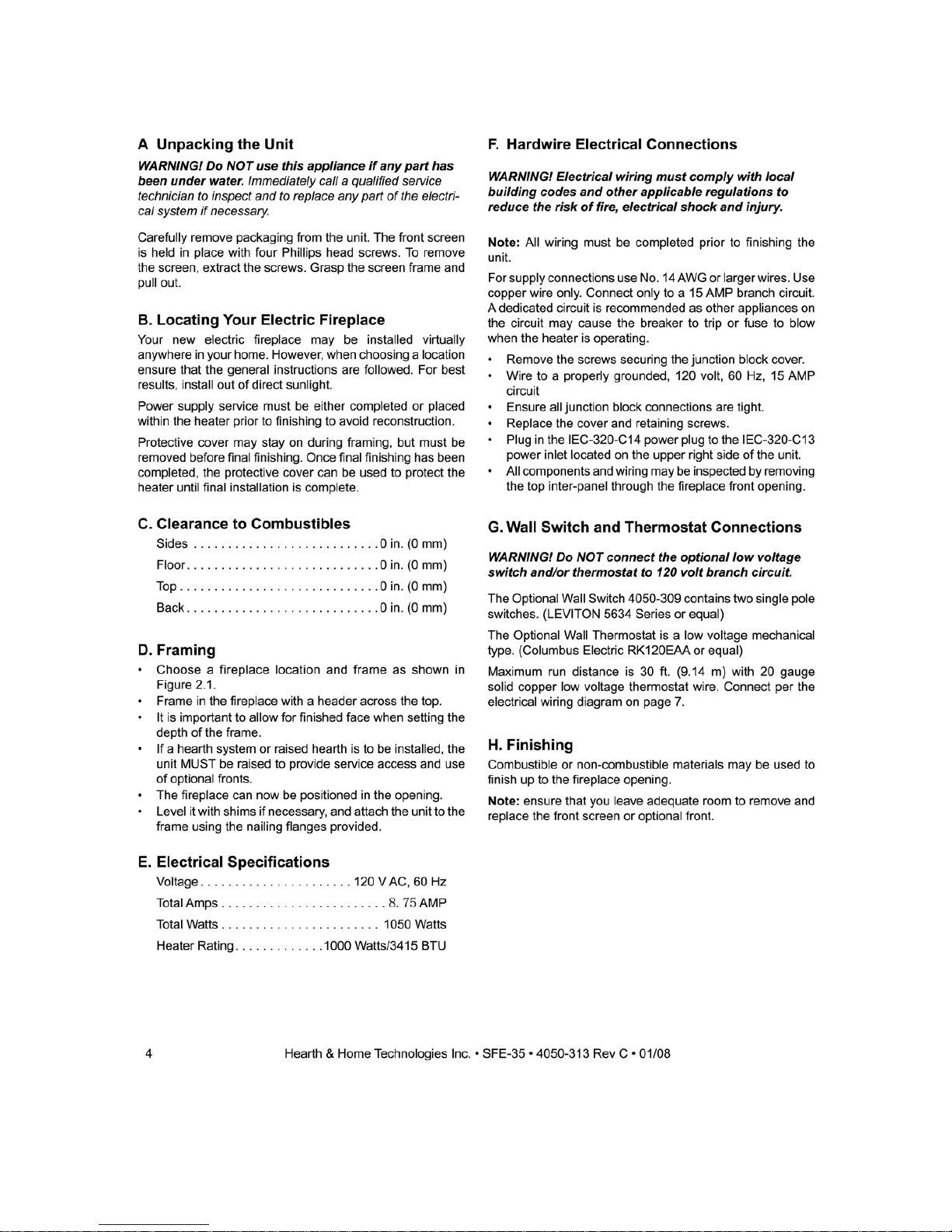

***To be supplied by the customer (Leviton 5634 series ) Refer to page 4 fo Installation manual

*****To be supplied by the customer (Columbus Electric RK120EAAor equal ) Refer to page 4 fo Installation manual
