HCL Digital PEN Manuel utilisateur

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 1of 31
Overview
NOTETAKER is a unique device that captures notes handwritten on plain paper, and transmits them to
the base unit. The Pen Uses Pegasus’ patented technology combining Ultrasound and Infrared
technologies with sophisticated algorithms to enable an accurate tracking and positioning system that
tracks the movement of the tip of the pen on any surface and converts the movement into a vector image
of the user’s handwriting.
Software environment
Operation System: Windows XP (Specially with usage with Class Mate PC Only)
Hardware Environments
System: CMPC (Class Mate PC)
Minimum Memory Requirement: 256MB
Display Resolution: 800x480.
Setting up Your Pen
WARNING:
Do not attempt to open the Digital Pen.
This may cause the pen to malfunction.
Installing/Replacing an Ink Refill into the Pen
The top of the pen cap also functions as an ink refill Extractor.
NOTE: Make sure you use a refill that is similar to the original (standard refill
(67.2mm long X 2.33mm diameter).
To replace the ink refill
??Remove Pen cap
??Slide the new refill into the tip of the pen
??Gently press it in until it is securely in place

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 2of 31
Refill Extractor
Inserting the Refill
Installing/Replacing Pen Batteries
1. Please use the enclosed GP SR41 batteries with the positive polarity facing up.
2. Batteries may be safely disposed of in normal household waste Contact your local government
for disposal or recycling practices in your area.
3. Caution: Risk of explosion if battery is replaced by an incorrect type
When your Pen battery runs low, the following message appears on your screen
This warning is continuously displayed on each new note and the application icon in the system tray
changes to reflect the current status until the batteries are replaced.
Note:
Lifetime of the batteries may vary and cannot be guaranteed.
Supplied batteries are good for initial use only
??Remove the battery compartment cover
??Install two SR41 batteries, with the positive poles facing up

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 3of 31
??Replace battery compartment cover
NOTETAKER Base Unit
Setting Up Your Hardware
NOTETAKER requires no installation.
Simply plug your base unit into a free USB port in your PC.
Storing your NOTETAKER
??Keep your NOTETAKER away from liquids and direct sunlight at all times.
??Always store your unit in protected packaging or in the original box.
??Severe shock can cause degradation in performance. Take precautions not to drop the
base Unit or Pen onto hard surfaces.

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 4of 31
Cleaning the NOTETAKER
??Clean your NOTETAKER base unit using a soft cloth.
?? Special care must be taken not to insert sharp pointed objects into the ultrasonic and
transmitting receiving units.
Setting Up Your Desktop Software
Your product is packaged with a CD that includes its companion desktop software
Installing the Software
After the installation process, when running the application for the 1st time, a new folder named “My
Notes,” is created in your “My Documents” directory. All your notes will be saved into this directory. In the
event that no “My Documents” directory is found, the installation process will create a new “My
Documents” folder on your C hard drive. The ‘My Notes’ folder will be created under this directory. If you
uninstall, upgrade or reinstall
the software in a different location, the note files will remain in this directory, and will not be overwritten
To install NOTETAKER software
1. Insert the installation CD into your CD ROM drive. The setup program should start automatically. If not,
run the program by selecting ‘Run’ from the Windows ‘Start’ menu and type in D:\setup.exe. If your CD
drive uses a different letter, type that letter instead of D.
2. Follow the instructions on the screen. During installation, you will be prompted to choose whether you
would like the application to auto-start when windows loads, and whether you would like an application
icon on your desktop (in Custom Installation).

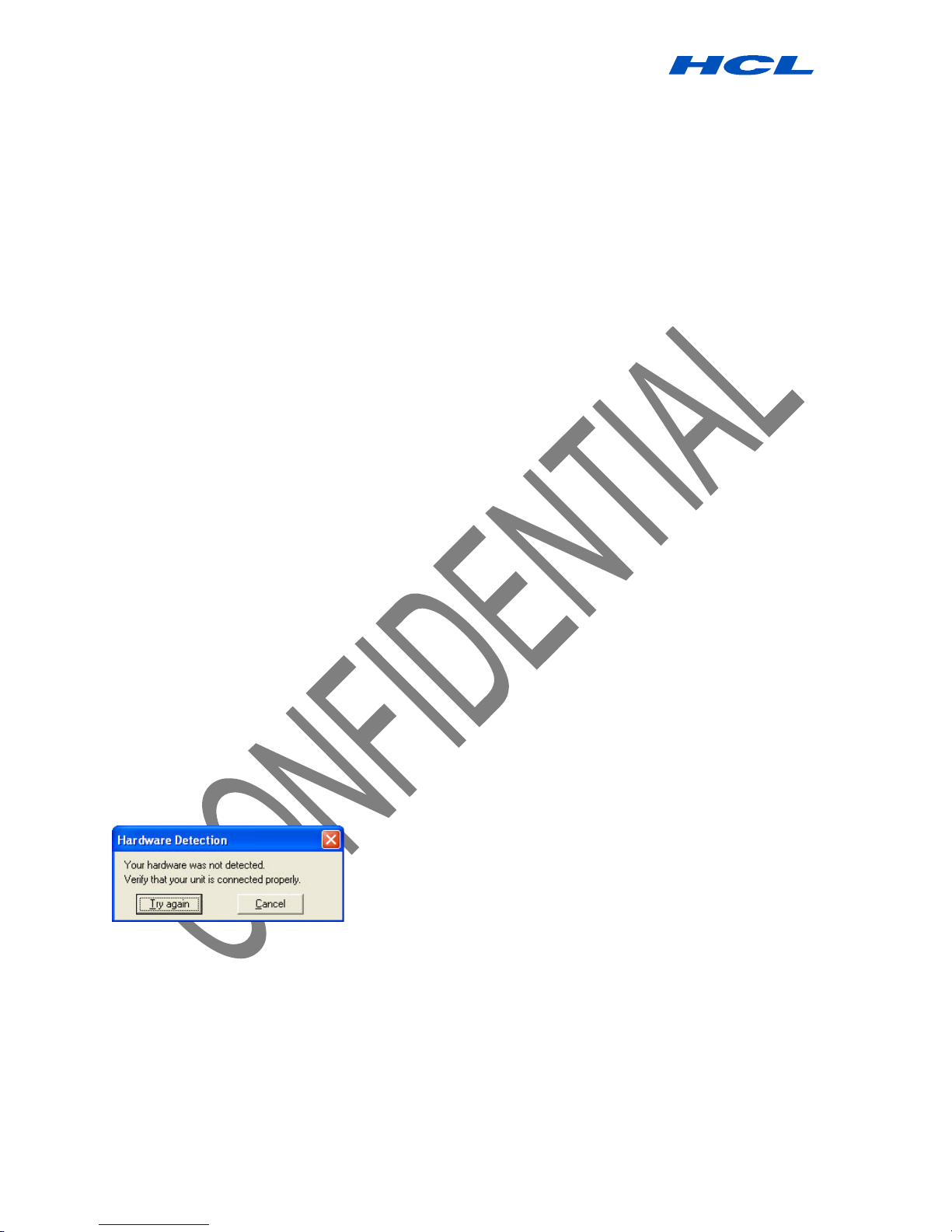

Port Auto-Detection
Once you launch the application, the NOTETAKER software automatically detects your hardware. The
application automatically searches all ports in order to detect the Hardware. If it is unable to locate the
connection, the Hardware Detection dialog box appears.
USB Hot-Insertion
USB Hot Insertion refers to connecting the USB cable while the application is running. The application will
auto-detect your hardware if the USB cable is disconnected while the system is running and then re-
connected. The application will also auto-detect the hardware if you first run the software and then
connect the USB cable.

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 5of 31
The Notes Toolbar
The following table contains all buttons available in the Notes toolbar together with a description of their
functions.
Button Description
A4 VIEW –Switches the note view to A4 size
EDIT –Opens the Note Editor for editing the note
COPY –Copies the note to the clipboard for pasting into other applications
CLEAR –Clears the entire on-screen note
UNDO –Clears the previous stroke made by the digital Pen in reverse chronological
order.
REDO –Replaces previously undone strokes in chronological order
PEN STYLES-Changes the Ink color and width.
SAVE TO FOLDER –Saves the note to a specified folder and closes the note window.
SEND BY NETWORK –Sends the current note by local network to selected recipients
PRINT –Prints the current note
EXPORT TO JPEG-Exports the selected note to a JPEG file
SEND BY EMAIL -Sends the current note by email to selected recipients as a JPEG
attachment
Convert your note to Text using MyScript® Notes

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 6of 31
CLOSE WITHOUT SAVING –Closes the current note without saving
SAVE AND CLOSE –Closes the current note and saves it into the Notes Manager
under the default Miscellaneous folder (the note is named according to the creation
date)
Saving Notes
Notes can be saved at any time during the note creation process. They are automatically saved to the
default and named according to the date they were created. Notes can be renamed at any time once they
have been saved.
To save a note
??In the Note Window Toolbar, click the Save and Close icon to save the note to the
default Miscellaneous folder click the Save the Folder icon to save the note to any folder you select
–or–
use the virtual button (default #2 or which ever one you have configured for that purpose).
NOTE:
It is also possible to configure an 'Auto-Save' feature
That will automatically save your note periodically while you are working.
Printing Notes
A note can be printed from any of the 3 Note interfaces –The Note Window, The Note Editor or the Note
Manager. Notes can be printed from a saved file in the Note Manager, or while they are open in the Notes
Window or Notes Editor.
To print a note from a file
1. In the Note Manager, click the note name or thumbnail
2. In the File menu, select Print Preview to first see how the note will look when printed.
Note: You can preview multiple notes simultaneously. Select the first note, then on the keyboard press
the <CTRL> key and select the other notes.
3. In the File menu, select Print or click the Print button
4. Select your desired print setting and properties (this can also be done through Print Setup from the
File menu. Some default print preferences can also be set through the
Configuration menu preferences)

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 7of 31
5. Click OK.
To print an open note
6. In the Notes Editor File menu, select Print or click the Print button or
in the Note Window toolbar, simply click the Print button.
7. Repeat steps 4 and 5 in the previous procedure.
Setting Your Preferences
Set your default preferences such as note color, auto-save options, print preferences, etc. in the
Preferences dialog box. The dialog box is divided into three tabs, each controlling a different Aspect of
the system: General, Printing, and Ink.
To access Preferences:
In the Notes Manager Configuration menu, select Preferences.
Set your General Preferences as follows:

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 8of 31
In the Default Note Color list, select the desired background color for you is on-screen notes. In the
Auto-Save note in box, select the time interval (in minutes) after which the system automatically saves
your note. This also activates an auto recovery feature that
recovers any unsaved information in case of system crash or power failure. The only input
lost are changes made since the last auto-save. Select the Load When Windows Starts
checkbox to automatically load the NOTETAKER each time you turn on your computer, so that a new
note will pop up whenever you begin to using the Pen. Select the Save Sticky
Notes on Exit checkbox to automatically save all the new sticky notes you created. The saved sticky
notes will then instantly appear the next time you either turn on your computer
or restart the application
Set your Print Preferences as follows:
Select the Note per Page checkbox to specify that when you print notes, only one note
is printed per page
Select the Center Note on Page checkbox to specify that notes always be centered on
the page when printed
Set your Ink Preferences as follows:
Under Ink Smoothing, drag the slider to set the desired level
NOTE: Active only when PC color quality is 16BIT or higher

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 9of 31
Set your Paper Holder Preferences as follows:
Under Paper Holder opacity, drag the slider to set the desired level of transparency
The Note Manager
The Note Manager can be used for storing, viewing, searching, copying and
exporting notes.
It is set up in Windows Explorer format, which allows you to browse through

Digital PEN User Guide
Procedure by HCL Infosystems Limited-Product Engineering Group Page 10 of 31
Your files in the left pane and view them in the right pane.
Note Manager Menus
Use these menus to select options and preferences and to perform all Software functions relating to
storage and transfer of your notes. The following table contains a list of all menus and menu commands
in the system together with a short description of their function.
File Menu
CONVERT TO TEXT Convert your note to Text using MyScript® Notes
MOVE TO Allows you to move the selected note to another folder
SEND TO Sends any note by email or local network
EXPORT Exports the selected note/s to a JPEG file
SET REMINDER
Enables you to set an exact date and time that a selected
note will be displayed as a reminder
SHOW AS STICKY
NOTE Make this Note a Sticky Note
SHOW AS PEPAR
HOLDER Make this Note as Paper holder
PROPERTIES View Note Properties
NEW FOLDER Create a new folder
