SWIMMING POOL HEAT PUMP UNIT

Installation & Instruction Manual

EasyTemp

FULL INVERTER R32

ISECPINV_RevC

ECPI15MA ECPI20MA ECPI30MA ECPI40MA

1. GENERAL INSTRUCTIONS - SAFETY 1

2. TECHNICAL SPECIFICATIONS 5

2.1 Heat pump technical data 5

2.2 Operating range 6

2.3 Dimensions 7

3. INSTALLATION AND CONNECTION 8

3.1 Functional Diagram 8

3.2 Heat pump unit 8

3.3 Hydraulic connection 10

3.4 Electrical connection 11

3.5 Initial start-up 12

3.6 Water flow setting 14

4. USER INTERFACE 15

4.1 General presentation 15

4.2 Timer function settings 17

4.3 Setting the On/Off timers 18

4.4 Adjust setpoint 20

4.5 Locking and unlocking the touch screen 21

4.6 SILENT function settings 22

5. MAINTENANCE AND WINTERISING 25

5.1 Maintenance 25

5.2 Winterising 25

6. APPENDIX 26

6.1 Electrical diagrams 26

6.2 Heating priority wiring for monophasic pump 28

6.3 Exploded view and spare parts 30

6.4 Troubleshooting guide 34

6.5 Warranty 37

6.6 End of life of the device 37

CONTENTS

Please read attentively and save for future consultation.

This document must be given to the pool owner and should be kept in a safe place.

1. GENERAL INSTRUCTIONS - SAFETY

Thank you for purchasing the Hayward heat pump for swimming pools. The

Hayward FULL INVERTER heat pump has been designed to strict manufacturing

standards meeting the highest levels of quality required.

Hayward heat pumps offer you exceptional performance throughout your bathing

season by adapting wattage, power usage and noise levels to the heating

requirements of your swimming pool thanks to FULL INVERTER control logic.

Read the instructions in this manual carefully before using the

device.

This manual includes all the necessary information for installation, trouble-shooting

and maintenance.

Read this manual carefully before opening the unit or doing any maintenance work

on it. The manufacturer of this product shall on no account accept any liability for

injury to a user or damage to the unit further to any errors made during installation,

trouble-shooting or unnecessary maintenance. It is particularly important to follow

the instructions given in this manual at all times.

After having read this manual, keep it for future usage.

Authorised personnel

• The installation, electrical connections, maintenance and repairs of the device

must be carried out by an accredited professional in accordance with the

regulatory texts and the rules of the art in effect in the country where the

device is installed (see § 3.4).

For any intervention on the cooling circuit, the professional must hold a

certificate of competence in handling refrigerants.

For France:

- Low-voltage electrical installation according to NF-C 15-100.

- Legislation on the handling of refrigerants: Decree 2007/737 and its

implementation orders.

GENERAL INSTRUCTIONS - SAFETY

(continued)

This product contains refrigerant gas R32

This device contains R32.

Never use a refrigerant other than R32. Any other gaseous body mixed

with R32 could cause abnormally high pressure and lead to a failure or

pipes bursting and injuring people.

During repairs or maintenance operations, use copper tubes that

comply with Standard NF EN 12375-1 and with European Pressure

Equipment Directive 97/23/EC.

As the heat pump is pressurized, never pierce the pipes or attempt any

brazing. There is a risk of explosion.

Never expose the device to flames, sparks or other sources of ignition.

It could explode and cause serious or even fatal injuries.

To detect refrigerant leaks: do not use a halide lamp or any other

detector that uses an open flame. Do not use potential sources of

ignition under any circumstances.

This product contains fluorinated greenhouse gases regulated by the Kyoto

protocol. Do not release these gases into the atmosphere.

GWP(1) value: 675, based in the 4th report of the IPCC.

The quantity of refrigerant, based on the F-Gas regulation no. 517/2014, is

stated on the unit's rating plate.

Any intervention on the cooling circuit must be carried out by an accredited

professional as mentioned hereinabove.

Periodic inspections for leaks of refrigerant may be required by European or local

legislation. Please contact your local distributor for more information.

• Warning, refrigerants can be odourless.

• Do not pierce or heat the pipes, risk of explosion and serious burns.

• Do not use a method for accelerating the defrosting or cleaning process other

than those recommended by the manufacturer.

• The device must be stored in a room that does not contain any source of

ignition operating on a permanent basis (for example, open flames, gas

device or electric radiator that is operating).

(1) Global warming potential

GENERAL INSTRUCTIONS - SAFETY

(continued)

Installation conditions

• This heat pump is designed exclusively to heat swimming pool water; do not

use this equipment for any other purpose.

• Do not attempt to install this device by yourself.

• If you detect a fault or any abnormal situation, do not install the heat pump

and contact your dealer immediately.

• If kept in storage, the heat pump should be kept in a well-ventilated room with

a floor area of more than Amin(m²) as calculated by the following formula:

Amin = (M/(2.5 x 0.22759 x h0))².

M is the quantity of refrigerant in the device in kg, and h0 is the storage

height. If stored no the floor, h0 = 0.6 m.

• This product was designed exclusively for domestic use and installation

outdoors. The air that escapes from the product must be able to flow freely

and must not be used for other purposes such as heating or cooling a room

or building.

• Check the power cable. If the power cable is damaged, it has to be replaced

by the manufacturer, its after-sales service or by a qualified and authorised

person.

• Grounding connection of the device and its continuity are mandatory. The

ground wire has to be longer than the other wires in order to prevent the risks

of electric shock in the event the cable is pulled out. The electrical installation

must be equipped with a differential protection of 30 mA (see § 3.4).

• Make sure the support provided for the unit is strong enough to bear the

weight of the unit.

• Failure to comply with recommendations will invalidate the warranty.

Instructions for servicing - maintenance

Maintenance operations must be carried out once per year in order to guarantee

the longevity and the good working condition of the heat pump.

• Maintenance and the different operations must be carried out at the

recommended times and frequencies as specified in this manual.

• Only use genuine spare parts.

• Check the power cable. If the power cable is damaged, it has to be replaced

by the manufacturer, its after-sales service or by a qualified and authorised

person.

• Verify the grounding connection of the device and its continuity.

• Clean the coil with the help of a soft brush or jet of air or water. Warning,

never use a high pressure cleaner.

GENERAL INSTRUCTIONS - SAFETY

(continued)

• Verify that the drains flow well.

• Verify the tightening of the hydraulic and electrical connections

• Verify the hydraulic sealing of the condenser.

• Have the leak-tightness of the cooling circuit to the leak detector checked by

an accredited professional.

Before any maintenance operation, the heating pump must be

disconnected from any electrical current source. The maintenance

operations must only be carried out by personnel that is qualified and

authorised to handle liquid refrigerants.

Instructions for winterising

• Put the heat pump in “OFF” mode.

• Cut the power supply to the heat pump.

• Empty the condenser with the help of the drain to avoid any risk of

deterioration. (high risk of freezing).

• Close the by-pass valve and unscrew the entry/exit connection unions.

• Eliminate the maximum amount of residual stagnant water from the

condenser with the help of an air gun.

• Close the water entry and exit areas of the heating pump to avoid introducing

foreign bodies.

• Cover the heating pump with a dedicated winterising case.

Any damage caused by poor winterising maintenance will lead to

cancellation of the warranty.

Conditions for use

This device can be used by children aged 8 years and over as well as by

persons who have reduced, physical, sensory or mental capacities, or who

lack experience or knowledge, if they are correctly monitored or if instructions

pertaining to the use of the device in complete safety have been given to them

and the risks incurred are understood.

Children must not play with the device.

Cleaning and maintenance by the user must not be carried out by children

without surveillance.

2. TECHNICAL SPECIFICATIONS

2.1 Heat pump technical data

Models EASYTEMP

FULL INVERTER ECPI15MA ECPI20MA ECPI30MA ECPI40MA

Supply voltage V220V-240V /1ph/50Hz

Refrigerant / R32

Load kg 0.350 0.430 0.480 0.650

Mass in teqCO2/ 0.24 0.29 0.32 0.44

Leak check frequency /No specific frequency, but an annual check is recommended

Min--Max heating capacity(a) kW 1.62--7.33 2.18--8.97 1.97--11.66 2.85--17.06

Min--Max electric input power(a)

kW 0.15--1.17 0.17--1.54 0.16--1.99 0.26--3.13

Min--Max continuous current rating(a) A 1.15--5.32 1.27--6.91 1.08--8.96 1.41--13.69

Max--Min continuous power (COP)(a) / 11.04--6.30 12.77--5.81 12.57--5.84 11.08--5.45

Min--Max heating capacity(b) kW 1.44--5.36 1.58--6.94 1.79--8.62 2.74--13.08

Min--Max electric input power(b)

kW 0.24--1.14 0.27--1.53 0.290--1.90 0.428--2.97

Max--Min continuous power (COP)(b) / 5.98--4.69 5.82--4.53 6.17--4.52 6.40--4.40

Maximum continuous current A 6.4 8.4 10.9 16.6

Fuse rating aM 8 10 16 20

Circuit-breaker curve D D 8 10 16 20

Starting current A< maximum continuous current

Hydraulic connection mm 50 mm

Nominal water flow(a) m3/h 3.10 3.80 4.90 7.30

Max. loss of head on water kPa 2.3 2.9 6.4 6.7

Compressor / Mitsubishi DC Inverter Highly DC

Inverter

Type / Twin rotary Twin rotary

Quantity / 1

Coil resistance at 20°C Ohm 1.91 0.788

Fan / Axial

Quantity 1

Diameter mm 405 510

Number of blades / 3

Motor / DC Inverter

Quantity / 1

Rotation speed rpm 600--700 600--800 850--950 600--850

Silent mode speed rpm 400 400 400 300

Sound pressure level at 1 metre dB(A) 46,2 44,9 48,8 45,7

Sound pressure level at 10 metres dB(A) 28,8 27,5 31,4 28,8

Unit's net dimensions (L-W-H) mm 1040/425/615

1130/460/780

Weight kg 42 45 46 60

(a) Dry air 27°C - Relative humidity 78% - Water inlet temperature 26°C.

(b) Dry air 15°C - Relative humidity 71% - Water inlet temperature 26°C

2. TECHNICAL SPECIFICATIONS (continued)

2.2 Operating range

Use the swimming pool heat pump unit within the following ranges of

temperature and humidity to ensure safe and efficient operation.

Heating mode Cooling mode

Outside temperature -7°C – +35°C +7°C – +43°C

Water temperature +12°C – +32°C +8°C – +40°C

Relative humidity < 80% < 80%

Setting range from the set point +15°C – +32°C +8°C – +32°C

If the temperature or humidity does not correspond to these conditions,

the security measures could be activated and the swimming pool heat

pump unit may no longer work.

The maximum heating temperature is set at 32°C to prevent damage to

the liners. Hayward cannot be held responsible if used at a temperature

above +32°C.

2. TECHNICAL SPECIFICATIONS (continued)

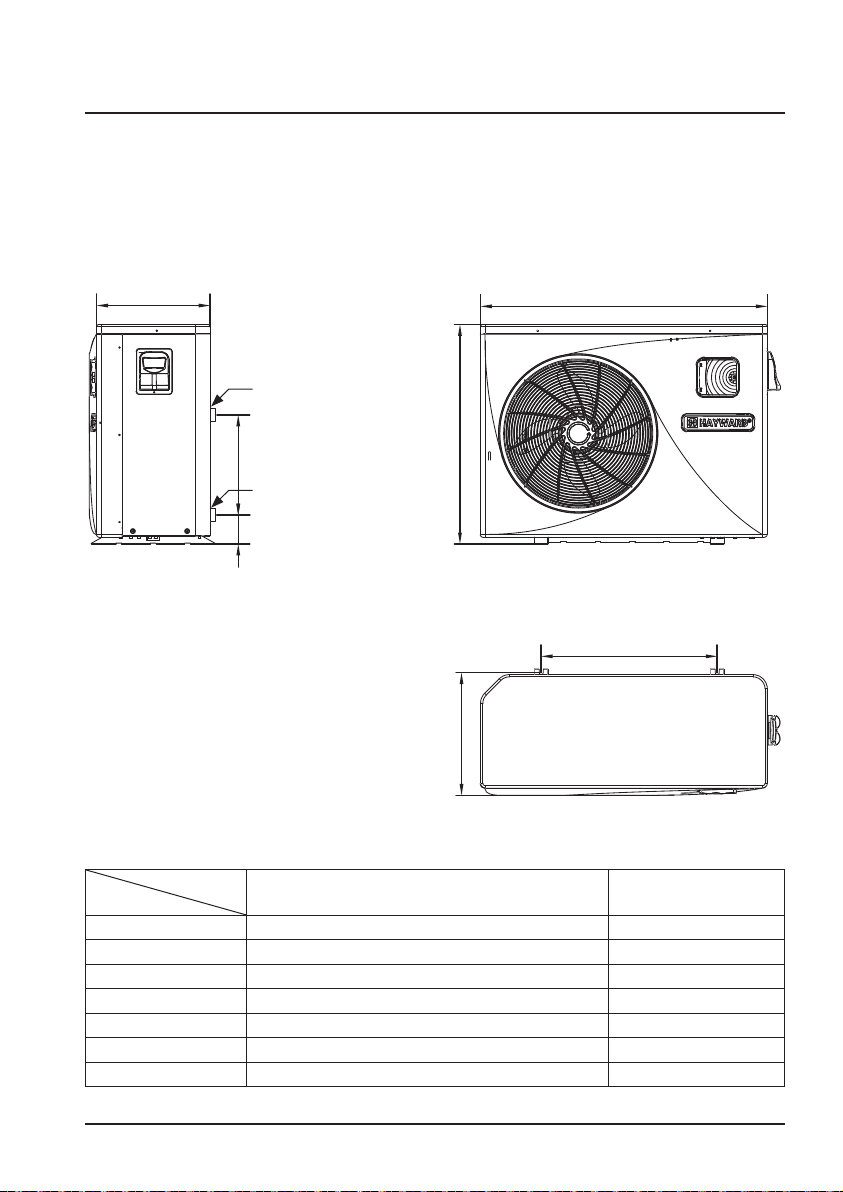

2.3 Dimensions

Models:

ECPI15MA / ECPI20MA / ECPI30MA / ECPI40MA

Unit: mm

Type

Size ECPI15MA / ECPI20MA / ECPI30MA ECPI40MA

A956 1002

B360 415

C605 767

D350 350

E98 101

F545 615

G380 442

Water inlet Ø 50 mm

Water outlet Ø 50 mm

3. INSTALLATION AND CONNECTION

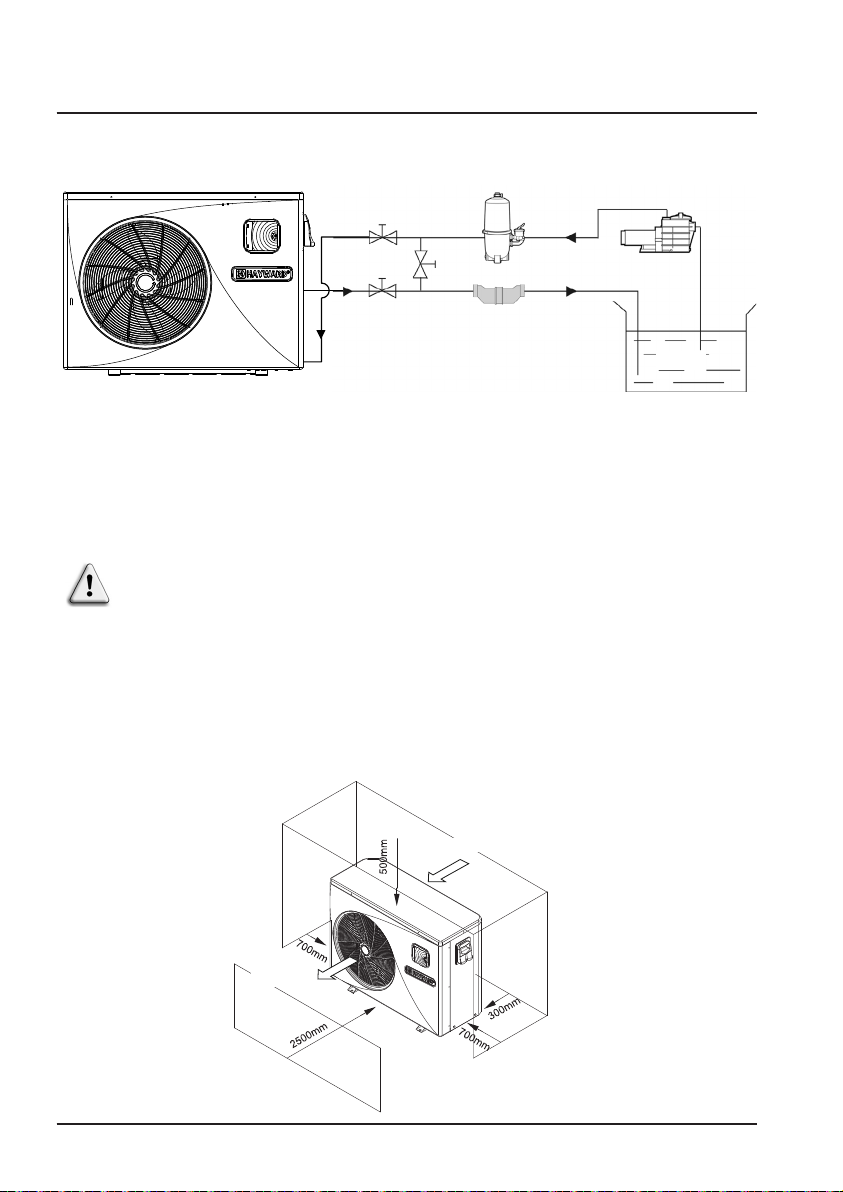

3.1 Functional Diagram

Unit: mm

Air inlet

Air outlet

Note : The swimming pool heat pump unit is sold without any treatment or

filtration equipment. The components presented in the diagram are

spare parts to be supplied by the installer.

3.2 Heat pump unit

Place the heat pump outdoors and away from any enclosed technical

space.

Choose a location that is preferably sunlit and sheltered from dominant

winds.

The device must be perfectly accessible for later installation and

maintenance work.

Placed under a shelter, the minimum required distances mentioned

below must be respected in order to avoid any risk of air recirculation

and a deficiency in the unit's overall performance.

Pool

Water outlet

Chlorinator cell

(or other treatment)

Pump

filtration

FilterWater Inlet

valve

Water outlet

valve

By-pass

valve

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hayward Pompe à chaleur

Hayward

Hayward HP50CL Manuel de service

Hayward

Hayward AccessLine HP3051DT3HM Manuel de service

Hayward

Hayward Easy Temp Manuel utilisateur

Hayward

Hayward Powerline 81504 Manuel de service

Hayward

Hayward Powerline EcoPac 81502 Manuel de service

Hayward

Hayward Easy Temp ECP 06 Guide rapide

Hayward

Hayward ENERGYLINE INVERTER Series Manuel utilisateur

Hayward

Hayward 14 Kw Mono R407C Manuel utilisateur

Hayward

Hayward EnergyLine pro Manuel de service

Hayward

Hayward ENERGYLINE PRO INVERTER Manuel de service

Hayward

Hayward SUPREME HP60TR Manuel de service

Hayward

Hayward POWERLINE 15-81500 Manuel de service

Hayward

Hayward HP40BEE Manuel utilisateur

Hayward

Hayward Heat Pump Manuel utilisateur

Hayward

Hayward ENERGYLINE PRO ENPI4MA Manuel de service

Hayward

Hayward HP50B Mode d’emploi

Hayward

Hayward ECLI15MA Manuel de service

Hayward

Hayward HP50A1 Manuel de service

Hayward

Hayward HeatPro HP50TA Manuel utilisateur

Hayward

Hayward summit SUM25TA Manuel utilisateur

Hayward

Hayward HP3005AT1RM Manuel de service

Hayward

Hayward HeatRelax Guide rapide

Hayward

Hayward HP50AEE Manuel de service

Hayward

Hayward S.Line Pro Fi 25kW Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
