OWNER'S HANDBOOK

Harrier 48

CODES

490E 491E

Auto Drive

(Variable Speed)

(Electric Start)

Auto Drive

(Variable Speed)

(English Version)

CODE FROM SERIAL NO: PART NUMBER: 111-1087 (A)

490E 270000001

491E 270000001

ISSUE 28.11.06

111-1087(A) 3/1/07 11:09 am Page 1.1

490TH01 A

Main Features

Specifications

MAIN FEATURES /SPECIFICATIONS

1.2

Code 490 491

Engine Briggs & Stratton Quantum Briggs & Stratton Quantum

Engine type 12F801788B1 12F8071787B1

Fuel type Unleaded petrol Unleaded petrol

Fuel capacity 1.5 litres 1.5 litres

Oil type SAE 30 engine oil SAE 30 engine oil

Oil sump capacity 0.6 litres 0.6 litres

Cutting width 480mm 480mm

Cutting height 13 - 60mm 13 - 60mm

Overall dimensions 1,510 x 507 x 1080mm 1,510 x 507 x 1080mm

Dry Weight 46.5 Kg 49 Kg

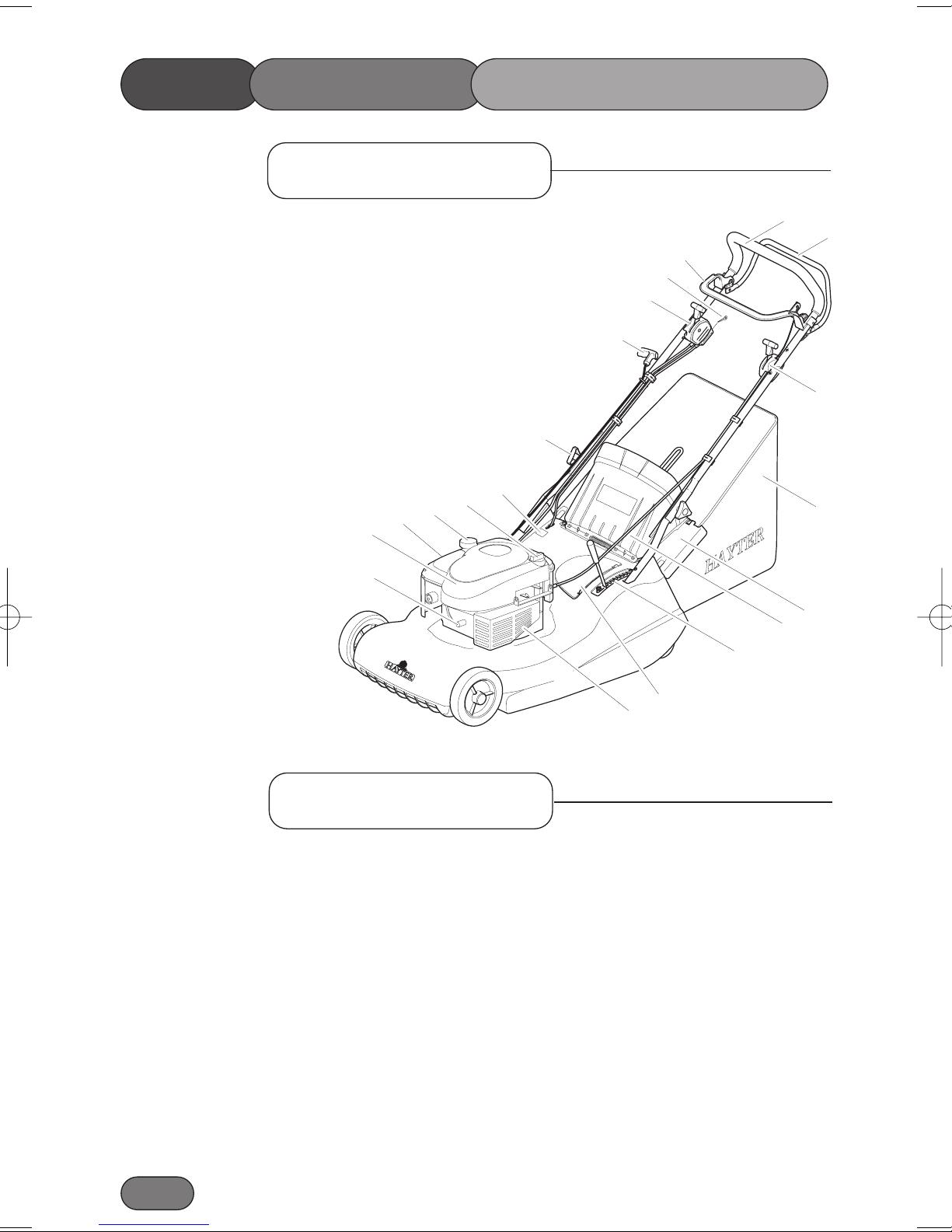

1. Spark Plug Lead.

2. Engine Cover.

3. Air Cleaner.

4. Fuel Filler Cap.

5. Oil Filler Cap and Dipstick.

6. Serial No.Label.

7. Handlebar Securing Knob.

8. Engine Start-Grip.

9. Throttle Control

10. Key ( 491 only )

11. Engine Stop Lever.

12. Handlebar.

13. Ground Drive Clutch Lever.

14. Variable Speed Control ( see note )

15. Grassbag Assembly.

16. Grassbag Cover.

17. Deflector.

18. Exhaust Guard

19. Height of Cut Adjuster.

20. Battery ( 491 only )

Note: Item 14 should only be operated whilst the engine is running or the cable will be damaged.

111-1087(A) 3/1/07 11:09 am Page 1.2

1ST Year (12 months)

We certify that this service has been

carried out by an Authorised Hayter

Service Dealer

Date:

1ST Year (12 months)

Owner’s Name:

Serial Number:

Date:

2nd Year (24 months)

We certify that this service has been

carried out by an Authorised Hayter

Service Dealer

Date:

Owner’s Name:

Serial Number:

Date:

Note for dealer: Please retain this voucher for your records.

2nd Year (24 months)

111-1087(A) 3/1/07 11:09 am Page 1.3

111-1087(A) 3/1/07 11:09 am Page 1.4

1.2 Main Features/Specifications

1.5 Contents

1.6 Introduction

1.7 Warranty

1.8 - 1.11 Safety Precautions

1.8 - Training

1.8 - 1.9 - Preparation

1.9 - 1.10 - Operation

1.10 - Maintenance and Storage

1.11 - Safety Symbols

1.11 - Decal Symbols

1.12 Assembling the Mower

1.12 - Delivery Checklist

1.12 - Handlebar

1.12 - Grassbag Attachment

1.13 Before Starting the Mower

1.13 - Prevent Engine Damage

1.13 - Oil Type

1.13 - Check Oil Level

1.13 - Fuel Type

1.14 - 1.19 Operating The Mower

1.14 - Controls

1.14 - Starting

1.15 - Electric Start

1.15 - Forward Travel

1.15 - Reverse Travel

1.16 - Turning

1.16 - Stopping

1.16 - Slopes

1.17 - Height of Cut

1.17 - Before Mowing

1.17 - Grassbag

1.18 - Without Grass Collection

1.18 - Heavy Growth

1.19 - Friction Disc

1.19 - Non-Grassed Areas

1.20 - 1.21 - Lawn Care Calendar - Guide Only

1.21 - Lawn Stripes

1.22 Maintenance Schedule

1.5

1.23 - 1.30 Mower Maintenance

1.23 - Engine

1.23 - Throttle Cable Adjustment

1.23 - Carburettor Adjustments

1.24 - Oil Service

1.24 - Air Cleaner Service

1.25 - Spark Plug Service

1.25 - Keeping Engine Clean

1.25 - Grassbag

1.26 - Deck Housing

1.26 - Securing Nuts and Bolts

1.26 - Clutch Cable Adjustment

1.27 - Lubrication

1.27 - Cutterblade Removal

1.28 - Cutterblade Assembly

1.28 - Cutterblade Sharpening

1.29 - Storage

1.30 - Battery Charging

1.31 - 1.32 Trouble Shooting

1.33 Declaration of Conformity

1.34 - 1.38 Parts List

1.34 - Parts List - Upper

1.35 - Exploded View - Upper

1.36 - 1.37 - Parts List - Lower

1.38 - Exploded View - Lower

1.39 Notes

1.40 Customer Info/Notes

CONTENTS

111-1087(A) 3/1/07 11:09 am Page 1.5

1.6

INTRODUCTION

Thank you for purchasing a Hayter mower. The following pages are designed to help you gain

safe and efficient service from your machine.

IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives

essential information regarding mower safety, operation, maintenance and specifications. Read

and understand this handbook prior to operating your mower for the first time. Make sure you

are familiar with all the controls and points of regular maintenance. If you have any doubts,

consult your local Hayter authorised dealer who will be pleased to give you assistance.

IMPORTANT: This mower is designed solely for use in a domestic grass cutting

environment. Use in any other way is considered as contrary to the intended use. Compliance

with and strict adherence to the conditions of operation, service and repair as specified in this

handbook also constitute essential elements of the intended use.

This mower should be operated, serviced and repaired only by persons who are familiar with

its particular characteristics and who are acquainted with the relevant safety procedures.

The safety precautions listed in this handbook and all other generally recognised regulations on

safety must be observed at all times.

Any arbitrary modifications carried out to this machine may relieve Hayter Limited of

liability for any resulting damage or injury.

Hayter mowers are robustly constructed and designed for efficient economical

performance under normal mowing conditions. Correct operation and maintenance will ensure

a long and satisfactory service life. Prior to despatch from our factory every effort is made to

ensure that your mower is delivered in perfect condition.

Throughout this handbook all references to left and right are as viewed from behind the han-

dlebar, in the direction of forward travel.

This handbook is based on information available at the time of publication.

HAYTER LIMITED reserve the right to amend product specifications without prior notification.

111-1087(A) 3/1/07 11:09 am Page 1.6

LIMITED WARRANTY

Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects

in material and workmanship under normal use and service for a period of three years from the

date of purchase. The manufacturer of major proprietry components ie. engines, gearbox /

transaxle (where applicable) furnish their own warranty and services are provided through their

authorised network. To qualify for the full benefit of the warranty, the warranty registration card

must be returned within 14 days of purchase. Subject to the conditions and exclusions noted in

this limited warranty, we shall at our option, repair or replace any warranted part during the

applicable period. If you are in doubt or experience any difficulty, please consult a Hayter

Authorised Service Dealer for clarification.

To qualify for the extended warranty (second and third year) of the three year limited warranty

the machine must have annual services carried out by an Authorised Hayter Service Dealer.

These chargeable services should be carried out within 12 and 24 months of the date of purchase.

Excluded from the extended warranty period are those items which are subject to normal wear

and tear e.g. tyres, wheels, cutterblades, belts, cables, grassbags, sweeper/brushes, batteries and

other consumable wearing parts.

All consumer machines which are fitted with a genuine Hayter friction disc as original

equipment before use, are covered by a Lifetime Warranty against the engine crankshaft

bending. Note: friction washers, blade brake clutch (B.B.C) units and other such devices are not

applicable. Only machines fitted with a genuine Hayter friction disc, which are used in

accordance with the recommended operating and maintenance procedures, are covered.

This warranty does not apply to any unit that has been tampered with, altered, misused, abused or

used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does

not cover minor mechanical adjustments unless they are due to defective material or

workmanship. Consult the Owner’s Handbook or a Hayter Authorised Service Dealer for

assistance when making these adjustments.

A warranty period of 90 days applies to machines used for commercial purposes.

To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of

purchase stating the machine serial number and date of purchase. The service receipt(s) or this

Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as

proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in

this limited warranty, the authorised dealer will, at our option, repair or replace any warranted

part within the duration of the warranty period.

This limited warranty gives you specific legal rights and is in addition to any statutory rights to

which you may be entitled and your statutory rights are not affected by this warranty. If you need

additional information concerning this written warranty, or assistance in obtaining services,

please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop’s Stortford,

Hertfordshire CM23 4BU

UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages and

the Hayter website www.hayter.co.uk or contact contact:- Freephone 0800 616298.

Issue: 05.09.03

1.7

WARRANTY

111-1087(A) 3/1/07 11:09 am Page 1.7

1.8

SAFETY PRECAUTIONS

This safety alert symbol indicates important safety messages. When

you see this symbol be alert to the possibility of injury. Carefully read

the following and inform others.

Your mower is perfectly safe if used correctly. Failure to observe the

following precautions may result in serious injury.

Before using the mower read the owners handbook carefully. Pay par-

ticular attention to the safety precautions. Ensure that you are familiar

with the controls and the proper use of the equipment. Learn how to

stop the mower quickly in an emergency.

Never allow children or people unfamiliar with these instructions to

use the mower.

Never mow while people, especially children, or pets are nearby.

Keep in mind that the user is responsible for accidents or hazards

occurring to other people or their property.

While mowing, always wear substantial footwear and long trousers.

Do not operate the equipment when barefoot or wearing sandals.

Thoroughly inspect the area where the mower is to be used and remove

all objects which may be thrown by the machine.

WARNING: Petrol is highly flammable.

- Store fuel in containers specifically designed for this purpose.

- Before starting the engine add fuel outdoors only. Never remove the

cap from the fuel tank or add petrol while the engine is running or

when the engine is hot. Allow the engine to cool for at least two min-

utes before refuelling. Do not smoke while refueling.

- Do not attempt to start the engine if petrol is spilled or a smell of

petrol is present. Move the mower away from the area of spillage

and avoid creating any source of ignition until petrol vapours have

dissipated.

- Replace faulty silencers.

Safety Alert Symbol

Preparation

Training

111-1087(A) 3/1/07 11:09 am Page 1.8

1.9

PRECAUTIONSSAFETY

- Always use fresh fuel. Stale fuel can block the carburettor and cause

leakage.

- Replace fuel tank and oil tank caps securely.

A damaged cutterblade or loose fixing bolt are major hazards. Before

use, always visually inspect the cutting mechanism to ensure that it is

in good condition. A damaged cutterblade must be replaced immedi-

ately with a genuine Hayter replacement part

Do not operate the engine in a confined space where exhaust fumes

(carbon monoxide) can collect. Refuel outdoors only and do not smoke

while refuelling.

Always pull the starter cord slowly until resistance is felt. Then pull

the cord rapidly to avoid kickback and prevent hand or arm injury.

Mow only in daylight or good artificial light.

Avoid using the mower on wet grass, where feasible.

Always be sure of your footing on slopes.

Walk, never run.

Mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction on slopes.

Do not mow excessively steep slopes of more than 20 degrees.

Use extreme caution when reversing or pulling the mower towards you.

Stop the engine before moving the mower across areas other than grass.

Never operate the mower unless the guards are securely in position and

in good condition.

Do not change the engine governor settings or overspeed the engine.

Disengage the rear roller drive clutch before starting the engine.

Start the engine carefully, with feet well away from the cutterblade.

Operation

Preparation

111-1087(A) 3/1/07 11:09 am Page 1.9

1.10

Do not tilt the mower when starting the engine.

Do not put hands or feet near or under rotating parts.

Never pick up or carry the mower while the engine is running.

Never lift the rear deflector while the engine is running.

Never touch the exhaust/exhaust guard or cooling fins when the engine

is hot.

Stop the engine and disconnect the spark plug lead:

- Before clearing blockages or unclogging the discharge chute.

- Before cleaning/checking or working on the mower.

- After striking a foreign object. Inspect the mower for damage and

ensure necessary repairs are made before re-starting.

- If the mower starts to vibrate abnormally (check immediately).

Stop the engine:

- Whenever you leave the mower.

- Before refuelling.

- Reduce throttle control setting during engine shutdown.

Keep all nuts, bolts and screws tight to ensure that the equipment is in

safe operating condition.

Frequently check fuel lines and fittings for cracks or leaks and replace

if necessary.

Never check for a spark when the spark plug is removed. (Use approved

tester)

Inspect the exhaust periodically and replace if worn or leaking.

Never crank the engine with the spark plug removed.

Never start the engine with the air-cleaner or air-cleaner cover

removed.

Never store the mower with petrol in the tank within an enclosed area

where fumes may reach an open flame or spark.

Caution: Use extreme care when removing spring loaded compo-

nents, Height of Cut Adjuster Mechanism, Two Piece Connecting Rod.

SAFETY PRECAUTIONS

Operation

Maintenance & Storage

111-1087(A) 3/1/07 11:09 am Page 1.10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hayter Tondeuse à gazon

Hayter

Hayter MT313 Manuel utilisateur

Hayter

Hayter Harrier 48 Pro Guide de l'utilisateur

Hayter

Hayter Spirit 41 617J Guide de l'utilisateur

Hayter

Hayter Harrier 48 219T Guide de l'utilisateur

Hayter

Hayter Hayterette 005D Guide de l'utilisateur

Hayter

Hayter Harrier 56 Autodrive VS BBC Manuel utilisateur

Hayter

Hayter 005G Guide de l'utilisateur

Hayter

Hayter CODE613A Manuel utilisateur

Hayter

Hayter DC1640H Manuel utilisateur

Hayter

Hayter M10/30 Manuel utilisateur

Hayter

Hayter Condor 511N Manuel utilisateur

Hayter

Hayter Hayterette 005A Guide de l'utilisateur

Hayter

Hayter Hawk 308A Guide de l'utilisateur

Hayter

Hayter Heritage RS 17/102H Manuel utilisateur

Hayter

Hayter Harrier 41 series Guide de l'utilisateur

Hayter

Hayter E131B Manuel utilisateur

Hayter

Hayter Harrier 56 BBC Guide de l'utilisateur

Hayter

Hayter Ranger 415A Guide de l'utilisateur

Hayter

Hayter RANGER 53 PRO 396E Guide de l'utilisateur

Hayter

Hayter Harrier 48/56 BBC 493F Guide de l'utilisateur

Hayter

Hayter Ranger 53 Pro Guide de l'utilisateur

Hayter

Hayter Motif 432A Guide de l'utilisateur

Hayter

Hayter R324T Manuel utilisateur

Hayter

Hayter Envoy 100D Guide de l'utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
