Hawking HMPS1U Manuel utilisateur
website www.hawkingtech.com
e-mail [email protected]
©COPYRIGHT 2011 HAWKING TECHNOLOGIES,INC. ALL RIGHTS RESERVED.
1 PORT USB PRINT SERVER
for MULTIFUNCTION PRINTERS
HMPS1U
STEP 1
Check Package Contents for:
1.) One 1-Port USB 2.0 Print Server for Multifunction
Printers (HMPS1U)
2.) Setup CD with Print Control Center Software
3.) One DC 12V/1A Power Adaptor
4.) One Quick Installation Guide (QIG)
System Requirements:
- Windows 2000 / XP / 2003 / Vista / 7
What You Will Need to Get Started:
1.) One USB Printer/All-in-One/Multifunction Printer or USB Scanner or Storage
Device along with manufactuer’s driver/software CD
2.) A Computer with a CD-ROM drive that is connected to your home network
3.) One Ethernet cable
4.) One USB cable
GETTING STARTED
1 2 3 4
5 6 7
8 9
STEP 1
Top View
Left Side
View
Right Side
View
LEDs:
1.) Power: Lit when powered on
2.) Link: Lit when server is linked to a
network
3.) Act: Blinks to indicate network
activity
4.) USB: Lit when USB device is
connected to USB port
5.) Power Adaptor Connector: DC IN
12V/1A adaptor
6.) On/Off. Switch to turn on/off the
device
7.) Init Button: Press and hold for 30
seconds restores the congurable
parameters to the default values
8.) USB Host Port: USB 1.1/2.0 low,
full, and Hi-Speed compliant;
connects to USB device
9.) Ethernet Connector: Connects to
network router/switch
PRODUCT OVERVIEW
STEP 2HARDWARE INSTALLATION
Step 2: Connecting Your Server to a Network
1.) Use the Ethernet cable and connect one end
to the “LAN” port of the HMPS1U Print Server.
Connect the other end to an available LAN
Port on your network router. See Fig. 1 and 2
2.) Connect the HMPS1U Server to your All-in-
One/Multifunction Printer using a USB cable
(not included).
3.) Plug in the power adaptor (included in
package) to power on the print server. Make
sure the On/OFF switch is set to “ON”.
4.) Once powered on, check the server’s LEDs to
ensure that the server is indeed working and
connected to network devices and printers.
Figure 1
Figure 2
STEP 3
Step 3: Installing Software Utility
1.) Insert Hawking software Setup CD
(included in package) to desired client
computer and run CD .
2.) When the auto-load page appears, click
Setup Wizard. See Fig. 3. If the autoload
page does not appear, click Start-->
Computer--> CD/DVD Drive--> autorun.
exe.
SOFTWARE INSTALLATION
Figure 3
Figure 5Figure 4
3.) Click Next button in proceeding installation windows (See Fig. 4) until a
Finish button appears, and then click Finish. See Fig. 5
STEP 4SERVER CONFIGURATION
Step 4: Conguring Your HMPS1U Print Server

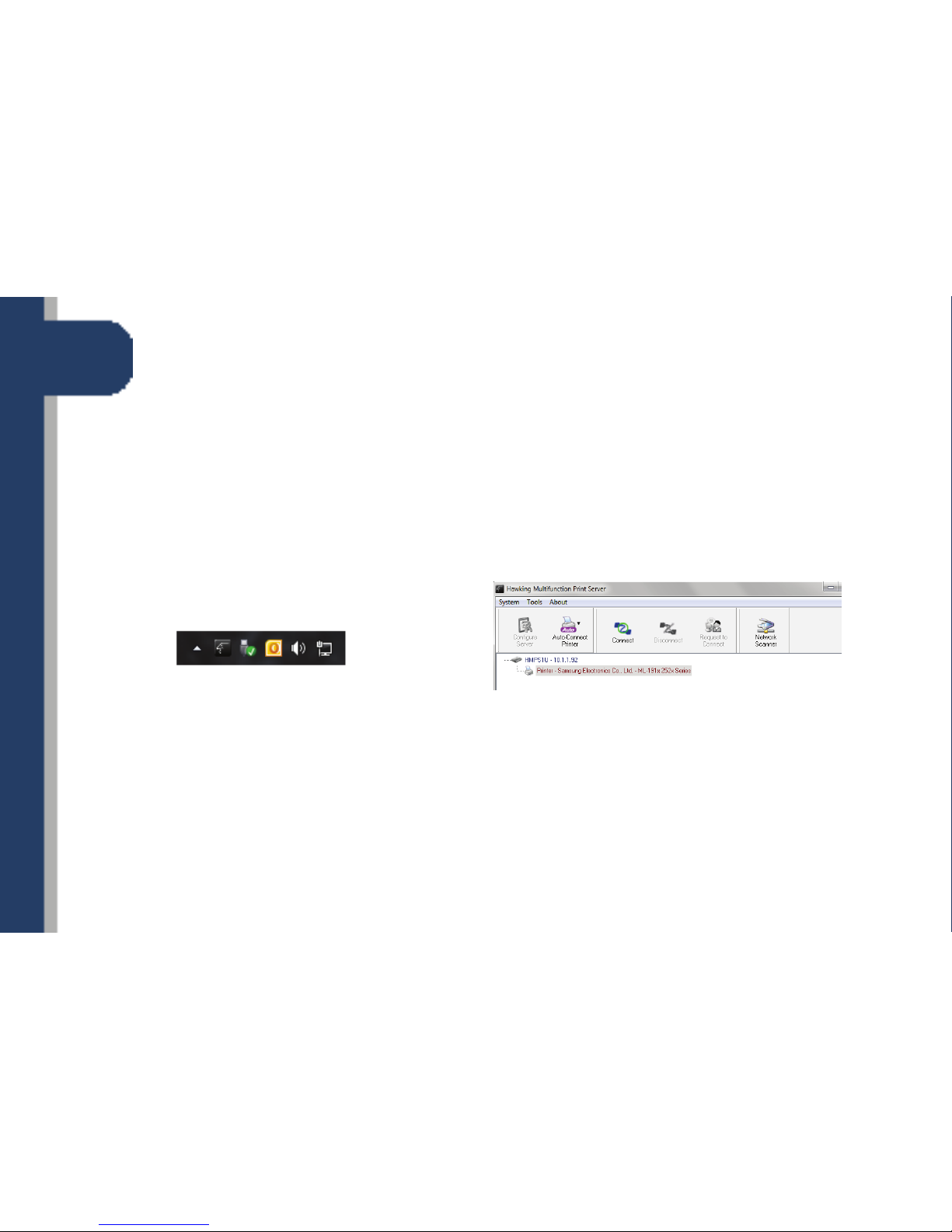

1.) Open the Hawking Technologies HMPS1U Server Control Center from the desktop icon.
While the program is running, a Hawking icon should also be displayed in your system
tray (See Fig. 6) if software installation was successful. Once open, it will automatically
search for the existing server and display its status. (See Fig. 7)
Figure 7Figure 6
STEP 4
2.) Double click on the device on the
control center and it will open a web
browser showing the user interface
of the product (See Fig. 8)
SERVER CONFIGURATION
Step 4: Conguring Your HMPS1U Print Server
Figure 8
3.) Click on “Cong if you need to put
in settings. You will be prompted
to put in a username/password.
Username: admin,
Password: admin
(See Fig. 9)
Figure 9
5.) Once you are nished setting the IP address, scroll down and click “Submit” to save
your settings. The print server will now reboot and your settings should take effect
when it comes back.
6.) To begin printing, continue on to “How to: Print” in Step 5.
STEP 4SERVER CONFIGURATION
Step 4: Conguring Your HMPS1U Print Server Cont’d
4.) For general usage, the print server is set to obtain an IP address automatically from
your network. Under the “General” tab, in the TCP/IP section, make sure it is set to
“Automatically get IP by DHCP”. If you need a static IP and you know the IP address of
your server, choose Static IP and enter the IP address manually. (See Fig. 10)
Figure 10
STEP 5
HOW TO: PRINT
Step 5: Setting up a Printer
1.) (Optional) If your printer’s driver is not
already installed, you need to install your
printer rst. (Figure 11) If you know that
printer driver is already on your computer,
please skip to step 5.2 Refer to your
printer installation instrucitons
1a.) Insert the printer’s CDROM into the CD
drive and run the “install program”.
1b.) Follow the instructions of the installation
program to install driver.
Figure 11
STEP 5HOW TO : PRINT
1c.) When the installation program
asks you to plug-in the USB device,
run the “Hawking Print Server” soft-
ware if it is not already running. On
Windows, it should be located under
start, programs, Hawking, Multifunc-
tion Print Server. (see Fig. 12)
1d.) In the Hawking Print Server” soft-
ware, select the HMPS1u that has
the desired USB device attached.
Refer to step 5.2.
Figure 12
