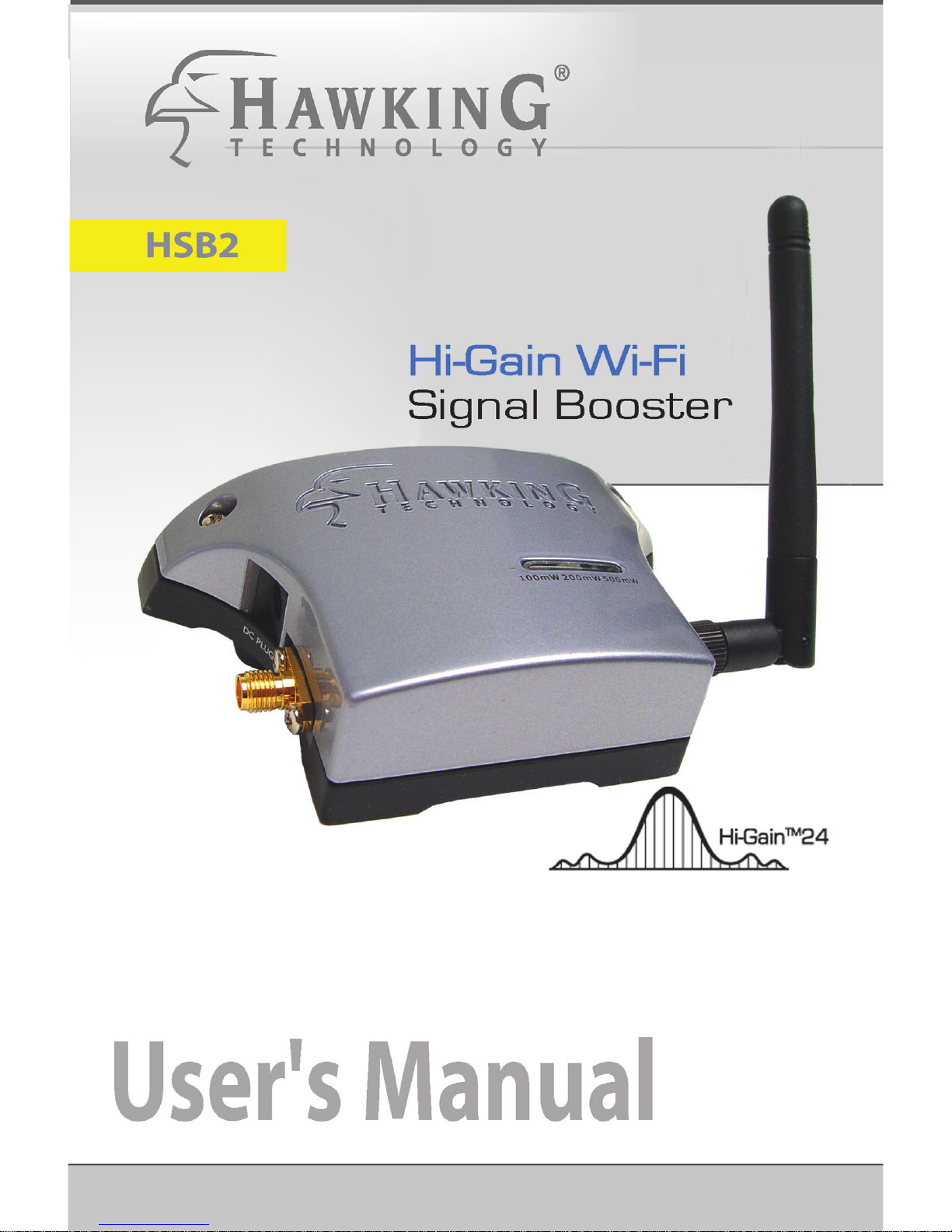

Hawking HSB2 Manuel utilisateur

LIMITED WARRANTY

Hawking Technology guarantees that every HSB2 WiFi Signal Boosteris free

from physical defects in material and workmanship under normal use for two

(2) years from the date of purchase. If the product proves defective during this

two-year warranty period, call Hawking Customer Service in order to obtain a

Return Authorization number. Warranty is for repair or replacement only.

Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR

PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED

WITHOUT PROOF OF PURCHASE. When returning a product, mark the

Return Authorization number clearly on the outside of the package and include

your original proof of purchase.

IN NO EVEN SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID

FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS

ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION.

Hawking Technology makes no warranty or representation, expressed, implied

or statutory, with respect to its products or the contents or use of this

documentation and all accompanying software, and specifically disclaims its

quality, performance, merchantability, or fitness for any particular purpose.

Hawking Technology reserves the right to revise or updates its products,

software, or documentation without obligation to notify any individual or entity.

Please direct all inquiries to:[email protected]

Trademarks & Copyright

All brands and product names are trademarks of their respective companies.

No part of this publication may be reproduced in any form or by any means or

used to make any derivative (such as translation, transformation or adaptation)

without the express written consent of the manufacturer as stipulated by the

United States Copyright Act of 1976.

Warning Statement:

Federal Communication

Commission Interference Statement

Federal Communications

Commission (FCC) Requirements,

Part 15

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference

that may cause undesired operation.

FCC Caution:

FCC RF Exposure Statement:

This Transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter. This equipment complies with FCC RF radiation

exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with a minimum distance of 20 centimeters

between the radiator and your body. Unauthorized antenna, modification, or

attachments could damage the transmitter and may violate FCC regulations.

Regulatory information/Disclaimers:

Any changes or modifications (including the antennas) made to this device that

are not expressly approved by the manufacturer may void the user's authority to

operate the equipment.

Network/Operating Range:

IEEE 802.11b WLAN Standard

IEEE 802.11g WLAN Standard

2400 -2500 MHz

Frequency Response: +/-1 dB

Output Power: Max: 27dBm)

Input Power:

8-18 dBm Max.

Receiver Gain: 10-13 dBm, 12 dBm Typical

Noise Figure: 3.5 dB typical

Connectors:

Input: Reverse SMA Jack

Antenna: Reverse SMA Jack

Connector Cables: RP-SMA

Power: External Power Adapter

DC Surge Protection: Available

Cable Length: 75 cm

SYSTEM REQUIREMENTS:

-802.11b or 802.11g Wireless Network

-Certified 802.11b/g Wireless PCI Network Adapter with a Removable Antenna.

(HWP54G)

Ethernet

A networking standard using cables (Category 5) to create a network.

Network Adapter -Also known as a NIC (Network Interface Card). Used to provide PC’s or laptops with an

Ethernet port or wireless access to the network.

Broadband Modem -A device that allows broadband connection to the internet. Broadband connections

include speeds faster than 56k (dial up modem speed). The two most common types of Broadband

connections are DSL and Cable. Cable modem relies on the bandwidth of cable television lines while DSL

modems rely on the telephone lines operating at DSL speeds.

Router -A device used to share internet access from one user to multiple users. By taking one IP address

(Addresses used by ISP’s to assign broadband services to your computer) the Router distributes the

services of your broadband access among multiple users and IP’s.

Wireless

Wireless Device –Any WiFi device (802.11b/g) that communicates wirelessly using the IEEE802.11

wireless standard. These devices can range from wireless access points to wireless routers to wireless PCI

client cards.

IEEE 802.11 –Wireless Network Specifications

•802.11 -- applies to wireless LANs (Networks) and provides 1 or 2 Mbps transmission in the 2.4

GHz band using either frequency hopping spread spectrum (FHSS) or direct sequence spread

spectrum (DSSS).

•802.11b(also referred to as802.11 High Rate or Wi-Fi) -- an extension to 802.11 that applies to

wireless LANs and provides 11 Mbps transmission (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4

GHz band. 802.11b uses only DSSS. 802.11b was a 1999 ratification to the original 802.11

standard, allowing wireless functionality comparable to Ethernet.

•802.11g-- applies to wireless LANs and provides 54 Mbps in the 2.4 GHz band. Backwards

compatible with IEEE 802.11b products.

Hi-Gain WiFi Antenna

High powered antenna to increase the distance of your WiFi device.

SMA Connector –The standard antenna connector for WiFi devices. This is the most popular connector

and comes standard with all Hawking Technologies equipment.

TNC Connector –A type of antenna connector used by few wireless networking equipment manufacturers.

dBi (decibel) -A unit of measurement used to determine the gain level of wireless antennas.

mW (MilliWatt) -A unit of measurement used to determine the power level of wireless devices.
