HAUL MASTER 94795 Guide de référence rapide

Cover Page REV 09e

ASSEMBLY & OPERATING INSTRUCTIONS

4” SUBMERSIBLE LED

STOP/TURN TRAILER TAIL LIGHT

Model

94795

Diagrams within this manual may not be drawn proportionally.

Due to continuing improvements, actual product may differ slightly from the product described herein.

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

or any artwork contained herein may be reproduced in any shape or form without the

express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

SKU 94795 For technical questions please call 1-800-444-3353. Page 2

THANK YOU for choosing a HARBOR FREIGHT TOOLS product. For future reference, please

complete the owner’s record below:

Model______________ Serial No._____________ Purchase Date_______________

SAVE THE RECEIPT, WARRANTY AND THESE INSTRUCTIONS. It is important that you read the

entire manual to become familiar with the unit BEFORE you begin assembly.

Technical Speciﬁcations

Construction: Polycarbonate Lens, ABS housing and

lens ring, copper electrical terminal pins

Overall Dimensions: 2” L X 5-1/5” O.D.

Lamp Light Color: Red

Type of Lamp: Vehicle and Truck

Lens Ring: 5-1/2” O.D. X 9/16” W

Lens Dimensions: 4”

Hole Size Required: 4-1/2”

Safety Warnings and Precautions

WARNING: When using product, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this product!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Keep work area well lighted.

3. Store idle equipment. When not in use, the Tail Light must be stored in a safe and clean

location. Always lock up products and keep out of reach of children.

4. Use the right product for the job. There are certain applications for which the Flange Mount

Tail Light was designed. Do not modify the Tail Light and do not use the product for a purpose

for which it was not intended.

5. Check for damaged parts. Before using any product, any part that appears damaged should

be carefully checked to determine that it will operate properly and perform its intended function.

Check for any broken or damaged parts and any other conditions that may affect its operation.

Replace or repair damaged or worn parts immediately.

6. Replacement parts and accessories. When servicing, use only identical replacement parts.

Use of any other parts will void the warranty.

7. Do not operate product if under the inﬂuence of alcohol or drugs. Read warning labels on

prescriptions to determine if your judgment or reﬂexes are impaired while taking drugs. If there

is any doubt, do not operate the product.

8. Use eye protection. Always wear ANSI-approved impact safety goggles.

9. Do not allow children to play with the Tail Light.

SKU 94795 For technical questions please call 1-800-444-3353. Page 3

10. Always check hardware and assembled parts after assembling. All connections should be

tight and hardware tightened.

11. Make certain to follow all local laws regarding vehicles and tail lights.

12. Do not cut or rewire any part of the Tail Light or vehicle.

13 Make certain the vehicle is turned off before performing any installation, service or

maintenance.

14. Harbor Freight Tools is not responsible for damage to the Light or to the vehicle which is

a result of improper installation.

Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot

cover all possible conditions and situations that may occur. It must be understood by

the operator that common sense and caution are factors which cannot be built into

this product, but must be supplied by the operator.

Unpacking

When unpacking your Flange Mount 4” LED Tail Light, check to make sure that the product is intact

and undamaged. If any parts are missing or broken, please call HARBOR FREIGHT TOOLS

at: 1-800-444-3353.

Installation

Your 4” Flange Mount Tail Light will require complete installation. It is important that you read the

entire manual to become familiar with the product BEFORE you install and use the 4” Tail Light.

If you do not have experience doing this type of electrical work, the job should be done by an

automotive service technician.

1. Make certain that the vehicle is OFF and the battery disconnected before installation or

performing service or maintenance. Proceed with the following steps for installing the Tail

Light.

2. Install the Tail Light into a 4-1/2” round hole facing the rear of the vehicle. If your vehicle

does not have a hole of this size then drilling a hole will be necessary. Make certain that the

hole and connected wiring remain water resistant.

Warning: When drilling holes, beware of any hidden electrical lines or cables. Make sure

you don’t damage or weaken the structural integrity of the vehicle.

3. Use a rubber gasket (not included) to line the hole and provide protection for the Tail Light.

Connect the Terminal Pins to your vehicle’s electric wiring system. Always review the

manufacturer’s manual for the vehicle to avoid any damage to the vehicle.

Harbor Freight Tools is not responsible for damage to the Light or to the vehicle which is a

result of improper installation.

SKU 94795 For technical questions please call 1-800-444-3353. Page 4

4. Each of the Terminal Pins has been marked on the rear of the Tail Light housing; Ground,

Tail, and Stop/Turn. Connect each of the wires from your vehicle to the Tail Light. Make

certain the ground wire, usually white, is connected to the ground Terminal Pin.

5. Once the wires are properly connected, reconnect the battery. Test the wires and Tail Light

to make certain it is working properly before securing the Tail Light in place.

6. Use 3/16” diameter hardware in each of the three screw holes to secure the Tail Light in

place. Mounting hardware is not included.

No replacement parts are available for this product.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL

ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO

THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO

REPLACE ANY PARTS OFTHE PRODUCT. IN FACT,THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL

REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS AND NOT BYTHE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT

OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

REV 06l

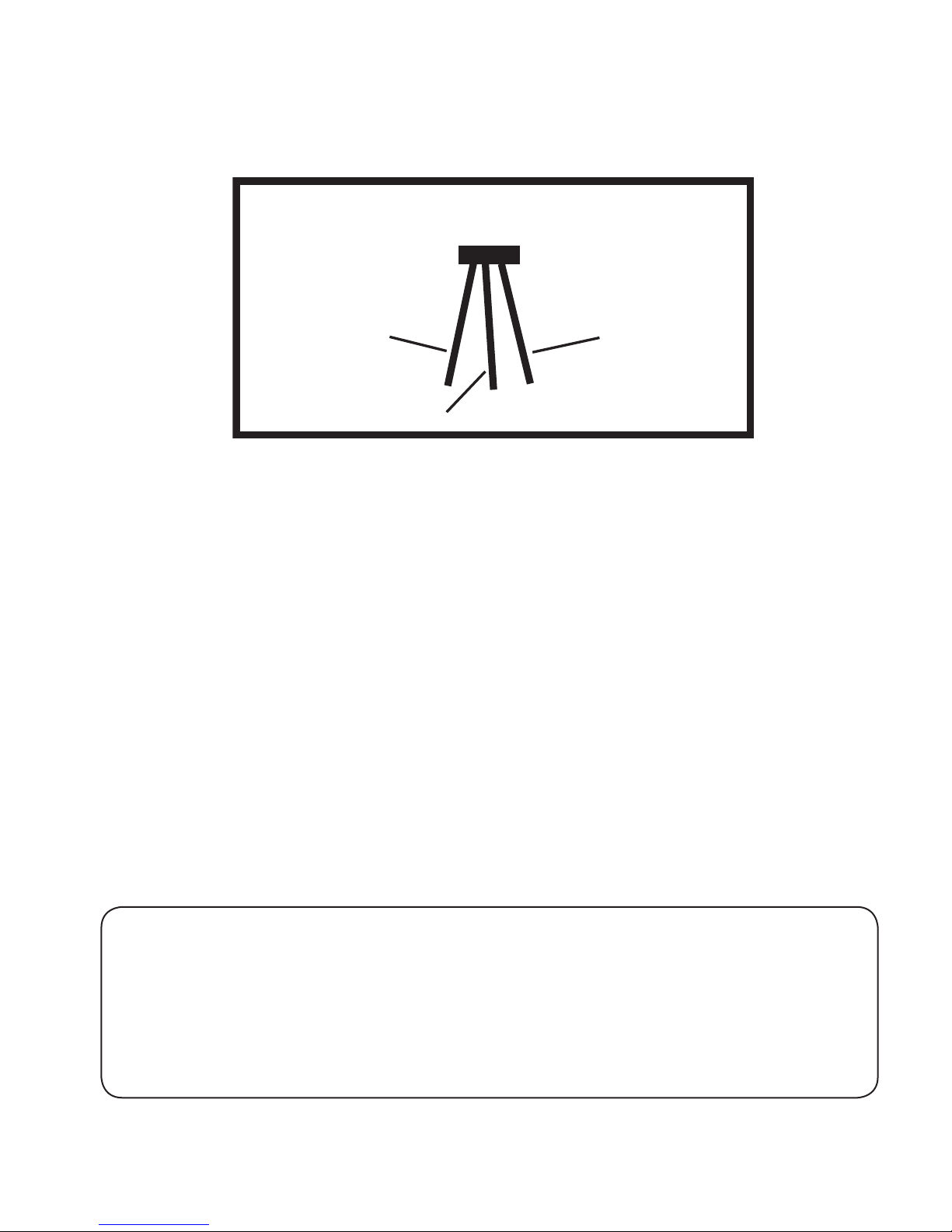

WIRING DIAGRAM

BlackWire

(Tail Light)

Red Wire

(Stop / Turn)

White Wire

(Ground)

SKU 94795 For technical questions please call 1-800-444-3353. Page 5

LIMITED 90 DAY WARRANTY

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality

and durability standards, and warrants to the original purchaser that this product is free from

defects in materials and workmanship for the period of 90 days from the date of purchase.This

warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or

accidents, repairs or alterations outside our facilities, criminal activity, improper installation,

normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, in-

juries to persons or property, or for incidental, contingent, special or consequential damages

arising from the use of our product. Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitation of exclusion may not apply to

you.THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with

transportation charges prepaid. Proof of purchase date and an explanation of the complaint

must accompany the merchandise. If our inspection veriﬁes the defect, we will either repair or

replace the product at our election or we may elect to refund the purchase price if we cannot

readily and quickly provide you with a replacement. We will return repaired products at our

expense, but if we determine there is no defect, or that the defect resulted from causes not

within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you speciﬁc legal rights and you may also have other rights which

vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

REV 09d
