Hathaway PRIMO NG1035 Manuel utilisateur

PRIMO 56"FOOSBALL TABLE

ASSEMBLY INSTRUCTIONS

NG1035

Please Do Not Hesitate to

Contact Our Consumer Hotline

at 800-759-0977

with Any Questions That May

Arise During Assembly or

Use of This Product!

Ver. 0318

THANK YOU!

Thank you for purchasing this product. We work around the clock and around the globe to ensure

that our products maintain the highest possible quality. However, in the rare case of issues during

assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate

assistance before contacting your retailer. Please read the warranty information at the back of these

assembly instructions for further details.

CARE AND USE

1. This product is intended for INDOOR use only.

2. Do NOT drag the table when moving it, as this will damage the legs.

ASSEMBLY TIPS

1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults

work together to assemble this game. You may want to carefully cut or tear the four corners of the box

so that the bottom of the box can be used as your work surface.

2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts

List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.

3. Some figures or drawings may not look exactly like product.

4. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts

in place before final tightening with screwdriver or wrench.

5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use

extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the

electric screwdriver’s torque is set too high.

WARNINGS!

READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETYINSTRUCTIONS CAREFULLY.

CHOKE HAZARD - THIS ITEM MAY CONTAIN SMALL BALLS AND PARTS

NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.

IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS

IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

3/18

For replacement parts

please call 800-759-0977.

Parts List

PRIMO 56"FOOSBALL TABLE - NG1035

Illustrations Not to Scale

PARTS

#1#2#3NGP5788 #4#5#6

PLAYFIELD

#7NGP5792

#19 #20 NGP5794 #21 NGP5795 #22 #23 #24 NGP5798

HAND GRIP

#25 NGP5799

#26 NGP5800 #27 NGP5801 #28 NGP5802 #29 NGP5803

BALL RUNNER

SIDE PANEL END PANEL LEG PANEL

2 PIECE BALL

LAUNCHER

234

LEG - LEFT LEG - RIGHT SUPPORT BRACE

PLAYFIELD

PLASTIC ROD

WASHER RUBBER BUMPER AWAY PLAYER HOME PLAYER 5 PLAYER ROD 3 PLAYER ROD

ROD END CAP

2 PLAYER ROD

SOCCER BALL

SIDE BALL

CATCHER

#32 NGP58061

SILVER METAL

CUP

#30 NGP5804

BALL CATCHER

#31 NGP5805

MANUAL SCORER

#8 #9 #10 #11 #12 #13

5/16”x60mm

BOLT

#14

1/2” SCREW

5/16”

FLAT WASHER

#15

1-1/8” BOLT

#34 NGP5807 #35 NGP5808 #36 NGP5809 #37 NGP5810

APRON CORNER LEG LEVELER

#38

STOP RING

ADDITIONAL EQUIPMENT

REQUIRED:

PHILLIPS HEAD

SCREWDRIVER

#17 #18 #33

3/4” SCREW 1-3/4 SCREW

#16

1” FLAT SCREW

LOCKNUT1/2” FLAT SCREW HEX WRENCH

23 38

5/8” BOLT

7,28,29,30

HARDWARE PACK - NGP5812

X2 X2 X2 X2 X2 X2 X4

X16 X8 X8

X24

X8 X16 X16 X11 X11 X2 X4

X28

X2 X2 X1 X2 X2 X2 X2

X2 X4 X8 X4 X4

X2 X4 X4

X26 X1

X24 X26

5/16”x35mm

BOLT

NGP5786* NGP5787 NGP5789 NGP5790 NGP5791

NGP57931 NGP5796 NGP5797

NG5811 *Chrome Rod Bearing Only,

NGP57861

ASSEMBLY INSTRUCTIONS

1. Place PLAYFIELD #3, with field markings facing down, onto the ledge of the SIDE PANELS #1.

Note: The table is assembled upside down.

2. Attach one END PANEL #2 to each end of the table with 5/16” BOLT #10 and 5/16” FLAT WASHER #8.

Note: DO NOT over tighten bolts. In this step, loosely tighten just until sides touch.

3. Attach PLAYFIELD totable with 1” FLAT SCREWS #13 around inside edge using pre-drill holes. Note: ALWAYS

use pre-drilled holes. If not, permanent damage can be done totable. A flashlight can be helpful in aligning holes.

It may be helpful to have a second person push on the opposite side, as you attach Playfield, in order tosquare

up surface. Make sure End Panels fit snuggly against Side Panels before screwing down Playfield.

4. Insert the APRON CORNERS #35 onto the SIDE PANELS #1 and END PANELS #2 on the four corners.

Note: Make sure inside screw holes are positioned at top.

5. Tighten 5/16” BOLTS #10, loosely tightened in Step 2, on both sides.

Field corners are

intentionally tapered

down for play.

#1 #3

#10

#13

#35

#10

Playfield

Side

Panel

ASSEMBLY INSTRUCTIONS (CONT.)

6. Position each PLAYFIELD SUPPORT BRACE #7 between the SIDE PANELS as shown below. Attach the

SUPPORT BRACE #7 with 1-3/4” SCREW #18. Attach the APRON CORNERS to each corner of the table

with 1/2” SCREW #12.

7. Attach the SIDE BALL CATCHER #29 to each of the SIDE PANELS with 1/2” SCREW #12. Attach the

BALL CATCHER #30 to each of the END PANELS with 1/2” SCREW #12. Attach the BALL RUNNER #28

onto the SIDE BALL CATCHER and the BALL CATCHER openings as shown below.

#18

#35

#12

#29

#28

#12

#30

#12

ASSEMBLY INSTRUCTIONS (CONT.)

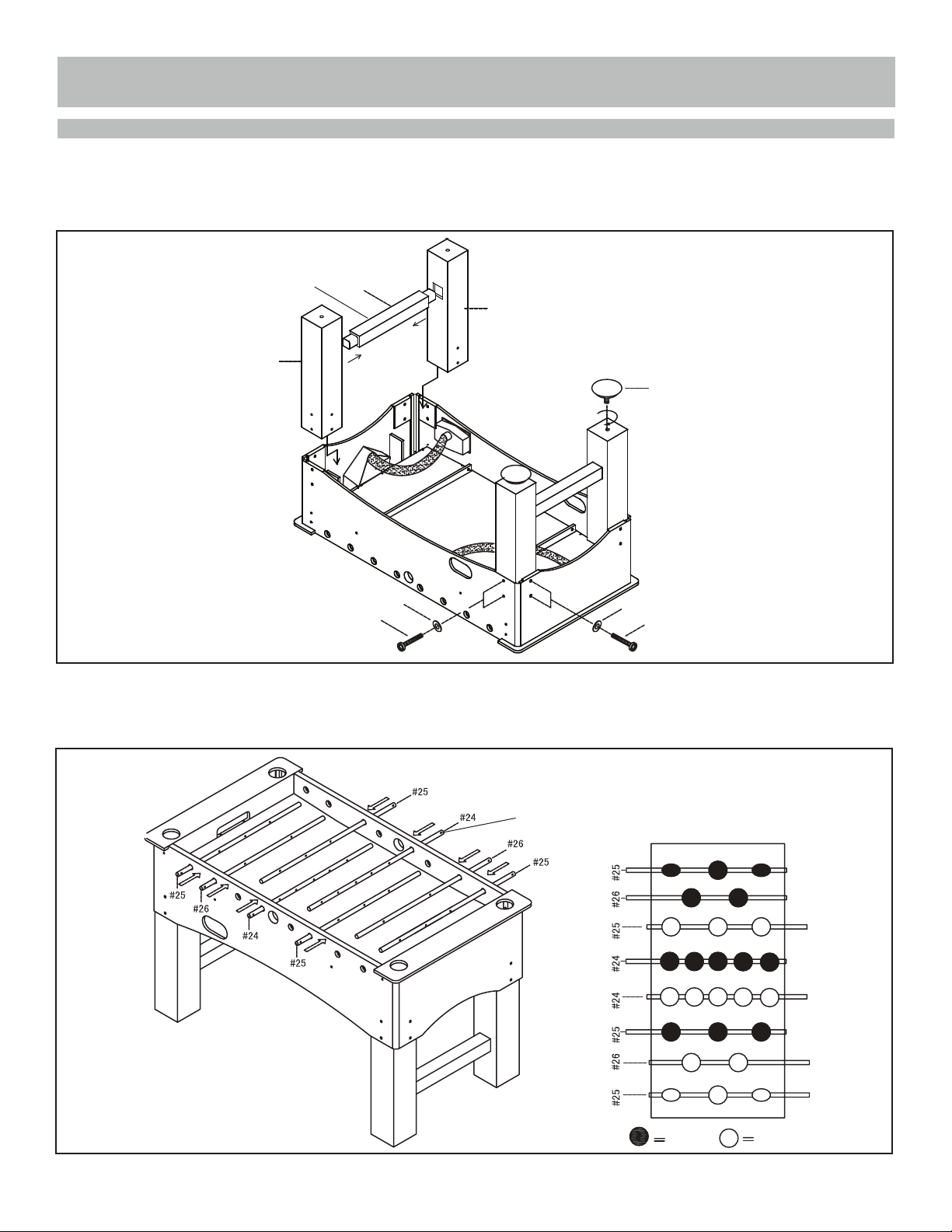

8. Insert LEG PANEL #6 into both LEGS as shown. Note: Chrome strip should face out toward ends. Attach

LEFT LEG #4 and RIGHT LEG #5 to each corner of the table with 5/16” BOLT #9 and 5/16” FLAT WASHER #8.

9. Thread one LEG LEVELER #37 onto each LEG. Carefully turn table over.

10. Begin PLAYER ROD assembly by partially inserting PLAYER ROD into the appropriate hole in the SIDE PANEL.

11. Before continuing, refer to the diagrams below for correct rod orientation and player placement. Note: You may

choose either color for home or visitor teams.

Hand tighten ALL bolts

before final tightening.

#37

NOTE: Hole on end of rod indicates handle side.

Remove protective plastic

from chrome strips

HOME VISITOR

ASSEMBLY INSTRUCTIONS (CONT.)

NOTE: Stop Rings (38)

are used on both sides

of goalie instead of players

12. Note: the HAND GRIP will be attached to the marked end (with hole) of the PLAYER ROD - this end must

be inserted into the SIDE PANEL first. Slide one RUBBER BUMPER #21 and PLASTIC ROD WASHER #20

onto the partially inserted PLAYER ROD. Slide the appropriate quantity and color of players onto the PLAYER

ROD. Finish PLAYER ROD assembly with PLASTIC ROD WASHER #20 and RUBBER BUMPER #21 (note

position for each in diagram below). Insert PLAYER ROD into hole on opposite SIDE PANEL. Fasten PLAYERS

to PLAYER ROD with 1-1/8” BOLT #14 and LOCKNUT #15.

Note: STOP RINGS #38 will be used instead of PLAYERS on either side of the goalies and attached

to PLAYER RODS with 1-1/8” BOLT #14 and LOCKNUT #15.

13. Repeat assembly with remaining PLAYER RODS. Note: Each team should face the opposite goal.

STEP12B

STEP12A

ASSEMBLY INSTRUCTIONS (CONT.)

14. Attach HAND GRIP #19 to the end of the PLAYER ROD with threaded hole using 5/8” BOLT #11. Attach

ROD END CAP #36 to the opposite end.

15. Attach one MANUAL SCORER #31 to the top of each END PANEL with 3/4” ROUND HEAD SCREW #17.

16. Attach one TWO-PIECE BALL LAUNCHER #27 to each side of the table by inserting the cup into the hole

on the outside of the SIDE PANEL and the launcher into the hole on the inside of the SIDE PANEL and screwing

them together. Fasten each to the table with one 1/2” FLAT SCREW #16.

17. Insert SILVER CUP HOLDERS #32 into the holes in the top of each END PANEL as shown.

#16

#27

#11

180-DAY LIMITED WARRANTY

This product is warranted to the original purchaser to be free from defects in material or workmanship

for a period of 180 days from the date of the original retail purchase.

This warranty does not cover defects or damage due to improper installation, alteration, accident or

any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,

abuse or negligence will void this warranty. This warranty does not cover scratching or damage that

may result from normal usage.

This product is not intended for institutional or commercial use; the manufacturer does not assume

any liability for such use. Institutional or commercial use will void this warranty.

This warranty is nontransferable and is expressly limited to the repair or replacement of the defective

product. During the warranty period, the manufacturer shall repair or replace defective parts at no

cost tothe purchaser. Shipping charges and insurance are not covered and are the responsibility of

the purchaser. Labor charges and related expenses for removal, installation or replacement of the

product or components are not covered under this warranty.

The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable

or obsolete.

The manufacturer shall not be liable for loss of use of the product or other consequential or incidental

costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of

injury resulting from the use of this product.

This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of

. Neither the manufac-

turer nor any of its representatives assumes any other liability in connection with this product.

All warranty claims must be made through the retailer where the product was originally

purchased. A purchase receipt or other proof of date of purchase will be required to process

all warranty claims. The model number and part numbers found within the assembly

instructions will be required when submitting any parts requests or warranty claims.

For further warranty information or inquiries, please call 800-759-0977

NG1035

Ver. 0318

TABLE DE SOCCER

PRIMO 1,37 m

INSTRUCTIONS D’ASSEMBLAGE

Contactez notre

service à la clientèle au

800-759-0977

avec des questions sur le montage

ou l'utilisation de ce produit.

Ce manuel convient aux modèles suivants
