Hatco MACHO NACHO FST-1-MN Series Guide d'application

MACHO NACHO™

Chip Warmer

REPLACEMENT

PARTS LIST

FST-1-MN

FST - MN Series

Form No. FSTMNRP-0402 2 Printed in USA

HATCO FLAVOR-SAVOR

FST-MN SERIES DISPLAY CABINETS

CAUTION - Use of replacement

parts other than those supplied by

Hatco Corporation may result in

damage to the unit or injury

to personnel.

14 8

529

Model Designation

FST-1-MN F = Flav-R

S= Savor

T = Tall

1 = Number of sides

with doors

M = Macho

N = Nacho

Shaded area reflects export models only.

NOTE: S.S. is an abbreviation for stainless steel.

Form No. FSTMNRP-0402 3 Printed in USA

27 Power Cord and Plug

28 Blower Motor

29 Light Bulb

30 Air Heating Element (1050 Watt)

31 Terminal Block (not shown)

Electrical Drawing

02.18.120.00

R02.12.012.00

02.30.058.00

R02.05.008.00

---

HS1-3225

02.18.035.00

R02.12.003.00

02.30.043.00

R02.05.007.00

---

HS1-2613

02.18.109.00

R02.12.012.00

02.30.058.00

R02.05.017.00

R02.15.030.00

HS1-4710

02.18.120.00

R02.12.012.00

02.30.058.00

R02.05.008.00

R02.15.030.00

HS1-4711

02.18.109.00

R02.12.012.00

02.30.058.00

R02.05.017.00

---

HS1-3224

ITEM DESCRIPTION PART NO. QTY.

1 Side Panels, Glass 04.40.008.00 3

2 Front Face Assembly 04.17.325.00 1

3 Upper Door Assembly,

Glass R00.01.0111.00 1

Upper Door Assembly, S.S.

(optional) (not shown) R04.17.328.00 1

4 Lower Door Assembly,

Glass R00.01.0112.00 1

Lower Door Assembly, S.S.

(optional) (not shown) R04.17.329.00 1

5 Door Hinge Pin,

Glass Door 04.24.023.00 4

Door Hinge Pin, S.S. Door

(optional) (not shown) 05.04.252.00 4

6 Chip Deflector 04.17.311.00 1

7 Top Hood, Painted 04.17.095.00 1

8 Air Diffuser Assembly 04.17.318.00 1

9 Door Bumper Assembly R05.30.029.00 4

10 Display Decal 07.03.220.00 3

PARTS COMMON TO FST-MN MODELS

ITEM DESCRIPTION PART NO. QTY.

11 Door Magnet, Glass Door 05.30.026.00 4

Door Magnet, Upper Door

S.S. (not shown) 05.30.026A.00 2

Door Magnet, Lower Door

S.S. (not shown) 05.30.026.00 2

12 Striker Plate 05.30.027.00 4

13 Thumb Screw 05.04.140.00 4

14 Terminal Block 02.15.012.00 1

15 Air Thermostat 02.16.002.00 1

16 Knob 05.30.019.00 1

17 High Limit Disk R02.16.118.00 1

18 On/Off Power Switch 02.19.015.00 1

19 Temperature Display 02.16.049.00 1

20 Cord Grip 02.20.206.00 1

21 Light Socket with Leads 02.30.039.00 2

22 Floor Panel, Left 04.17.314.00 1

23 Floor Panel, Right 04.17.315.00 1

24 Air Chamber Gasket 05.06.028.00 5' (152 cm)

25 Air Chamber Cover 04.17.022A.00 1

26 Lubricant, Blower Motor 05.01.019.00 1

PARTS SPECIFIC TO MODEL FST-1-MN

ITEM DESCRIPTION

220-230V CE

50Hz

240V

50 Hz

220V

50 Hz

120V

60 Hz

230-240V CE

50 Hz

HATCO CORPORATION

P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.

(800) 558-0607 (414) 671-6350

Parts & Service Fax (800) 690-2966 Int’l. Fax (414) 671-3976

www.hatcocorp.com

HATCO AUTHORIZED PARTS DISTRIBUTORS

ALABAMA

Jones McLeod Appl. Svc.

Birmingham 205-251-0159

ARIZONA

Auth. Comm. Food Equip.

Phoenix 602-234-2443

Byassee Equipment Co.

Phoenix 602-252-0402

CALIFORNIA

Industrial Electric

Huntington Beach 714-379-7100

Chapman Appl. Service

San Diego 619-298-7106

P & D Appliance

S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance

Englewood 303-781-5548

DELAWARE

Food Equipment Service

Wilmington 302-996-9363

FLORIDA

Whaley Foodservice Repair

Jacksonville 904-725-7800

Nass Service Co., Inc.

Orlando 407-425-2681

B.G.S.I.

Pompano Beach 954-971-0456

Comm. Appliance Service

Tampa 813-663-0313

GEORGIA

Southeastern Rest. Svc.

Norcross 770-446-6177

HAWAII

Burney’s Comm. Service, Inc.

Honolulu 808-848-1466

Food Equip Parts & Service

Honolulu 808-847-4871

ILLINOIS

Parts Town

Lombard 708-865-7278

Eichenauer Elec. Service

Decatur 217-429-4229

Midwest Elec. Appl. Service

Elmhurst 630-279-8000

Cone’s Repair Service

Moline 309-797-5323

INDIANA

GCS Service

Indianapolis 317-545-9655

IOWA

Electric Motor Service Co.

Davenport 319-323-1823

KENTUCKY

GCS Service

Louisville 502-367-1788

LOUISIANA

Chandlers Parts & Service

Baton Rouge 225-272-6620

Bana Comm. Parts, Inc.

Shreveport 318-631-6550

MARYLAND

Electric Motor Service

Baltimore 410-467-8080

GCS Service

Silver Spring 301-585-7550

MASSACHUSETTS

Ace Service Co., Inc.

Needham 781-449-4220

MICHIGAN

Commercial Kitchen Service

Bay City 517-893-4561

Bildons Appliance Service

Detroit 248-478-3320

Midwest Food Equip. Service

Grandville 616-261-2000

MINNESOTA

GCS Service

Minneapolis 612-546-4221

MISSOURI

GCS Service

Kansas City 816-920-5999

Commercial Kitchen Services

St. Louis 314-890-0700

Kaemmerlen Parts & Service

St. Louis 314-535-2222

NEBRASKA

Anderson Electric

Omaha 402-341-1414

NEVADA

Burney’s Commercial

Las Vegas 702-736-0006

Hi. Tech Commercial Service

N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair

Fairfield 973-575-9145

Service Plus

Flanders 973-691-6300

NEW YORK

Acme American Repairs, Inc.

Brooklyn 718-456-6544

Alpro Service Co.

Brooklyn 718-386-2515

Appliance Installation

Buffalo 716-884-7425

Northern Parts Dist.

Plattsburgh 518-563-3200

J. B. Brady, Inc.

Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance

Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc.

Akron 330-753-6635

Certified Service Center

Cincinnati 513-772-6600

GCS Service

Columbus 614-476-3225

Electrical Appl. Repair Service

Independence 216-459-8700

E. A. Wichman Co.

Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc.

Oklahoma City 405-235-2184

Krueger, Inc.

Oklahoma City 405-528-8883

OREGON

Bressie Electric Co.

Portland 503-231-7171

Ron’s Service, Inc.

Portland 503-624-0890

PENNSYLVANIA

Authorized Factory Service

Coraopolis 412-262-2330

FAST Comm. Appl. Service

Philadelphia 215-288-4800

GCS Service

Pittsburgh 412-787-1970

K & D Service Co.

Harrisburg 717-236-9039

Elmer Schultz Services

Philadelphia 215-627-5401

Electric Repair Co.

Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co.

Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair

W. Columbia 803-791-4420

TENNESSEE

Camp Electric

Memphis 901-527-7543

TEXAS

Stove Parts Supply

Fort Worth 817-831-0381

Armstrong Repair Service

Houston 713-666-7100

Commercial Kitchen Repair Co.

San Antonio 210-735-2811

San Antonio Rest. Equip.

San Antonio 210-532-1660

UTAH

GCS Service

Salt Lake City 801-487-3653

VIRGINIA

Daubers

Norfolk 757-855-4097

Daubers

Springfield 703-866-3600

WASHINGTON

Restaurant Appl. Service

Seattle 206-524-8200

WISCONSIN

A.S.C., Inc.

Madison 608-246-3160

A.S.C., Inc.

Milwaukee 414-543-6460

CANADA

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

ONTARIO

R.G. Henderson Ltd.

Toronto 416-422-5580

Form No. FSTMNRP-0402 April 2002 Printed in U.S.A.

Autres manuels Hatco chauffe-plats

Hatco

Hatco SeRv-Rite SRB Series Manuel utilisateur

Hatco

Hatco GLO-RAY GRSDH Series Manuel utilisateur

Hatco

Hatco Glo-Ray GRSDH-24 Manuel utilisateur

Hatco

Hatco MACHO NACHO FDW-1-MN Series Guide d'application

Hatco

Hatco HWB-FUL Manuel utilisateur

Hatco

Hatco HDW-2-MN Series Guide d'application

Hatco

Hatco LW-2 Manuel utilisateur

Hatco

Hatco HDW Series Manuel utilisateur

Hatco

Hatco MDW Series Manuel utilisateur

Hatco

Hatco Serv-Rite SRB-1 Manuel utilisateur

Hatco

Hatco Glo-Ray GRFS Series Instructions d'installation

Hatco

Hatco Drawermax HDM Series Manuel utilisateur

Hatco

Hatco FLAV-R-SAVOR FSHC-12W1 Manuel utilisateur

Hatco

Hatco Glo-Ray GRBW-24 Instructions d'installation

Hatco

Hatco Glo-Ray GR3SDH-27 Manuel utilisateur

Hatco

Hatco GRPWS Series Manuel utilisateur

Hatco

Hatco Glo-Ray GRCMW-1 Manuel

Hatco

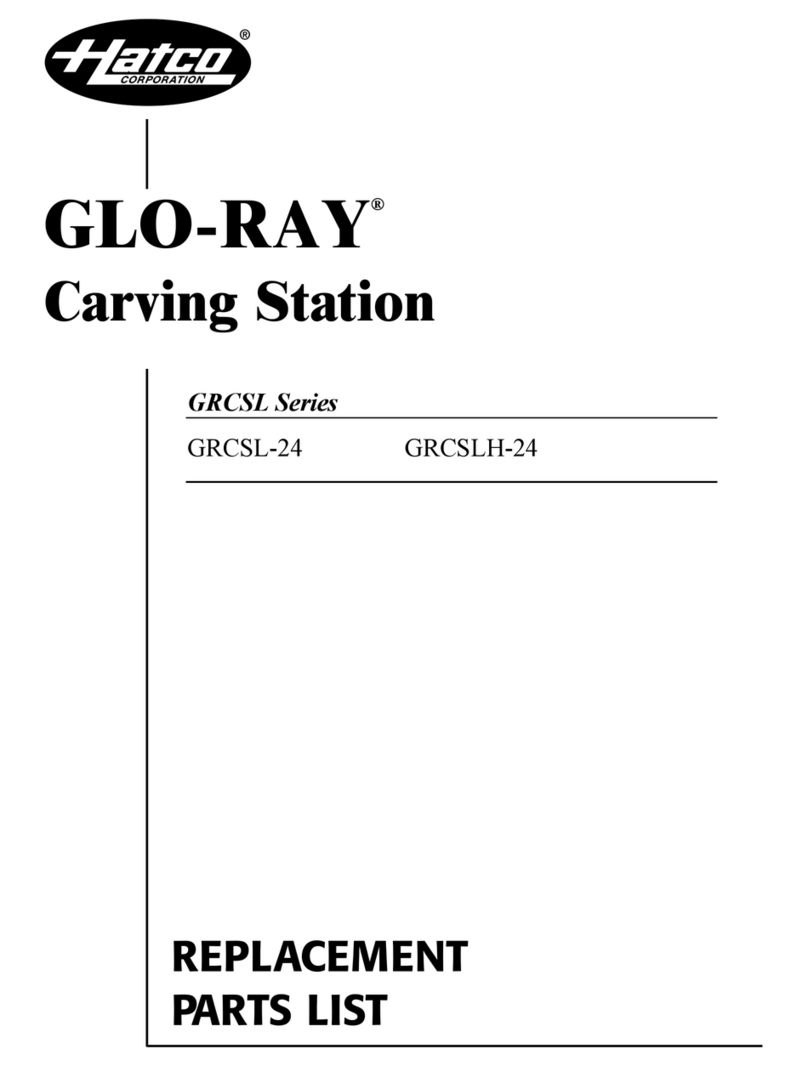

Hatco Glo-Ray GRCSL-24 Guide d'application
