Harman Harman/kardon SOUNDSTICKS 4 Manuel utilisateur

SOUNDSTICKS 4

Quick Start Guide

For more information, please visit harmankardon.com

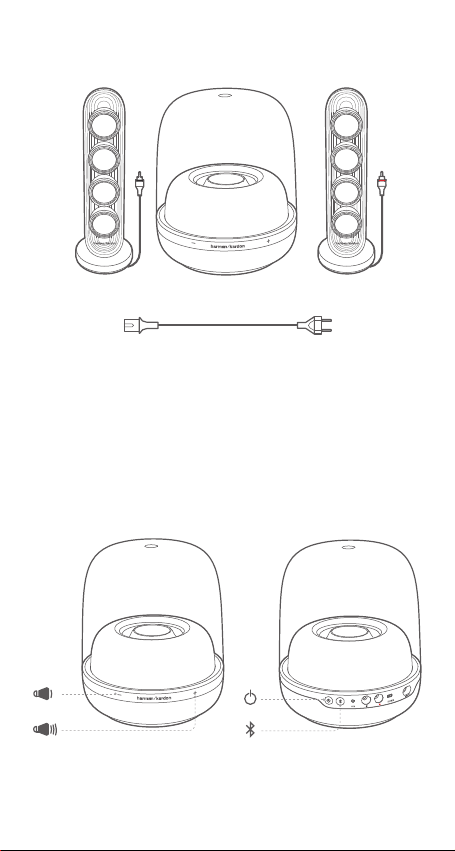

1. WHAT’S IN THE BOX

* Power cord quantity and plug type vary by regions.

2. BUTTONS

Front Back

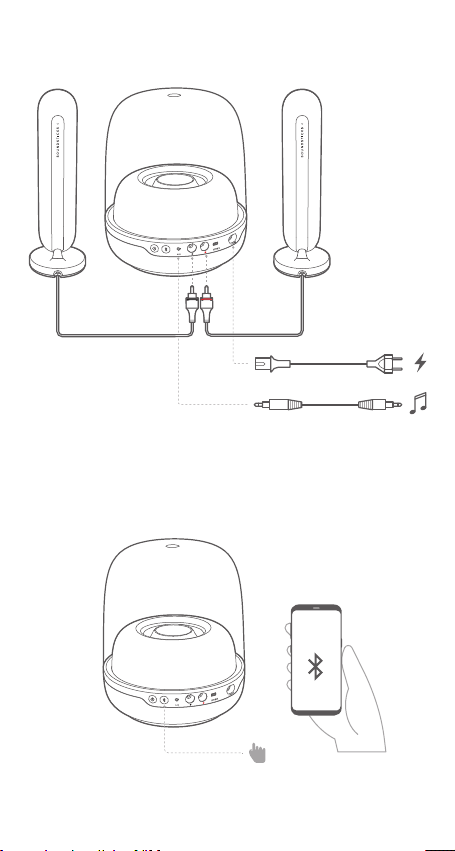

3. CONNECTIONS

4. BLUETOOTH® PAIRING

HK SoundStick 4

5. TECHNICAL SPECIFICATIONS

• Transducers: 1.4” full range x 8, 5.25” subwoofer x 1

• Rated output power: 2 x 20 W RMS + 1 x 100 W RMS

• Power input: 100 – 240 V ~ 50/60 Hz

• Frequency response: 40 Hz – 20 kHz

• Signal-to-noise ratio: 80 dB

• Bluetooth® version: 4.2

• Bluetooth® prole: A2DP 1.3, AVRCP 1.6

• Bluetooth® transmitter frequency range: 2.402 – 2.480 GHz

• Bluetooth® transmitter power: 0 - 9 dBm

• Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK

• Dimensions (W x H x D): Woofer: 231 mm x 276 mm x 231 mm;

Satellite: 84 mm x 271 mm x 84 mm

• Weight: 4.432 kg

Торговая марка: HARMAN/KARDON

Назначение товара: Активная акустическая система

Изготовитель: Харман Интернешнл Индастриз

Инкорпорейтед, США,06901 Коннектикут,

г.Стэмфорд, Атлантик Стрит 400, офис 1500

Страна происхождения: Китай

Импортер в Россию: OOO “ХАРМАН РУС СиАйЭс“, Россия,

127018, г.Москва, ул. Двинцев, д.12, к 1

Гарантийный период: 1 год

Информация о сервисных центрах: www.harman.com/ru тел. +7-800-700-0467

Срок службы: 3 года

Товар сертифицирован

Дата производства: Дата изготовления устройства определяется

по двум буквенным обозначениям из

второй группы символов серийного номера

изделия, следующих после разделительного

знака «-». Кодировка соответствует порядку

букв латинского алфавита, начиная с января

2010 года: 000000-MY0000000, где «M» -

месяц производства (А - январь, B - февраль,

C - март и т.д.) и «Y» - год производства (A -

2010, B - 2011, C - 2012 и т.д.).

Используйте устройство только по прямому назначению в соответствии с

предоставленной инструкцией. Не пытайтесь самостоятельно вскрывать

корпус товара и осуществлять ремонт. В случае обнаружения недостатков

или дефектов, обращайтесь за гарантийным обслуживанием в соответствии с

информацией из гарантийного талона. Особые условия хранения, реализации

и (или) транспортировки не предусмотрены. Избегайте воздействия

экстремальных температур, долговременного воздействия влаги, сильных

магнитных полей. Устройство предназначено для работы в жилых зонах. Срок

годности не ограничен при соблюдении условий хранения. Пожалуйста, не

утилизируйте устройства с литий-ионными аккумуляторами вместе с бытовыми

отходами.

SA_HK SoundStick 4_Global_QSG_SOP_V8

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by HARMAN International

Industries, Incorporated is under license. Other trademarks and trade names

are those of their respective owners.

Este equipamento não tem direito à proteção contra interferência prejudicial

e não pode causar interferência em sistemas devidamente autorizados.

Para maiores informações, consulte o site da ANATEL – www.anatel.gov.br

Este produto está homologado pela ANATEL, de acordo com os

procedimentos regulamentados pela Resolução n°. 242/2000 e atende aos

requisitos técnicos aplicados.

UBL
