Harman P43 Instructions d'installation

P43 Pellet Stove Owners Manual

SAVE THESE INSTRUCTIONS.

Installation & Operating Manual

“Ce manuel est disponible en Français sur demande”

SAFETY NOTICE

PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM HEATER. FAILURE

TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

FOR USE IN THE U.S. AND CANADA. SUITABLE FOR INSTALLATION IN MOBILE HOMES.

IF THIS HARMAN STOVE IS NOT PROPERLY

INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOL-

LOW INSTALLATION DIRECTIONS.

CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION

REQUIREMENTS IN YOUR AREA.

CONTACT YOUR LOCAL AUTHORITY (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE

PREVENTION BUREAU, ETC.) TO DETERMINE THE NEED FOR A PERMIT.

CETTE GUIDE D'UTILISATION EST DISPONIBLE EN FRANCAIS. CHEZ VOTRE CONCESSIONNAIRE DE HARMAN

STOVE COMPANY.

Manual Item# 3-90-04301

2P43 Pellet Stove

Harman PP38+/P43 Pellet Stove

Label measures: 4-3/8" high X 9-3/4"wide

MINIMUM CLEARANCES

TO COMBUSTIBLES:

SIDEWALL TO STOVE 16" 10"

BACKWALL TO STOVE 2" 2"

CEILING TO STOVE TOP 18" 18"

STOVE CORNER TO DIAGONAL WALL 9" 9"

PREVENT HOUSE FIRES, OPERATE WITH VIEWING & ASH DOOR CLOSED.

UNIT MUST BE PLACED ONA NON-COMBUSTIBLE FLOOR PROTECTOR EXTENDING

6" TO THE FRONT, 6" TO SIDES AND 1" TO REAR. MEASURE FRONT FROM GLASS.

EXHAUSTTYPE:LISTEDTYPELORPLVENTINSTALLEDTOVENTMANUFACTURER'S

INSTRUCTIONS AND LOCAL BUILDING CODES.

ELECTRICAL RATING: 6 AMPS, 120 VOLTS, 60 HERTZ

FUEL: PELLETIZED OR BIOMASS

INSTALL AND USE ONLY IN ACCORDANCE WITH MANUFACTURER'S INSTALLATION

AND OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS

ABOUT RESTRICTIONS & INSTALLATION INSPECTION IN YOUR AREA.

EPA EXEMPT PER 40 CFR 60.534, METHOD 28A.

APPROVED FOR USE IN MOBILE HOMES.

INPUT RATING: .75 TO 5.5 LBS PER HOUR.

DO NOT CONNECT THIS UNIT TO A CHIMNEY SERVING ANOTHER APPLIANCE.

NE PAS CONNECTER CET APPAREIL À UNE CHEMINÉE SERVANT UN AUTRE

APPAREIL.

LISTED PELLET FUEL BURNING ROOM HEATER APPAREIL DE CHAUFFAGE CATALOGUÉ DE

MODÈLE POUR BRÛLER DES BOULETTES COMBUSTIBLES.

MODEL / MODÈLE: "PP 38+" / "P43"

INSTALL WITH MINIMUM CLEARANCES TO WALLS AS

SHOWN / INSTALLER AVEC LES DISTANCES MINIMUM

DE SECURITÉ COMME INDIQUÉ.

TESTED TO : UL 1482 ASTM E1509

OREGON 814-23-900

ULC-S627

WH-PN 025

TEST DATE: JUNE 1997

WITHOUT

SIDE SHIELDS

WITH

SIDE SHIELDS

ESPACES LIBRES MINIMUM

DES MATÉRIAUX COMBUSTIBLES:

DU MÛR DE CÔTÉ AU POÊLE 406 mm 254 mm

DU MÛR ARRIÈRE AU POÊLE 51 mm 51 mm

DU PLAFOND AU DESSUS DU POÊLE 457 mm 457 mm

DU COIN DU POÊLE AU MÛR DIAGONAL 229 mm 229 mm

PRÉVENIR LES FEUX DE MAISONS. OPÉRER SEULEMENT AVEC LA PORTE

D'OUVERTURE ET LA PORTE DES CENTRES FERMÉES. L'APPAREIL DOIT ÊTRE

PLACÉSURUNPLANCHERPROTECTEURINCOMBUSTIBLE,CELUI-CIS'ÉTENDANT

DE 152 mm EN AVANT, DE 152 mm DES CÔTÉS ET D 25 mm DE L'ARRIÈRE.

SORTE D'ÉCHAPPEMENT: VENTILATEUR DE TYPE L OU PL INSTALLÉ SELON

LES INSTRUCTIONS DU FABRICANT ET SELON LES CODES LOCAUX DE LA

CONSTRUCTION.

PUISSANCE ÉLECTRIQUE: 6 AMPS, 120 VOLTES, 60 HERTZ

COMBUSTIBLE: DE BOULETTES COMBUSTIBLES OU BIOMASSES.

INSTALLER ET UTILISER SELON LES INSTRUCTIONS D'INSTALLATION ET

D'OPÉRATIONDEFABRICANT.CONTACTERLEBUREAUDELACONSTRUCTION OU

LE BUREAU DES POMPIERSAU SUJET DES RESTRICTIONS ET DES INSPECTIONS

D'INSTALLATION DANS VOTRE VOISINAGE.

EXEMPTION EPA PAR 40 CFR 60.534, DE MÉTHODE 28a

APPROUVÉ POUR L'USAGE DANS LES MAISONS MOBILES

PUISSANCE ESTIMÉE: .75 À 5.5 LBS PAR HEURE.

SANS LES

PROTECTEURS

DE CÔTÉ

AVEC LES

PROTECTEURS

DE CÔTÉ

WHI -

DO NOT REMOVE THIS LABEL. NE PAS ENLEVER CETTE ÉTIQUETTE.

MADE IN USA

W/N 02531

DISTANCES AUX MURS

LATÉRAL ET ARRIÈRE AVEC

PROTECTIONS MURALES

SIDEWALL-BACKWALL

INSTALLATION WITH

SIDE SHIELDS

2"/51mm

10"

254mm

DISTANCES AUX MURS

LATÉRAL ET ARRIÈRE SANS

PROTECTIONS MURALES

2"/ 51mm

SIDEWALL-BACKWALL

INSTALLATION WITHOUT

SIDE SHIELDS

16"

406mm

INSTALLATION EN ANGLE 229mm

AVEC OU SANS PROTECTIONS

MURALES

CORNER INSTALLATION 9" WITH

OR WITHOUT SIDE SHIELDS

9" / 229mm

P.N. 3-90-04300

BAR CODE LABEL

TAILLE MINIMALE

DE LA PROTECTION DE SOL.

6" /

152mm

1"/25mm

FLOOR PROTECTOR

MINIMUM SIZE

6" /

152mm

6" /

152mm

Manufactured By / Fabrique Par:

352 MOUNTAIN HOUSE ROAD

HALIFAX, PA 17032

P43 Pellet Stove

Safety Information 4

Installation 5

Venting 7

ESP Control 14

Automatic Operation 15

Manual Operation 18

Low Draft Voltage Adjustment 20

Room Sensor 21

Maintenance 22

Trouble Shooting 26

Feeder Parts 27

Specications    28

Options 29

Wiring Diagram 30

Parts List 31

Warranty 32

Please read this entire manual before you install

and use your new room heater. Failure to fol-

low instructions may result in property damage,

bodily injury, or even death.

352 Mountain House Road

Halifax, PA 17032

Table of Contents

Introduction

This label is located on the back of the unit.

Please copy the Serial Number for future reference.

Serial #:

The P43 Pellet Stove has huge features in a small package, giving you 0 to 43,000 BTU when you need

it,automatically.Youbasicallyneedtosetyourdesiredroomtemperatureandllthehopper.WiththeP43

you will notice even heat throughout your zone and a level of convenience you never thought possible.

The P43 epitomizes the capability of Harman Pellet Stoves, taking advantage of Harman’s 20+ years

of pellet stove design, technology and manufacturing. This 43,000 BTU stove has the smartest controls

coupled with minimal maintenance. The P43's output is managed by a microprocessor that senses the room

temperatureandtheretemperaturewithtinythermistorprobesandthendeterminesthebestfeedratefor

your heating demand. This improved and smarter control also has a diagnostic port which allows a service

representative to attach an external display showing live working data for ease in troubleshooting.

The platinum combination is Harman’s Patented Feeder & Burn Pot, and ESP Control which have been

developed to their highest state. These features work together to allow amazing heat output with little

regard for fuel quality.

Harman PP38+/P43 Pellet Stove

Label measures: 4-3/8" high X 9-3/4"wide

MINIMUM CLEARANCES

TO COMBUSTIBLES:

SIDEWALL TO STOVE 16" 10"

BACKWALL TO STOVE 2" 2"

CEILING TO STOVE TOP 18" 18"

STOVE CORNER TO DIAGONAL WALL 9" 9"

PREVENT HOUSE FIRES, OPERATE WITH VIEWING &ASH DOOR CLOSED.

UNIT MUST BE PLACED ON ANON-COMBUSTIBLE FLOOR PROTECTOR EXTENDING

6" TO THE FRONT, 6" TO SIDESAND 1" TO REAR. MEASURE FRONT FROM GLASS.

EXHAUSTTYPE:LISTED TYPELOR PLVENT INSTALLEDTO VENTMANUFACTURER'S

INSTRUCTIONS AND LOCAL BUILDING CODES.

ELECTRICAL RATING: 6 AMPS, 120 VOLTS, 60 HERTZ

FUEL: PELLETIZED OR BIOMASS

INSTALLAND USE ONLY INACCORDANCE WITH MANUFACTURER'S INSTALLATION

AND OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS

ABOUT RESTRICTIONS & INSTALLATION INSPECTION IN YOUR AREA.

EPAEXEMPT PER 40 CFR 60.534, METHOD 28A.

APPROVED FOR USE IN MOBILE HOMES.

INPUT RATING: .75 TO 5.5 LBS PER HOUR.

DO NOT CONNECT THIS UNIT TO A CHIMNEYSERVING ANOTHER APPLIANCE.

NE PAS CONNECTER CETAPPAREIL À UNE CHEMINÉE SERVANT UN AUTRE

APPAREIL.

LISTED PELLET FUEL BURNING ROOM HEATER APPAREIL DE CHAUFFAGE CATALOGUÉ DE

MODÈLE POUR BRÛLER DES BOULETTES COMBUSTIBLES.

MODEL / MODÈLE: "PP 38+" / "P43"

INSTALL WITH MINIMUM CLEARANCES TO WALLS AS

SHOWN / INSTALLER AVEC LES DISTANCES MINIMUM

DE SECURITÉ COMME INDIQUÉ.

TESTED TO : UL 1482ASTM E1509

OREGON 814-23-900

ULC-S627

WH-PN 025

TEST DATE: JUNE 1997

WITHOUT

SIDE SHIELDS

WITH

SIDE SHIELDS

ESPACES LIBRES MINIMUM

DES MATÉRIAUX COMBUSTIBLES:

DU MÛR DE CÔTÉ AU POÊLE 406 mm 254 mm

DU MÛR ARRIÈRE AU POÊLE 51 mm 51 mm

DU PLAFOND AU DESSUS DU POÊLE 457 mm 457 mm

DU COIN DU POÊLE AU MÛR DIAGONAL 229 mm 229 mm

PRÉVENIR LES FEUX DE MAISONS. OPÉRER SEULEMENT AVEC LA PORTE

D'OUVERTURE ET LA PORTE DES CENTRES FERMÉES. L'APPAREIL DOIT ÊTRE

PLACÉSURUNPLANCHERPROTECTEURINCOMBUSTIBLE,CELUI-CIS'ÉTENDANT

DE 152 mm EN AVANT, DE 152 mm DES CÔTÉS ET D 25 mm DE L'ARRIÈRE.

SORTE D'ÉCHAPPEMENT: VENTILATEUR DE TYPE L OU PL INSTALLÉ SELON

LES INSTRUCTIONS DU FABRICANT ET SELON LES CODES LOCAUX DE LA

CONSTRUCTION.

PUISSANCE ÉLECTRIQUE: 6 AMPS, 120 VOLTES, 60 HERTZ

COMBUSTIBLE: DE BOULETTES COMBUSTIBLES OU BIOMASSES.

INSTALLER ET UTILISER SELON LES INSTRUCTIONS D'INSTALLATION ET

D'OPÉRATIONDE FABRICANT.CONTACTERLEBUREAU DE LACONSTRUCTIONOU

LE BUREAU DES POMPIERS AU SUJET DES RESTRICTIONS ET DES INSPECTIONS

D'INSTALLATION DANS VOTRE VOISINAGE.

EXEMPTION EPAPAR 40 CFR 60.534, DE MÉTHODE 28a

APPROUVÉ POUR L'USAGE DANS LES MAISONS MOBILES

PUISSANCE ESTIMÉE: .75 À 5.5 LBS PAR HEURE.

SANS LES

PROTECTEURS

DE CÔTÉ

AVEC LES

PROTECTEURS

DE CÔTÉ

WHI -

DO NOT REMOVE THIS LABEL. NE PAS ENLEVER CETTE ÉTIQUETTE.

MADE IN USA

W/N 02531

DISTANCES AUX MURS

LATÉRAL ET ARRIÈRE AVEC

PROTECTIONS MURALES

SIDEWALL-BACKWALL

INSTALLATION WITH

SIDE SHIELDS

2"/51mm

10"

254mm

DISTANCES AUX MURS

LATÉRAL ET ARRIÈRE SANS

PROTECTIONS MURALES

2"/ 51mm

SIDEWALL-BACKWALL

INSTALLATION WITHOUT

SIDE SHIELDS

16"

406mm

INSTALLATION EN ANGLE 229mm

AVEC OU SANS PROTECTIONS

MURALES

CORNER INSTALLATION 9" WITH

OR WITHOUT SIDE SHIELDS

9" / 229mm

P.N. 3-90-04300

BAR CODE LABEL

TAILLE MINIMALE

DE LA PROTECTION DE SOL.

6" /

152mm

1"/25mm

FLOOR PROTECTOR

MINIMUM SIZE

6" /

152mm

6" /

152mm

Manufactured By / Fabrique Par:

352 MOUNTAIN HOUSE ROAD

HALIFAX, PA 17032

4P43 Pellet Stove

DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS

UNIT.

DO NOT CONNECT THIS UNIT TO A

CHIMNEY FLUE SERVING ANOTHER

APPLIANCE.

MOBILE HOME INSTALLATION SHOULD

BE DONE IN ACCORDANCE WITH THE

MANUFACTURED HOME AND SAFETY

STANDARD (HUD), CFR 3280, PART 24.

CAUTION

THE STRUCTURAL INTEGRITY OF THE

MOBILE HOME FLOOR, WALL, AND

CEILING/ROOF MUST BE MAINTAINED.

CAUTION

KEEP COMBUSTIBLE MATERIALS (SUCH

AS GRASS, LEAVES, ETC.) AT LEAST 3

FEET AWAY FROM THE FLUE OUTLET

ON THE OUTSIDE OF THE BUILDING.

IMPORTANT NOTES

INSTALLATION AND REPAIR OF THIS

HARMAN STOVE SHOULD BE DONE BY A

QUALIFIED SERVICE PERSON. WE RECOM-

MEND THAT THE STOVE BE INSPECTED

BEFORE USE AND AT LEAST ANNUALLY BY

A QUALIFIED SERVICE PERSON. PERIODIC

CLEANING IS REQUIRED THROUGHOUT

THE HEATING SEASON AND AT THE END OF

EACH WINTER FOR THE STOVE TO WORK

EFFICIENTLY. SEE CLEANING INSTRUC-

TIONS ON PAGE 22.

M O B I L E / M A N U FA C T U R E D H O M E

S T A N D A R D S D O N O T A L L O W

INSTALLATION IN ROOMS DESIGNATED

FOR SLEEPING.

WARNING

CAUTION

ALWAYS BE SURE THERE IS NO

UNBURNED FUEL IN THE ASH PAN

PRIOR TO LIGHTING A FIRE. THIS WILL

CAUSE SMOKE AND SOOT AND OTHER

UNWANTED RESULTS.

SPECIAL NOTE:

DUE TO FLY ASH BUILDUP, IT IS STRONGLY

RECOMMENDED THAT YOU HAVE YOUR

STOVE PROFESSIONALLY CLEANED AND

SERVICED ANNUALLY. THIS INCLUDES ALL

PARTS OF THE STOVE, AND THE ENTIRE

VENTING SYSTEM.

P43 Pellet Stove

Assembly and Installation

Unpacking

The P43 is bolted (1/4 x 1" hex head bolts) to the

skid to prevent movement during shipping.

To free the stove from the skid you must remove

the hold-down bolts in the rear of the pedestal

base.

Removing rear cover panels

The rear cover panels are secured to the stove

with three bolts each. Two ot the bolts need

only be loosened, not removed, to remove the

panels. It is recommended that the rear covers

are installed after the unit is in place and the vent

pipe is installed, to prevent contact with hot or

moving parts.

Firebrick

Install the firebrick horizontally on the angle

bracket above the burnpot.

Flame Guide

Install the cast iron ame guide on top of the

burnpot.Makesurethattheameguideisfully

seated on the vertical sides of the burn pot and

that the back of the guide rests against the body

of the stove.

INSTALL EXHAUST VENT AT CLEARANCES

SPECIFIED BY THE MANUFACTURER. Most

pellet vent pipe requires a minimum of 3" of

clearance to combustible materials allthough

some can be installed at 1" clearance.

Rear Cover

Panels

Shipping Bolts

Note: These same holes

are used for securing the

stove in mobile home

installation.

Fig. 1

6P43 Pellet Stove

Installing

Placethestoveonanoncombustibleoorprotector

that extends a minimum of 6 inches to the front, (mea-

sured from the glass) 6 inches to the sides and 1 inch

to the rear of the hopper. In some places, it is required

thatoorprotectionbeinstalledunderanyhorizontal

venting.The minimum oor protector material is 20

gaugesheetmetal.Otheroorprotectormaterialsare

ceramic tile, stone, brick, etc.

Place the stove away from combustible walls at

least as far as shown in Figures 3,4 and 5. Note the

difference in side wall clearance with and without side

shields.

Note that the clearances shown are minimum for

safety but do not leave much room for access when

cleaning or servicing.

Connect the power cord to a 120 V.A.C. 60Hz

grounded receptacle. (A surge protector is recom-

mended to protect the circuit board.) If the voltage

entering your home is below 116 volts your stove may

not work properly. Also be sure that the polarity of the

outlet that the stove is plugged into is correct.

Priortoinstallingtheuepipe,connectadraftmeter.

(The draft meter must have a minimum range of 0-

.5.)Recordtherstreading.Connectuepipetostove

and be sure all doors and windows in the home are

closed. Record the second draft reading_______. If

the second reading is more than .05" lower than the

rstreading,checkforpossiblerestrictionsortheneed

for outside air (see page 9). For more information on

the draft test procedure, refer to Page 20.

Mobile Home Installation

When installing this unit in a mobile home, several

requirements must be followed:

1.Theunitmustbeboltedtotheoor.Thiscanbe

done with 1/4" lag screws through the 2 holes in the

base plate.

2. The unit must also be connected to outside air.

See page 9.

3. Floor protection and clearances must be followed

as shown.

4. Unit must be grounded to the metal frame of the

mobile home.

CAUTION: This appliance must be vented to the

outside.

Due to high temperatures, the stove should be placed

outoftrafcandawayfromfurnitureanddraperies.

Children and adults should be alerted to the hazards

of high surface temperatures and should stay away to

avoid burns to skin and/or clothing.

Young children should be carefully supervised when

they are in the same room as the stove.

Clothingandotherammablematerialsshouldnot

be placed on or near this unit.

Installation

9" With or Without Side Shields

Floor Protection must be 2 inches to each side, 6

inches to the front, and 1 inch to the back of the

stove. Floor Protector minimum: 32½" wide x 33"

deep.

Fig. 3

Fig. 4

Fig. 6

6"(measured

from glass)

Fig. 5

16"

32½" minimum

33" minimum

Mobile/Manufactured Home Standards

Do Not Allow Installation In Rooms

Designated For Sleeping.

WARNING

10"

P43 Pellet Stove

Venting

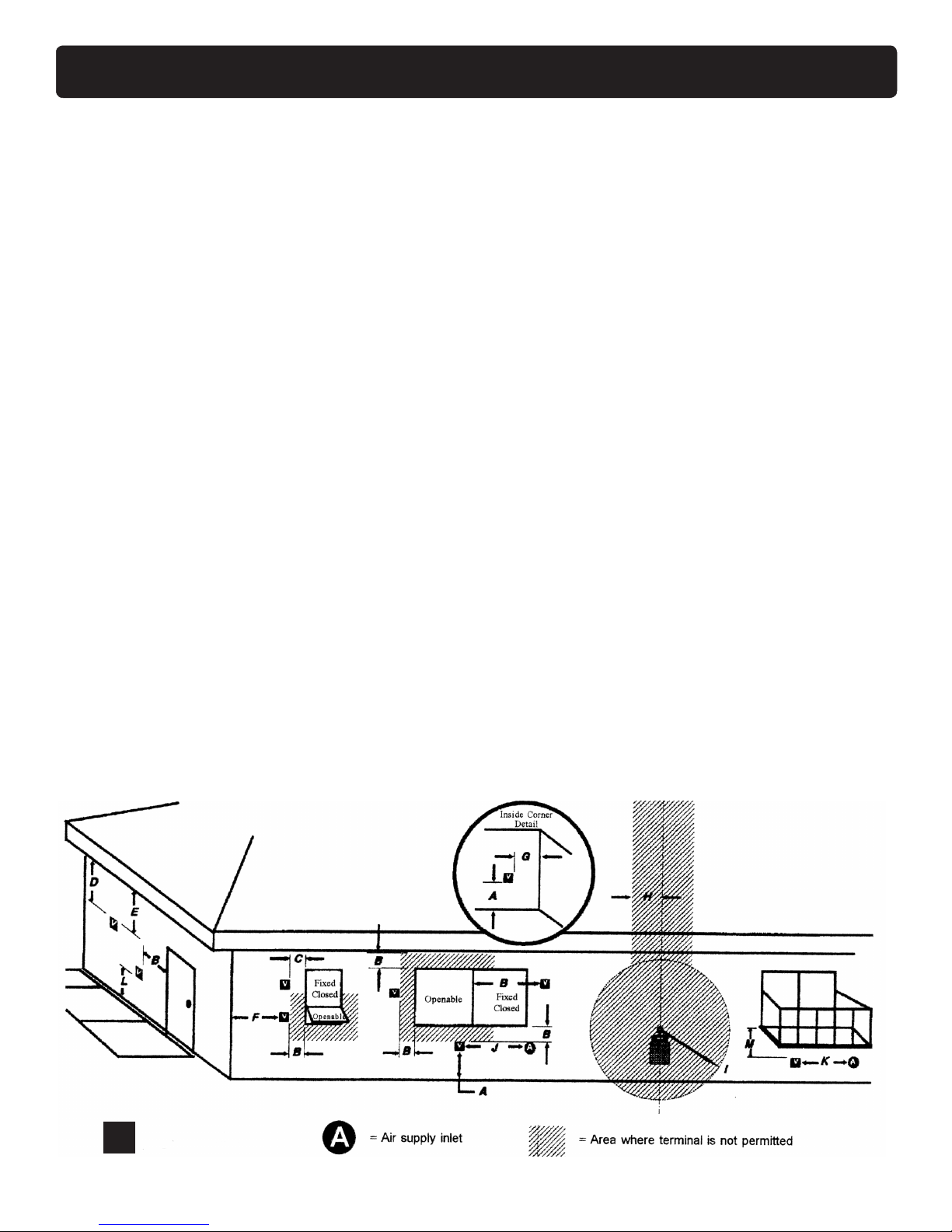

Requirements for Terminating the Venting

WARNING: Venting terminals must not be recessed

into a wall or siding.

NOTE: Only approved pellet vent pipe, wall pass-

throughs,andrestopsshouldbeusedwhenventing

through combustible materials.

NOTE: Always take into consideration the effects

of the prevailing wind direction or other wind currents

thatmaycauseyashand/orsmokewhenplacingthe

termination of the vent.

In addition, the following must be observed:

A. The clearance above grade must be a minimum

of 18".1

B. The clearance to a window or door that may be

opened must be a minimum of 48" to the side, 48" be-

low the window/door, and 12" above the window/door.1

(with outside air installed, 18” to the side or below)

C. A 12" clearance to a permanently closed win-

dow is recommended to prevent condensation on

the window.

D.Theverticalclearancetoaventilatedsoftlocated

above the terminal within a horizontal distance of 2

feet (60 cm) from the center-line of the terminal must

be a minimum of 18".

E.Theclearancetoanunventilatedsoftmustbe

a minimum of 12".

F. The clearance to an outside corner is 11" from

center of pipe.

G. The clearance to an inside corner is 12".

H. A vent must not be installed within 3 feet (90 cm)

above a gas meter/regulator assembly when measured

from the horizontal center-line of the regulator.1

I. The clearance to service regulator vent outlet must

be a minimum of 6 feet.1

J. The clearance to a non-mechanical air supply inlet

to the building or the combustion air inlet to any other

appliance must be a minimum of 48”.1

K. The clearance to a mechanical air supply inlet

must be a minimum of 10 feet.1

(with outside air installed, 6 feet )

L. The clearance above a paved sidewalk or a paved

driveway located on public property must be a mini-

mum of 7 feet.1,2

M. The clearance under a veranda, porch, deck or

balcony must be a minimum of 12 inches.1,3

NOTE: The clearance to vegetation and other exte-

rior combustibles such as mulch is 36” as measured

from the center of the outlet or cap. This 36” radius

continues to grade or a minimum of 7 feet below the

outlet.

1Certain Canadian and/or Local codes or regula-

tions may require different clearances.

2A vent shall not terminate directly above a side-

walk or paved driveway which is located between two

single family dwellings and serves both dwellings.

3Only permitted if veranda, porch, deck, or balcony

is fully open on a minimum of 2 sides beneath the

oor.

NOTE: Where passage through a wall, or partition

of combustible construction is desired, the

installation shall conform to CAN/CSA-B365. (if

in Canada)

= Vent terminal

8P43 Pellet Stove

Venting

A combustion blower is used to extract the

combustiongasesfromtherebox.Thiscausesa

negativepressureinthereboxandapositivepres-

sure in the venting system as shown in Fig. 7. The

longer the vent pipe and more elbows used in the

system, the greater the ow resistance. Because

of these facts we recommend using as few elbows

as possible and 15 feet or less of vent pipe. The

maximum horizontal run should not exceed 48".

If more than 15 feet of pipe is needed, the interior

diameter should be increased from 3" to 4" because

alargerpipecauseslessowresistance.Be sure

to use approved pellet vent pipe wall and ceiling

pass-through ttings to go through combustible

walls and ceilings. The use of a starting collar is

notalwaysnecessary.Therstpieceofpipeshould

be fastened securely with at least 2 fasteners to the

uecollarofthestove.Ifastartingcollarisusedto

attach the venting system to the stove, the starting

collar must be sealed to the stove with high temp

silicone caulking.

Vent Pipe

Pellet venting pipe (known as L or PL vent) is

constructed of two layers with air space between

the layers. This air space acts as an insulator and

reduces the outside surface temperature to allow

a clearance to combustibles of 1 to 3 inches. The

sections of pipe lock together to form an air tight

seal in most cases. However, in some cases a

perfect seal is not achieved. For this reason and

the fact that the P43 operates with a positive vent

pressure we specify that the joints also be sealed

with silicone. Aluminum tape can also be used for

any joint that is 1ft. or more from the outlet of the

stove.

We cannot emphasize enough, the importance

of sealing every seam and joint in the venting system

which is inside the home. Even the smallest pin hole

can leak and when it does you will smell wood smoke

or a creosote smell in the room. If this occurs check

for leaks. Leaks are easiest to see during start-up.

Alternatively you can use a smoke pellet to leak test

theventingbeforelightingyourrstre.

Venting

IMPORTANT NOTICE

Approved Pellet Vent Pipe Such As, Type "L"

Or "PL", Must Be Used.

= Positive Static Pressure

= Negative Static Pressure

Fig. 7

P43 Pellet Stove

Outside air ex pipe

goes here.

Inlet Cover part#

1-10-08542

Flex pipe part#

1-00-08543 (25')

Outside Air

Here arefourbenetsof outside air:

1. Having air introduced from outside the living

areabooststhermalefciency.Becausethemake

up air is not being drawn in through leaky windows

or doors.

2. Outside air connection eliminates draft problems

that can occur in tight homes.

3. Outside air connection reduces smoke spillage in

the event of a power failure.

4. Outside air connection allows your vent termination

to be as close as 18" from windows or doors.

Outside air is optional, except in mobile homes

andwherebuildingcodesrequire.Thebenetof

outside air is mainly noticed in small, very tight,

houses.

To install outside air use 2 3/8" I.D. non-combus-

tibleexpipe.There isabreak-awayholeonthe

rear panel of the P43 stove which must be removed

beforeconnectingtheexpipe.The pipe should be

run outside and terminate to the side or below the

ventpipeoutletsotheueoutletismorethan12"

from the inlet cover. The maximum length run of this

pipe is 15 feet. If a longer run is needed the size

must be increased to 3". Inlet cover, part number

1-10-08542 should be used to keep birds, rodents,

etc.out of the pipe.

You may choose to use the optional Direct Vent

Wall Passthrough Kit (part #1-00-677077) which

incorporates the venting passthrough and outside

air inlet into one component.

HRV

When installing in a house with a Heat Reclaim-

ing Ventilation System (HRV) be sure the system is

balanced and is not creating a negative pressure in

the house.

Venting

Direct Vent Wall Passthrough Kit

(part #1-00-677077)

10 P43 Pellet Stove

#2 Preferred method

This method also provides excellent venting

for normal operation but requires the stove to be

installed farther from the wall. The vertical portion

oftheventshouldbethreetovefeethighandat

least three inches from a combustible wall. This

vertical section will provide natural draft in the event

of a power failure.

If the stove is installed below grade be sure the

vent termination is at least 18" above grade. The

outlet must also be 1 foot from the house/building.

Note: Do not place joints within wall pass-

throughs.

CAUTION

Keep combustible materials (such as grass,

leaves, etc.) at least 3 feet away from the ue

outlet on the outside of the building.

#1 Preferred method

This method provides excellent venting for

normal operation and allows the stove to be in-

stalled closest to the wall. Two inches from the wall

is safe; however, four inches allows better access

to remove the rear panel. The vertical portion of the

ventshouldbethreetovefeethigh.Thisvertical

section will help provide natural draft in the event of

a power failure. Note: Do not place joints within

wall pass-throughs.

Venting

Fig. 8 3 ft.

to combustibles

Fig. 9 3 ft.

to combustibles

3 ft.

to combustibles

36" min

clearance to any

combustible

material

12" min. wall to outlet

3 ft.

to combustibles

Autres manuels pour P43

Table des matières

Autres manuels Harman Poêle à granulés

Harman

Harman PELLET P61A Instructions d'installation

Harman

Harman P43 Manuel utilisateur

Harman

Harman Accentra Manuel utilisateur

Harman

Harman Advance 1 Instructions d'installation

Harman

Harman P35I Manuel utilisateur

Harman

Harman Accentra 52i Pellet Insert Manuel utilisateur

Harman

Harman PP38+ Instructions d'installation

Harman

Harman PP38 plus Manuel utilisateur

Harman

Harman Absolute43 Manuel utilisateur

Harman

Harman Advance Freestanding Pellet Stove Manuel utilisateur

Harman

Harman PELLET P61A Manuel utilisateur

Harman

Harman P43 Manuel utilisateur

Harman

Harman PELLET P61A Instructions d'installation

Harman

Harman P68 Manuel utilisateur

Harman

Harman Advance Freestanding Pellet Stove Instructions d'installation

Harman

Harman Accentra Manuel utilisateur

Harman

Harman P43 Instructions d'installation

Harman

Harman P35I Manuel utilisateur

Harman

Harman Accentra 52i Manuel utilisateur

Harman

Harman PP38+ Instructions d'installation

Harman

Harman XXV Instructions d'installation

Harman

Harman Accentra Freestanding Pellet Stove Instructions d'installation

Harman

Harman P43 Instructions d'installation

Harman

Harman PC45 Instructions d'installation

Manuels Poêle à granulés populaires d'autres marques

SMG

SMG Comfort Bilt HP50GC Manuel utilisateur

Quadra-Fire

Quadra-Fire MTVI-E2-MBK Manuel utilisateur

Quadra-Fire

Quadra-Fire MTV-E2-CSB Manuel utilisateur

Palazzetti

Palazzetti JP Series Guide d'installation

Travis Industries

Travis Industries Avalon 900 PS Manuel utilisateur

Flame

Flame FP-45 Manuel utilisateur

Astra

Astra P-7 Manuel utilisateur

Heatilator

Heatilator ECO-ADV-PS35 Manuel utilisateur

Cadel

Cadel aquos 24 h2O Manuel utilisateur

vicenza

vicenza V4.5 Manuel utilisateur

MCZ

MCZ VIVO 90 COMFORT AIR 9 M1 Manuel technique

Quadra-Fire

Quadra-Fire 1000 Gold Manuel du propriétaire

Ferroli

Ferroli GEMMA Manuel utilisateur

pleasant hearth

pleasant hearth PH35PS Series Manuel utilisateur

Breckwell

Breckwell Tradition P24FS Manuel utilisateur

Quadra-Fire

Quadra-Fire CB1200M-MBK Manuel utilisateur

England's Stove Works

England's Stove Works 25-EP Manuel utilisateur

Avalon

Avalon Astoria Manuel utilisateur
