Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
R:\Todd\Instruction Sheets_3-89-574323_RevF
www.harmanstoves.com

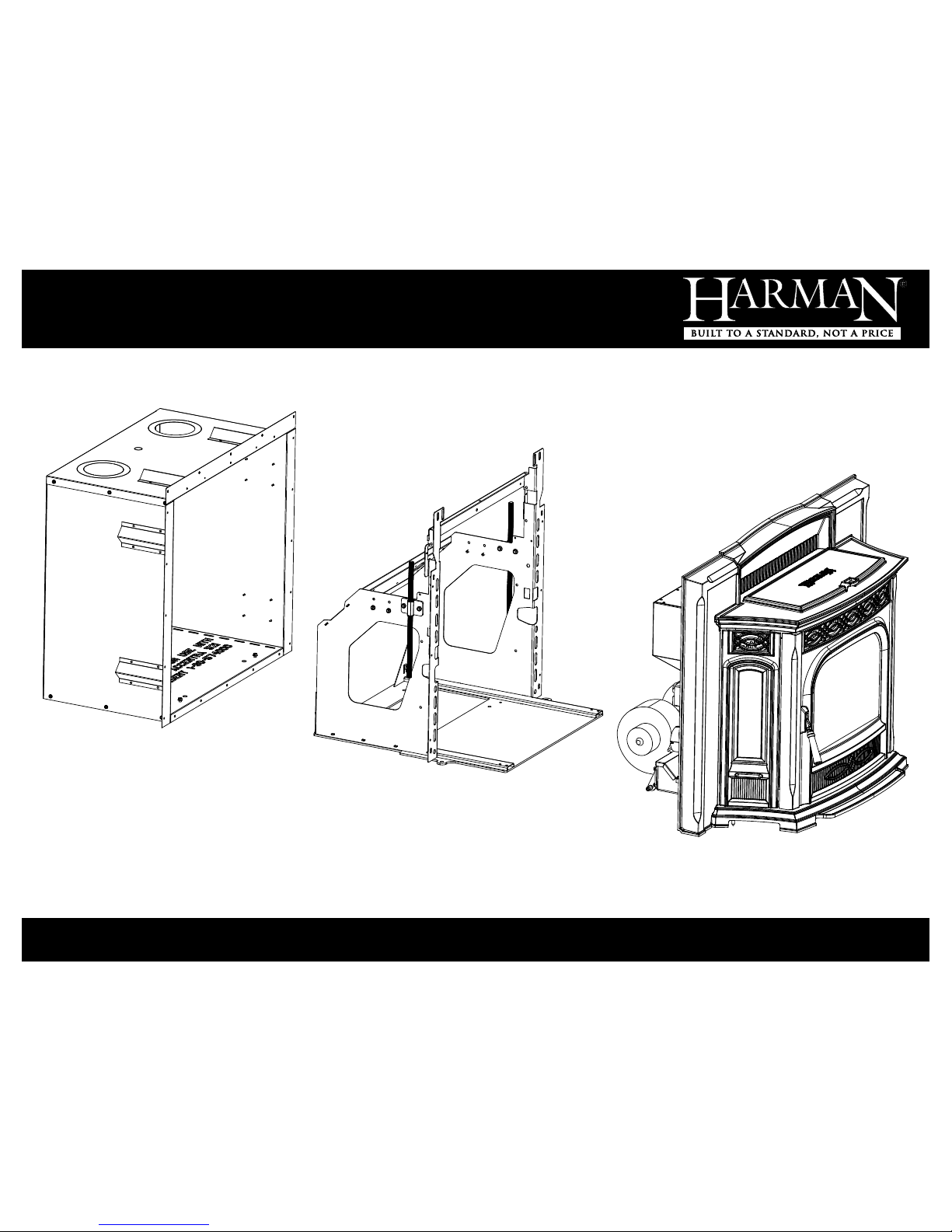

Accentra 52i Pellet Insert ZC Cabinet
Accentra 52i Pellet Insert Mounting Frame
Accentra 52i Pellet Insert
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
2
Contents of Kit;
Cabinet components-
1- Top Panel
1- Bottom Panel
2- Side Panels
1- Rear Panel
32- #10 X 3/4” Tek Screws (Self-Tapping)
4- 1/4-20 x 5/8 Thread Cutters
Tools Needed;
Cordless Drill or Screw gun
5/16” Driver Bit
3/8” Driver Bit
CAUTION! Use care when installing Tek screws,
do not strip the holes.
• Beginwiththebottompanellyingatontheooror
workbench. Place it with the writing facing upward
as shown.
• Standasidepaneluptotherightorleftsideofthe
bottom. Notice the bend at the rear of the cabinet
will make the corner and at the front it will be bent
outward to make the facing ange. Line up the
holes and secure the side panel to the bottom with
(3) Tek screws. Repeat for the opposite side. Figure
1.
NOTE: Only install 3 Tek screws.

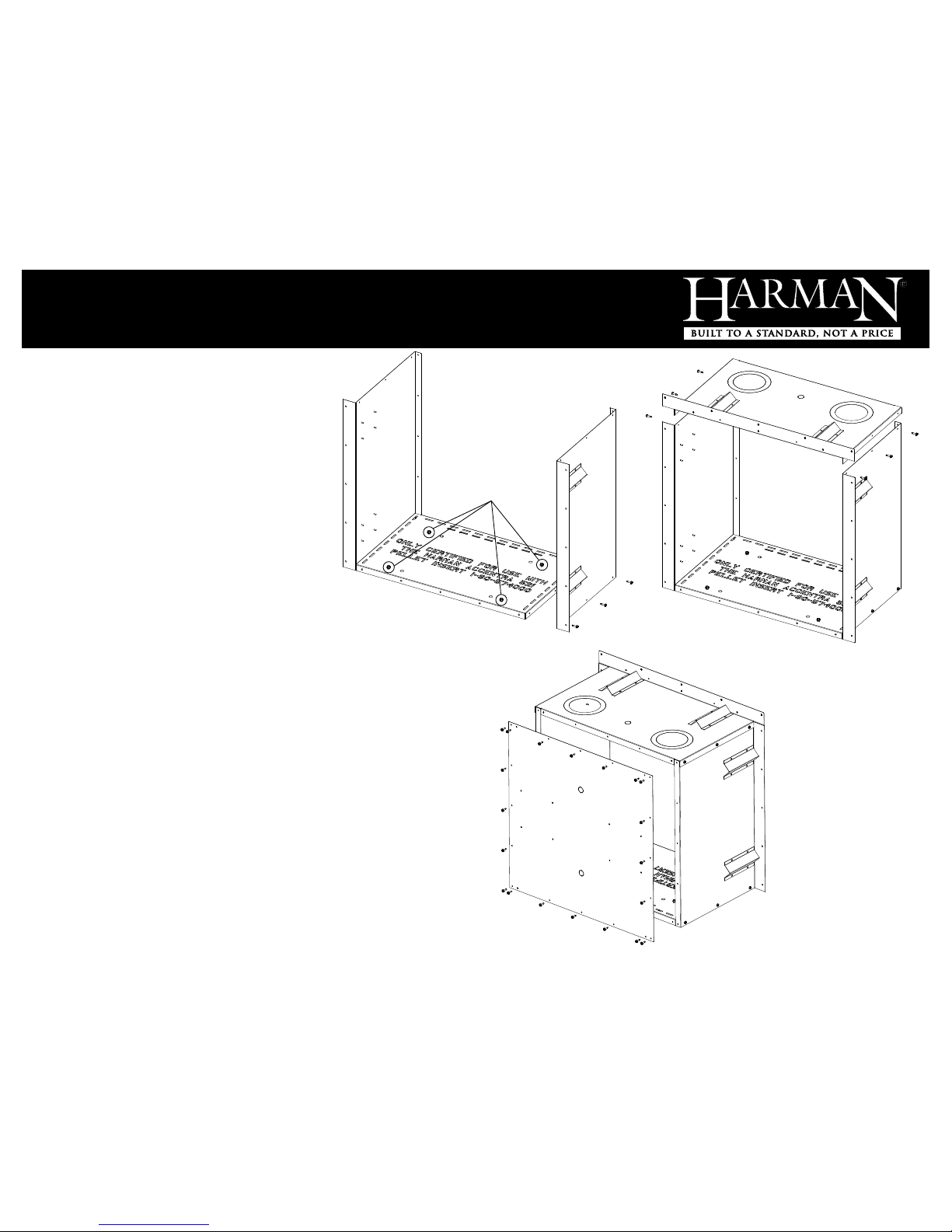

• Thetoppanelcannowbeputintoplace,withthe
bend going out over the side panels. Align the holes
and secure with (6) Tek screws. Figure 2.
• Standtherearpaneluptotherearofthecabinet
making sure the holes on the edge of the panel
line up with the holes from the side panels and top.
Secure the rear panel to the outside of the cabinet
using the remaining (20) Tek screws. Figure 3.
Figure 1 Figure 2
Figure 3
1/4-20 x 5/8
Thread Cutters
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
3

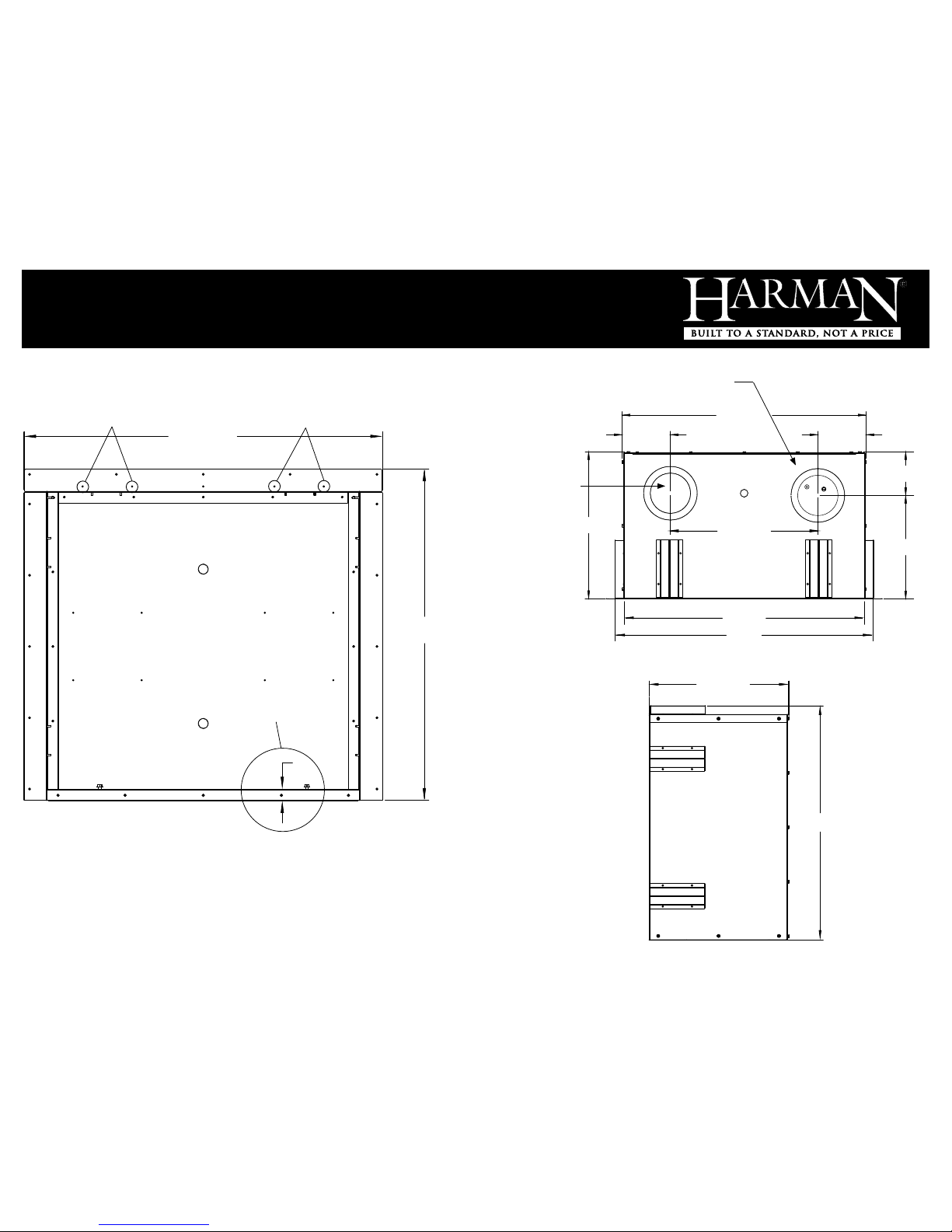

5
11 13/16
27 3/8
16 3/4
27 13/16
5 1/25 1/2
16 13/16
29 1/2
1
29 1/16
31 7/16
28 1/8
16 13/16
Notice the thickness of the ZC
NOTE: When Fiberglass insulation is placed directly on top of the ZC
Cabinetitshouldnottouchthepipe.Theouterringknockoutoftheuepipe
opening is designed to install a standard 6” sheetmetal starter collar and
a short length of pipe to keep the insulation from touching the vent pipe.
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
4
TheangesARENOTdesignedtosupporttheweightofthecabinet
andtheAccentraInsert.Theyareonlytosecurecabinettothewall
framing. Adequate framing under the hearth and ZC cabinet MUST
be provided.

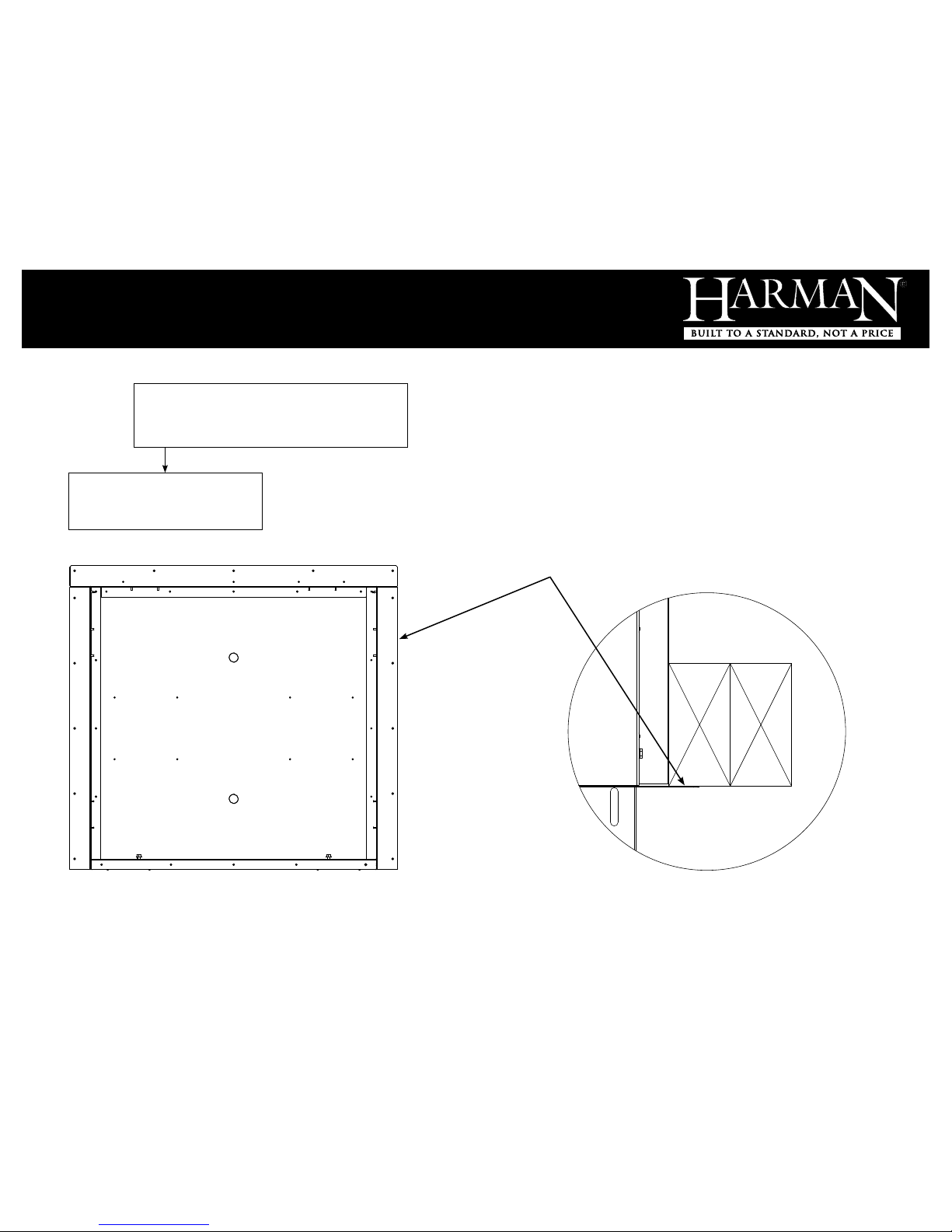

Thenishedfaceofthereplacefacade
“MUST” be ush with the ZC Cabinet
front face when completed.
NOTE: See the following pages
for rough-in instructions for other
facing materials.

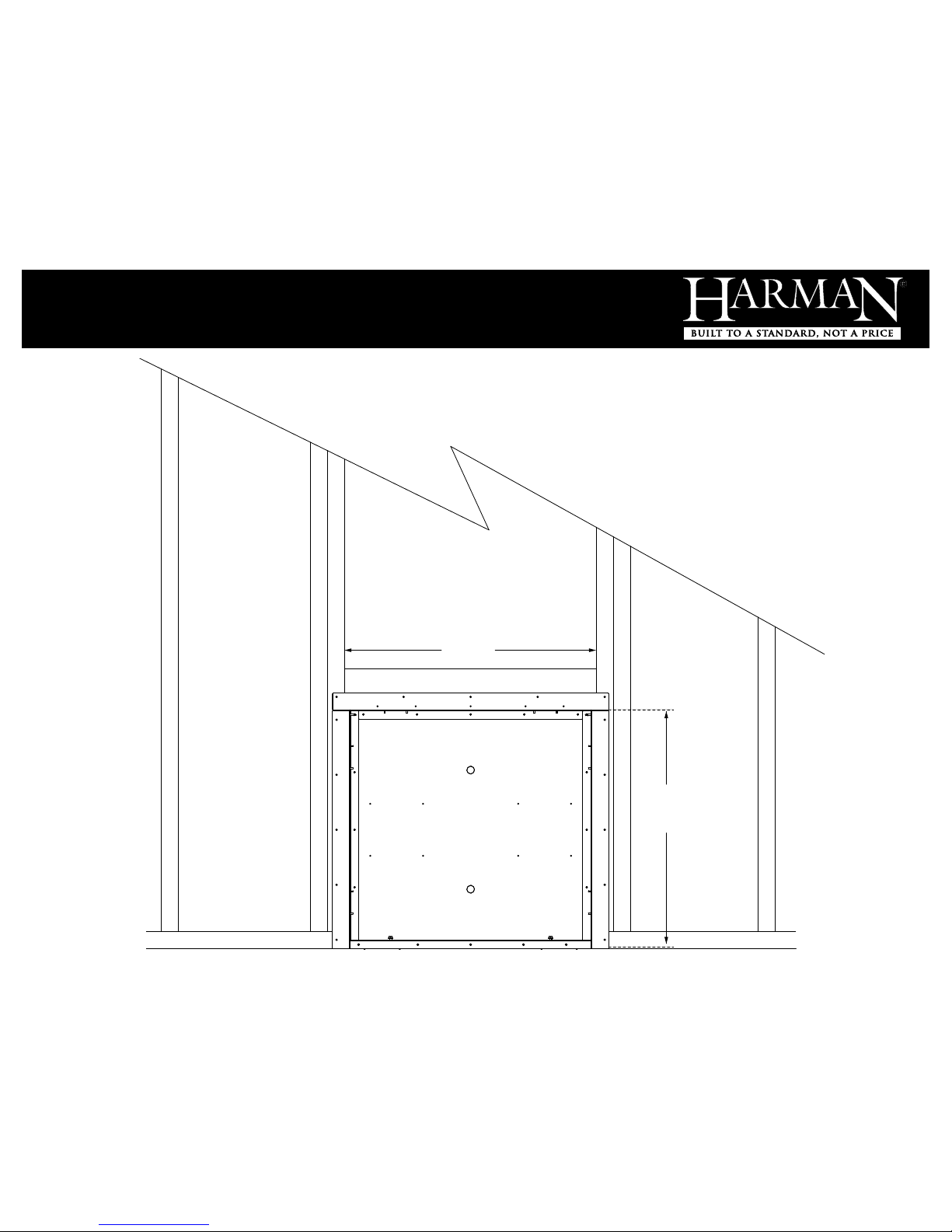

ZCCabinetrough-inanges
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
5

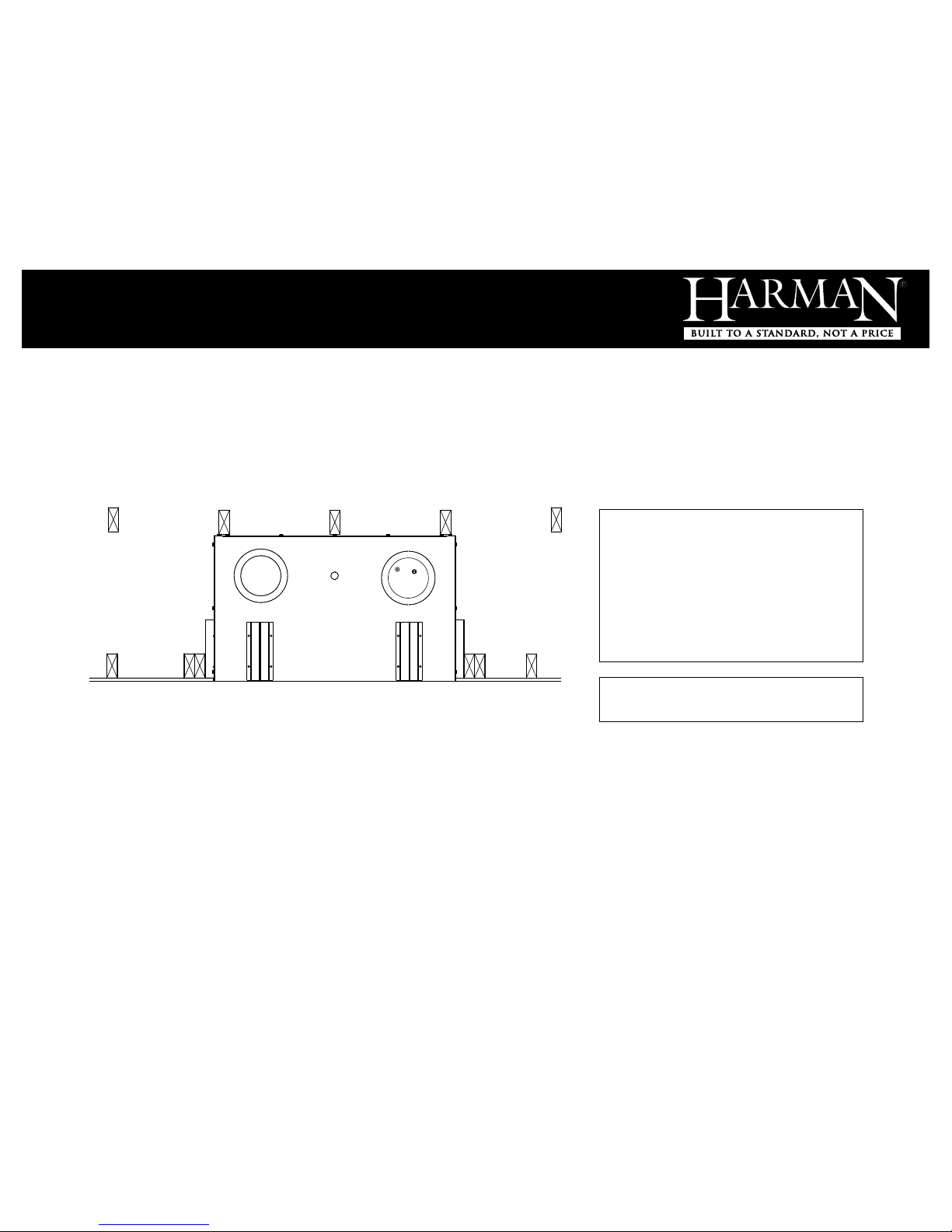

CautionshouldbetakenNOTTOHAVEastudwithin5”ofthecenterline
oftheuepipe.(UsePLVentPipeONLY)
ThisshouldallowroomforanyPLVentcertiedwallpassthrough.
The nished face of the replace facade, “MUST” be ush with the ZC
Cabinet front face when completed.
NOTE: See following pages for rough-in
instructions for other facing materials.
NOTE: When berglass insulation is
placeddirectlyontopoftheZCCabinet
it should not touch the vent pipe. The
outer ring knock out of the ue pipe
opening is designed to install a standard
6” sheet metal starter collar and a short
length of pipe to keep the insulation from
touching the vent pipe.
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
6
28-3/16”
29-9/16”
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
7

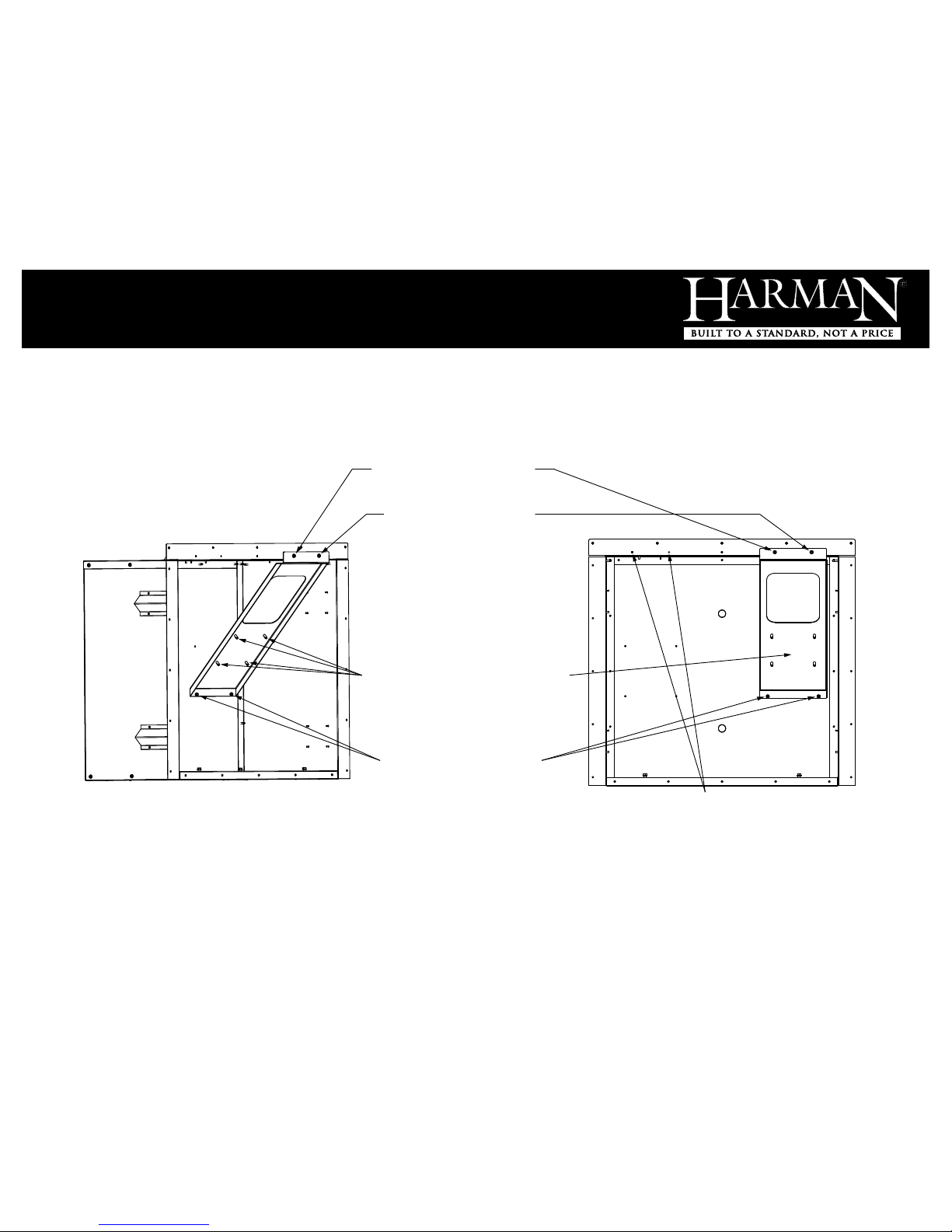

Flue Pipe Rough-in Support Kit #1-00-574246
Harman® Vent Pipe Stub for 3” PL Vent Pipe #1-00-674039
Harman® Vent Pipe Stub for 4” PL Vent Pipe #1-00-574034
Drill #10x3/4 Tek Screws
Precut Alignment Hole
(4) 1/4-20 x 5/8 thread cutters
hold the starter collar into
place until the Accentra 52i
mounting frame is installed.
Drill #10x3/4 Tek Screws
Pre-cut alignment holes for the outside air rough-in.
A second rough-in support #1-00-574246 is used for the outside air rough in. The 3” flex pipe starter stub
is part of kit #1-00-674039.
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
8

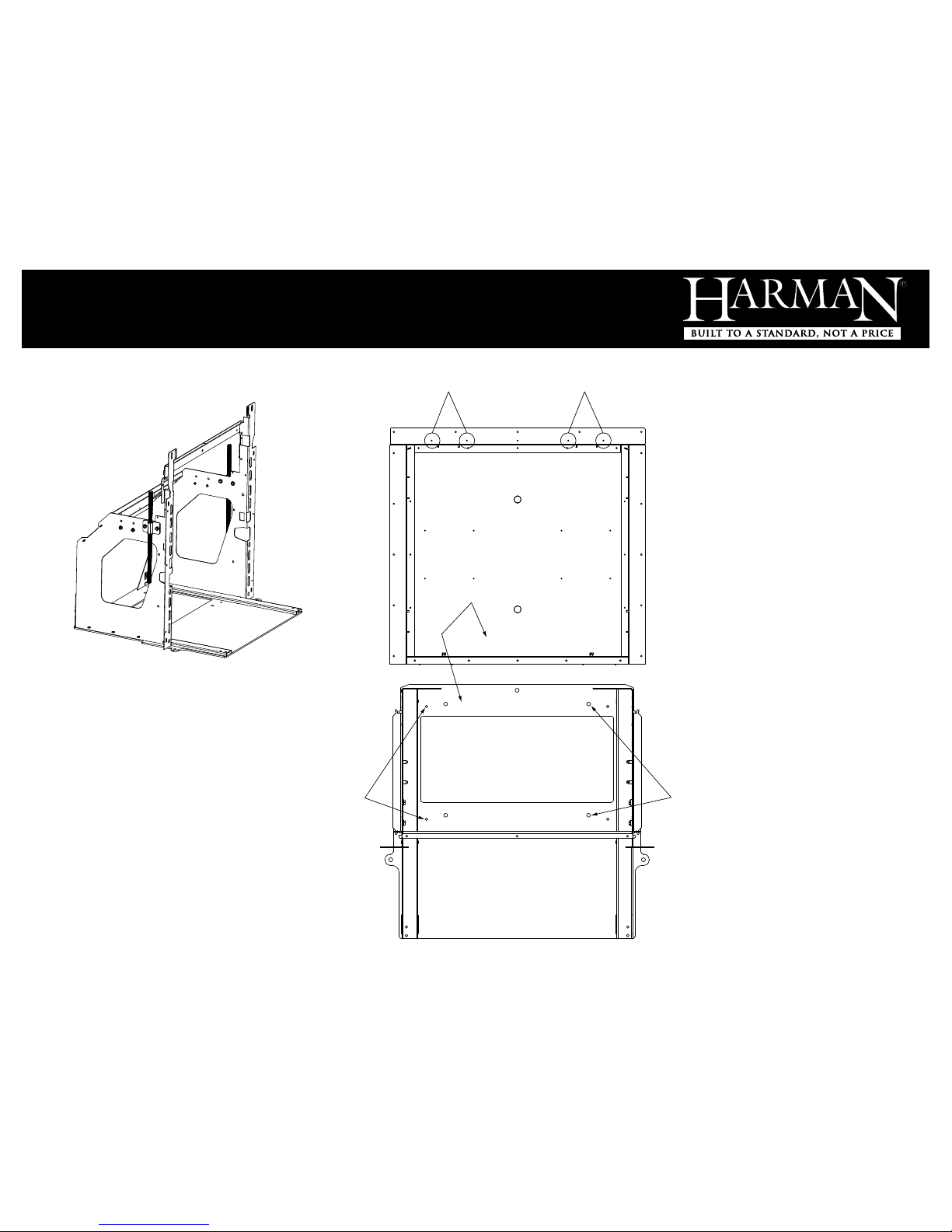

There are 4 holes located in the bottom of the
cabinet that match the holes in the mounting
frame of the insert. They are to be used to
secure the insert mounting frame into the
cabinet after rough-in has been complete.
There are 4 cabinet mounting holes in
thebottomthatgoallthewaythrough
the base of the cabinet. These holes
allow the installer to secure the
cabinet to the hearth sub framing.
Accin 52i Mounting Frame
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
9
3”
12”
36”
12”
Min

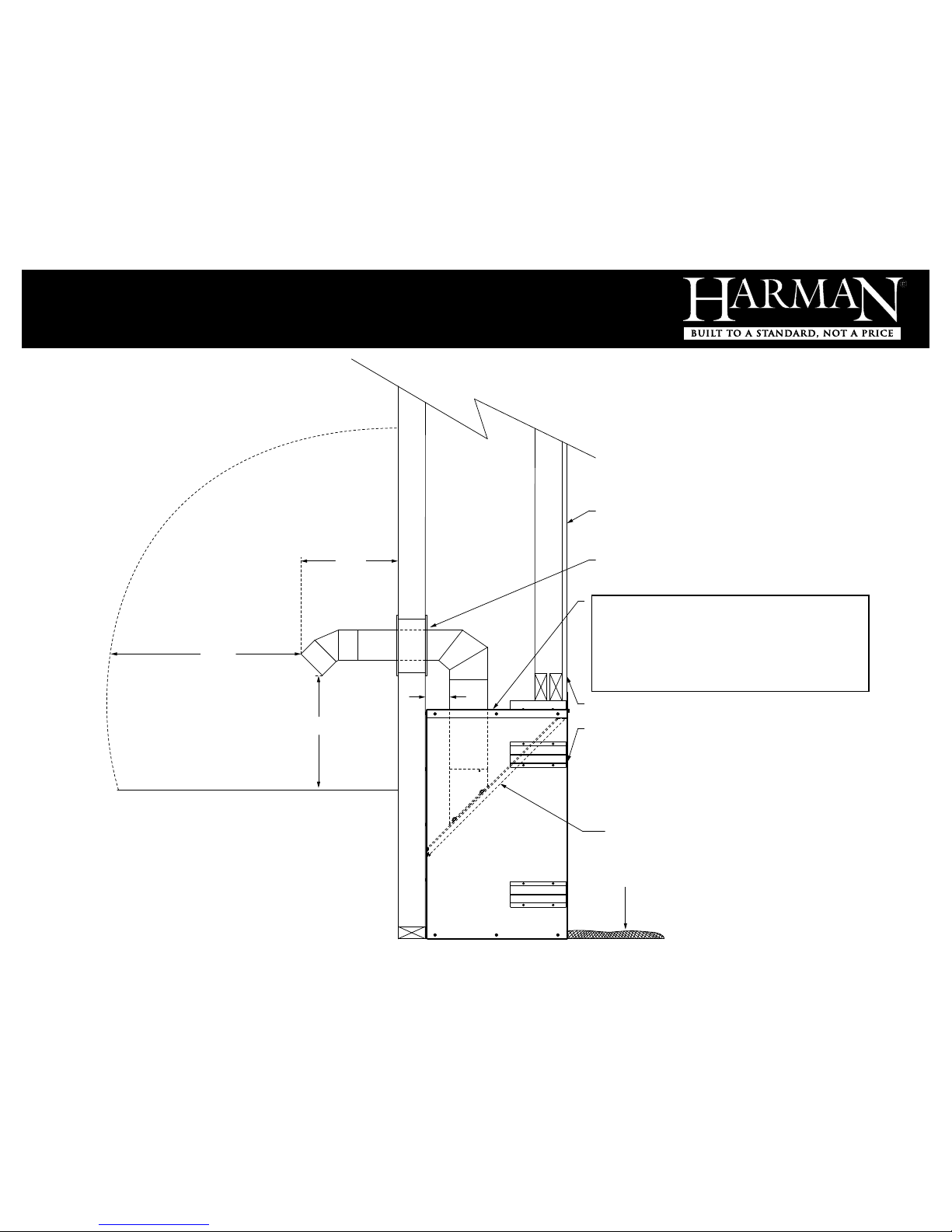

MinimumFlueConguration.
3”or4”PLVentPipe
Clearancetoshrubbery,grass,
oranyothertypeplant
Minimumclearanceof ue
outlet to ground level
Excessivemulchandorothertypesofcombustible
bedding should be kept to a minimum directly
beneaththeueoutletarea.
Combustible materials are allowed to
touch the outside of the ZC Cabinet.
PLVentmanufactureswall
pass-through.
NOTE: When berglass insulation is placed
directlyontopoftheZCCabinetitshouldnottouch
theventpipe.Theouterringknockoutoftheue
pipe opening is designed to install a standard 6”
sheetmetal starter collar and a short length of pipe
to keep the insulation from touching the vent pipe.
Thenished face ofthe replace
facade,MUSTbeushwiththeZC
Cabinet front face when complete.
Rough-In Support Kit
Harman®#1-00-574246
Finishedoorprotection
Because of the weight of the Accentra 52i, if raised hearth
is framed, heavier framing and support should be utilized.
Suggested minimum of 2X6’s in 12” centers under the ZC
Cabinet and the hearth in front of the Cabinet.
Accentra 52i Pellet Insert Zero Clearance Cabinet
Part #1-00-574323
10
3" MIN.
3" MIN.
3" MIN.
3" MIN.
Flashing
Storm Collar 12" MIN.
No insullation or other
combustible materials
are allowed within 3” of
the PL Vent Pipe.
Unless specified by the
pipe manufacturer
PL Vent manufacturer’s firestop
space and support

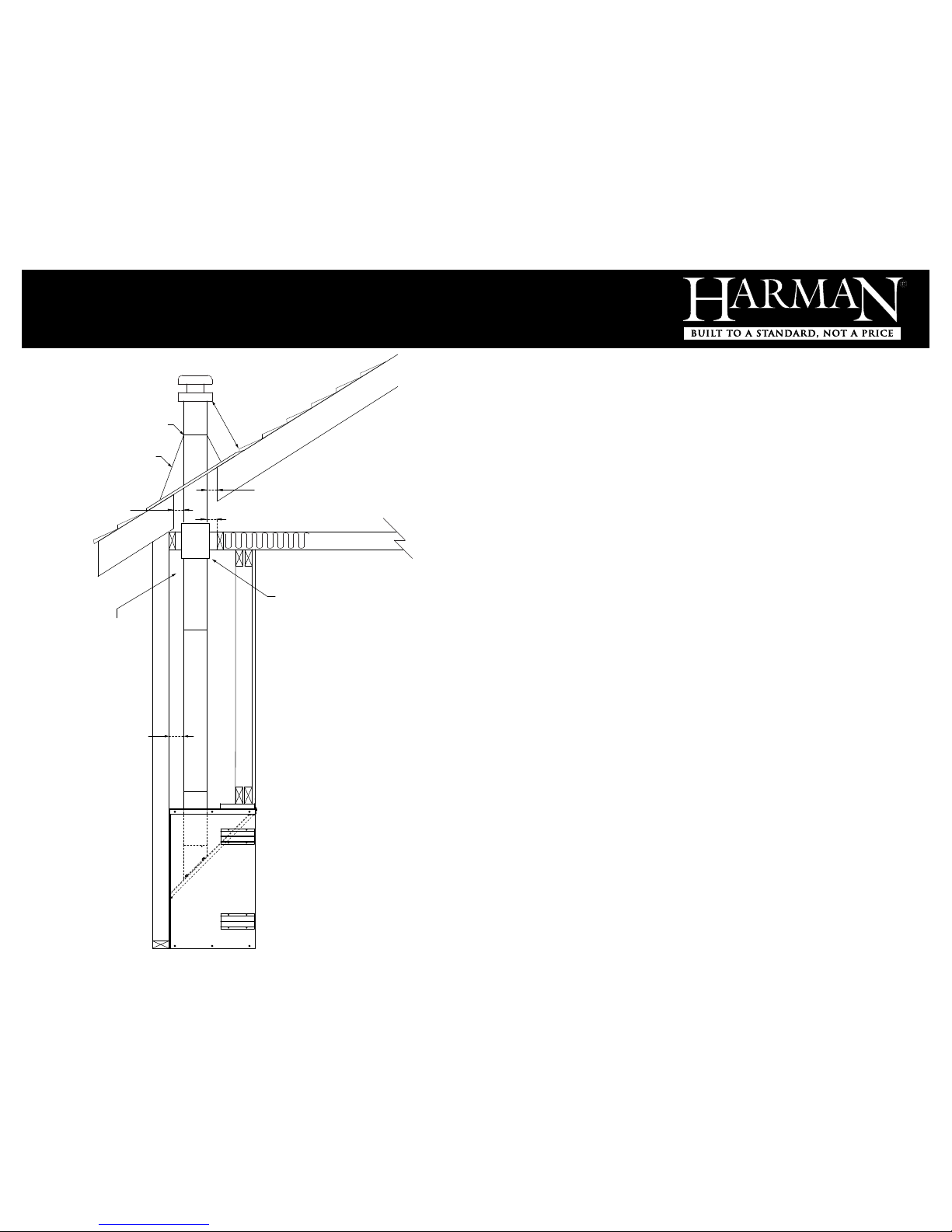

VentingclearancesforinroominstallationoftheZeroClearanceCabinet.
NOTE:
•IllustrationsreecttypicalinstallationsandareFORDESIGNPURPOSESONLY.
•Illustrations/diagramsarenotdrawntoscale.
•Actualinstallationmayvaryduetoindividualdesign.
NOTE:
InCanada,wherepassagethroughawallorpartitionofcombustibleconstruction
isdesired,theinstallationshallconformtoCAN/CSA-B365.
