Harman Kardon HKC Manuel utilisateur

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

•Nominal Impedance 8Ω

•Max Amp Power 125 watts*

•Frequency Response 80Hz – 20kHz

•Sensitivity 91dB (2.83V @ 1 meter)

•Crossover Frequency 3,000Hz

SYSTEM COMPONENTS:

•Cabinet HKC

(Not for Sale)

•Grille 339803-001

•Low-Frequency Transducers Dual 5" (127mm)

polymer-coated cones, shielded

339802-001

DC Resistance 8.6 ohms ±10%

•High-Frequency Transducer 3/4" (19mm) Titanium-laminate

dome, shielded

338035-001

DC Resistance 3.0 ohms ±10%

•Crossover Network 339815-001

AURAL SWEEP TEST SPECIFICATIONS:

•System Aural Sweep Test 6.0V Input 80Hz to 20kHz

•L.F. Aural Sweep Test 5.0V Input 80Hz to 4kHz

•H.F. Aural Sweep Test 2.83V Input 2kHz to 20kHz

PHYSICAL SPECIFICATIONS:

•Dimensions 6-1/2" x 17" x 7-1/2"

(H x W x D) (165mm x 432mm x 191mm)

•Weight 16.5 lb (7.5kg) Each

WARRANTY:

•Refer to Warranty Statement packed with each product.

*The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

Technical Manual

HKC

Harman Kardon, Incorporated, 250 Crossways Park Drive, Woodbury, New York 11797 6/03

Legend on Page 2

.250

.205

INPUT

0.20mH

1.0mH

8uf

100V

.110

L.F.

H.F.

12uf

100V

3.6ohm

10W

—

.205

CROSSOVER NETWORK

339815-001

HIGH-FREQUENCY

TRANSDUCER

338035-001

LOW-FREQUENCY

TRANSDUCERS (2)

339802-001

GRN

GRN/BLK

.205

GRN/BLK

YEL/BLK

YEL

YEL/BLK

YEL

+— GRN/BLK

GRN

GRN/BLK

GRN

—

.250

GRN

PACKAGING HKC WIRING DIAGRAM

HKC SCHEMATIC

HKC Cabinet – Not for Sale

12 13

(4)

(2)

(8)

(4)

(8)

HKC

Technical Manual

HKC

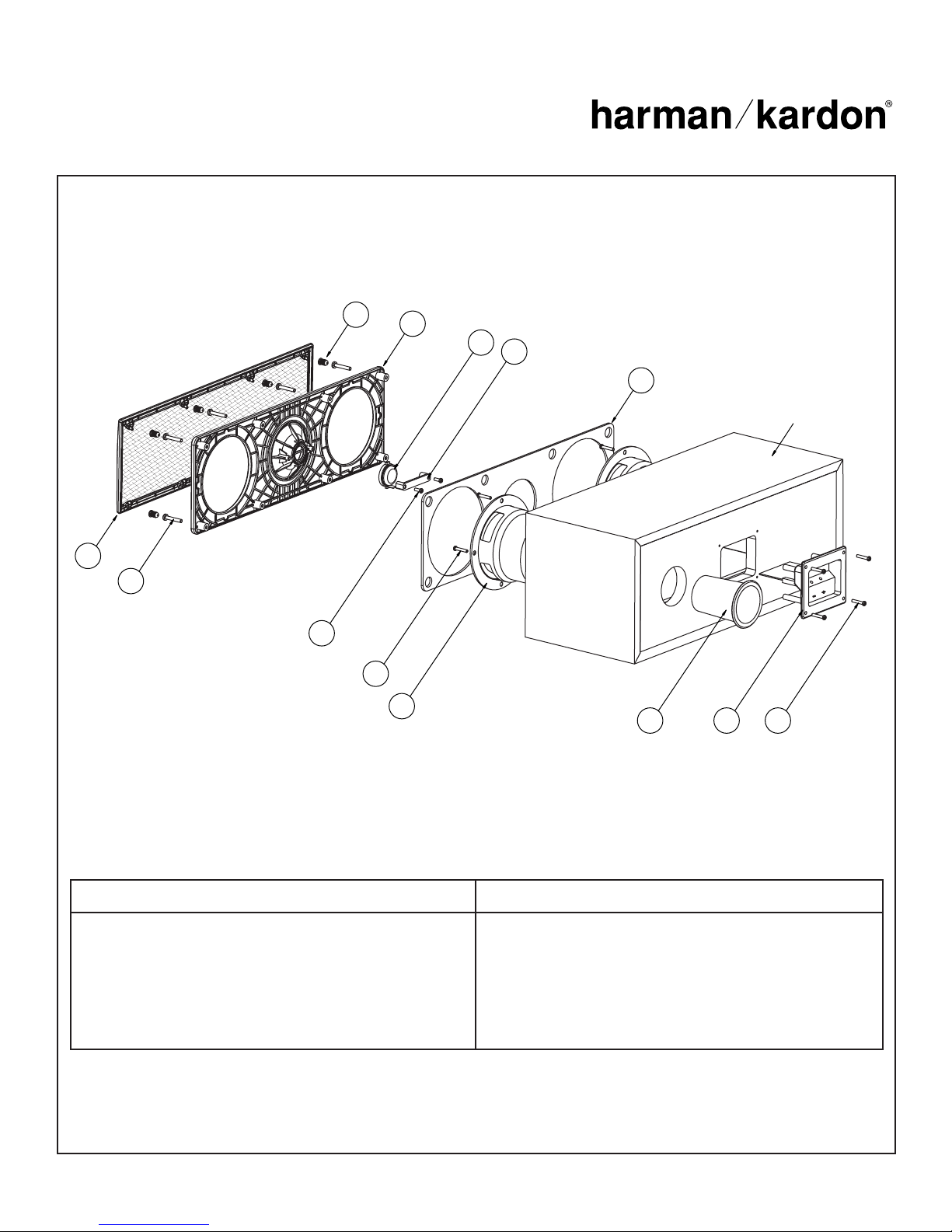

EXPLODED VIEW

Harman Kardon, Incorporated, 250 Crossways Park Drive, Woodbury, New York 11797 6/03

TO SERVICE THE HKC

1. Remove the grille.

2. Remove all (8) rubber grille retainers; this can be accomplished by carefully pulling them out of their cavities with long-nosed pliers or similar tool.

3. Remove the (8) Phillips screws that are now exposed.

4. Carefully separate the front baffle, with tweeter attached, from the cabinet.

ITEM

NO. DESCRIPTION QTY. PART NO.

1. Owner’s Manual 1 339777-001

2. Warranty Card 1 339778-001

3. End Pads 2 339813-001

4. Outer Carton 1 339812-001

5. Tweeter 1 338035-001

6. Tweeter Hold-Down Bar 1 338059-001

7. Front Faceplate 1 350402-001

8. Faceplate Gasket 1 339774-001

9. Woofer 2 339802-001

ITEM

NO. DESCRIPTION QTY. PART NO.

10. Grille 1 339803-001

11. Grille Retainer 8 338535-002

12. Port Tube 1 70515-05

13. Crossover Network 1 339815-001

14. Screw (front baffle) PB PPH M4 x 20mm 8 910501-020

15. Screw (8 woofers, 4 network) 12 903401-012

PB PPH #6 x .75 BLK

16. Screw (tweeter) MS PHH H/L 2 905402-010

6-19 x 5/8 ZNC
