Thank you for purchasing a Harman Kardon AVR 335. This Quick-Start

Guide will help you with a basic system installation. For detailed information

on any step, please refer to the Owner’s Manual pages referenced in this

guide. We strongly recommend that you read the Owner’s Manual for

complete details on how to install, configure and operate the AVR 335,

as well as for the important safety information it contains.

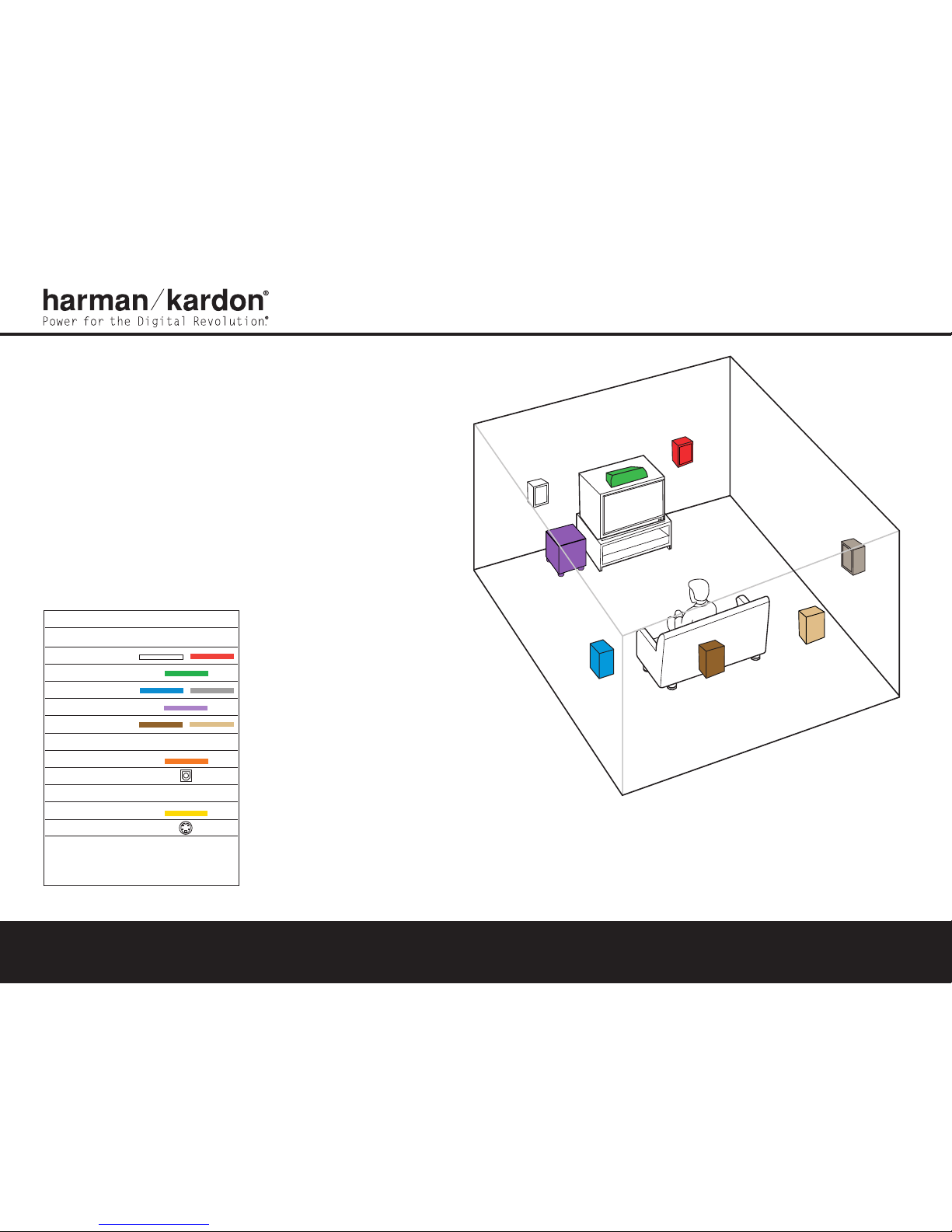

Figure 1 – Speaker Placement

The colors shown for each speaker correspond to

the matching output terminal connection on the

back of the AVR 335 (see page 7).

FRONT

LEFT

SPEAKER



(White)

SURROUND 

BACK

LEFT

SPEAKER

(Brown)

SURROUND 

BACK

RIGHT

SPEAKER

(Tan)

CENTER

SPEAKER

(Green)

SUBWOOFER

(Purple)

SURROUND

LEFT

SPEAKER



(Blue)

FRONT

RIGHT

SPEAKER



(Red)

SURROUND

RIGHT

SPEAKER



(Gray)

Step 1. Place your speakers in the listening room

(see page 16).

SPEAKER PLACEMENT

AVR 335 QUICK-START GUIDE

Connections Color Guide

Audio Connections Left Right

Front

Center

Surround

Subwoofer

Surround Back

Digital Audio Connections

Coax

Optical

Video Connections

Composite

S-Video

Match the colored jacks on the AVR 335 to the appropriate

jacks on your source equipment or speakers. The colors are

standardized, but not all equipment or connectors use them.

AVR 335 QUICK-START GUIDE

Step 2. Connect the speakers to the receiver: red (+) on speaker to colored (+) on receiver and black (–) to black (–)

(see page 14).

Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your subwoofer.

You may adjust the settings on the subwoofer later as needed (see page 14).

Figure 3 – How to Use the Binding-Post

Speaker Terminal

SURROUND BACK

RIGHT SPEAKER SURROUND BACK

LEFT SPEAKER

FRONT RIGHT 

SPEAKER FRONT LEFT

SPEAKER CENTER SPEAKER

SUBWOOFER

LINE IN/SUB/LFE +

SURROUND

RIGHT SPEAKER

SURROUND

LEFT SPEAKER

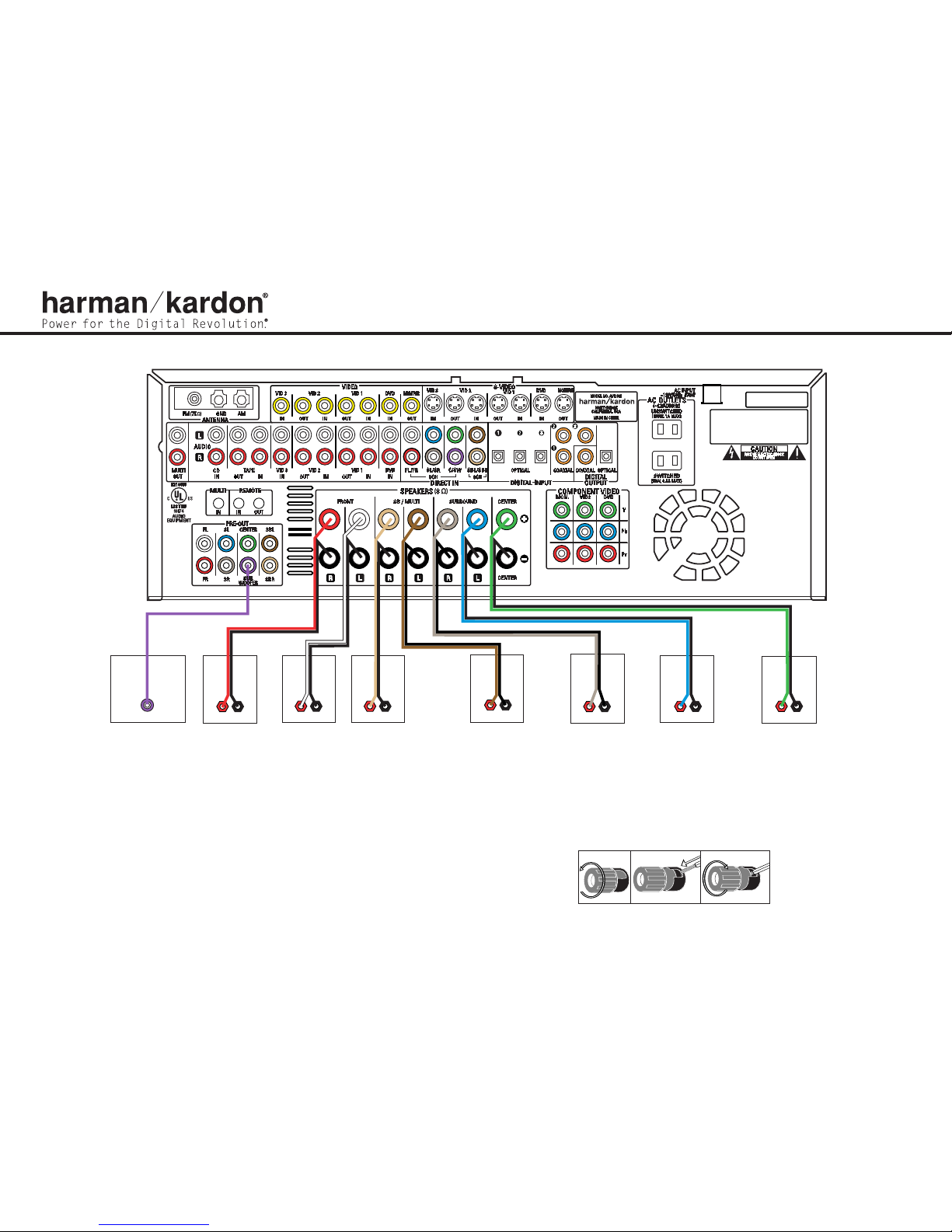

Figure 2 – Speaker Connections

SPEAKER AND AUDIO CONNECTIONS

CD PLAYERAM AntennaFM Antenna

AUDIO RECORDER

L R Optical Coax

REC/IN



PLAY/OUT

Step 4. Connect AM and FM antennas (Fig. 4) (see page 14).

Step 5. Connect source components,as shown in Figures 4 and 6, and the

Device Connection Options chart on the back of this guide (see

pages 14–15).

AUDIO connections: Right channel (red) on source to right (red)

on AVR, and left channel (white) on source to left (white) on AVR.

DIGITAL AUDIO connections, if available: Choose either coax

(orange) to coax (orange) OR optical to optical for each device.

The Coax 1 input defaults to the DVD player, but may be reassigned.

Assign the other digital inputs and outputs as appropriate for your

equipment (see Step 7).

VIDEO connections: Choose component (Y/Pb/Pr – green/blue/

red), composite (yellow) or S-video (4-pin) for each video source.

Connect the component, composite and S-video Monitor outputs to

your Video Monitor (TV). Switch your TV set’s input to match the type

of video used for the currently selected source.

Step 6. Plug all components into AC power outlets. The outlets on the back

of the AVR 335 should be used only for low-current products,such

as CD or DVD players, and the total should not exceed 100 watts.

Basic Receiver Configuration

Step 7. Select digital inputs: If your DVD is connected to Coax 1, no adjust-

ment is needed. For any other digital-device connections, use the

front-panel Digital Select button and the arrow buttons to select an

optical or coax digital input (see page 18).

Step 8. Select a surround mode: Press the Surround Mode button on the

front panel to select Dolby®Pro Logic®II – Movie. (You may select

other modes later as you become familiar with the AVR 335; see

pages 18–20.)

Step 9. Use

to configure and optimize your system:

Plug the EzSet+ microphone into the front-panel Headphones

Jack (Fig. 5). Place the microphone at the center of the room,

or at your normal listening position. If desired, the mike may be

attached to a standard camera tripod using the threads on the

bottom of the mike. Follow the instructions on pages 20–21 of

the Owner’s Manual, which contains the steps needed to activate

the system. As EzSet+ senses the output of each speaker, you will

hear loud test signals. This is a normal part of the EzSet+ process.

When the on-screen menu indicates that setup is complete, your

system is adjusted for output levels, delay times and speaker set-

tings. Unplug the microphone and store it for future use.

Step 11.

Your system is configured – sit back and enjoy!

/EQ

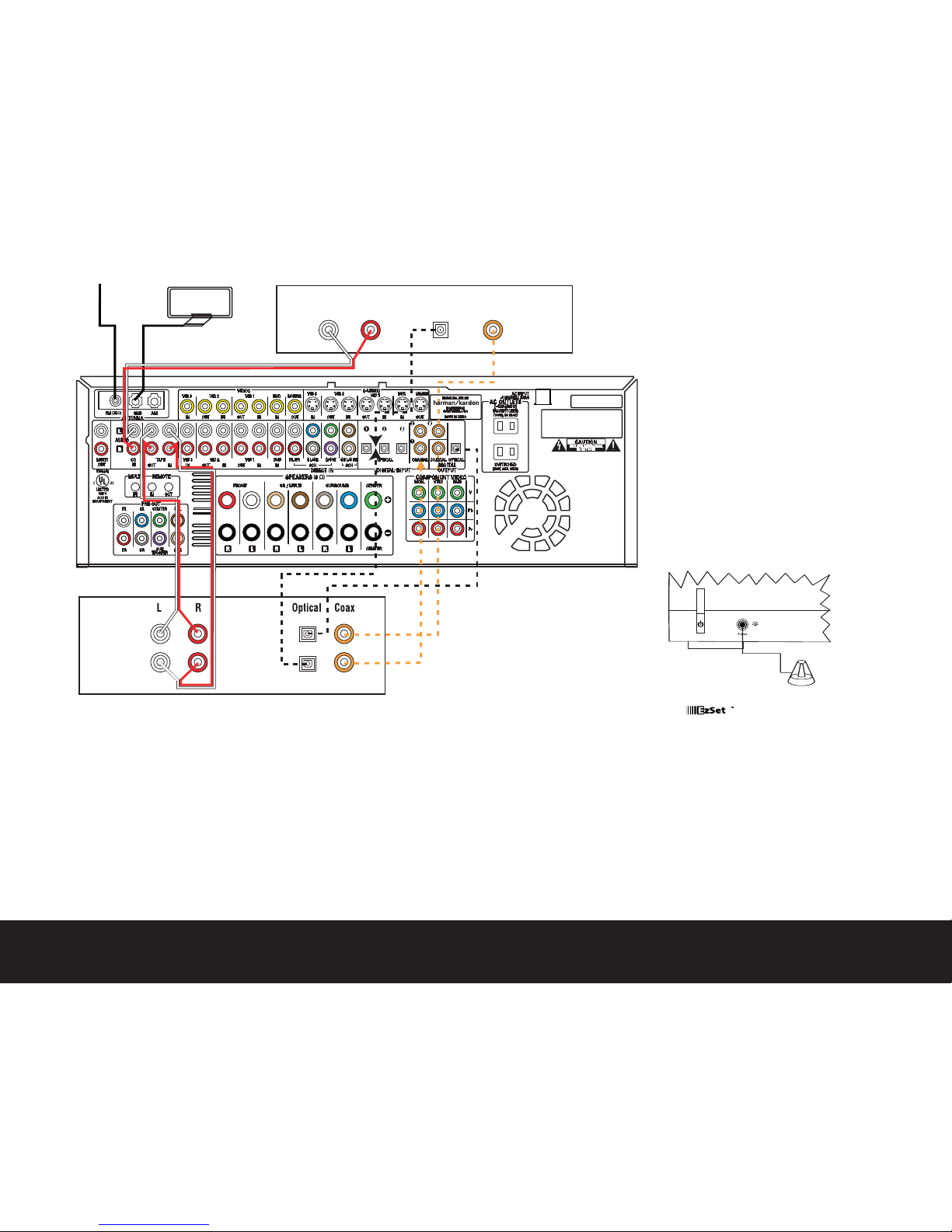

Figure 4 – Audio Connections

Dashed lines (––––) indicate coax and optical

digital audio connections. Choose either type

(but not both) for each digital audio source.

Figure 5 – Connecting EzSet+ Microphone

DVD PLAYER

VCR (Video 1) TV or Projector

In/Rec



Out/Play

L R VIDEO Video S-Video Component Video

YPb Pr

Component Video

Pb



Optical Coax

Cable Box or Satellite Receiver Set-Top Box (Video 2)

OUT

L R Video S-Video

Optical Coax

L R Video S-Video

YPb Pr

Component Video

VIDEO CONNECTIONS

Device Connection Options:Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 4, Coax 4 and Optical 4 inputs are on the front panel of the receiver.

Device Input Name Audio Input Connections Audio Output Connections Video Connections

CD Player CD CD L/R Inputs, Optical Digital 1, 2 or 3, or Coaxial Digital 1, 2 or 3Not required Not required

DVD Player DVD Coaxial Digital 1, 2 or 3, Optical Digital 1, 2 or 3, or DVD L/R Inputs Not required DVD Component, Composite or S-Video

VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video Input and Output

Cable Box or Satellite Receiver Video 2 Video 2 L/R Inputs, Optical Digital 1, 2 or 3*, or Coaxial Digital 1, 2or 3*Inputs Not required Video 2 Composite or S-Video Input

Audio Recorder Tape Tape L/R Inputs, Optical Digital 1, 2 or 3** or Coaxial Digital 1, 2 or 3** Inputs Tape L/R Outputs, Digital Optical** or Coaxial Outputs** Not required

TV or Projector Not applicable Not required Not required Monitor-Out Component, Composite and/or S-Video

*Check with your cable company to determine whether digital audio is available for all channels.It may be necessary to make BOTH analog and digital connections if it is not. **Digital audio recorders only.

Power for the Digital Revolution

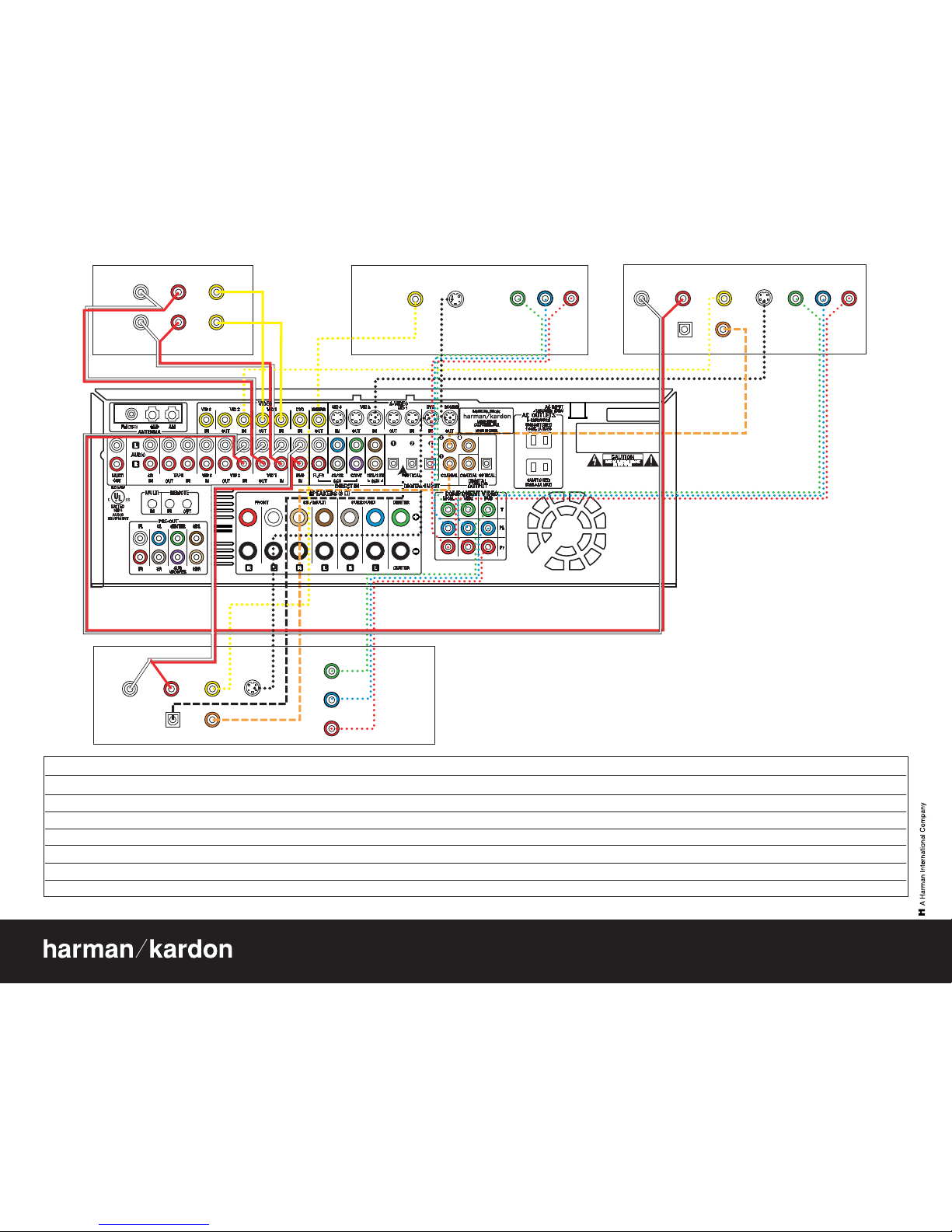

Figure 6 – Video Connections

Dashed lines (––––) indicate coax and optical digital audio connections. Choose either type (but not both)

for each digital audio source.

Dotted lines (••••) indicate component, composite or S-video connections. Component video is the preferred

connection when available, but you may use any of the three types (but not more than one). When component,

composite and S-video sources are connected to the AVR you must also connect all outputs from the AVR to

your TV.
