AVR230Audio/VideoReceiver

SERVICE MANUAL

Power for the Digital Revolution™

TECHNICAL SPECIFICATIONS 43

Technical Specifications

Audio Section

Stereo Mode

Continuous Average Power (FTC)

65 Watts per channel, 20Hz–20kHz,

@ < 0.07% THD, both channels driven into 8 ohms

5/7 Channel Surround Modes

Power Per Individual Channel

Front L&R channels:

50 Watts per channel,

@ < 0.07% THD, 20Hz–20kHz into 8 ohms

Center channel:

50 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms

Surround (L & R Side, Back) channels:

50 Watts per channel,

@ < 0.07% THD, 20Hz–20kHz into 8 ohms

Input Sensitivity/Impedance

Linear (High Level) 200mV/47kohms

Signal-to-Noise Ratio (IHF-A) 95dB

Surround System Adjacent Channel Separation

Analog Decoding 40dB

(Pro Logic, etc.)

Dolby Digital (AC-3) 55dB

DTS 55dB

Frequency Response

@ 1W (+0dB, –3dB) 10Hz–100kHz

High Instantaneous

Current Capability (HCC) ±30 Amps

Transient Intermodulation

Distortion (TIM) Unmeasurable

Rise Time 16 µsec

Slew Rate 40V/µsec**

FM Tuner Section

Frequency Range 87.5–108MHz

Usable Sensitivity IHF 1.3 µV/13.2dBf

Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN)

Distortion Mono/Stereo: 0.2/0.3%

Stereo Separation 40dB @ 1kHz

Selectivity ±400kHz: 70dB

Image Rejection 80dB

IF Rejection 90dB

AM Tuner Section

Frequency Range 522–1611kHz

Signal-to-Noise Ratio 45dB

Usable Sensitivity Loop: 500µV

Distortion 1kHz, 50% Mod: 0.8%

Selectivity ±10kHz: 30dB

Video Section

Video Format PAL/NTSC

Input Level/Impedance 1Vp-p/75 ohms

Output Level/Impedance 1Vp-p/75 ohms

Video Frequency Response

(Composite and S-Video) 10Hz–8MHz (-3dB)

Video Frequency

Response (Component) 10Hz-30MHz (-3dB)

General

Power Requirement AC 220-240V/50Hz

Power Consumption 118W idle, 890W maximum

(6 channels driven)

Dimensions (Max)

Width 440mm

Height 165mm

Depth 382mm

Weight 12.4 kg

Depth measurement includes knobs, buttons and terminal connections.

Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of

Harman International Industries, Inc.

is a trademark of Harman International Industries, Inc.

(Patent No. 5,386,478).

*Manufactured under license from Dolby Laboratories.

“Dolby,” “Pro Logic,” “Pro Logic II” and the Double-D symbol are

trademarks of Dolby Laboratories. Confidential Unpublished

DTS and DTS Surround, DTS-ES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.

VMAx is a trademark of Harman International Industries, Inc., and is an

implementation of Cooper Bauck Transaural Stereo under patent license.

Logic 7 is a registered trademark of Harman International Industries, Incorporated.

Crystal is a registered trademark of Cirrus Logic Corp.

**Without input anti slewing and output isolation networks.

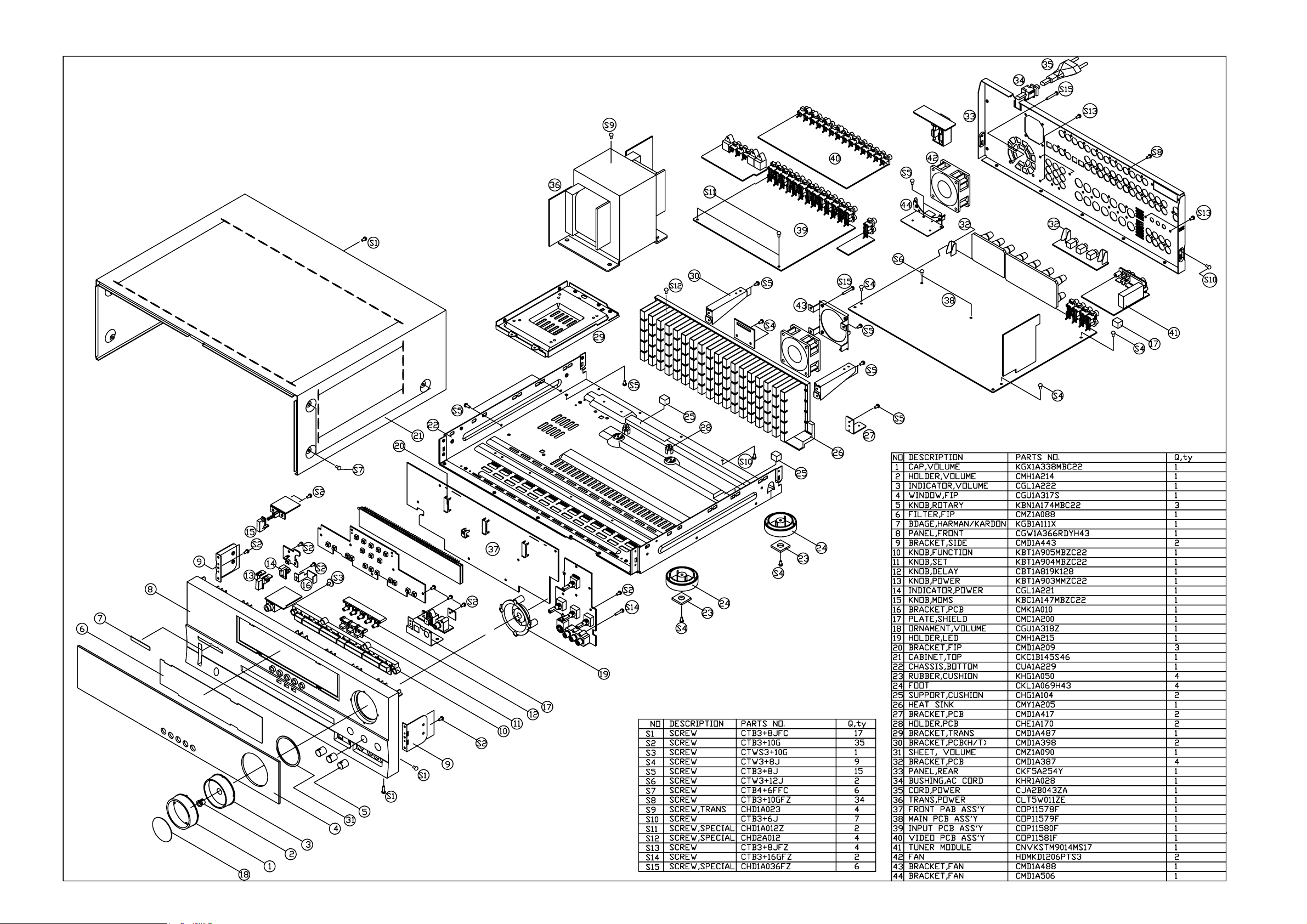

AVR230 EXPLODED VIEW

10ZE

1/1

Pos Part number 1st part name 2nd part name

CPG1A732Q BOX , OUT CARTON

HARTAVR230/230 REMOCON ASS'Y

HARTZONE2 REMOCON ASS'Y

CPP1A081Z BAG,POLY SET

CPS4A564 PAD , SNOW L

CPS4A565 PAD , SNOW R

CPB1061Y BAG , POLY

CQE1A180Z BOOKLET , IMFORMATIONS

CQX1A850Z MANUAL , INSTRUCTION

CQX1A866Y MANUAL , SETUP

CSA1A018Z FM 1 POLE ANT

CSA3A012Z AM LOOP ANTENNA ASS'Y

HABAAAM1.5V BATTERY

HABAAAM1.5VHK BATTERY

CQXAVR230/230 INSTRUCTION MANUAL ASS'Y

1/2

Pos Part number 1st part name 2nd part name

CNVKSTM9014MS17 TUNER MODULE(EUR)

CKC1B145S46 CABINET , TOP

CGWAVR507 FRONT PANEL ASS'Y

CGW1A366RDYH43 PANEL , FRONT

KBC1A147MBZC22 KNOB , MOMS

KBT1A903MMZC22 KNOB , POWER

KBT1A904MBZC22 KNOB , SET

KBT1A905MBYC22 KNOB , FUNCTION

KBN1A174MBC22 KNOB , ROTARY

CBT1A819K128 KNOB , DELAY

KGB1A111X BADGE , HARMAN/KARDON

CMH1A214 HOLDER , VOLUME

CGL1A222 INDICATOR , VOLUME

KGX1A338MBC22 CAP , VOLUME

CMZ1A090 SHEET , VOLUME

CGU1A318Z ORNAMENT , VOLUME

CGU1A317YWINDOW , FIP

CGL1A221 INDICATOR , POWER

CMH1A215 HOLDER , LED

CMX1A148 INSULATOR , FUBCTION

CMX1A149 INSULATOR , SET

CMZ1A088 FILTER , FIP

CUA1A229 CHASSIS , BOTTOM

HDMKD1206PTS3 MOTOR , FAN(60X60X25MM)

BN72 CWZAVR230BN72 WIRE ASS'Y

CLZ9Z028Z FERRITE CORE(21.2X6.4X12.7)

CQB1A549Z LABEL , ATTENTION

AVR230 MECH

AVR230 PACKING

2/2

Pos Part number 1st part name 2nd part name

CQB1A551Z LABEL , BAR CODE

CHE170 HOLDER , PCB

CHG1A104 CUSHION , EVA

CHG1A157 CUSHION , RUBBER

CJA2B043ZA CORD , POWER(EUR)

CKF5A254Y PANEL , REAR

CKL1A069H43 FOOT

CMC1A200 PLATE , SHIELD

CLZ9W003Z FERRITE , RING

CMD1A443 BRACKET , SIDE

CMK1A010 BRACKET , PCB

CMD1A487 BRACKET , TRANS

CMD1A506 BRACKET , FAN

KHE36-3 CLAMPER , WIRE

KHG1A050 RUBBER , CUSHION

KHR1A028 BUSHING , AC CORD

KHR301 CLAMPER

CTB3+8JFC SCREW

CTB4+6FFC SCREW

CHD1A012Z SCREW , SPECIAL

CHD1A023 SCREW , TRANS

CHD1A036FZ SCREW , SPECIAL

CHD2A012 SCREW , TR

CTB3+10G SCREW

CTB3+16GFZ SCREW

CTWS3+10G SCREW

AVR230 MECH

1/10

Pos Part number 1st part name 2nd part name

COP11578GFRONT PCB ASS'Y

C701 HCBS1H390JT CAP , CERAMIC 39PF 50V J

C702 HCBS1H390JT CAP , CERAMIC 39PF 50V J

C703 HCBS1H821KBT CAP , CERAMIC 820PF 50V K

C704 HCEA1VH100T CAP , ELECT 10UF 35V

C705 HCBS1H102KBT CAP , CERAMIC 1000PF 50V B

C706 HCBS1H561KBT CAP , CERAMIC

C708 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C709 HCEA1CH101T CAP , ELECT 100UF 16V

C710 HCEA1HH2R2T CAP , ELECT 2.2UF 50V

C711 HCBS1H102KBT CAP , CERAMIC 1000PF 50V B

C712 HCEA1HH1R0T CAP , ELECT 1UF 50V

C713 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C714 HCBS1H151KBT CAP , CERAMIC 150PF 50V K

C715 HCEA1HH4R7T CAP , ELECT 4.7UF 50V

C716 HCEA1CH331T CAP , ELECT

C717 HCBS1H221KBT CAP , CERAMIC 220PF 50V K

C718 HCBS1H221KBT CAP , CERAMIC 220PF 50V K

C719 HCBS1H181KBT CAP , CERAMIC 180PF 50V K

C720 HCBS1H181KBT CAP , CERAMIC 180PF 50V K

C721 HCBS1H181KBT CAP , CERAMIC 180PF 50V K

C722 HCEA1CH101T CAP , ELECT 100UF 16V

C723 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C724 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C725 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF

C726 HCEA0JH102T CAP , ELECT 1000UF 6.3V

C727 HCBS1H221KBT CAP , CERAMIC 220PF 50V K

C728 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C729 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF

C730 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C731 HCEA1HH100T CAP , ELECT 10UF 50V

C732 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C733 HCEA1EH470T CAP , ELECT 47UF 25V

C735 HCEA1VH100T CAP , ELECT 10UF 35V

C736 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C737 HCBS1H180JT CAP , CERAMIC

C738 HCBS1H180JT CAP , CERAMIC

C770 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C771 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C773 HCEA1VH100T CAP , ELECT 10UF 35V

C774 HCEA1VH100T CAP , ELECT 10UF 35V

C775 HCBS1H151KBT CAP , CERAMIC 150PF 50V K

C776 HCBS1H151KBT CAP , CERAMIC 150PF 50V K

C777 HCEA1VH100T CAP , ELECT 10UF 35V

C778 HCEA1VH100T CAP , ELECT 10UF 35V

AVR230 FRONT

2/10

Pos Part number 1st part name 2nd part name

C779 HCEA1CKS470T CAP, ELECT

C780 HCEA1CKS470T CAP, ELECT

C781 HCEA1CKS100T CAP , ELECT

C782 HCEA1CKS100T CAP , ELECT

C785 HCBS1H470JT CAP , CERAMIC 47PF 50V J

C786 HCBS1H470JT CAP , CERAMIC 47PF 50V J

C787 HCEA1CKS100T CAP , ELECT

C788 HCEA1CKS100T CAP , ELECT

C789 HCEA1CKS100T CAP , ELECT

C790 HCEA1CKS100T CAP , ELECT

C791 HCEA1CKS470T CAP, ELECT

C792 HCEA1CKS470T CAP, ELECT

C793 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C794 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C795 KCFE1J823JBT CAP , FILM 0.082UF 63V J

C796 KCFE1J823JBT CAP , FILM 0.082UF 63V J

C797 KCFE1J332JBT CAP , FILM 0.0033UF 63V J

C798 KCFE1J332JBT CAP , FILM 0.0033UF 63V J

C799 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C800 KCFE1J183JBT CAP , FILM 0.018UF 63V J

C805 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C806 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C807 CCKT1H104ZF CAP , CERAMIC 50V 0.1UF

C808 CCKT1H181KB CAP , CERAMIC 180PF 50V KB

C809 HCEA1AH471T CAP , ELECT 470UF 10V

C810 HCEA1CH101T CAP , ELECT 100UF 16V

C811 HCEA1CH101T CAP , ELECT 100UF 16V

C812 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C813 HCEA1HH4R7T CAP , ELECT 4.7UF 50V

C814 HCEA1HH4R7T CAP , ELECT 4.7UF 50V

C815 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C816 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C850 HCBS1H471KBT CAP , CERAMIC

C851 HCBS1H471KBT CAP , CERAMIC

C852 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C855 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C856 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C857 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C858 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C859 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C860 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C861 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C862 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C863 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C864 HCEA1VH100T CAP , ELECT 10UF 35V

C865 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF

AVR230 FRONT

3/10

Pos Part number 1st part name 2nd part name

C866 HCEA1CKS100T CAP , ELECT

C867 HCEA1CKS100T CAP , ELECT

C868 HCEA1CKS470T CAP, ELECT

C869 HCEA1CKS470T CAP, ELECT

C870 HCBS1H681KBT CAP , CERAMIC

C871 HCBS1H681KBT CAP , CERAMIC

C872 HCEA1CH331T CAP , ELECT

C873 HCEA1CH331T CAP , ELECT

C874 HCBS1H101KBT CAP , CERAMIC 100PF 50V K

C875 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C876 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C877 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C878 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z

C880 HCEA1AH221T CAP , ELECT

C882 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C886 HCEA0JH102T CAP , ELECT 1000UF 6.3V

C889 HCBS1H220JT CAP , CERAMIC

C890 HCBS1H220JT CAP , CERAMIC

C891 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C892 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C893 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C894 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C895 HCEA1AH471T CAP , ELECT 470UF 10V

C896 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z

C897 HCEA1AH471T CAP , ELECT 470UF 10V

C900 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z

C902 HCEA1HH2R2T CAP , ELECT 2.2UF 50V

D724 HVD1SS133MT DIODE 1SS133T-77

D725 HVD1SS133MT DIODE 1SS133T-77

D726 HVD1SS133MT DIODE 1SS133T-77

D727 HVD1SS133MT DIODE 1SS133T-77

D728 HVD1SS133MT DIODE 1SS133T-77

D729 HVD1SS133MT DIODE 1SS133T-77

D730 HVD1SS133MT DIODE 1SS133T-77

D761 HVD1SS133MT DIODE 1SS133T-77

D774 HVD1SS133MT DIODE 1SS133T-77

D775 HVD1SS133MT DIODE 1SS133T-77

D776 KVD1N4003ST DIODE 1N4003

D777 HVD1SS133MT DIODE 1SS133T-77

D778 KVD1N4003ST DIODE 1N4003

D779 HVD1SS133MT DIODE 1SS133T-77

D783 HVD1SS133MT DIODE 1SS133T-77

D784 HVD1SS133MT DIODE 1SS133T-77

D785 HVD1SS133MT DIODE 1SS133T-77

D786 HVDMTZJ5.6BT DIODE , ZENER

D787 HVDMTZJ5.6BT DIODE , ZENER

AVR230 FRONT

4/10

Pos Part number 1st part name 2nd part name

D788 HVDMTZJ5.6BT DIODE , ZENER

D789 HVDMTZJ5.6BT DIODE , ZENER

IC87 HVIRE5VL28CATZ IC , RESET

L702 HLQ02C100KT COIL , AXAIL

Q701 HVTKRC107MT T.R KRC107M

Q702 HVTKRC107MT T.R KRC107M

Q703 HVTKRC107MT T.R KRC107M

Q704 HVTKRC107MT T.R KRC107M

Q705 HVTKRC107MT T.R KRC107M

Q706 HVTKRC107MT T.R KRC107M

Q722 HVTKRA107MT T.R KRA107M

Q723 HVTKRC107MT T.R KRC107M

Q724 HVTKRC107MT T.R KRC107M

Q725 HVTKRC107MT T.R KRC107M

Q726 HVTKRC107MT T.R KRC107M

Q727 HVTKRC107MT T.R KRC107M

Q728 HVTKRC107MT T.R KRC107M

Q729 HVTKRC107MT T.R KRC107M

Q731 KVTKSA1175YT T.R KSA1175Y

Q732 HVTKRC107MT T.R KRC107M

Q733 KVTKSC2785YT T.R KSC2785Y

Q734 HVTKTC2874BT T.R , MUTE KTC2874B

Q735 HVTKTC2874BT T.R , MUTE KTC2874B

Q736 HVTKTC2874BT T.R , MUTE KTC2874B

Q737 HVTKTC2874BT T.R , MUTE KTC2874B

Q738 HVTKRC107MT T.R KRC107M

Q739 HVTKTA1271YT T.R KTA1271Y

Q740 HVTKRC107MT T.R KRC107M

Q741 HVTKRC107MT T.R KRC107M

Q743 HVTKRA107MT T.R KRA107M

R701 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R702 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J

R704 CRD20TJ100T RES , CARBON 10 OHM 1/5W J

R705 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R706 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R707 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R708 CRD20TJ820T RES , CARBON 82 OHM 1/5W J

R709 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R710 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R711 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R712 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R713 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J

R714 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R715 CRD20TJ470T RES , CARBON 47 OHM 1/5W J

R716 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R717 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

AVR230 FRONT

5/10

Pos Part number 1st part name 2nd part name

R718 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J

R719 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R720 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R721 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R723 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J

R724 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R725 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R726 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R727 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R728 CRD20TJ101T RES , CARBON 100 OHM 1/5W J

R729 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R730 CRD20TJ112T RES,CABON

R731 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R732 CRD20TJ202T RES , CARBON

R733 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R734 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R735 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R736 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R737 CRD20TJ100T RES , CARBON 10 OHM 1/5W J

R738 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R739 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R740 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R741 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R742 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R743 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R744 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R745 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R746 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R747 CRD20TJ103T RES , CARBON 10K OHM 1/5W J

R750 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R751 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R752 CRD20TJ223T RES , CARBON 22K OHM 1/5W J

R753 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R754 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J

R755 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J

R756 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R757 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J

R758 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J

R759 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

R760 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J

R761 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J

R762 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J

R763 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J

R764 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J

R765 CRD20TJ752T RES , CARBON 7.5K OHM 1/5W J

R766 CRD20TJ102T RES , CARBON 1K OHM 1/5W J

AVR230 FRONT

Autres manuels pour AVR 230

Table des matières

Autres manuels Harman Kardon Récepteur

Harman Kardon

Harman Kardon BRUKSANVISNING AVR 255 Manuel utilisateur

Harman Kardon

Harman Kardon DPR 1005 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 7300 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 435 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 3500 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 120 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 2600 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 110 Manuel d'instructions

Harman Kardon

Harman Kardon AVR8500 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 325 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 7200 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 745 Guide de démarrage rapide

Harman Kardon

Harman Kardon AVR35 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 230 Manuel utilisateur

Harman Kardon

Harman Kardon DPR 2005 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 30 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 132 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 630 Manuel utilisateur

Harman Kardon

Harman Kardon 75+ Manuel utilisateur

Harman Kardon

Harman Kardon AVR 135 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 645 Manuel utilisateur

Harman Kardon

Harman Kardon 430 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 2650 Manuel utilisateur

Harman Kardon

Harman Kardon AVR 75 Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
