OWNER’S

MANUAL

CITATION AMP

IMPORTANT SAFETY

INSTRUCTIONS

Verify Line Voltage Before Use

The Citation Amp has been designed for use with 100-240 volt,

50/60 Hz AC current. Connection to a line voltage other than

that for which your product is intended can create a safety and





about the line voltage in your area, contact your selling dealer

before plugging the unit in to a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards, use only the power cord supplied

with your unit. We do not recommend that extension cords be

used with this product. As with all electrical devices, do not run

power cords under rugs or carpets, or place heavy objects on

them. Damaged power cords should be replaced immediately

by an authorized service center with a cord that meets factory



Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always

pull the plug; never pull the cord.

If you do not intend to use your speaker for any considerable

length of time, disconnect the plug from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product.

Opening the cabinet may present a shock hazard, and any



accidentally falls inside the unit, disconnect it from the AC

power source immediately, and consult an authorized service

center.

/ IMPORTANT SAFETY INSTRUCTIONS

Maintain Proper Air Ventilation

To ensure proper heat dispersion, maintain at least 1” (25 mm)

around the unit. Do not place the product in an enclosed

space without proper ventilation. Do not block the top-panel

ventilation holes.

Use Proper Wires to Connect Speakers

Any speakers must be connected to the product using class

II wires (i.e. no connection to Earth should be made). Failure

to observe this precaution may cause the product to become

damaged.

TABLE OF

CONTENTS

/IMPORTANT SAFETY INSTRUCTIONS............................................. 2

/INTRODUCTION........................................................................................ 5

/WHAT’S IN THE BOX............................................................................... 6

/PRODUCT OVERVIEW .............................................................................7

/PLACEMENT................................................................................................ 11

/CONNECTING TO TV.............................................................................13

/CONNECTING TO ANALOG DEVICES............................................16

/CONNECTING SPEAKERS.................................................................... 17

/OTHER WIRED CONNECTIONS....................................................... 20

/POWER ON ................................................................................................24

/CONNECTING TO INTERNET............................................................25

/.....................................27

/USING YOUR CITATION AMP............................................................ 29

/ADVANCED SETTINGS.........................................................................33

/SETTINGS.................................................................................................. 40

/SPECIFICATIONS...................................................................................... 41

/TROUBLESHOOTING............................................................................43

/COMPLIANCE...........................................................................................45

/OPEN SOURCE LICENSE NOTICE ...................................................46

/TRADEMARKS .......................................................................................... 47

INTRODUCTION

This manual includes information of the Citation Amp. We

encourage you to take a few minutes to read this manual, which

describes the products and includes step-by-step instructions

to help you set up and get started. Read and understand all the

safety instructions before using your product.

This product must be connected to a home network before

operation. Audio inputs and streaming will not function before

network setup. See the Connecting to Internet section for

more details.





installation or their operation, please contact your

Harman Kardon retailer or customer service, or visit us at

www.harmankardon.com

WHAT’S IN THE BOX

Carefully unpack the box and check if the following parts are

included. If any part is damaged, do not use it, contact your

Harman Kardon retailer or customer service.

21 3

1. Main unit

2. Power cord*

3. IR extender

4. Remote control (with 2 AAA batteries)

* Power cord quantity and plug type vary by regions.

Inserting batteries before using the remote control (AAA

batteries x 2)

Slide the battery cover in the direction of the arrow until it is

completely removed. Insert 2 AAA batteries (1.5V) oriented so

that their polarity is correct. Slide the battery cover back into

position.

PRODUCT

OVERVIEW

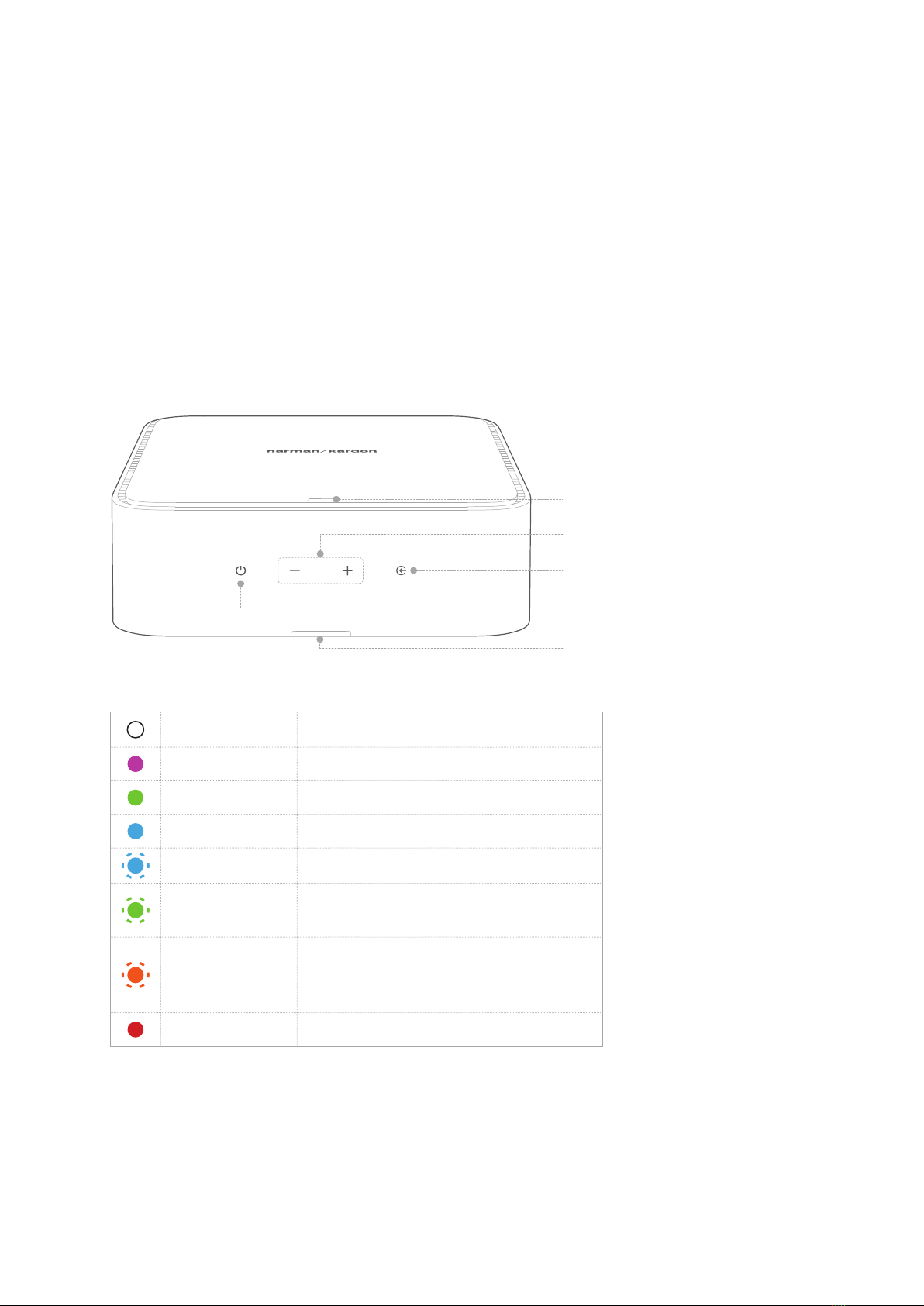

Top and Front Panels

1. LED indicator

Solid white • Wi-Fi connected

Solid purple • TV source selected

Solid green • AUX source selected

Solid blue • Bluetooth connected

Flashing blue • Bluetooth pairing mode

Flashing green • Reaching “0” point during bass or

surround level adjustment

Flashing amber

• Reaching maximum or minimum

setting during bass or surround

level adjustment

Solid red • Abnormal status

2. Volume +/-

• Increase or decrease the volume level.

• Press both buttons simultaneously to mute or unmute.

/ PRODUCT OVERVIEW

• Select an input source: TV (HDMI/OPTICAL/COAXIAL),

Bluetooth, or AUX.

• Power on or switch to standby.

5. Infrared (IR) Receiver

• Receives commands from remote control.

Back Panel

112

1. TV IN group

• HDMI (TV ARC): Connect to the HDMI (ARC) input on

your TV.

• OPTICAL: Connect to an optical audio output on your

TV or a digital device.

• COAXIAL: Connect to a coaxial audio output on your

TV or a digital device.

NOTE:

• When the HDMI cable and optical or coax cables are



/ PRODUCT OVERVIEW

2. SUB OUT

• Connect to a subwoofer.

3. AUX IN (L/R)

• Connect to RCA audio outputs on an external device.

4. SPEAKER OUT (L/R)

• Connect to a pair of loudspeakers.

5. SERVICE (for technical personnel only)

6. TRIGGER OUT 12V

• Connect to the 12V trigger input on an external device.

7. IR REMOTE IN

• Connect to the IR extender.

8. LINE OUT

• Connect to audio input on an external device.

9. POWER

• Connect to the power cable.

10. ETHERNET

• Connect to the Internet (RJ45 connector).

11. PAIRING

• Pair with a Harman Kardon wireless subwoofer and / or

surround speakers (such as Citation Tower, Sub / Sub S

and Citation Surround).

12. RESET

• Press and hold for 5 seconds to restore the factory

settings.

/ PRODUCT OVERVIEW

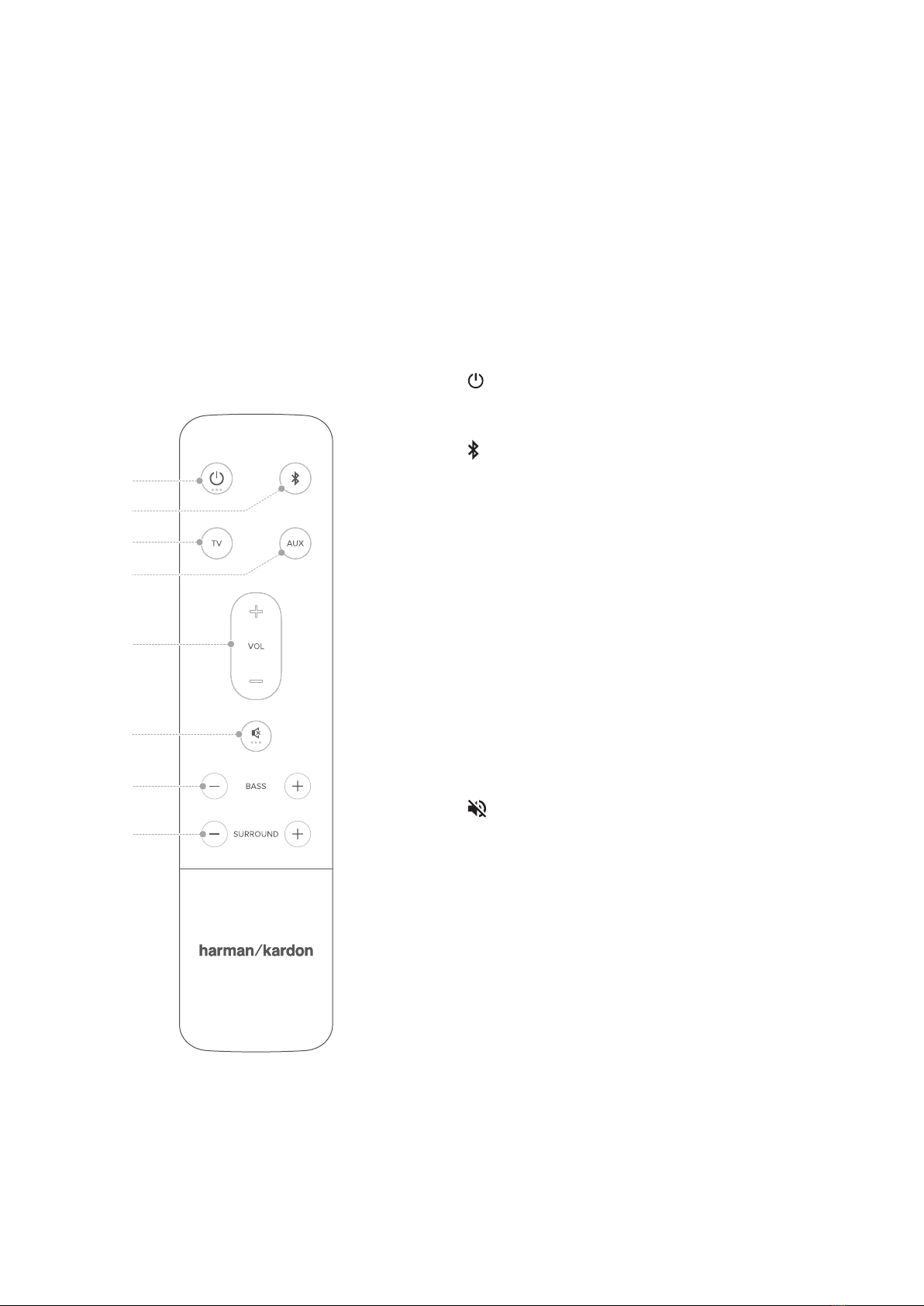

Remote Control

1. (Power)

• Power on or switch to standby.

• Press to select the Bluetooth input

source.

• Press and hold for 3 seconds to pair

with a new device.

3. TV

• Select the TV input source.

4. AUX

• Select the AUX input source.

5. VOL +/-

• Increase or decrease the volume level.

• Mute or unmute the sound output.

7. BASS - / +

• (No subwoofer connected) Decrease or

increase the bass level of the left and

right speakers.

• (Subwoofer connected) Decrease

or increase the bass level of the

subwoofer.

8. SURROUND -/+

• Decrease or increase the surround

sound speaker level (Must be paired

with Citation Surround wireless

surround speakers).
