INFINITY • Cord Management Kit
323663IS 08-04-2020
SHEET 1 OF 2
**IT IS THE RESPONSIBILITY OF THE INSTALLER TO CAREFULLY READ & FOLLOW ALL STEPS IN THE INSTRUCTIONS.
Carefully read the contents of these instructions, as the
instructions indicate the correct step by step procedure
to assemble the product. The carton contents page(s) will
identify the assembly part numbers and their descriptions.
Before proceeding with the assembly process, match the
carton contents to the stated contents to ensure there are
no missing parts. In the event of assembly problems or
missing parts, please call our customer service department
at 616-842-5330.
CAUTION:
ASSEMBLED UNIT IS VERY HEAVY. DO NOT ATTEMPT TO
LIFT OR MOVE WITHOUT ASSISTANCE.
THE MANUFACTURER OF THIS DISPLAY ASSUMES
NO LIABILITY FOR INJURY CAUSED BY IMPROPER
ASSEMBLY / INSTALLATION OF THIS DISPLAY.
This product contains chemicals known to
the State of California to cause cancer and
birth defects or other reproduction harm.
WARNING:
For more information, go to www.P65Warnings.ca.gov
TOOLS
• Philips screwdriver
Description Qty
PLUG STRIP - 10' CORD 1
CORD MGMT TRAY 1
#10-24 x3/4" BOLTS 2
CORD MANAGEMENT EXTRUSION 5
Carton Contents:
Hardware Kit:
INFINITY • Cord Management Kit
323663IS 08-04-2020
SHEET 2 OF 2
**IT IS THE RESPONSIBILITY OF THE INSTALLER TO CAREFULLY READ & FOLLOW ALL STEPS IN THE INSTRUCTIONS.

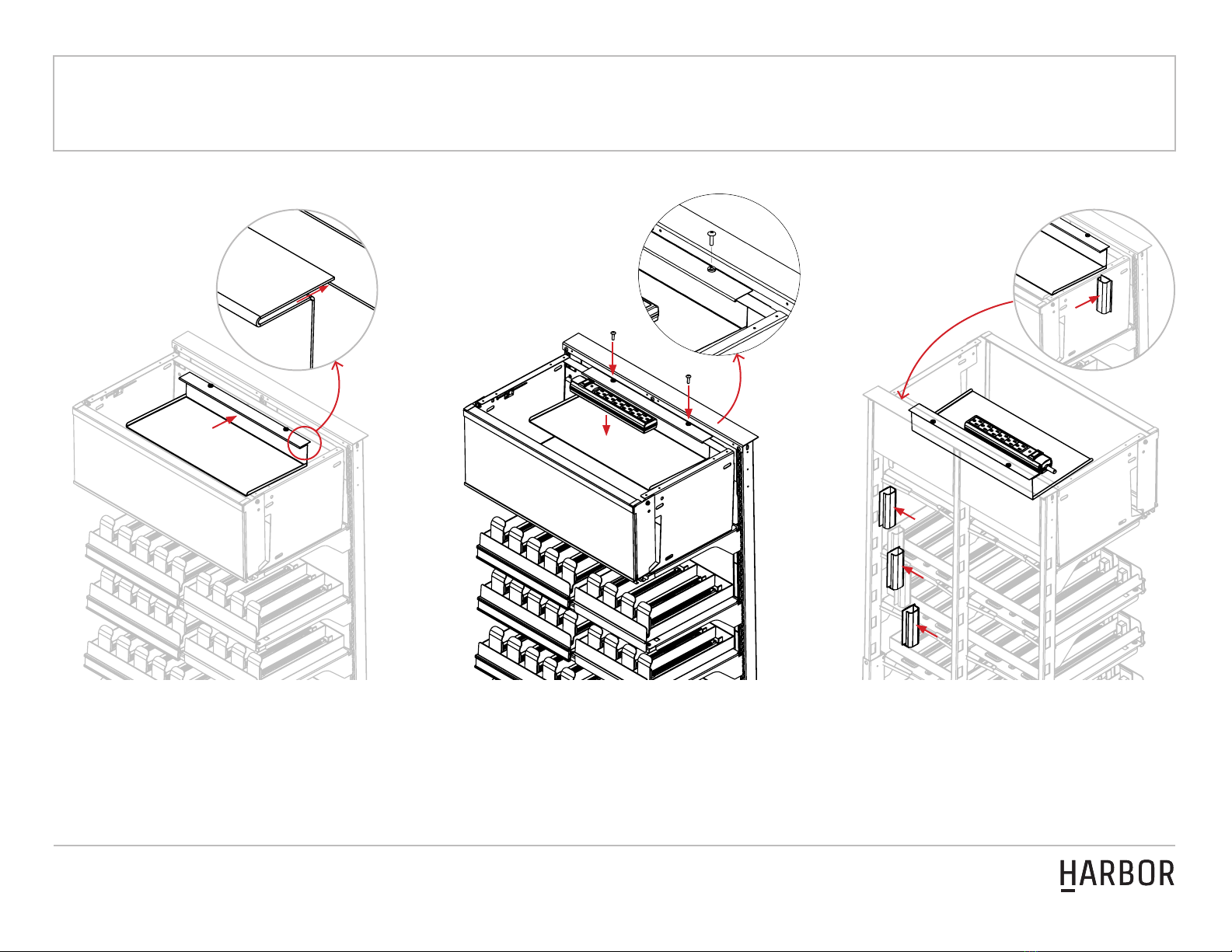

PLACING CORD MANAGEMENT KIT
Cord Management
Extrusion shown
attached to the back
wall of the header.
1. Place the Cord Management Tray over the
back upper ange of the header. See the
illustration above.
2. Secure Cord Management Tray with (2x)
#10-24 X 3/4" bolts. The plug strip can
then be placed on top of the tray.
Note: Make sure both bolts are fully
threaded into the Cord Management
Tray.
3. Peel protective backer off tape to apply
Cord Management Extrusions where
needed. They can be applied along the back
inside areas of the uprights and to the back
wall of the header areas, as shown above.
