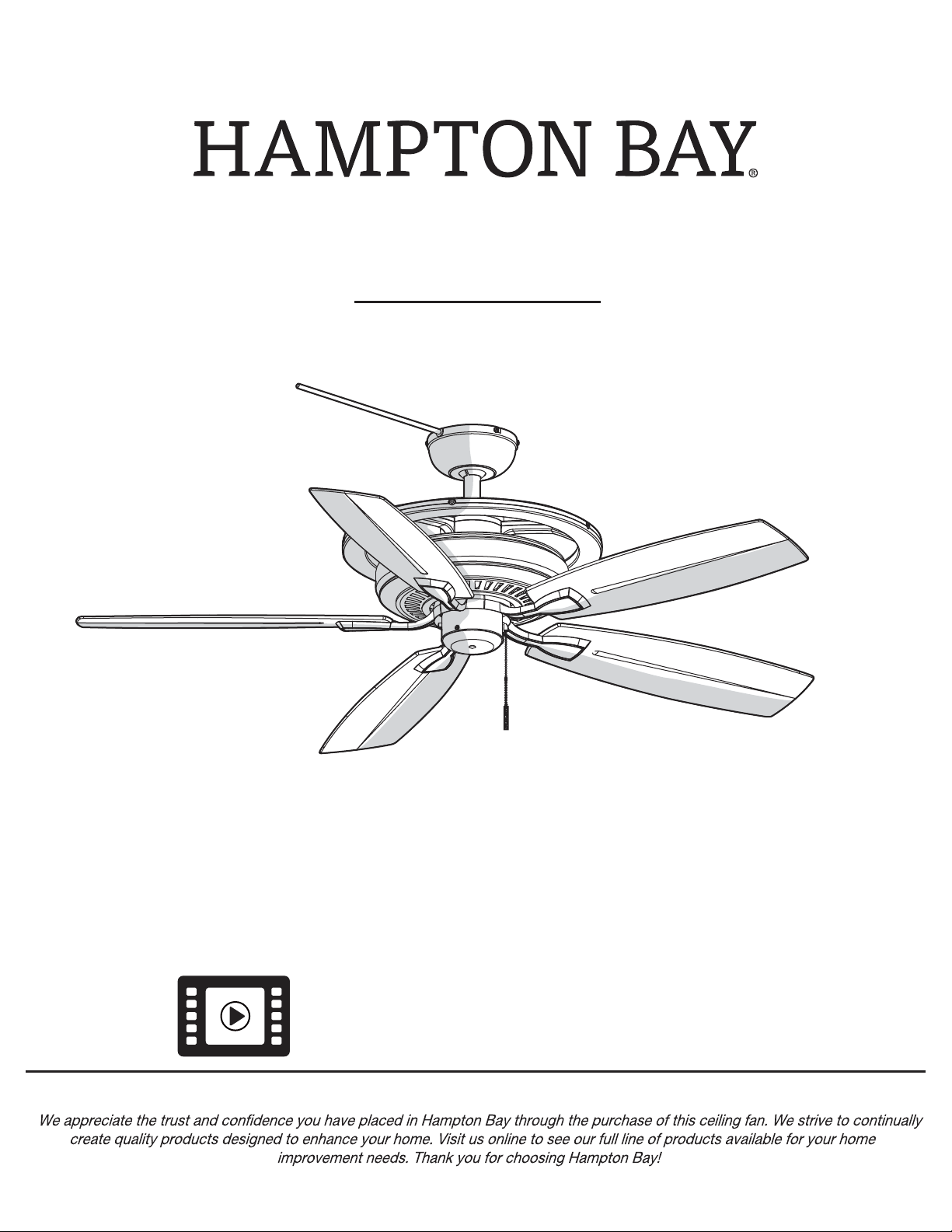

USE AND CARE GUIDE

52 IN. MISTING CEILING FAN

THANK YOU

1-855-HD-HAMPTON

HAMPTONBAY.COM

Questions, problems, missing parts? Before returning to the store,

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

call Hampton Bay Customer Service

Item #1005 131 413

Model #YG188M-NI

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to ﬁnd

this fan and click the link of visual instruction in the product overview section.

Table of Contents

Operation-Fan .............................................................

Pull Chain Operating Instructions ..........................................

Care and Cleaning-Misting Device ...........................

Troubleshooting -Fan .................................................

Operation-Misting Device ..........................................

Care and Cleaning-Fan ..............................................

Troubleshooting - Fan.................................................

Service Parts ...............................................................

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .....................................................................

Attaching the Fan Blades .......................................................

Safety Information-Misting Device ............................

Attaching the Misting Device ...........................................

Installing the Water Lines ......................................................

Water Connection at Source ..................................................

Pump Installation Wall ...........................................................

Water Connection at Pump ....................................................

Power Connection Cord .........................................................

READ AND SAVE THESE INSTRUCTIONS

Safety Information

MOC.YABNOTPMAH3

Please contact 1-855-HD-HAMPTON for further assistance.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70” and local electrical codes. Electrical

installation should be performed by a qualiﬁed licensed

electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg). Use only UL-listed outlet boxes marked “FOR

FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft (2.1m)

clearance from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

SPECIFICATIONSSPECIFICATIONS

TOOLS REQUIREDTOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Electric

drill

Wire

stripper

Flat blade

screwdriver

Step

ladder

Warranty

Pre-InstallationPre-Installation

period

fter the

parable or

not cover

ct.

permitted by

tailer shall

he warranty

52 in.

Low

Medium

High

120

Fan sizeFan size WattsWatts RPMRPM CFMSpeedSpeed VoltsVolts AmpsAmps

3.01cu. ft.

N.W.N.W. G.W.G.W. C.F.C.F.

0.21

0.37

0.52

10.27

30.77

62.83

103

156

1646

3456

5145

11.7 kg

(25.74 lbs.)

13.5kg

(29.8lbs.)

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

5 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Plastic wire nut

Misting ring mounting screw (not to scale)

Pull chain and fob (not to scale)

7 Ft. water tube (not to scale)

25 Ft. water tube (not to scale)

Two-way connector (not to scale)

Spigot / hose connector (not to scale)

Tube clip (not to scale)

Tube clip mounting screw wall anchor (not to scale)

Tube clip mounting screw (not to scale)

Pump mounting screw wall anchor (not to scale)

Pump mounting screw (not to scale)

Part

Description

Quantity

Part

Description

Fan motor assembly

Blade

Blade arm

Pump

Power cord

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy

Hanger ball/downrod assembly

Misting ring cover

Misting ring

*C: 12 in. and 24 in. longer downrods are available, please call

Hampton Bay Customer Service.

PACKAGE CONTENTS

Pre-Installation (continued)

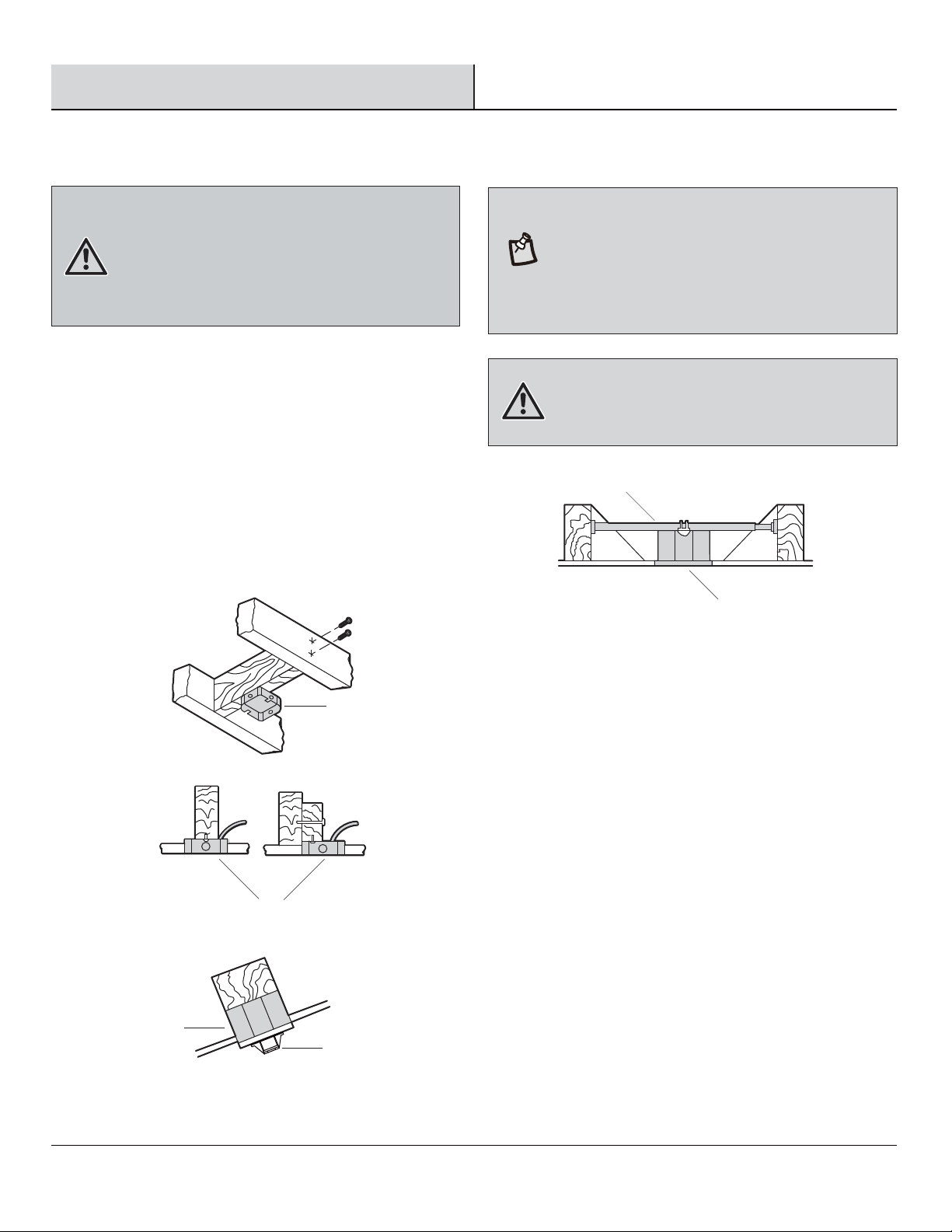

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

7HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (not included) as

shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (not included).

Outlet Box

Hanger Bar

Outlet Box

Recessed

Outlet

Box Ceiling

Mounting

Bracket

NOTE: You may need a longer downrod (12 in. or 24 in.) to

maintain proper blade clearance when installing on a steep,

sloped ceiling, please call Hampton Bay Customer Service for

longer downrods. The maximum angle allowable is 18° away

from horizontal. If the canopy touches the downrod, then

remove the decorative canopy bottom cover and turn the

canopy (B) 180° before attaching the canopy (B) to the

mounting bracket (A).

WARNING: If installing on a vaulted ceiling, face the

opening of the hanging bracket towards the high point of the

ceiling. Arrange electrical wiring around the back of the

hanging bracket and away from the bracket opening.

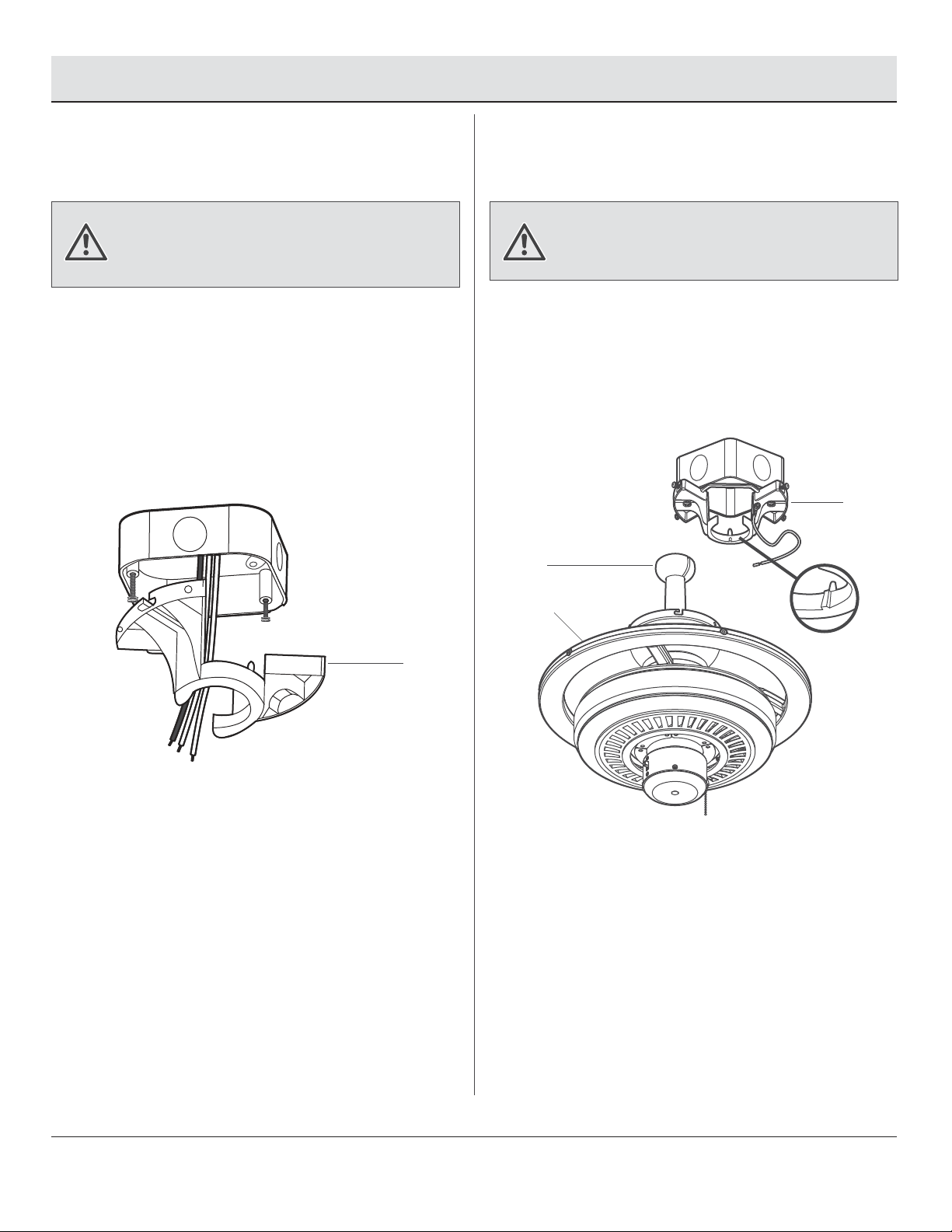

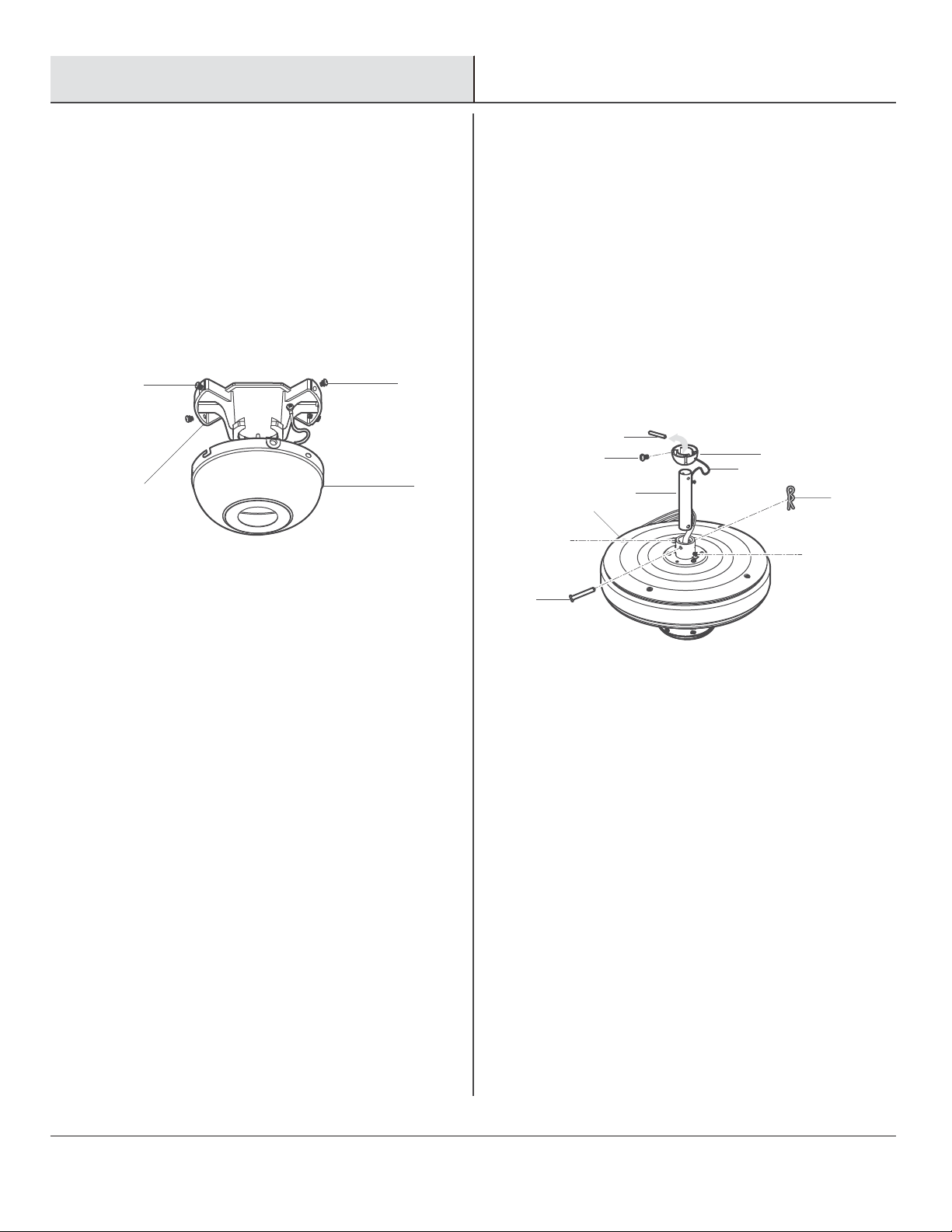

1Preparing the canopy 2Preparing the motor

Assembly

□Remove the two non-slotted canopy mounting screws

with lock washers (MM) from the canopy (B), and

loosen the slotted canopy mounting screw with lock

washer (MM) on the canopy (B).

□Remove the canopy (B) from the mounting bracket (A)

by turning the canopy (B) counterclockwise.

□Remove the cotter pin (NN) and clevis pin (OO), and

loosen the two collar setscrews (PP) from the motor

collar.

□Take out the setscrew (QQ) located in the hanger ball

(RR), lower the hanger ball (RR) and remove the

cross pin (SS). Remove the hanger ball (RR) from the

hanger ball/downrod assembly (C).

□Remove the ground lead (TT) from the downrod

assembly (C).

3Assembling the fan

WARNING: Failure to properly install the cotter pin (NN)

could result in the fan loosening and possibly falling.

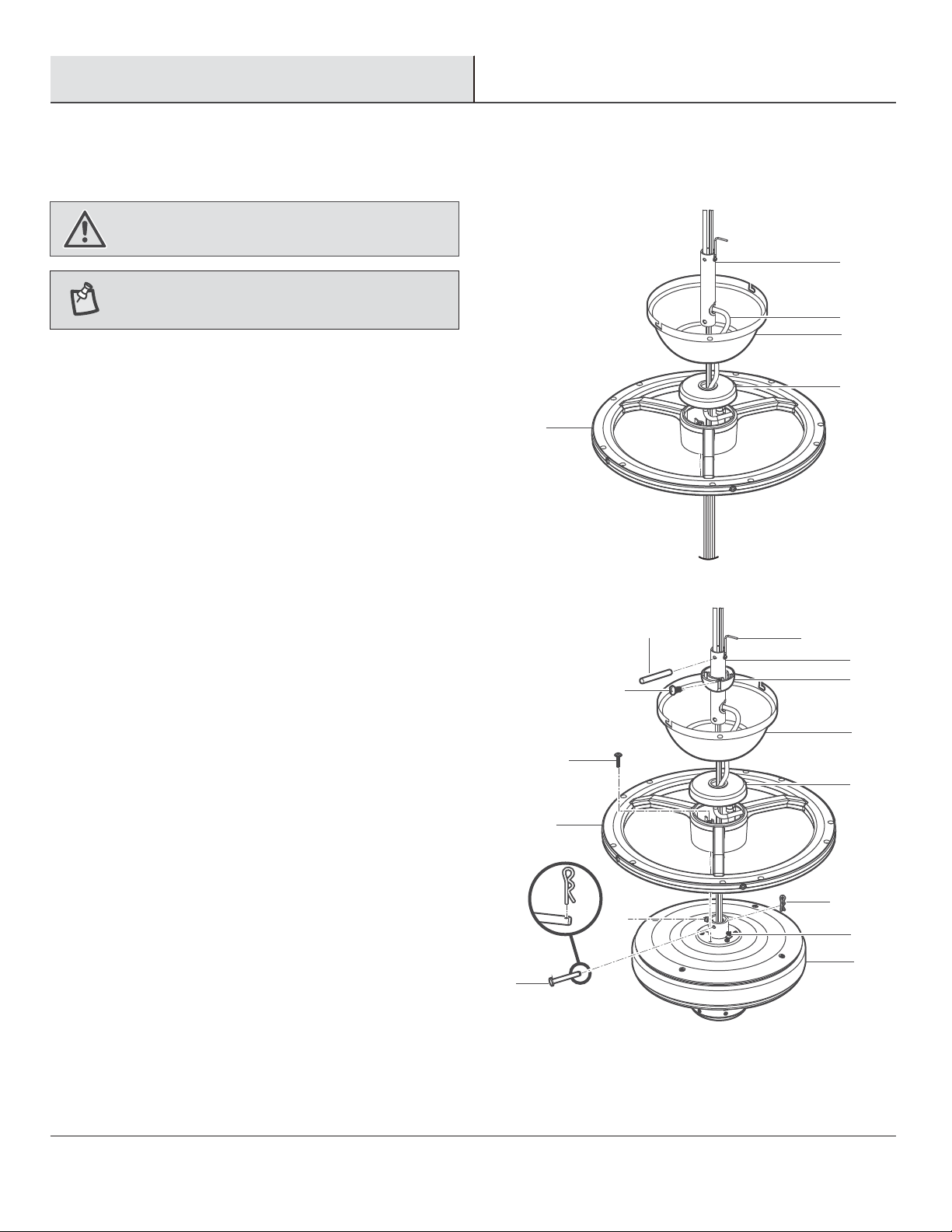

Assembly (continued)

NOTE: Misting Fan should be installed with the included

downrod only and is not compatible with other downrods due

to the misting feature.

□Carefully feed the water tube (UU) attached to the

misting ring (E) into the side hole of the downrod (VV)

and through the top. Guide the motor wires up

through the bottom hole of the downrod and the

misting ring. Insert the downrod into the collar.

□Align the holes on the downrod bottom and collar

then insert the clevis pin (OO) through all holes of the

downrod and collar, be careful not to jam any wires

or tubes inside the downrod. Restore the cotter pin

(NN) to the end of the clevis pin (OO), make sure it

snaps into the lock position then tighten the two

collar setscrews (PP).

□Secure and tighten the misting ring (E) onto the

motor with two mounting screws (BB) and ensure all

screws are tightened.

□Slip the misting ring cover (D) and canopy (B) onto

the downrod (VV).

□Carefully reinstall the hanger ball (RR) onto the

downrod (VV) and reinstall the ground lead (TT) onto

the downrod (RR), being sure that the cross pin (SS)

is in the correct position, the setscrew (QQ) is

tightened and wires are not twisted.

9HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

4Installing the mounting bracket

to the electrical box

Hanging the fan to the mounting

bracket

Assembly — Hanging the Fan

□Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□Attach the mounting bracket (A) on the outlet box by

sliding the mounting bracket (A) over the screws

provided with the outlet box. Note that the ﬂat side of

the mounting bracket (A) is toward the outlet box.

□Securely tighten the two mounting screws.

□Carefully lift the fan motor assembly (F) up to the

mounting bracket (A) and seat the hanger ball/down-

rod assembly (C) in the mounting bracket (A) socket.

Make sure the tab on the mounting bracket (A)

socket is properly seated in the groove in the hanger

ball/downrod assembly (C). This will help to balance

the ceiling fan.

WARNING: To reduce the risk of ﬁre, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (C). Failure to properly

seat the tab in the groove could cause damage to the

wiring.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HAMPTON BAY Ventilateur

HAMPTON BAY

HAMPTON BAY Alida Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AL663A-LN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 7114-01 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AM217-BK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-WH Manuel utilisateur

HAMPTON BAY

HAMPTON BAY xxx-xxx AL958-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Fulton 140201 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 1002 275 335 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 24816-021 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 80213 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AK376-MBK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Victoria Manuel utilisateur

HAMPTON BAY

HAMPTON BAY SW18030 BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Burgess 640-657 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Winthrop Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Mercer 52 inch Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CLARET Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AK404-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Altura Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Campbell II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY GLENDALE AG524PR-ORB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY N375A-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 41350 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
