Roanoke

48 in Ceiling Fan

Owner’s Manual

Roanoke

Ventilador de Techo de 1,22 m

Manual del Propietario

160 854

48” Roanoke

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

The finish of this fan is weather resistant, but over time will

naturally weather and fade.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . .8

Operating Your Fan . . . . . . . . . . . . . . . 9

Care of Your Fan . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

160-854

792145352853

11289

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

WARNING: Use only with light kit marked "Suitable for Use in Wet

Locations".

10.

11.

12.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND

THE BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE

FOR FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE

OUTLET BOX.

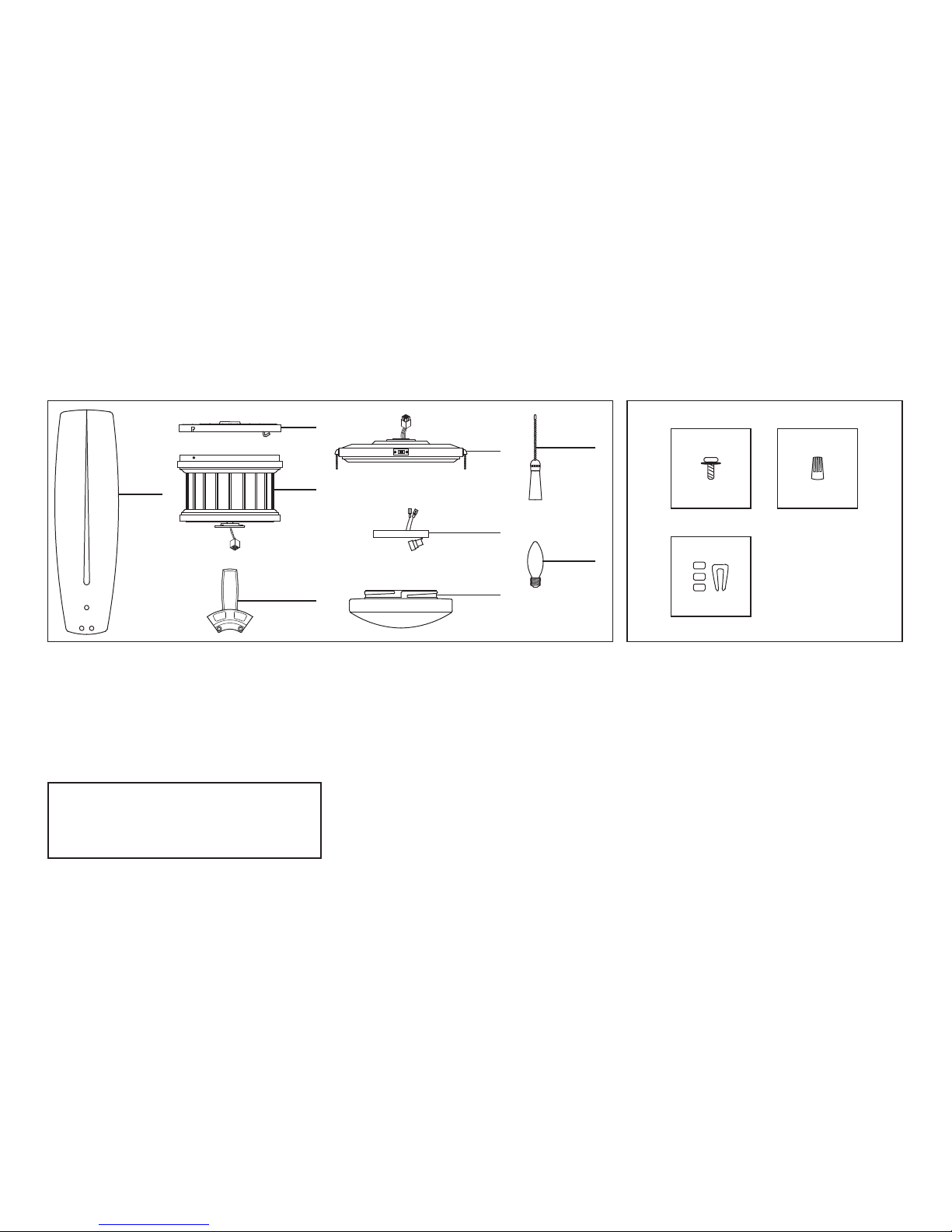

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (5)

Mounting bracket

Fan motor assembly

Blade arms (5)

Switch housing

Light plate

Glass shade

Pull chains and fobs (2)

40 Watt candelabra bulbs (3)

Blade Attachment Hardware

(16 Screws with Rubber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-898-1881.

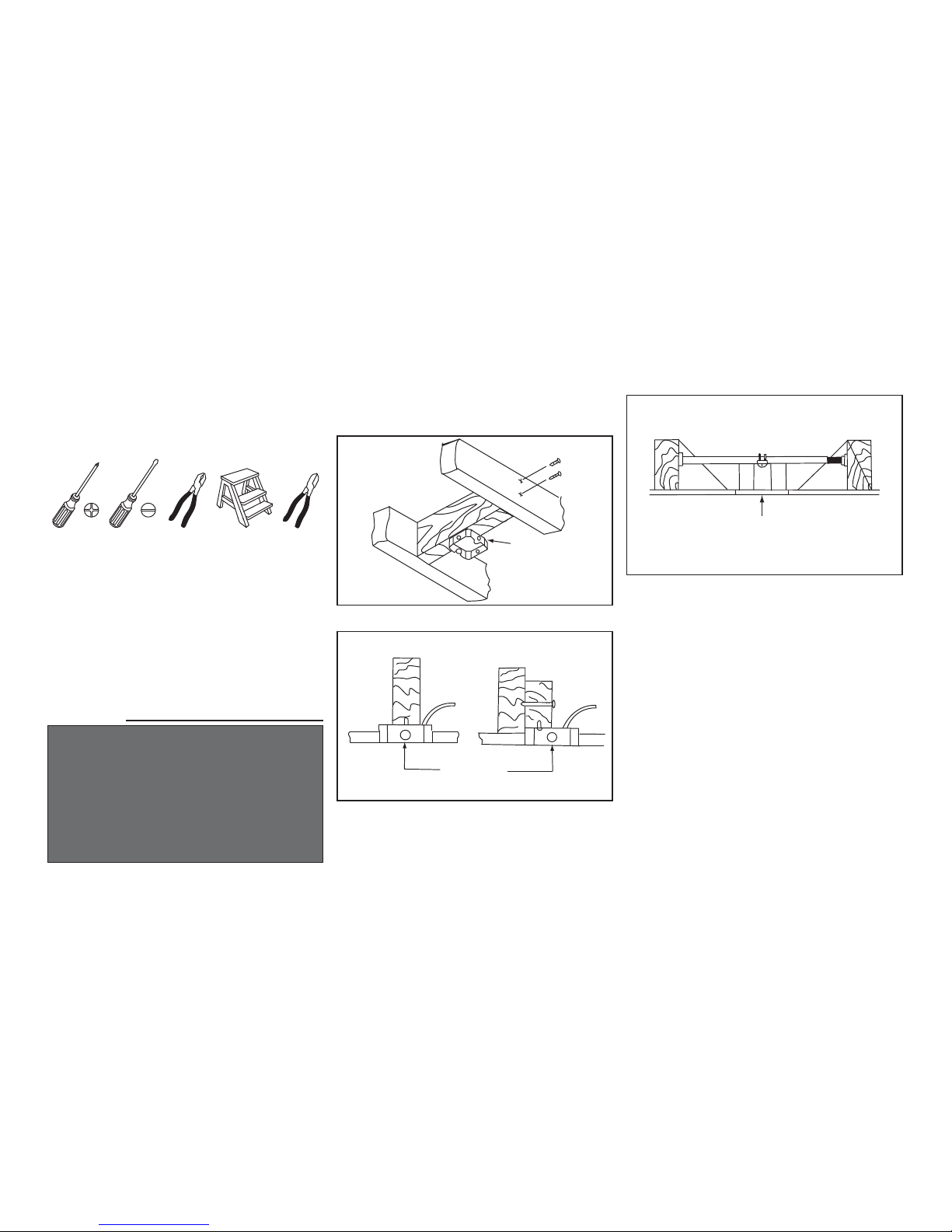

Installing Your Fan

Figure 2

Figures 1 and 2 are examples of different ways to

mount the outlet box.

Outlet Box

Figure 1 To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 3 (available at any

Home Depot retailer).

Figure 3

Outlet Box

Phillips screwdriver, straight slot screwdriver,

adjustable wrench, step ladder, and wire cutters.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan

Making the Electrical

Connections

Attach the mounting bracket to the outlet box

with two screws and washers provided with the

outlet box. Make sure the bracket is tight and

secured (Fig. 4).

Lift fan into position by hanging the motor

assembly onto the hook from the ceiling

mounting bracket allowing it to hang freely

(Fig. 5).

Connect the ground conductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan (Figure 6).

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut (Figure 6).

Connect the blue wire for light kit to the black

household supply wire.

Turn the wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and blue

wire will be on the other side, and push carefully

up into the outlet box.

Figure 5

Motor

Figure 4

Outlet Box

Mounting Bracket

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHELL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

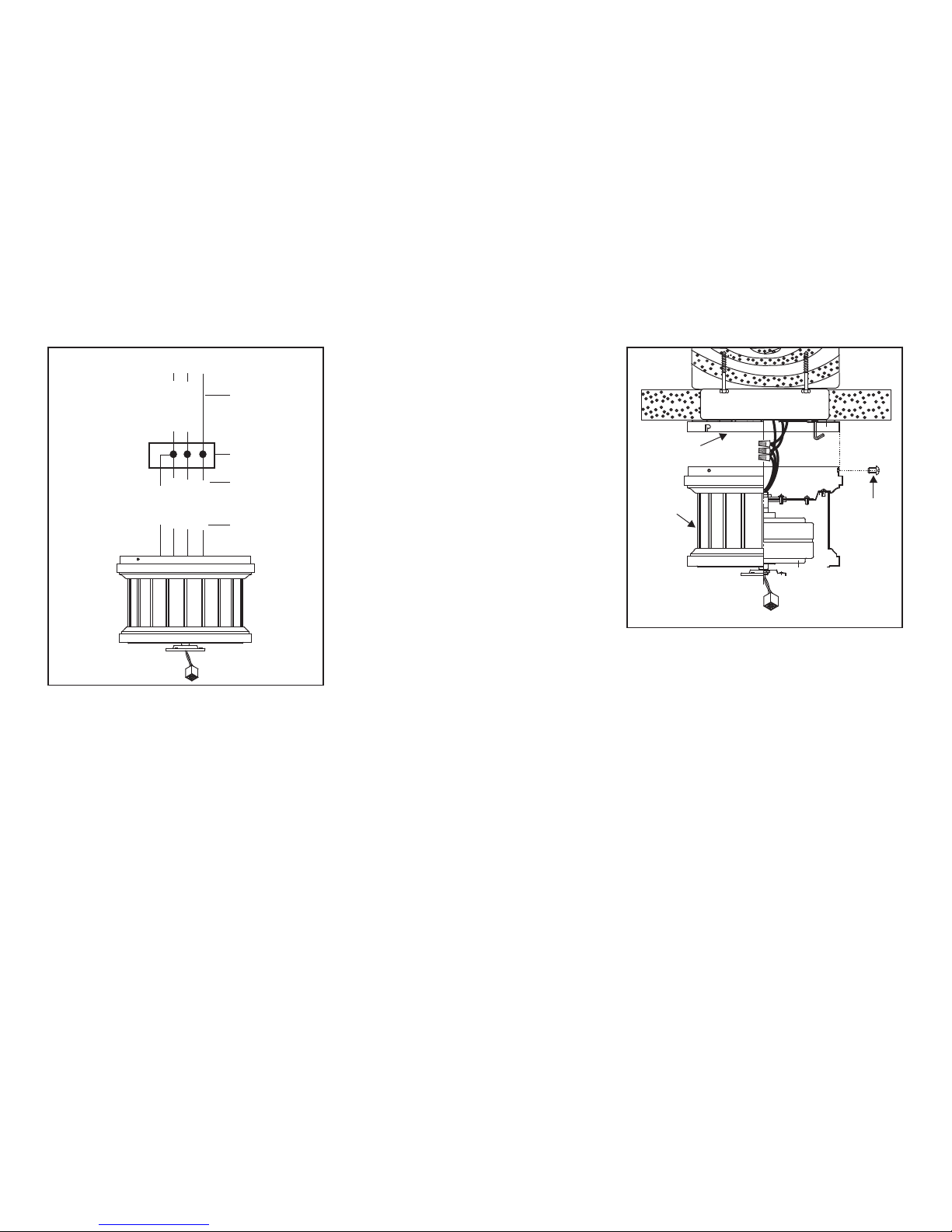

Figure 6

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green Ground

Lead

Ground to

Fan

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 7

Remove the fan from the hook on the mounting

bracket. Secure the fan assembly to the mounting

bracket with four screws included with your fan.

Be sure to tighten all screws. (Figure 7)

Finishing the Fan

Installation

Mounting

bracket

Screws

Fan

Attaching the Fan Blades

Attach blades to blade arms using three screws

with rubber washers. (Fig. 8) Start a screw into

the blade arm, do not tighten. Repeat for the 2

remaining screws and washers.

Tighten each screw securely starting with the

center screw. Make sure the blade is straight.

Repeat steps for the remaining blades.

Fasten the blade assemblies to the motor

housing by lining up the slots of the blade arms

with the tabs on the motor housing, then

tighten the two screws and washers already

installed in the blade arms. (Fig. 9)

3. Figure 8

Blades

Blade Arms

Screws with

Rubber Washers

Figure 9

Motor

Blade arm

Slot

Tab

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE ARMS WHILE

INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NO INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN BLADES.

previously loosened and the one previously

removed. (Figure 11)

Snap the wire connection plugs together.

Attaching the Switch

Housing

Remove the 1 of 3 screws from the mounting

ring and keep it for future use. Loosen the other

2 screws. (Do not remove)

Place the key holes on the switch housing over

the 2 screws previously loosened from the

mounting ring, turn switch housing until it

locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws

Figure 11

Switch Housing

Mounting Ring

Wire

Connection

Plugs Screws

Blade Balancing

Check that all blade and blade bracket screws

are secure.

Most fan wobble problems are caused when

blade levels are unequal. Check this level by

selecting a point on the ceiling above the tip of

one of the blades. Measure from a point on the

center of each blade to the point on the ceiling.

Measure this distance as shown in Figure 10.

Rotate the fan until the next blade is positioned

for measurement. Repeat for each blade.

Measurements deviation should be within 1/8˝.

Run the fan for 10 Minutes.

Use the enclsed Blade Balancing Kit if the

blade wobble is still noticeable.

The following procedure should correct most fan

wobble. Check after each step.

Figure 10

Touching Ceiling

NOTE

BEFORE STARTING INSTALLATION, DISCON-

NECT THE POWER BY TURNING OFF THE

CIRCUIT BREAKER OR REMOVING THE FUSE

AT FUSE BOX. TURNING POWER OFF USING

THE FAN SWITCH IS NOT SUFFICIENT TO

PREVENT ELECTRIC SHOCK.

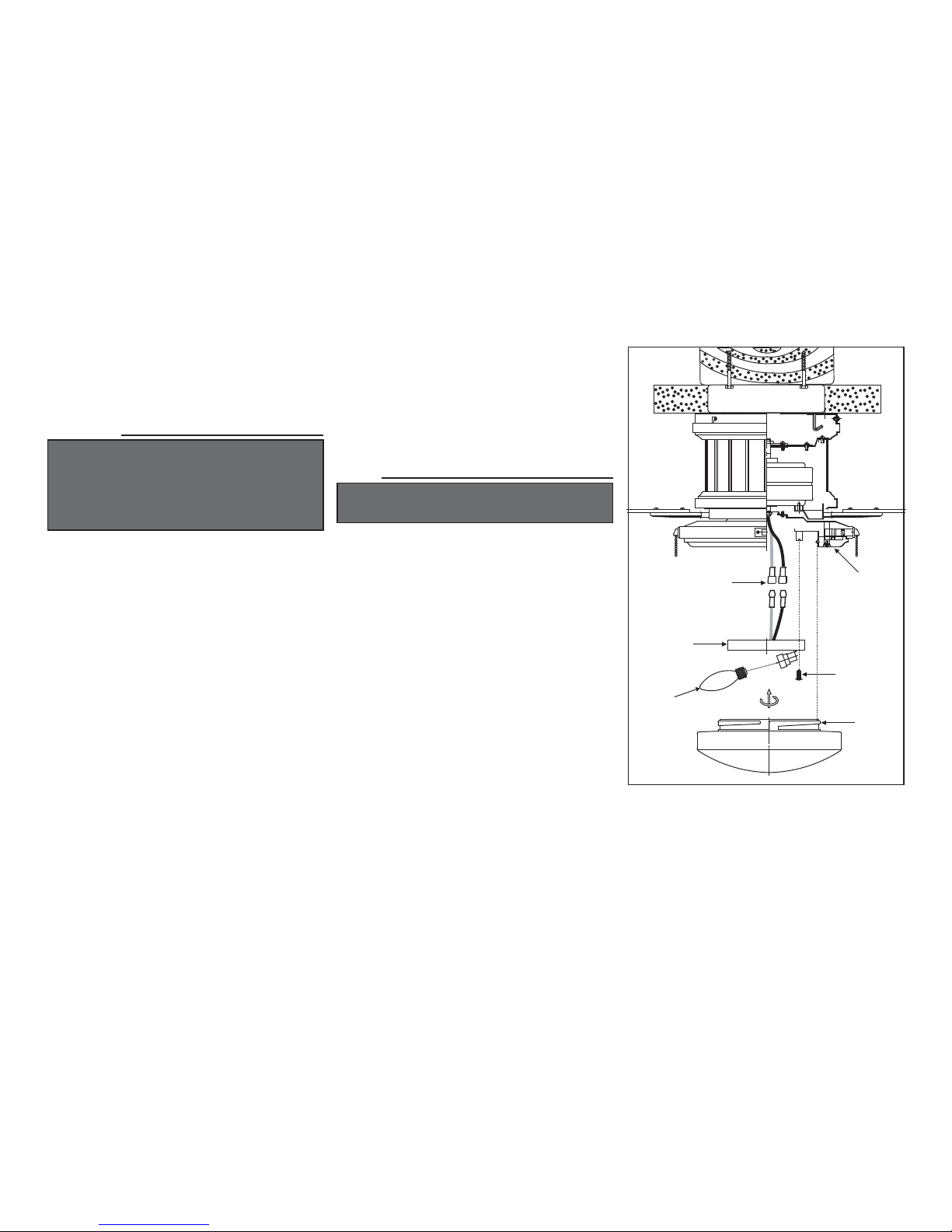

Installing the

Light Kit

Raise glass shade up against the light kit and

secure it to fan by turning glass counterclock-

wise until snug. DO NOT OVERTIGHTEN.

(Fig. 12)

Restore power and your light kit is ready for

operation.

NOTE

LIGHT BULBS HAVE NO WARRANTY; CAN BE

PURCHASED AT ANY HOME DEPOT STORE.

While holding the light plate under your fan,

locate two single white and blue wires in the

switch housing labeled FOR LIGHT. Make the

polarized plug connections:

- White to white

- Blue to black

Carefully push all wires back into the switch

housing, then install the light plate onto the

switch housing with 3 screws provided. Be

sure to tighten all screws.

(Fig. 12)

Install 3 x 40W candelabra bulbs (included).

(Fig. 12)

CAUTION

BEFORE STARTING INSTALLATION, DISCON-

NECT THE POWER BY TURNING OFF THE

CIRCUIT BREAKER OR REMOVING THE FUSE

AT FUSE BOX. TURNING POWER OFF USING

THE FAN SWITCH IS NOT SUFFICIENT TO

PREVENT ELECTRIC SHOCK.

Figure 12

Screws

Glass

Shade

Bulbs

Wire Connectors Switch Housing

Light Plate

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HAMPTON BAY Ventilateur

HAMPTON BAY

HAMPTON BAY FANELEE Manuel utilisateur

HAMPTON BAY

HAMPTON BAY WELLSTON 51360 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY METARIE II YG922B-MBK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CEVA AK363HA-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY TX-604D Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ST. DAVID 51344 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY BARROW ISLAND Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AL975-BN 593-552 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HVW-18M BK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 7136-01 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Northport 178-047 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY MYRON 36LGM-L Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 52652 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CEDAR LAKE 52109 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY YG529-WH Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Gazebo II Plus Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Clarkston Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Havenville 149*51 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Copperhead 184-860 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Glendale Manuel utilisateur

HAMPTON BAY

HAMPTON BAY METARIE II 24 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CF556A-H26 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 567-472 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY SINCLAIR 798-072 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
