EQUALIZER

Equalizer

EQUALIZER

You can customize the tone quality of your Hammond SKX eith er by adjusting the frequency curves of the Drawbars and

Extra Voices separately or using the MASTER EQUALIZER to tailor the sound of the Drawbars and Extra Voices

simultaneously.

ËWhat Is “Equalization?

“Equalization”isatermusedbysoundengineerstodescribechangesoralterationstheymaketothecharacterofsound. For

example, if a piano is being “miked,” (its sound output being picked up by a microphone) and the tone needs to sound

brighter or to have more bass, a sound engineer can increase or decrease the level of individual “frequency bands,”as they

are called, to achieve just the desired effect. The “BASS” and “TREBLE” tone controls on a home stereo amplifier can be

said to be a very elementary type of equalization. However, a true equalizer allows you control over more areas of the

frequency range than just “highs” and “lows.” The Equalizer functions of your SKX have this capability.

ËEQUALIZER Edit Menu

This Advanced FeatureMenu allows you to adjust the tone quality of the Drawbars and Extra Voices individually.

EQUALIZER EDIT Menu Parameters

There are three (3) screens to the EQUALIZER Edit Men:

1. DRAWBAR EQUALIZER

These Menu Pages allow you to adjust the tone quality of the Drawbars.

2. EXTRA VOICE EQUALIZER

These Menu Pages allow you to adjust the tone quality of the Extra Voice Groups.

3. MASTER EQUALIZER

These Menu Pages allow you to adjust the tone quality of the entire instrument.

Drawbar Equalizer

To use theEQUALIZER Edit Menu to adjust the Drawbar sounds, do the following:

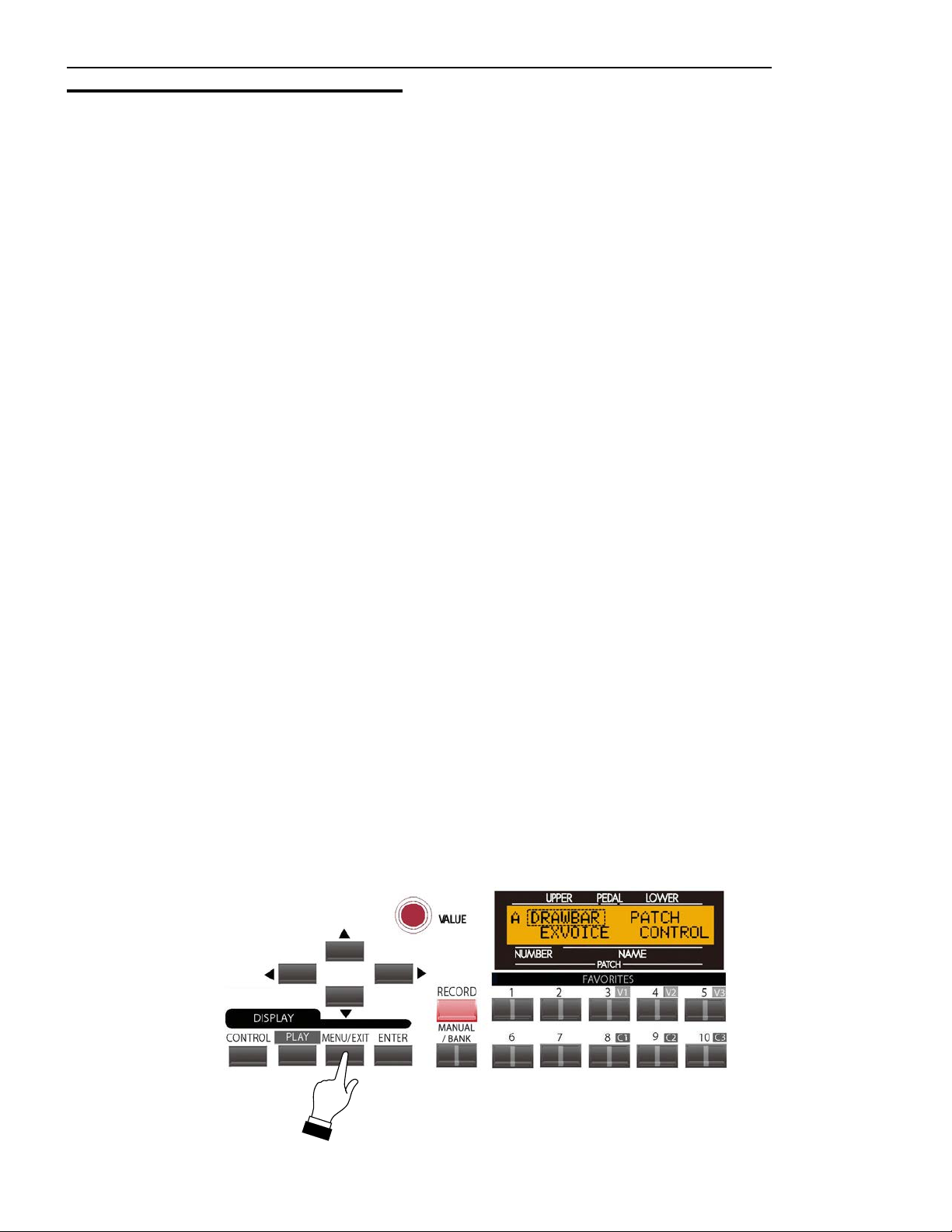

1. FromthePLAYScreen,touchtheMENU/EXITTouchButtontoseethefirstscreenoftheMENUMode.

You will see “A" displayed in the extreme upper left corner of the Information Center Display.

Equalizer

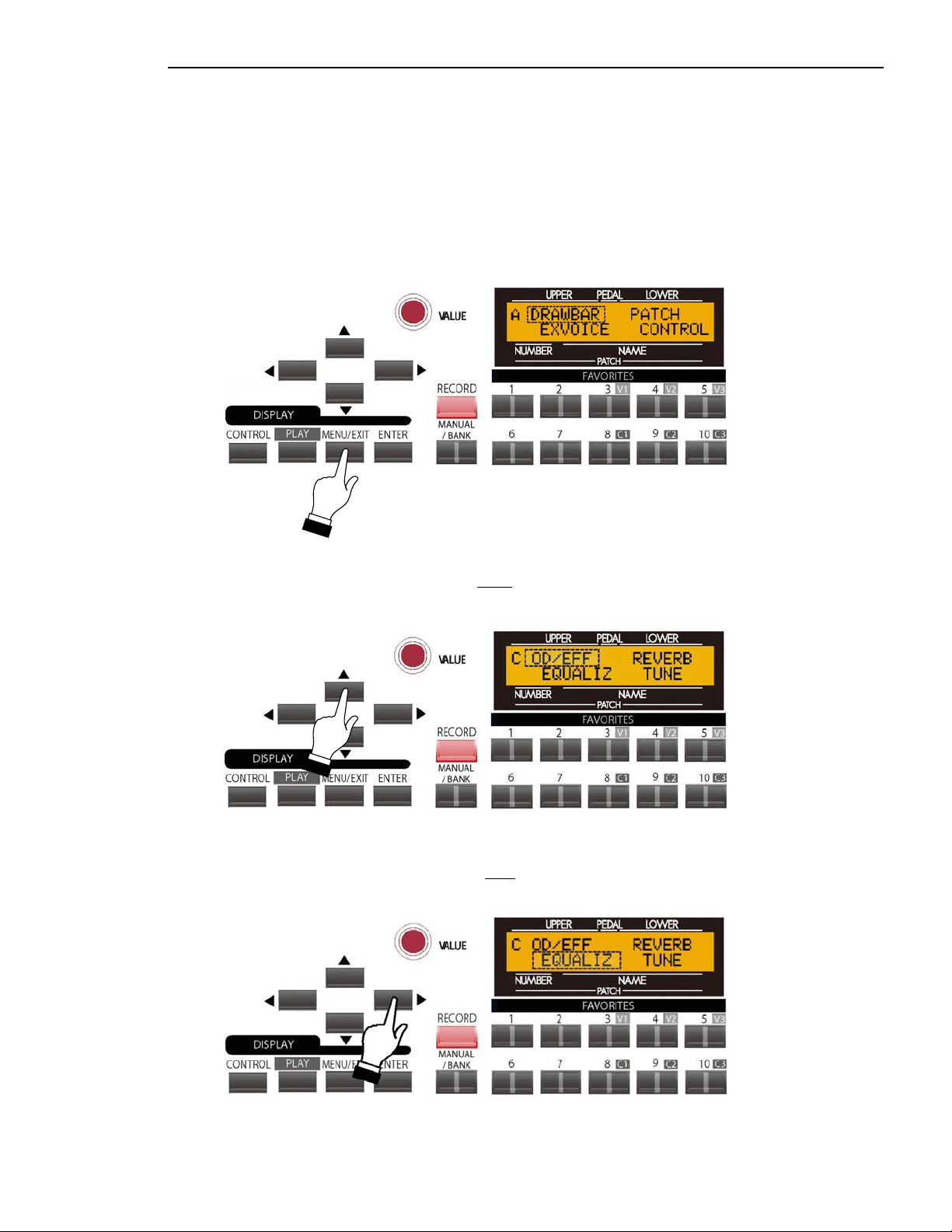

2. Touch the PAGE UP Touch Button twice. The legend, “OD/EFF” in the upper left corner of the

Information Center Display will be blinking.

3. TouchthePAGERIGHTTouchButtononce. TheInformationCenterDisplayshouldnowlooklikethis:

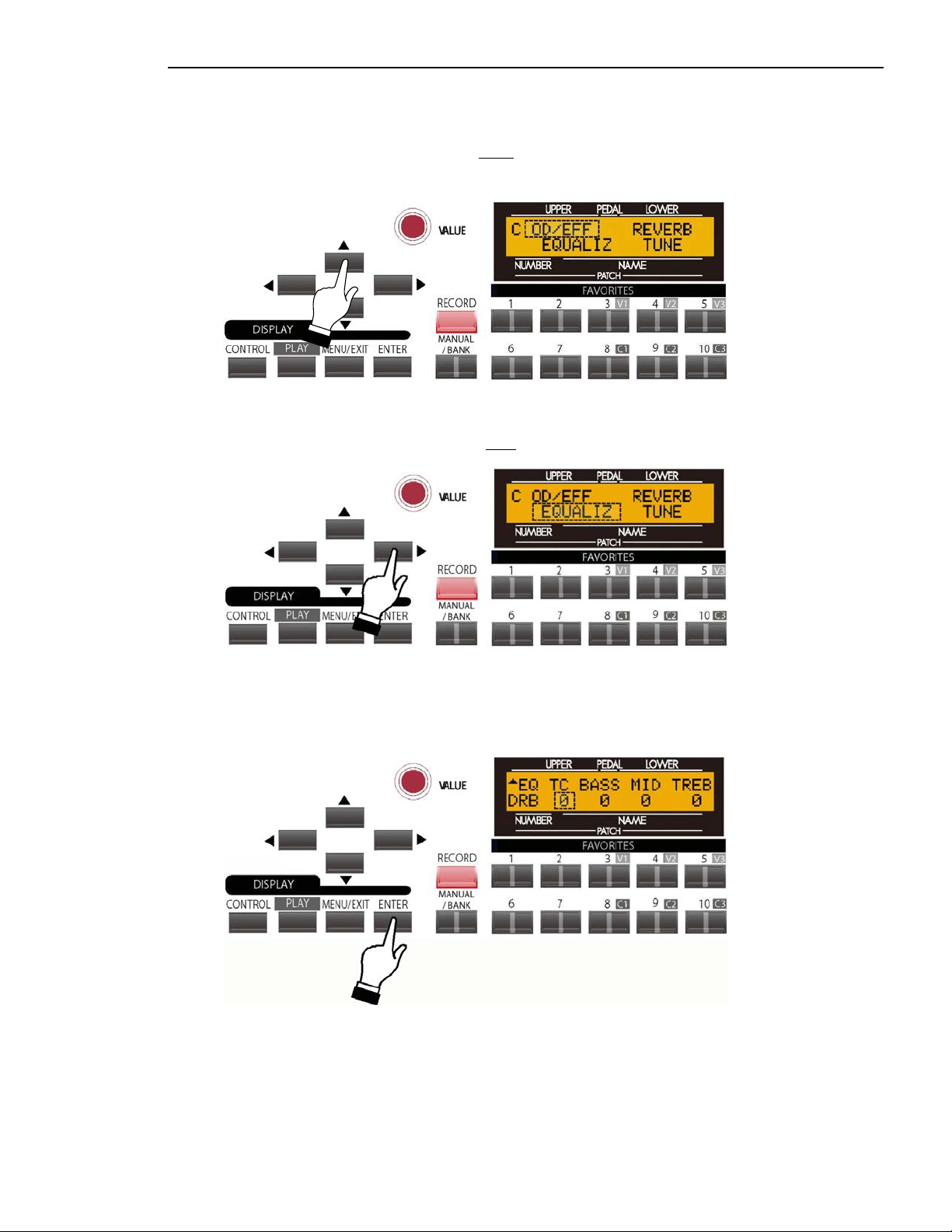

4. Touch the ENTER Touch Button. The Information Center Display should now look like this:

You are now in the first page of the EQUALIZER Edit Menu. You may now make various changes to the tonal

quality of the Drawbars. These changes are explained starting on the next page.

Equalizer

EQUALIZER Edit Menu - Page 1

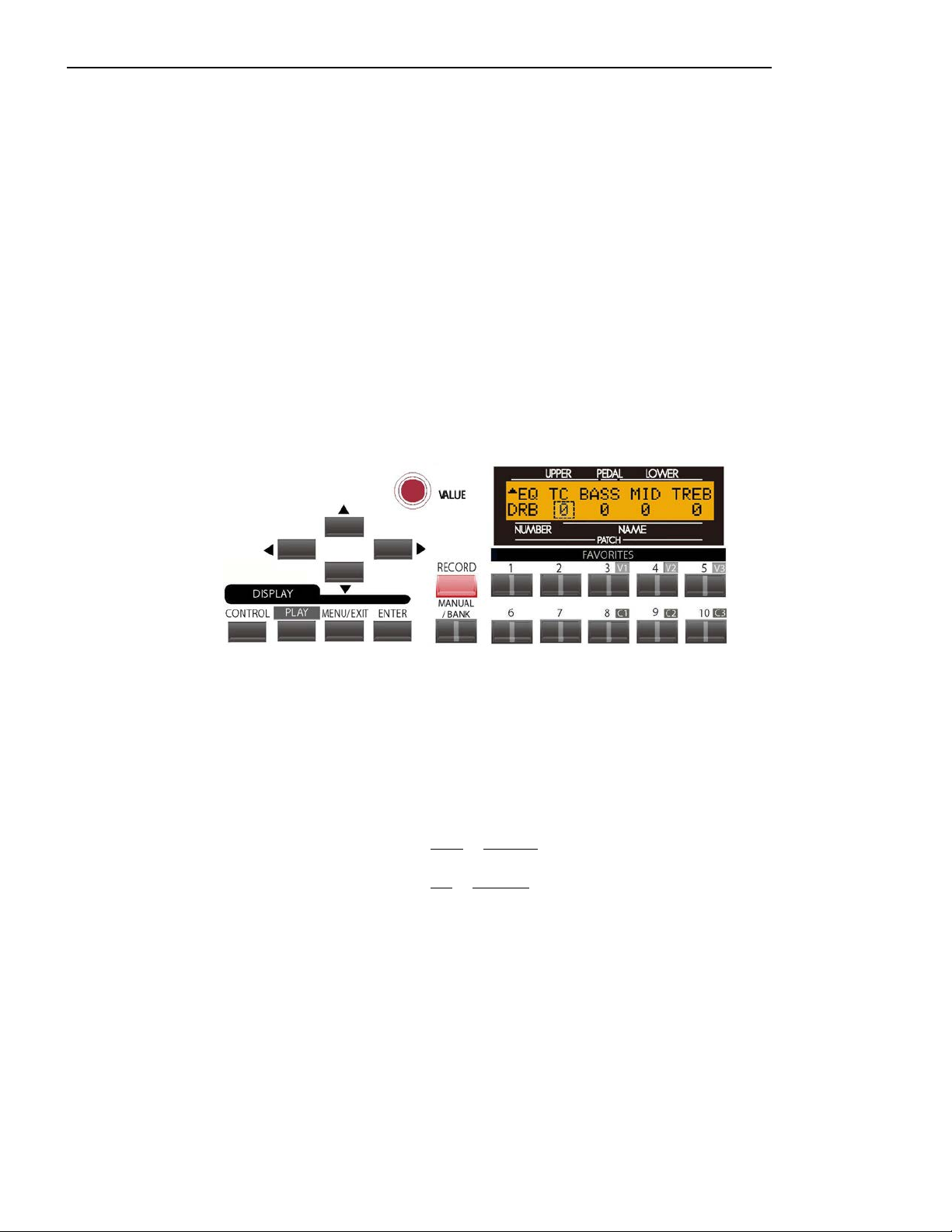

If you followed the instructions on the previous page, you should now see Page 1 of the EQUALIZER Edit Menu. The

number underneath the word “TC” should now be blinking.

Drawbar Tone Control

ThisAdvancedFeaturesimulatesthetonecontrolontheAO-28preampfoundinvintageB-3'sandC-3's. Onvintageorgans,

thiscontroladjuststhetrebleresponseabove200Hz. Youcanselectfrom“-9"(minimumtreble)to“+9"(maximumtreble).

“-1” corresponds to the maximum of the original B-3 tone control, “-5”, the middle, “-9”, the minimum. The AO-28 tone

control would only“cut” or attenuate the treble frequencies, but this Advanced Feature allows you to increase the treble as

well.

Turn the VALUE RotaryControl to the right to increase the treble frequencies.

Turn the VALUE RotaryControl to the left to decrease the treble frequencies.

Equalizer

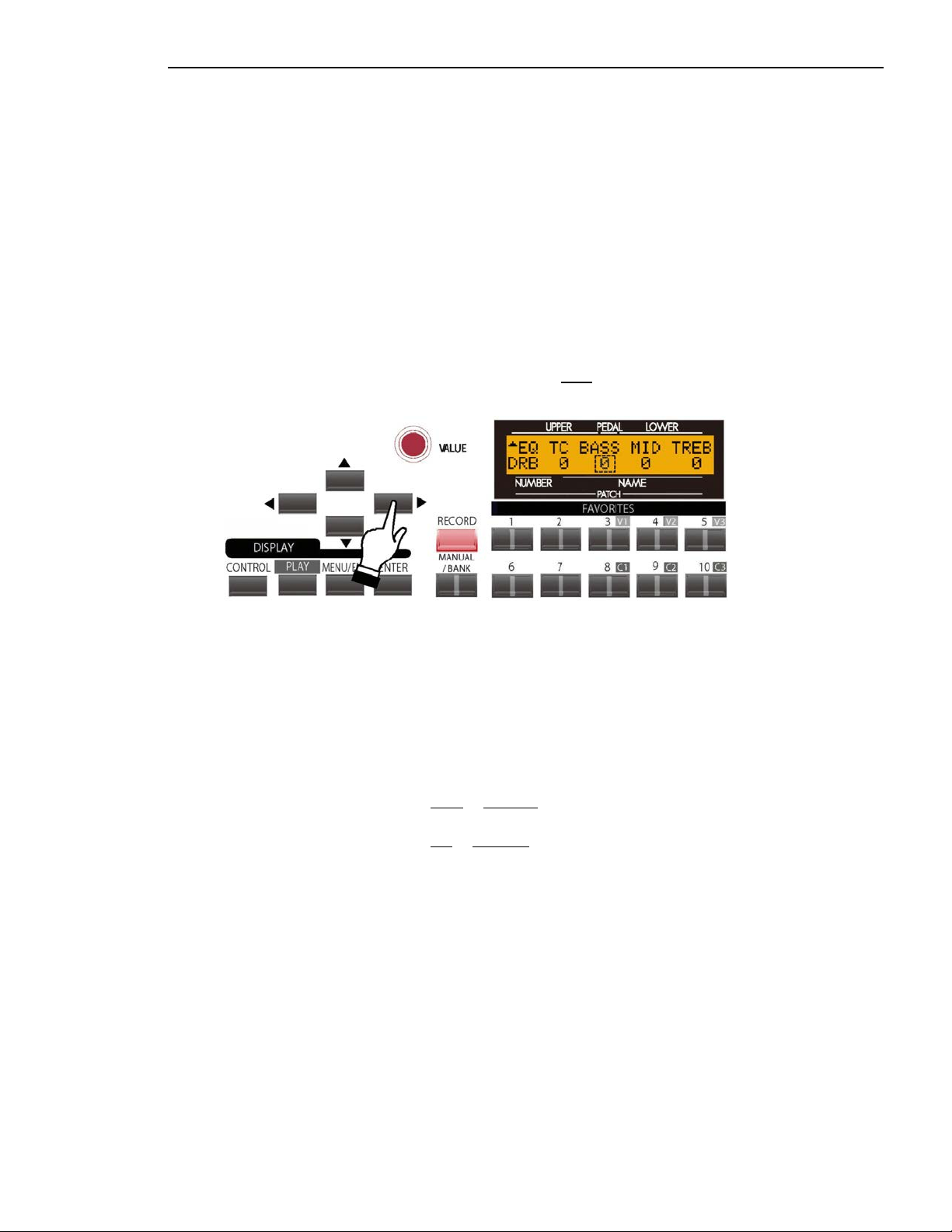

From the previous screen, touch the PAGE RIGHT Touch Button once. The number underneath the word “BASS”

should now be blinking.

Drawbar Equalizer

ThisAdvancedFeatureallowsyoutoadjusttheamountofBass,Mid-rangeandTreblefrequencies. Youcanselectfrom“-9"

(minimum amount) to “+9.” (Maximumamount). At “0,” the level is “flat.”

Use the PAGE LEFT and PAGE RIGHT Touch Buttons to move back and forth among “BASS, “MID” and

“TREB.”

Turn the VALUE RotaryControl to the right to increase the selected frequency range.

Turn the VALUE RotaryControl to the left to decrease the selected frequency range.

Equalizer

EQUALIZER Edit Menu - Page 2

From the previous screen, touch the PAGE UP Touch Button once. The number underneath the word “BASS” should

now be blinking.

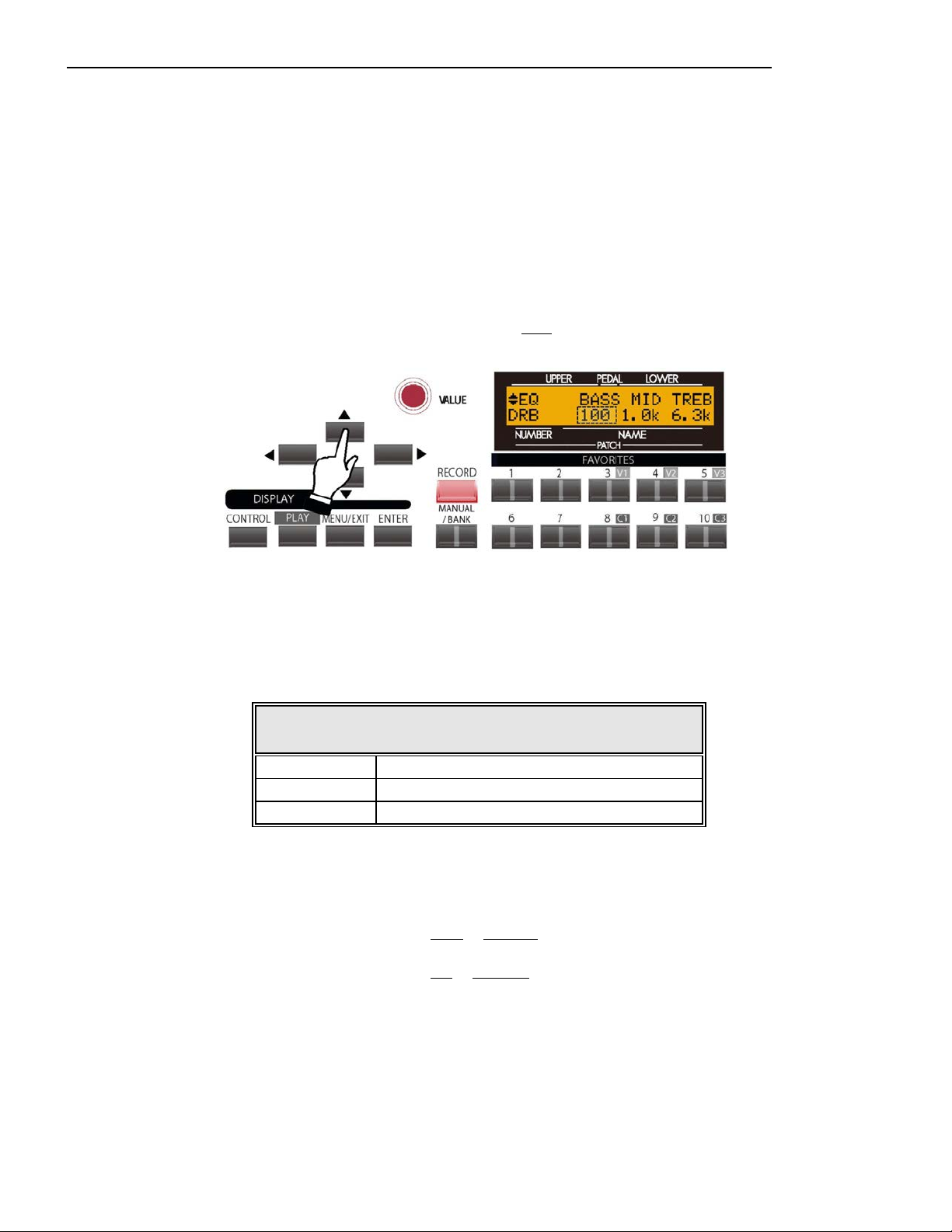

Drawbar Equalizer Central Frequency Adjust

ThisAdvanced Featureallows youtoadjustthe central frequencyofthe Bass,Mid-rangeandTreble frequencybands. The

data chart below shows the options you may select.

DRAWBAR EQUALIZER Central Frequency Options

Description Function

BASS 20Hz ~ 200Hz

MID 250Hz ~ 3.1kHz

TREB 4.0kHz ~ 8.0kHz

Use the PAGE LEFT and PAGE RIGHT Touch Buttons to move back and forth among “BASS, “MID” and

“TREB.”

Turn the VALUE RotaryControl to the right to increase the selected frequency.

Turn the VALUE RotaryControl to the left to decrease the selected frequency.

Equalizer

Extra Voice Equalizer

To use theEQUALIZER Edit Menu to adjustthe Extra Voices, do the following:

1. FromthePLAYScreen,touchtheMENU/EXITTouchButtontoseethefirstscreenoftheMENUMode.

You will see “A" displayed in the extreme upper left corner of the Information Center Display.

2. Touch the PAGE UP Touch Button twice. The legend, “OD/EFF” in the upper left corner of the

Information Center Display will be blinking.

3. TouchthePAGERIGHTTouchButtononce. TheInformationCenterDisplayshouldnowlooklikethis:

Equalizer

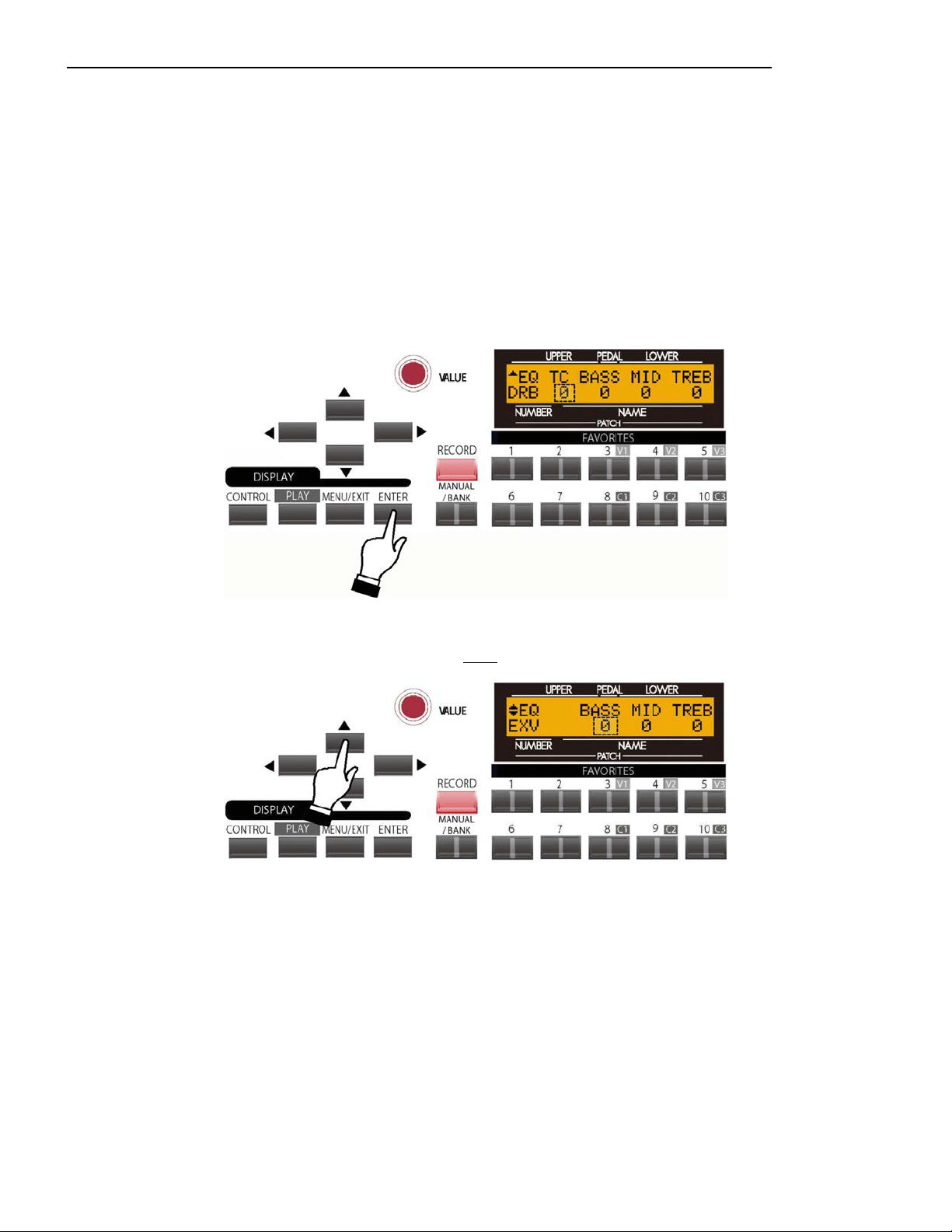

4. Touch the ENTER Touch Button. The Information Center Display should now look like this:

5. Touch the PAGE UP Touch Button twice. The Information Center Display should now look like this:

You are nowin Page 3of the EQUALIZER EditMenu. You may nowmake various changes to the tonal quality

of the Extra Voices. These changes are explained starting on the next page.

Equalizer

EQUALIZER Edit Menu - Page 3

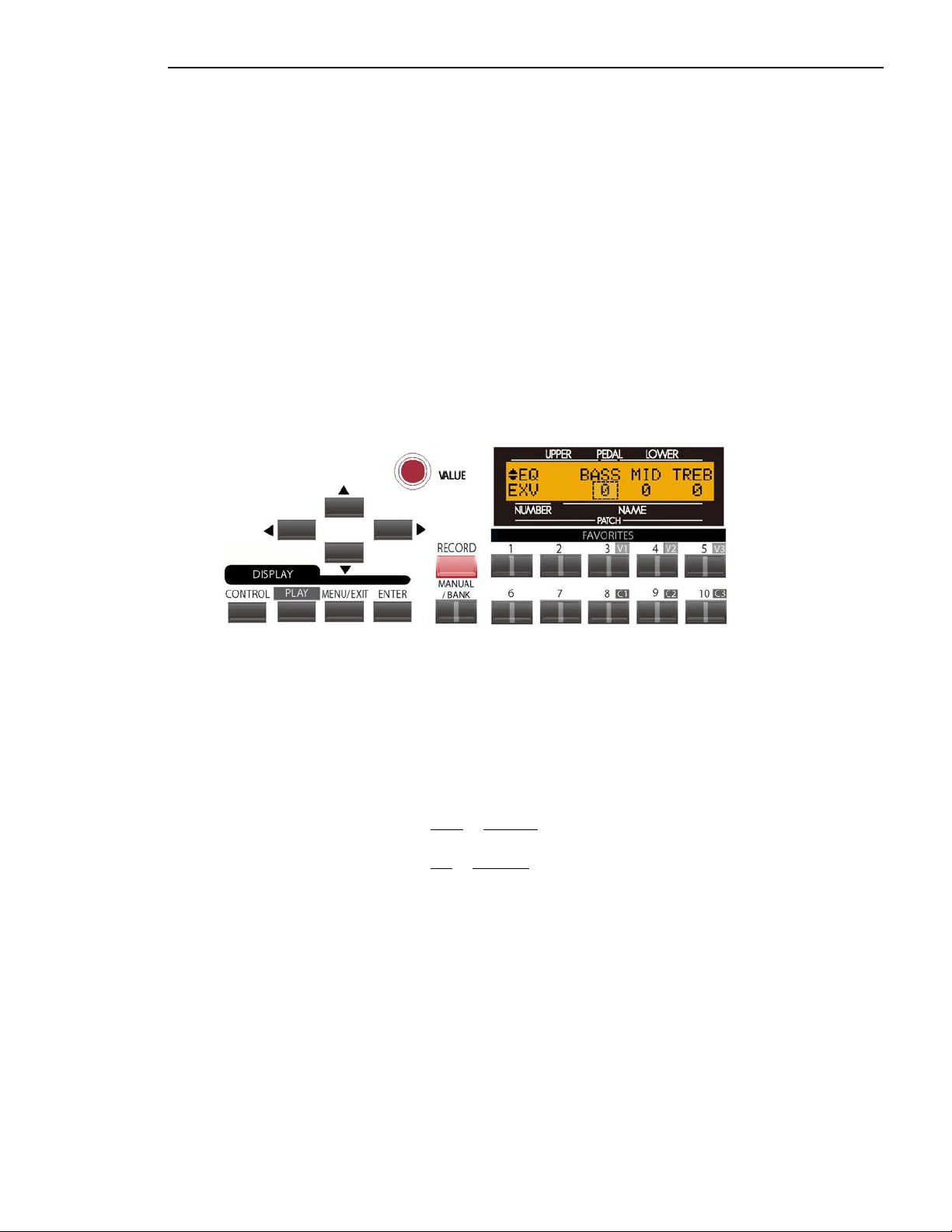

If you followed the instructions on the previous page, you should now see Page 3 of the EQUALIZER Edit Menu. The

number underneath the word “BASS” should now be blinking.

Extra Voice Equalizer

ThisAdvancedFeatureallowsyoutoadjusttheamountofBass,Mid-rangeandTreblefrequencies. Youcanselectfrom“-9"

(minimum amount) to “+9.” (Maximumamount). At “0,” the level is “flat.”

Use the PAGE LEFT and PAGE RIGHT Touch Buttons to move back and forth among “BASS, “MID” and

“TREB.”

Turn the VALUE RotaryControl to the right to increase the selected frequency range.

Turn the VALUE RotaryControl to the left to decrease the selected frequency range.
