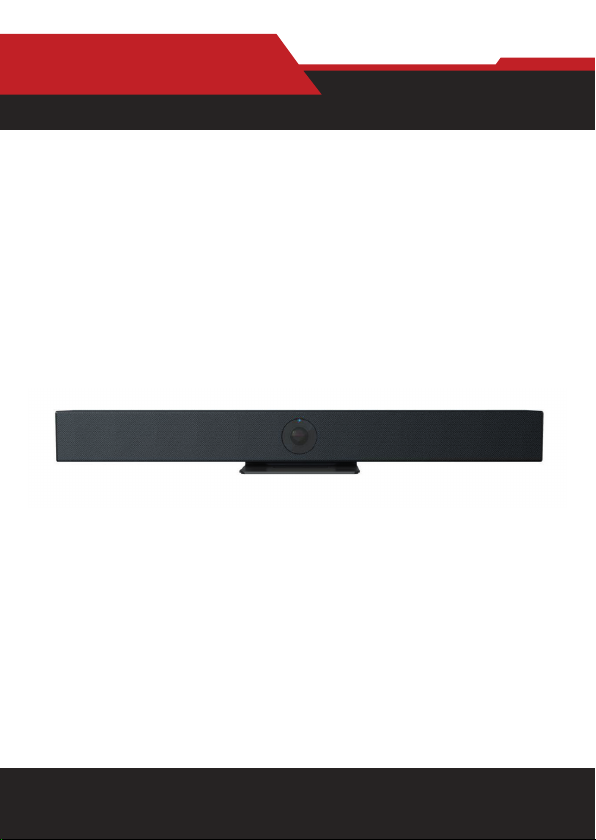

soundbar
hameco
www.hameco.eu
www.hameco.eu
HV-47 user manual
hameco
2
ATTENTION
This manual introduces functions, installation and operations for this camera in details. Please read
this manual carefully before installation and use.
1. How to use
To prevent damage to this product or any product connected to it, this product can only be used within
the specied range.
1.1 Do not expose the product to rain or moisture.
1.2 To prevent the risk of electric shock, do not open the case. Installation and maintenance should only
be carried out by qualied technicians.
1.3 Do not use the product beyond the specied temperature, humidity or power supply specications.
1.4 Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent
if needed.
Do not use strong or corrosive detergents to avoid scratching the lens and aecting the image.
2. Electrical Safety
Installation and use of this product must strictly comply with local electrical safety standards.
3. Handle with care
Avoid damage to product caused by heavy pressure, strong vibration or immersion during transporta-
tion, storage and installation.
4. Install with Caution
1.5 Do not rotate the camera head violently, otherwise it may cause mechanical failure;
1.6 This product should be placed on a stable desktop or other horizontal surface. Do not install the
product obliquely, otherwise it may display inclined image;
1.7 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or solids
which may corrode the shell.
1.8 Ensure there are no obstacles within rotation range of the holder.
1.9 Do not power on before completely installation.
5. Do not Disassemble the Product without Permission
This product contains no parts which can be maintained by users themselves. Any damage caused by
dismantling the product by user without permission is not covered by warranty.
6. Magnetic Interference
Electromagnetic elds at specic frequencies may aect the image. This product is Class A. It may
cause radio interference in household application. Appropriate measure is required.
www.hameco.eu
HV-47 user manual
hameco
3
Attentions............................................................................................. 2
1. Quick Installation Instructions....................................................... 4
1.1 Product Interface....................................................................... 4
1.2 Product Use................................................................................ 4
2. Product Overview............................................................................. 4
2.1 Product Introduction................................................................. 5
2.1.1 Dimension................................................................................ 5
2.1.2 Accessories.............................................................................. 5
2.2 Product Features........................................................................ 6
2.3 Technical Parameters................................................................ 7
3. Product Use...................................................................................... 8
3.1 Remote Instructions.................................................................. 8
3.2 Menu Settings............................................................................ 9
3.2.1 Main Menu............................................................................... 9
4. Maintenance and Troubleshooting............................................... 14
4.1 Product Maintenance................................................................ 14
4.2 Troubleshooting........................................................................ 14
5. Copyright Statement...................................................................... 15
6. Product disposal.............................................................................. 15
www.hameco.eu
HV-47 user manual
hameco
4
1. Quick Installation Instructions
1.1 Product Interface
2. Product Overview
2.1 Product Introduction
2.1.1 Dimension
1.2 Product Use
1) Installation: Fix the device to the wall, over the display screen or directly
put it on the desktop.
2) Power on: Connect the DC12V power adapter to the power input socket.
3) The USB interface is plugged into the computer, video conference terminal
or other USB input device through the USB cable, open the conference soft-
ware, select the image and audio device output and then use it ;
Figure 1.1 Product Interfaces
1. Speaker
2. Lens
3. Built-in Mic
4. Power Switch
5. Power
6.Line In
7. USB 3.0
8. Bracket
www.hameco.eu
HV-47 user manual
hameco
5
Figure 2.1 Dimension
2.1.2 Accessories
Standard accessories in the box
Accessories Standard
User Manual
5m USB2.0 Cable
Remote Control
Power Adapter
Packing List
Wall Bracket
www.hameco.eu
HV-47 user manual
hameco
6
2.2 Product Features
Features with compact design, crystal clear audio and excellent video quality,
it uses advanced AI intelligent algorithms, integrates multiple AI intelligent
framing technologies such as facial detection, sound positioning, and voice
tracking. It automatically frame the meeting participants and adjust focus
area to present the best view.
Real-time detection of the speaker’s position function enables the presenter
to be focused in the view automatically. USB plug-and-play, easy connection
to any video conferencing equipment any time any where.
It is an ideal solution for small and medium-sized meeting rooms.
• Integration: An one-piece design integrating camera, microphone, and
speaker;
• Voice Tracking: Built-in 6-mic array to achieve voice tracking function and
real-time tracking of each speaker, allowing remote participants to break the
limitation of distance and create an immersive, face-to-face experience;
• Built-in speaker: Built-in high-quality double speakers, ensure every partic-
ipant can hear clearly.
• Audio Processing: The audio processing algorithm adopts high-delity 48K
audio sampling rate, lossless audio transmission
technology, supports AEC, AGC, ANS processing, and supports 6-meters
full-duplex high-quality calls;
• Automatic Framing: Built-in face detection algorithm, automatically de-
tects participants and provides ideal framing and view;
• Ultra HD: Using 8M high-quality CMOS image sensors, collects 4K ul-
tra-high-denition images, presents clear and lifelike ultra-high-denition
videos, vividly show the expressions and actions of each speaker.
• Wide FOV: With 120 °super wide view angle and non-distortion lens to
easily cover all participants in the meeting room;
www.hameco.eu
HV-47 user manual
hameco
7
• Wide FOV: With 120 °super wide view angle and non-distortion lens to
easily cover all participants in the meeting room;
• Low noise and High Signal-to-noise ratio: Low-noise CMOS eectively
guarantees the ultra-high signal-to-noise ratio of the picture. Adopting ad-
vanced 2D and 3D noise reduction technology to further reduce noise while
ensuring image clarity;
• Compatibility: Compatible with Windows7, Windows10, Mac OS 10.10 or
higher operation system. Ideally interoperable with most popular cloud vid-
eo platforms, including but not limited to the followings: Microsoft Teams,
Skype for Business, Zoom Room and Zoom, Tencent Conference, Ding Talk,
Huawei WeLink and etc.
2.3 Technical Parameters
Module Features Description
Video Camera
Image Sensor 8 million pixel high-quality CMOS image sensor
Camera Angle 116°(D)/107.2°(H)/74.1°(V)
Zoom 5x digital zoom
Video Output Up to 4K
AI Smart
Framing Face detection & sound location & voice tracking
Audio
Microphone
Type 6-mic array
Pickup
Distance 6 meters
Audio
Processing AEC & AGC & ANS & Sound source localization
Speaker 2*7W
www.hameco.eu
HV-47 user manual
hameco
8
Module Features Description
Controller Remote Control Infrared remote control
Physical
Interfaces
USB Interface 1*USB3.0 (Type-B), compatible with USB2.0
Audio Port 1*3.5mm linear input
Power Connector HEC3800 power socket (DC12V)
Wall Bracket Standard wall mount bracket
2. Product Use
3.1 Remote Instructions
www.hameco.eu
HV-47 user manual
hameco
9
3.2 Menu Settings
3.2.1 Main Menu
Press [MENU] button in MJPG, YUY2, NV12 or H264 compression encoding
formats.
1) Language
Move the pointer to (Language) in the
main menu, press to select the
language.
2) Setting
Move the pointer to (Settings) in the
main menu, press [HOME] to get into
the exposure page as shown below.
Image style: Default/Standard/Clear/
Bright/Soft
Auto Framing: on/o
Voice Locating: on/o
Switching Mode: pan mode/movie
mode
Prompt Info: on/o
Transmission Mode: Bulk/Synchro-
nization
www.hameco.eu
HV-47 user manual
hameco
10
3) Explosure
In the main menu, move the pointer to (Exposure), and press [HOME] to enter
the exposure page, as shown below.
Mode: automatic, manual, shutter priority, brightness priority
Exposure Compensation: on/o (only valid in auto mode)
Compensation Level: -7~7 (only valid when “Exposure Compensation” is on
in automatic mode)
Backlight: On/O (only valid in auto mode)
Anti-icker: o, 50Hz, 60Hz (only valid in auto, aperture priority, brightness
priority mode)
Gain Limit: 0~15 (only valid in auto, aperture priority, brightness priority
mode)
Dynamic Range: 1~8, closed
Shutter priority: 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250,
1/350, 1/500, 1/1000 , 1/2000, 1/3000,1/4000, 1/6000, 1/10000 (only valid
in manual and shutter priority mode)
Brightness: 0~23 (only valid in brightness priority mode)
