WARRANTY
Hamar Laser Instruments, Inc., warrants each instrument and other articles of
equipment manufactured by it to be free from defects in materials and
workmanship under normal use and service, its obligation under this warranty
being limited to making good at its factory any instrument and other article of
equipment which shall, within one year after shipment of each instrument and
other article of equipment to the original purchaser, be returned intact to Hamar
with transportation prepaid, and which Hamar’s examination shall disclose to
Hamar’s satisfaction to have been thus defective; other than this express
warranty, Hamar neither assumes nor authorizes any other persons to assume for
it any other liability or obligation in connection with the sale of its products.
This warranty is not applicable to instruments or other articles of equipment
manufactured by other companies and limited by a warranty extending for less
than one year. In such an event, the more limited warranty applies to said
instrument or article of equipment.
This warranty shall not apply to any instrument or other article of equipment
which shall have been repaired or altered outside the Hamar factory, or which
has been subject to misuse, negligence, or use not in accord with instructions
furnished by the manufacturer.
The software described in this manual is furnished under a license agreement
and may be used or copied only in accordance with the terms of the agreement.
It is against the law to copy the software on any medium for any purpose other
than the purchaser's personal use.
The information in this manual is subject to change without notice. No part of
this manual may be reproduced by any means, electronic or mechanical, without
written permission from Hamar Laser Instruments, Inc.
© Copyright Hamar Laser Instruments, Incorporated, 2019
5 Ye Olde Road, Danbury, Connecticut 06810
1
R-1308 Auxiliary Target Readout - Overview
The R-1308 Auxiliary Target Readout is an accessory for the A-1519 and A-1520 Type II Unitargets.
This single-axis, lightweight readout attaches directly to the post of the magnetic target base and
connects to the auxiliary port on the side of the target, providing an excellent backup for the R-1310-900.
Note: This unit operates with Unitarget firmware version 8.021 or later. Units shipped prior to July 15,
2007 may require a firmware upgrade, available from Hamar Laser Instruments.
Target Features
•Bright LED display with up to 4 decimal places of resolution for easy target readings.
•No batteries, external power supply or charger is required. The unit is powered directly by a
connection to the Unitarget and draws a minimal amount of power directly from the Unitarget
battery. At the normal brightness setting, the target display draws less than 100 mW.
•User-selectable display allows the target position to be viewed in either inches or millimeters and in
Relative (Zero) or Absolute modes.

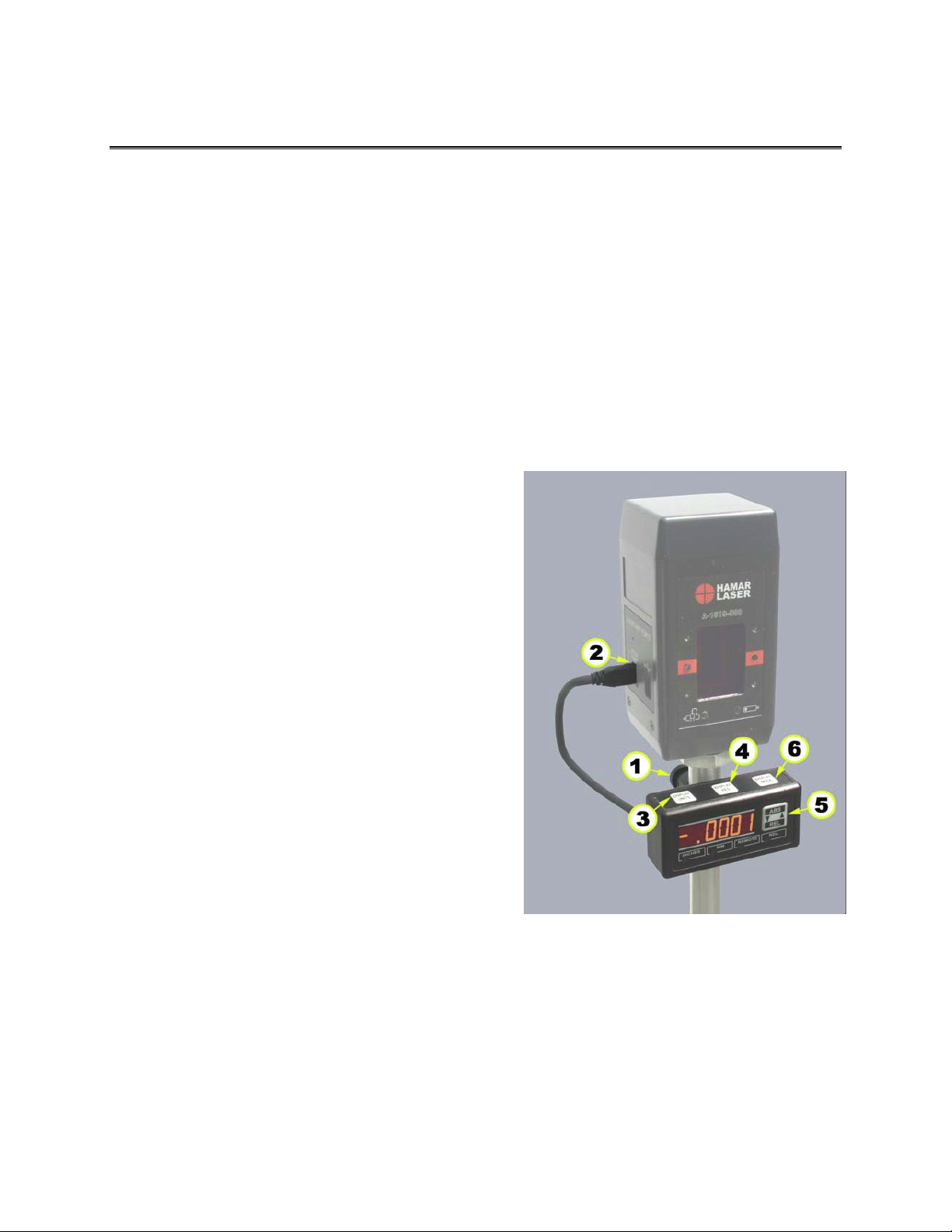

The picture at the right shows a Unitarget mounted on a
standard 5/8 in. (15.75 mm) diameter post, with the R-
1308 mounted directly beneath the target. The numerical
indicators are as follows:
(1) Locking nut
(2) Unitarget Auxiliary Port (supplies power to the
R-1308 Target)
(3) Display Units
(4) Display Resolution
(5) Zero Mode (Relative/Absolute)
(6) Display Mode (reserved for future use)
Mounting the R-1308
1. Shut off power to the Unitarget.
2. Slide the R-1308 mount on to the target post until it
is 1 in. (25 mm) or less below the base of the target.
The R-1308 can be mounted perpendicular to the
target post, as shown, or parallel to the target post for
vertical pane applications.
3. Tighten the locking nut.
4. Connect the R-1308 cable to the Unitarget Auxiliary
Port. Do not force the connection. The arrow on the
plug should face toward the back of the target.
2
Using the R-1308
1. Turn on power to the Unitarget. The R-1308 displays while it initializes. Do not proceed
until a numerical reading displays.
2. Set the Display Units by pressing the DISPLAY UNITS button to toggle between inches and
millimeters. The corresponding LED on the front panel lights.
3. Set the Display Resolution (the desired number of decimal places) by pressing the DISPLAY RES
button.
Note: The DISPLAY MODE button is not used in the standard model and is reserved for special
applications.
Zeroing the Display
1. To enable Relative position, press and hold the ABS/REL button until the display reads zero. Release
the button. The last position reading is memorized as an offset that is subtracted from all subsequent
position readings. The REL LED lights when the display shows a reading with no offset applied.
2. Press the ABS/REL button quickly to toggle between Relative and Absolute modes.
Note: The best way to zero the display without disturbing the position measurement is to place your
index finger directly behind the ABS/REL button and then push the button with your thumb, as if you
are pinching the right side of the unit.
