Assembly manual
Forwards drive warning system (7091.85)
2
Foreword
The installation procedures described
in this assembly manual may only be
undertaken by a Hako service centre or
a workshop authorised by Hako. Mem-
bers of staff with the required level of
training and expertise are only guaran-
teed in the said workshops.
This assembly manual may be used
only in conjunction with the instruction
manual of the machine.
Safety instructions
Please observe the general safety
regulations of the corresponding ma-
chine in the relevant operating manual.
Place the machine on a level surface
and secure it with the parking brake.
Switch the machine off and pull out the
key.
We would expressly advise you that no
legal claims may be asserted based on
the contents of this manual. In the case
of necessary repair work, please make
sure that only original spare parts are
used. Only original spare parts guaran-
tee constant and reliable operational
readiness of your machine. We reserve
the right to make changes in the inter-
ests of further technical development.
Valid as from: January 2019
Hako GmbH
23843 Bad Oldesloe, Germany
Hamburger Str. 209-239
Phone +49 4531 806-0
Introduction
3
Forwards drive warning system
1 Forwards drive warn-
ing system
1.1 Parts list
1x LED lamp Hella cpl.
1x decorative ring
3x EJOT-PT bolt
1x signal transmitter 24 V
2x self-tapping screw 2,9x13
1x cable harness W67
3x cable tie

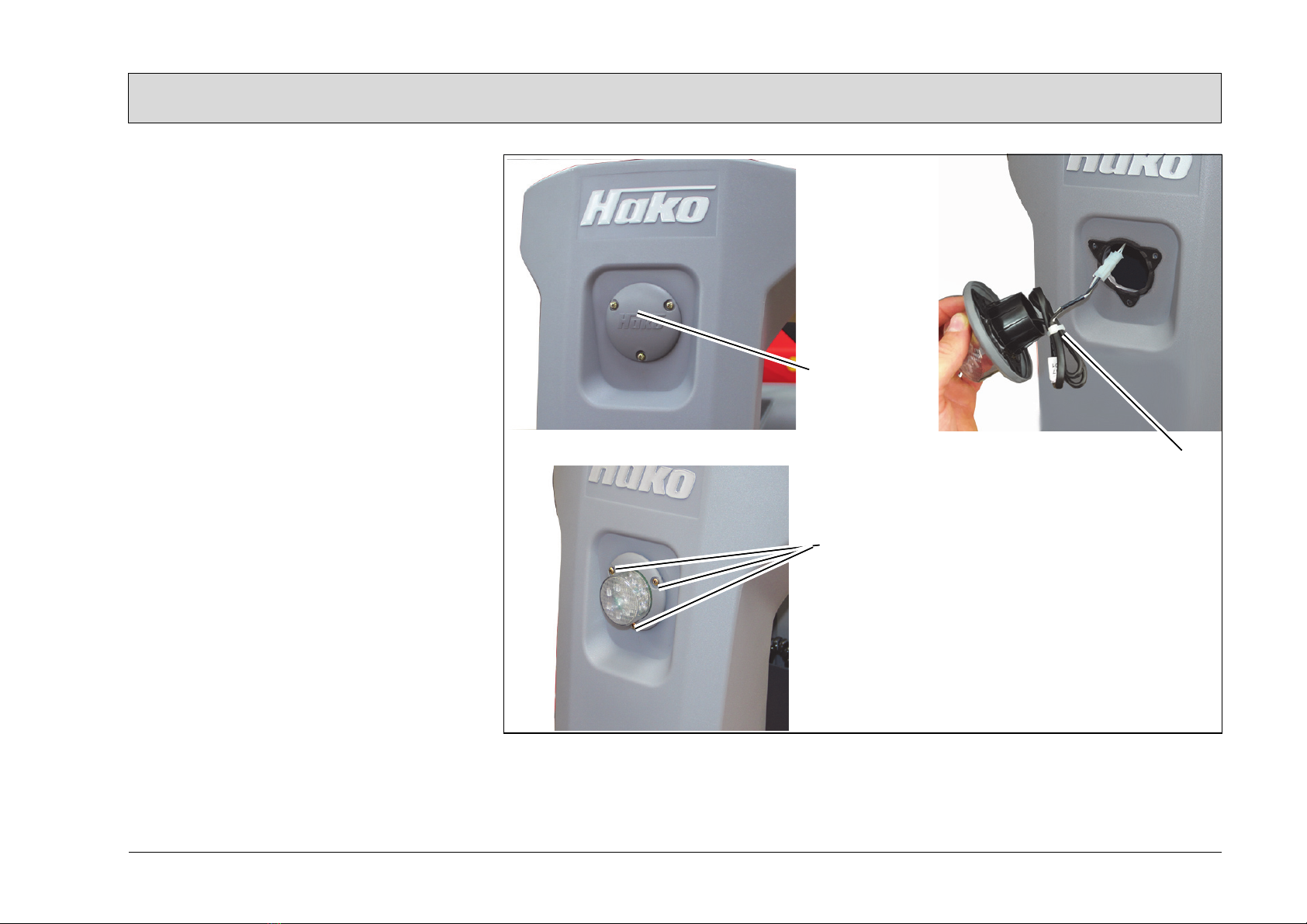

1.2 Installing the LED lamp
1. Remove the cover (Fig. 1/1) at the
steering column (bolts are no longer
required).
2. Place cable in loops and tie them
with the cable tie (Fig. 1/2).
3. Attach the LED lamp with decorative
ring and EJOT bolts to the steering
column (Fig. 1/3) with a tightening
torque of 1.1 Nm.
Fig.1
3
1
2
4
Forwards drive warning system
1.3

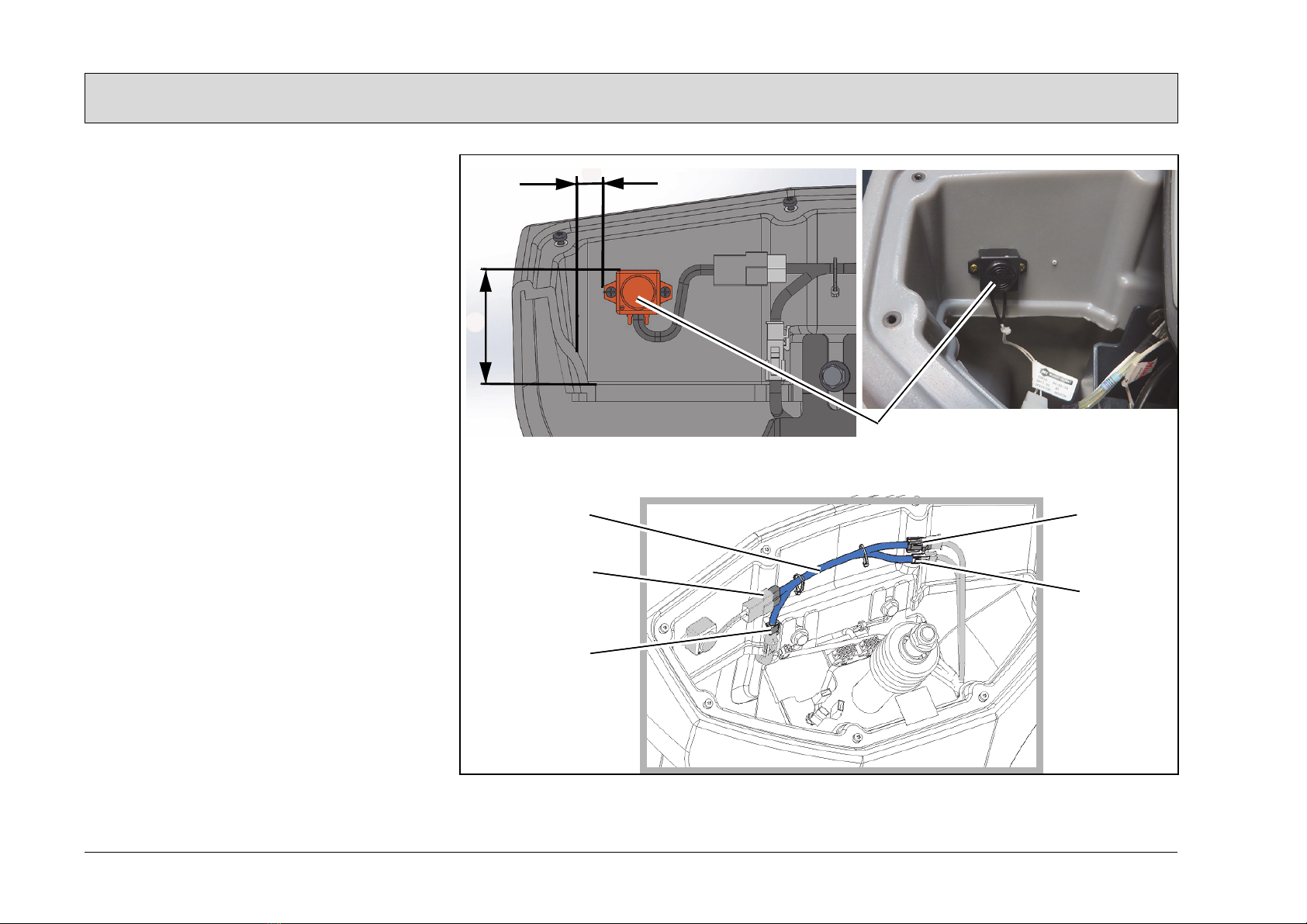

Installing the signal transmitter
1. Dismount steering wheel and control
panel.
2. Fix the signal transmitter (Fig. 2/1) to
the inside of the steering column with
the two self-tapping screws.
1.4 Installing the cable harness
W67
Place the cable harness W67 (Fig. 2/2)
in the steering tower as shown.
Connect the cable harness W67 to...
• signal transmitter P02 (Fig. 2/3)
• LED lamp E03 (Fig. 2/4)
• cable harness W3 X25 (Fig. 2/5)
• cable harness W3 X24 (Fig. 2/6)
Secure cable harness W67 to existing
cable harness with cable ties.
Fig.2
4
2
3
5
6
1
15
65
5
Forwards drive warning system
1.5 Setting in the configuration
menu
The Forwards drive warning system op-
tion must be activated via the configura-
tion menu.
Requirements:
• Batteries inserted
• 4-digit code or diagnosis plug
97097737 is present.
If diagnosis plug is used:
Connect diagnosis plug to slot X20 of
controller A1 (Fig. 4/1).
Setting:
1. Turn on the machine.
2. Select the arrow softkey (Fig. 3/3) on
the control panel using the turn-push
knob (DDS) (Fig. 3/2) and press to
access the sub-menu.
3. Select the configuration menu in the
sub-menu (Fig. 3/4).
Fig. 3
4. Enter the 4-digit code in the configu-
ration menu at the top (Fig. 3/5):
- Rotate the DDS until the required
field is reached.
- Press DDS, then rotate to adjust
the value.
- Press again to save the value.
Alternatively, use the diagnosis plug!
5. Select the value of the option under
(Fig. 3/6) in the configuration menu
and save by pressing the DDS. After
confirmation of the final digit, OK?
appears. Press the DDS again to
save the value. The saved value is
now displayed in green.
If the value is not to be saved, exit
the menu using the return button
(Fig. 3/7).
Option Value
Forwards drive warning
system
1. 1. 1.
2
1
3
4
5
6
7
