Haier HP200M3 Fiche technique

Heat pump Water Heater

Operation and Installation Manual

Model

HP200M3

HP250M3

HP250M3C

Please read this manual carefully prior to

your use of this water heater.

The appearance of the water heater given

in this manual is for reference only.

English

ELECTRICITE

Contents

1. Safety instructions ...............................................................................................................3

2. Instructions on transportation and storage........................................................................6

3. Functionings & principles .....................................................................................................6

4. Technical parameters ...........................................................................................................7

5. Description of parts and components ................................................................................8

6. Installation introduction .....................................................................................................11

7. Operation and functions .....................................................................................................24

8.Checking and maintenance..................................................................................................27

9.Faults and protection ..........................................................................................................28

10.Product Fiche .....................................................................................................................29

Dear users of Haier,

Thank you for choosing Haier products.

Please read this manual carefully and follow the operation and safety instruction to ensure

best installation and utilization of the product.

Product safety statement:

1.This appliance can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and

understand the hazards involved.

2. Children shall be closely supervised to make sure they stay

away from this product.

3.The method of installing safety valve please refer to Page 16.

4.The water may drip from the discharge pipe of the pressure

relief device and this pipe must be left open to the

atmosphere.

5.The water heater is to be drained according to the

instructions speciﬁed on page 27.

Safety instructions (to be followed at any time)

Failure to respect these instructions may lead to serious malfunctions of the

device and to risks for the user

Instructions with this warning mark shall be strictly followed during operation.

They relate to product and body safety of users.

Information provided with this banning mark relates to activities that are

deﬁnitely forbidden. Otherwise the machine may be damaged or users may

risk personal danger.

The water heater shall be

installed in strict accordance

with local wiring regulations,

and equipped with power

supply with a ground line.

Please ensure an eﬀective

ground connection.

It is recommended that the

water heater shall be installed

inside.

The water heater shall not be

installed at places where

water drainage is unavailable

or impossible.

While bathing, children must

be under guidance of an adult

person.

This water storage tank must

be equipped with a safety

valve. Its installation position

shall not be changed. To

guarantee safe operation, it

shall not be blocked at any

time.

Ground line and zero line of the

power supply shall not be

connected together. The

ground line shall not be

connected to pipeline

conveying gas or water,

lightning arresters or

telephone lines.

Interpretation of marks and symbols

English

The outlet water temperature

of a water heater is typically

higher than the temperature

indicated on the display. Hot

water shall not be pointed at

the human body immediately

after opening the hot water

valve to avoid injury caused by

hot water.

Hands or other items shall not

be put into the air grille to

avoid injury or damage to the

water heater.

Means for disconnection from

the main supply having a

contact separation in all poles

that provide full

disconnection under

overvoltage category III

conditions must be

incorporated in the ﬁxed

wiring in accordance with the

wiring rules.

If the power cord is damaged,

it shall be replaced by

qualiﬁed professionals to

avoid hazards.

Install the water heater in

strict accordance with the

installation instruction

speciﬁed on page 11-23.

Maintenance shall be carried

out according to the

instructions speciﬁed on

page 27.

Safety instructions (to be followed at any time)

The water heater is intended to be permanently

connected to the water mains and not connected by a

hose-set.

Do not install the water heater in the position where

exposed to gas, vapours or dust.

The inlet water pressure is between 0.1-0.5MPa. The

inlet water temperature is suggested between 10-30°C.

Rotate the safety valve handle

once a month. The valve

works well if there is water

ﬂowing out, otherwise check

for blocking and replace the

safety valve if necessary.

The appliance contains ﬂuorinated greenhouse gases.

Chemical name of the gas: R134a/ 0,9Kg

Fluorinated greenhouse gases are contained in

hermetically sealed equipment.

Global Warming Potential(GWP) : 1430

Water heaters shall be

equipped with a dedicated

power line and residual

current circuit breakers. The

action current shall not

exceed 30 mA;

Safety instructions (to be followed at any time)

The water drain pipe shall be in connection with the

atmosphere, it shall not be blocked; the water drain pipe

connected to a safety valve shall be installed in a frostless

environment with an continuous downwards inclination.

English

In accordance with safety rules, a safety

valve(7bar,99°C,G3/4M) must be installed on the tank. For

France, we recommend hydraulic safety units ﬁtted with a

membrane with the NF marking. The rated pressure of the

safety valve shall not exceed 0.7MPa.

If needed, please refer to the wiring diagram on page 23.

The method of connection about the appliance to the

electrical supply refer to page 21.

Instructions on transportation and storage

Functionings & principles

1. During transportation or storage, the heat pump water heater shall be packed in the

undamaged package to avoid damage to appearance and performance of the product;

2. During transportation or storage, the heat pump water heater shall be in the upright

position;

3. Under special conditions, this product may be laid down for a short time/distance as

per indication on the side of the package case. The heat pump water heater, after being

laid down for a certain time, shall be kept at upright position for more than 4 hours before

starting up.

The machine shall be kept in the upright position at any time for the best

performance !

A low-pressure liquid refrigerant is vaporized in the heat pump's evaporator and passed

into the compressor. As the pressure of the refrigerant increases, so does its

temperature. The heated refrigerant runs through a condenser coil within the storage

tank, transferring heat to the water stored there. As the refrigerant delivers its heat to the

water, it cools and condenses, and then passes through an expansion valve where the

pressure is reduced and the cycle starts over.

Compressor

Filter Expansion

valve

Fan

Evaporator

Condense

Technical parameters

Model HP200M3 HP250M3 HP250M3C

Tank volume 195L 246L 240L

Rated voltage/ frequency 220V~240V/50Hz 220V~240V/50Hz 220V~240V/50Hz

Tank rated pressure 0.7MPa 0.7MPa 0.7MPa

Corrosion protection Magnesium rod Magnesium rod Magnesium rod

Water proof grade IPX4 IPX4 IPX4

Type of extraction Ambient / Exterior Ambient / Exterior Ambient / Exterior

COP@7

℃

/ EN16147 3.04 3.02 3.10

COP@14

℃

/ EN16147 3.39 3.41 3.56

Tapping cycle L L L

Power input by electric backup 1500W 1500W 1500W

Rated power input by heat pump 495W 495W 495W

Maximum power input by heat pump 865W 865W 865W

Maximum power input 2365W 2365W 2365W

Standby power input/ Pes 27W 27W 27W

Max volume of usable hot water at 40

℃

setting at 55

℃

223L 305L 303L

Heating up time (7

℃

)5.50h 7.35h 6.92h

Heating up time (14

℃

) 4.68h 6.17h 6.00h

Default temperature setting 55

℃

Temperature setting range- with heater 35

℃

-75

℃

-75

℃

-75

℃

Maximum length of air duct

180mm

Max working pressure of refrigerant 0.8/2.8MPa 0.8/2.8MPa 0.8/2.8MPa

Refrigerant type / weight R134a/0.9kg R134a/0.9kg R134a/0.9kg

Sound power level 60dB 60dB 60dB

Ambient temperature for use of product -7~35

℃

-7~35

℃

-7~35

℃

Operating temperature of heat pump -7~35

℃

-7~35

℃

-7~35

℃

Water inlet and outlet connection G3/4"F G3/4"F G3/4"F

Safety valve connection G3/4"F G3/4"F G3/4"F

Drain & Water intlet connection G3/4"F G3/4"F G3/4"F

Product Dimensions

600*629*1692mm 600*629*1987 mm 600*629*1987 mm

Packing dimension without pallet

736*695*1810 mm 736*695*2120 mm 736*695*2120 mm

Packing dimension with pallet

736*695*1940 mm 736*695*2250 mm 736*695*2250 mm

Net/Gross weight 91/103kg 102/115kg 119/132kg

* The COP and noise level data was tested in Haier lab

Tank

Performances

Dimension and connections

English

Diameter of air duct connection

5m 5m 5m

180mm 180mm

Description of parts and components

Safety

valve

Outlet of

condensation water

Inlet for cold

water/drain

outlet

Hot water

outlet

Heat pump structure

HP200M3/HP250M3

Air outlet

Air inlet

Description of parts and components

Accessories

Part

name Heat pump

water heater Fiber

washer Drainage pipe for

condensate water

Instruction

manual

Quantity 1 511

English

Safety

valve

Outlet of

condensation water

Inlet for cold

water/drain

outlet

Hot water

outlet

Heat pump structure

HP250M3C

Circulating

entrance

Circulating

exit

Sensor pocket

Air outlet

Air inlet

Description of parts and components

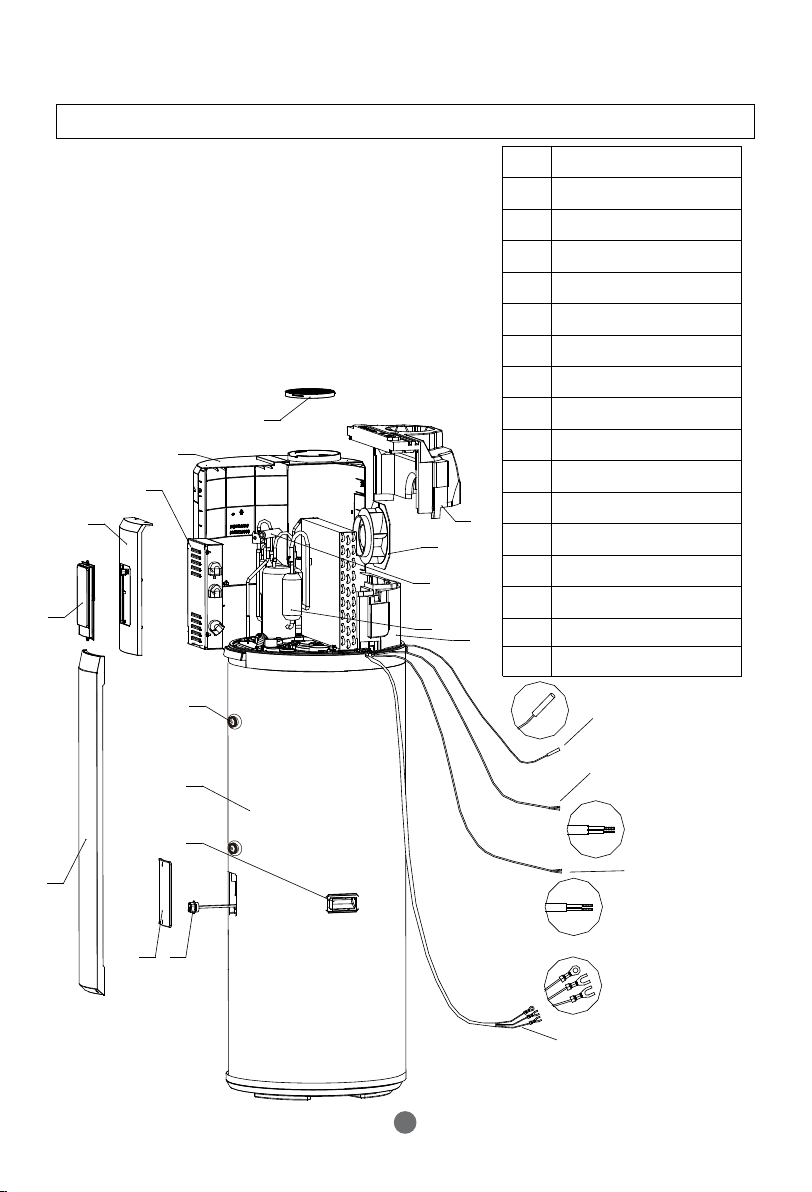

Exploded view

1 Electric heater

2 Electric cover

3 Front cover - down

4 Display panel

5 Front cover - up

6 Control box

Compressor

8 Air grille

9 Air channel - up

Air channel - down

10 Fan

11 Four-way valve

Top cover

Tank case

15 Handle

S/N Description

12 13

Solar or boiler sensor

(HP250M3C only)

(From heat pump)

Boiler signal wire

(HP250M3C only)

(2*0.75mm2,White wire)

Off-peak power

signal wire

(2*0.75mm2,Black wire)

Power cable (3*1.5mm

)

16 Sensor pocket

Autres manuels pour HP200M3

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Haier Chauffe-eau

Haier

Haier BRF1- 120 Manuel utilisateur

Haier

Haier ES100V-R1(H) Manuel utilisateur

Haier

Haier S110ENF Manuel utilisateur

Haier

Haier QBJ1-200A Instructions de montage

Haier

Haier ES10V-M1 Manuel utilisateur

Haier

Haier Little Sea-ox FCD-JTSA50-III Manuel utilisateur

Haier

Haier FCD-JTHMG80-III Instructions de montage

Haier

Haier Little Sea-ox FCD-JTHC80A-III (E) Manuel utilisateur

Haier

Haier FCD-HTHMG50-III(E), FCD-HTHMG60-III(E), FCD-HTHMG80-III(E),... Manuel utilisateur

Haier

Haier ES10V-E1 Manuel utilisateur

Haier

Haier ES15V-P1 Manuel utilisateur

Haier

Haier FCD-JTHA30-III Manuel utilisateur

Haier

Haier ES50V-F1(EU) Manuel utilisateur

Haier

Haier FCD-HM50 Manuel technique

Haier

Haier LITTLE SEA-OX FCD JTHA30- ET Manuel utilisateur

Haier

Haier FCD-JTLD100 Manuel utilisateur

Haier

Haier FCD-JTHC100A-III (E) Manuel utilisateur

Haier

Haier Sea Elephant PJF2-150W Manuel utilisateur

Haier

Haier HP150M5 Fiche technique

Haier

Haier ES10V-E1 Manuel

Haier

Haier FCD Manuel utilisateur

Haier

Haier FCD-JTLD100 Manuel utilisateur

Haier

Haier ES25HH1 (R) Manuel utilisateur

Haier

Haier HP80M5 Fiche technique

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Bradford White

Bradford White EF Series Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

Noritz

Noritz N-132M Manuel d'instructions

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur
