Owner's manual
HWM80-187S
Please read this manual carefuuly before using.
Twin-tub Washing Machine
0030508674A
Contents
Names of the parts ..............................1
Safety precautions . ............................. 2
Installation and adjustment ................... 4
Preparation before washing.................. 6
The musts in washing ............................7
Usage of the detergent ........................ 7
Washing sequence................................ 8
Disposal after washing......................... 12
Trouble-Shooting *Answer to question..15
Packing list ...........................................17
Specification .........................................18
1
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing condition
before using to guarantee your safety.
Names of the parts
Major frame
Base frame
Water-filling entrance
Wash selector
Wash timer
Water level adjusting
lever
Pulsator
Wash tub
Wash tub cover
Drain hose
Overflow filter
Valve cover
Protecting cover
Outer cover of the spin tub
Inner cover of the spin tub
Spin tub
Cabinet
Notes: All illustrations in this manual are given for reference only. Your products and
accessories may show differences from these illustrations due to our
continuous improvement.
Spin timer
Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage. Be sure to use single-phase
three pins receptacle. The earthing
terminal of the receptacle must be
earthed reliably. If possible, please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of our special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
2
Please don t use the washer in the environment below 0 C. If the washer is
below 0 C, the washer s water inlet system and draining system will be
frozen ,then result in the damaged of the whole machine. If the washer has
below 0 C, please be sure to ensure the washer is placed under the room
temperature for 2~4 hours and then use .
It is suggested to use foamless washing powder.
Please put down the drain hose before washing and
connect the water inlet pipe properly.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
3
Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Install the lint filter
After opening the package, please take out the lint
filter from the document bag, install it to the overflow
filter of the wash tub. See to the figure.
4

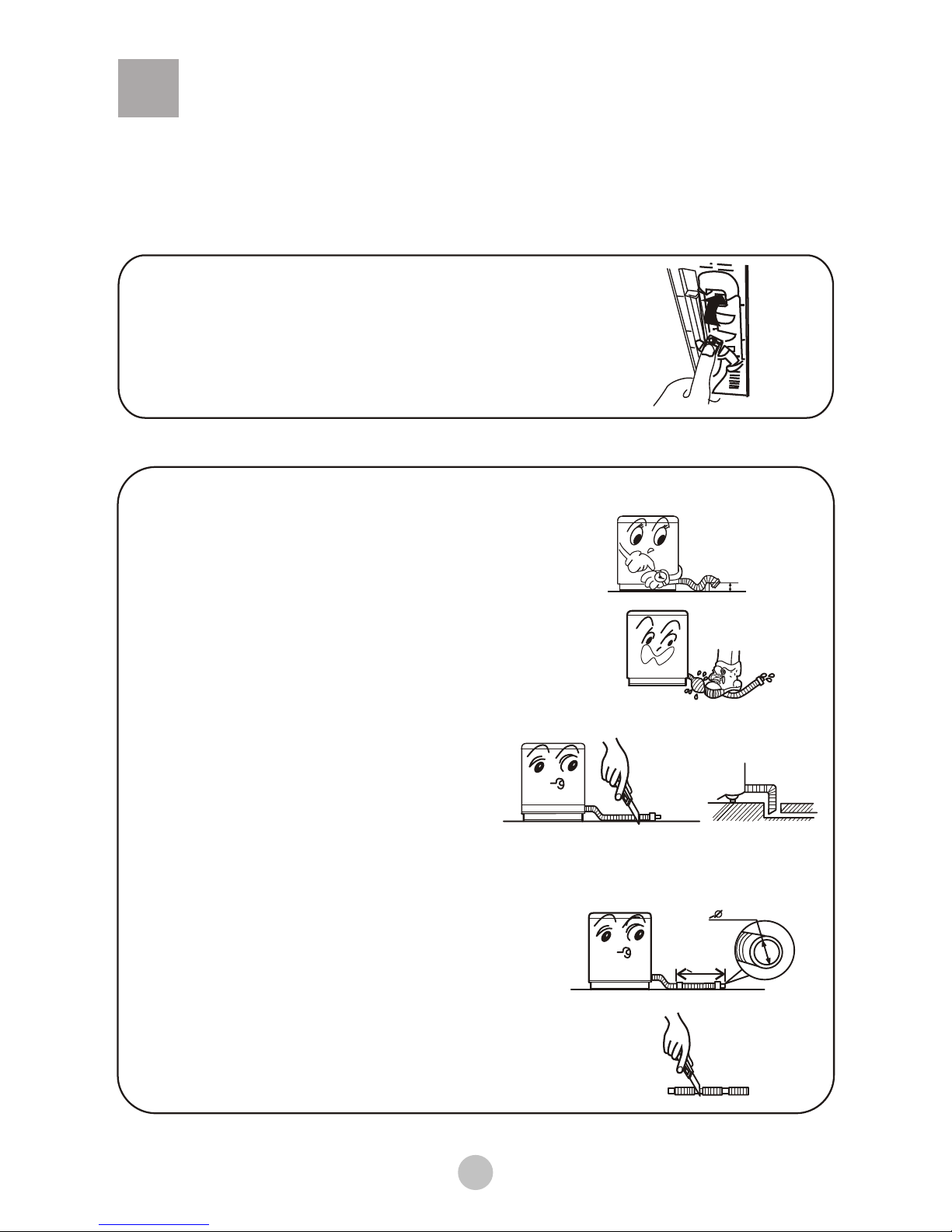

Usage of the drain hose
If the extra hose is too long, cut it either
at point A or B.
BA
> 30mm
<1.5m
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.
<10cm
5

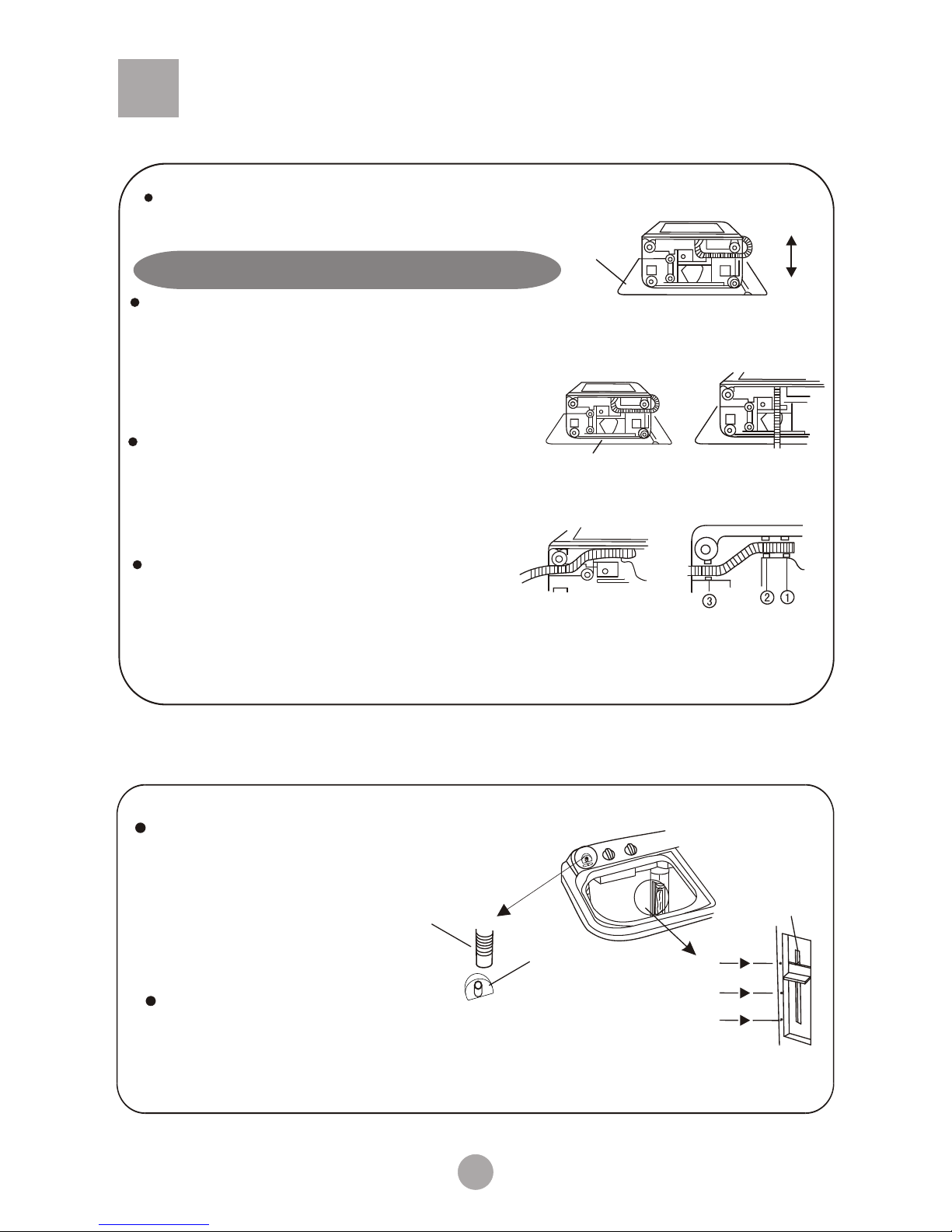

How to change the direction of the drain hoses
Install the water inlet hose; Select the water level
Insert the water inlet hose into the water-filling
entrance on the control pane directly.(pull it
out to dismantle it)
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Water inlet hose
Water inlet
Maximum Max
Minimum Min
Medium Med
Water level
indicator
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the
side of the spin tub in the order of (1)~(3), heading
for the side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Figure 1
Extend the drain hose from the side of spin tub
Figure 2
Soft item
Figure 3
Embed into the
groove in turn
Extend to the
spin tub side
Soft item
Back
Front
Preparation before washing
6
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.

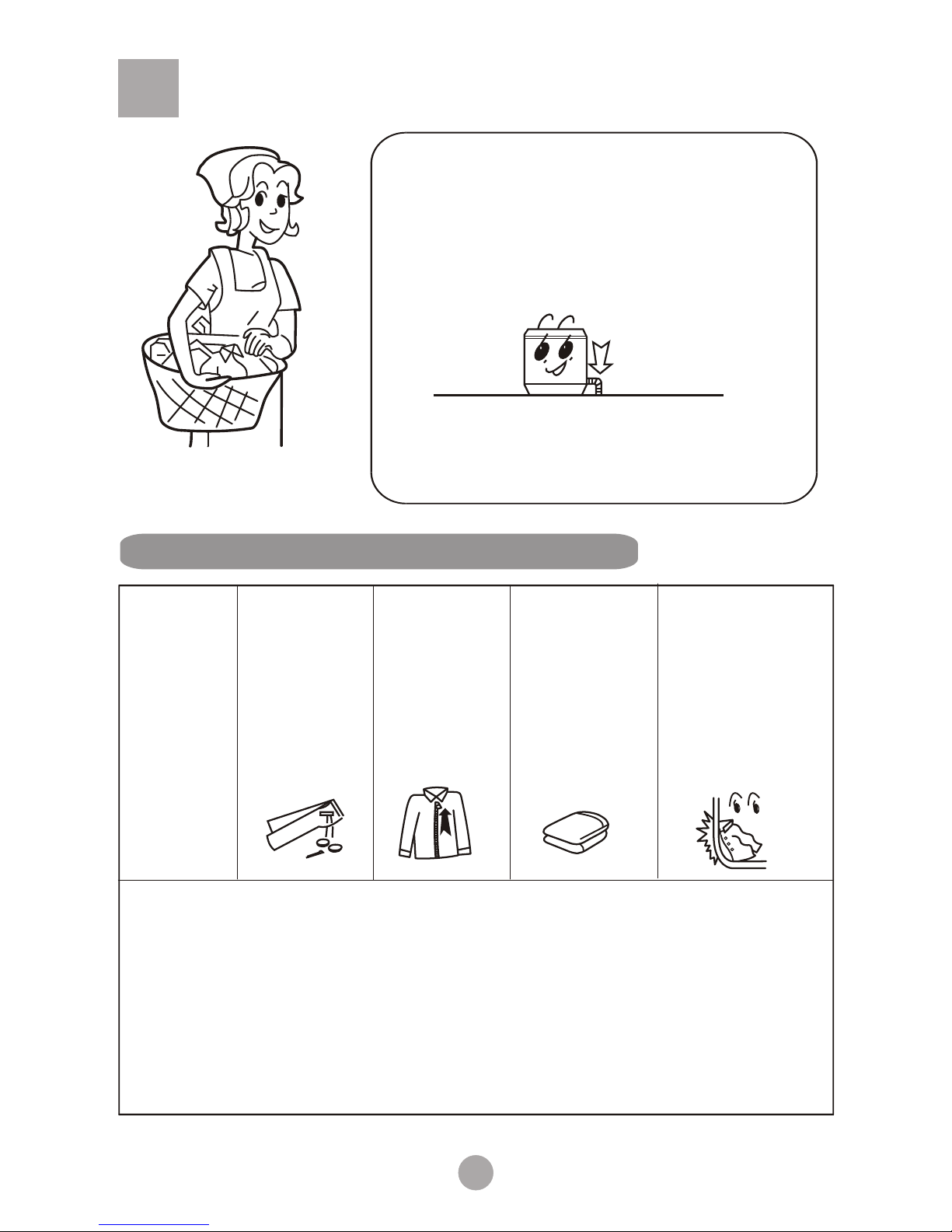

Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
The musts in washing
7
The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that can
be washed or spinned in one time. Laundries
quantity in one washing cycle shall be lower
than the rated capacity.
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Maximum " water level for
laundries less than 1.0kg, so as to avoid
splashing of water.
How to use the whitener
Fill water to decided level. Dilute
the whitener with container.
Pour it slowly into the washing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
How to use the washing powder
Usage of the detergent

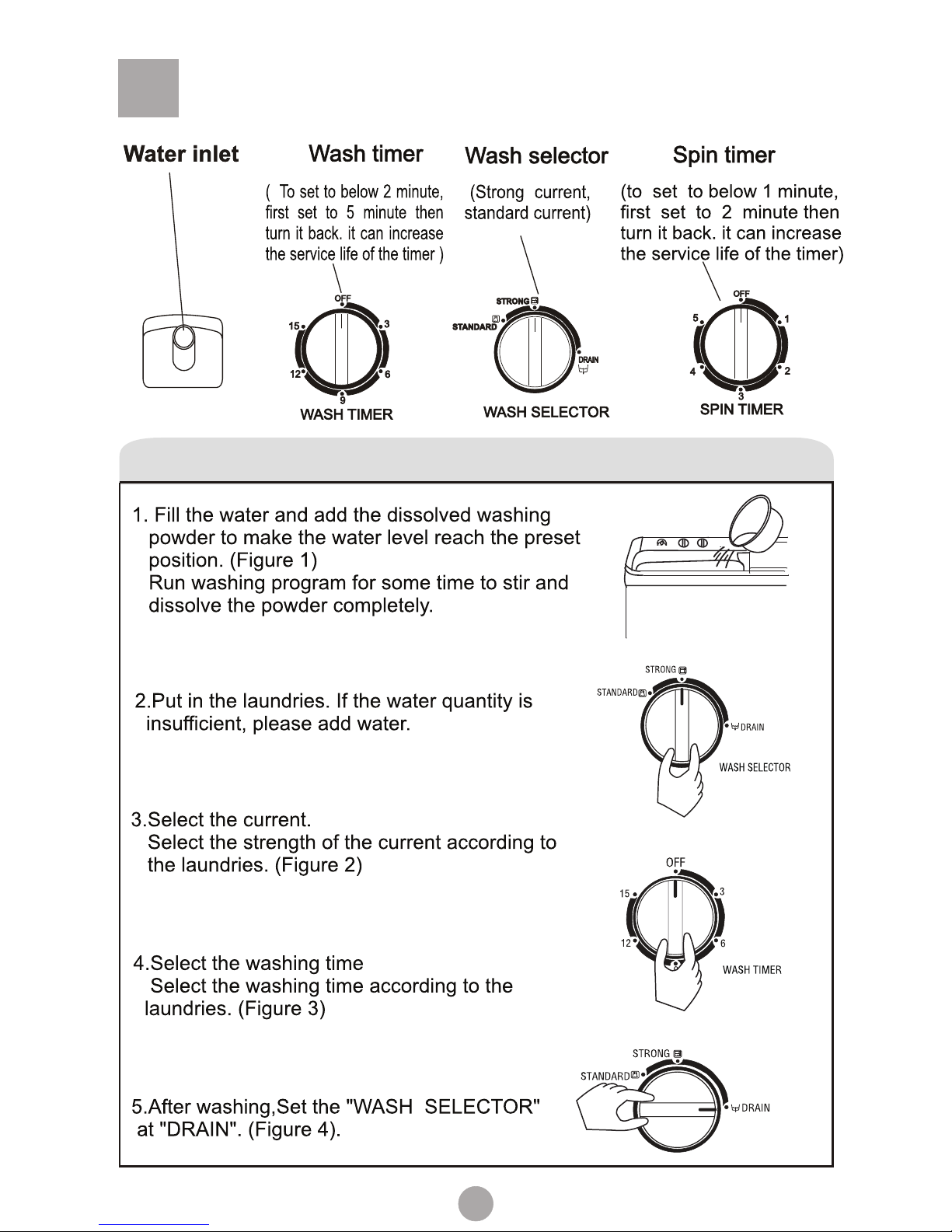

Washing sequence
8
Wash
Figure 4
Figure 3
Figure 2
Figure 1
9
Ï´µÓÐëÖª
Midway spinning
Push
Push
Proper Proper
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundries
are slanting
Gland
No gland
1.Put the laundries into the spin tub evenly and smoothly.
2.Spin£º (1) Put the gland in properly.
Please put in the gland properly even if the
laundries quantity is small.
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
Autres manuels pour HWM80-187S
1
Table des matières
Autres manuels Haier Rondelle
Haier
Haier HW-C860TVE Manuel utilisateur
Haier
Haier HWM50-23BS Manuel utilisateur
Haier
Haier HW-D1470TVE ME Manuel utilisateur
Haier
Haier HWM75-1279 Manuel utilisateur
Haier
Haier HWM20-0701 Manuel utilisateur
Haier
Haier RW-S1000F3 Manuel utilisateur
Haier
Haier HL1400TXV Manuel utilisateur
Haier
Haier HMS1000B Manuel utilisateur
Haier
Haier HW80-B14266 Manuel utilisateur
Haier
Haier HWM30-22P Manuel utilisateur
Haier
Haier HNS1000TVE Manuel utilisateur
Haier
Haier HW-C1470TVE ME-U Manuel utilisateur
Haier
Haier HW100-B14636N Manuel utilisateur
Haier
Haier HW80-IM12826TNZP Manuel utilisateur
Haier
Haier HW80-1482 Manuel utilisateur
Haier
Haier XPB70-113S Manuel utilisateur
Haier
Haier HLT364XXQ - Genesis Washer Manuel utilisateur
Haier
Haier HWM50-0528 Manuel utilisateur
Haier
Haier JW-K70F Manuel utilisateur
Haier
Haier SIG100-97 Manuel utilisateur
