Haier HWM75TLA Manuel utilisateur

TABLE OF CONTENTS

PAGE

IMPORTANT SAFETY INSTRUCTIONS.............2,3

OPERATING INSTRUCTIONS....................................4

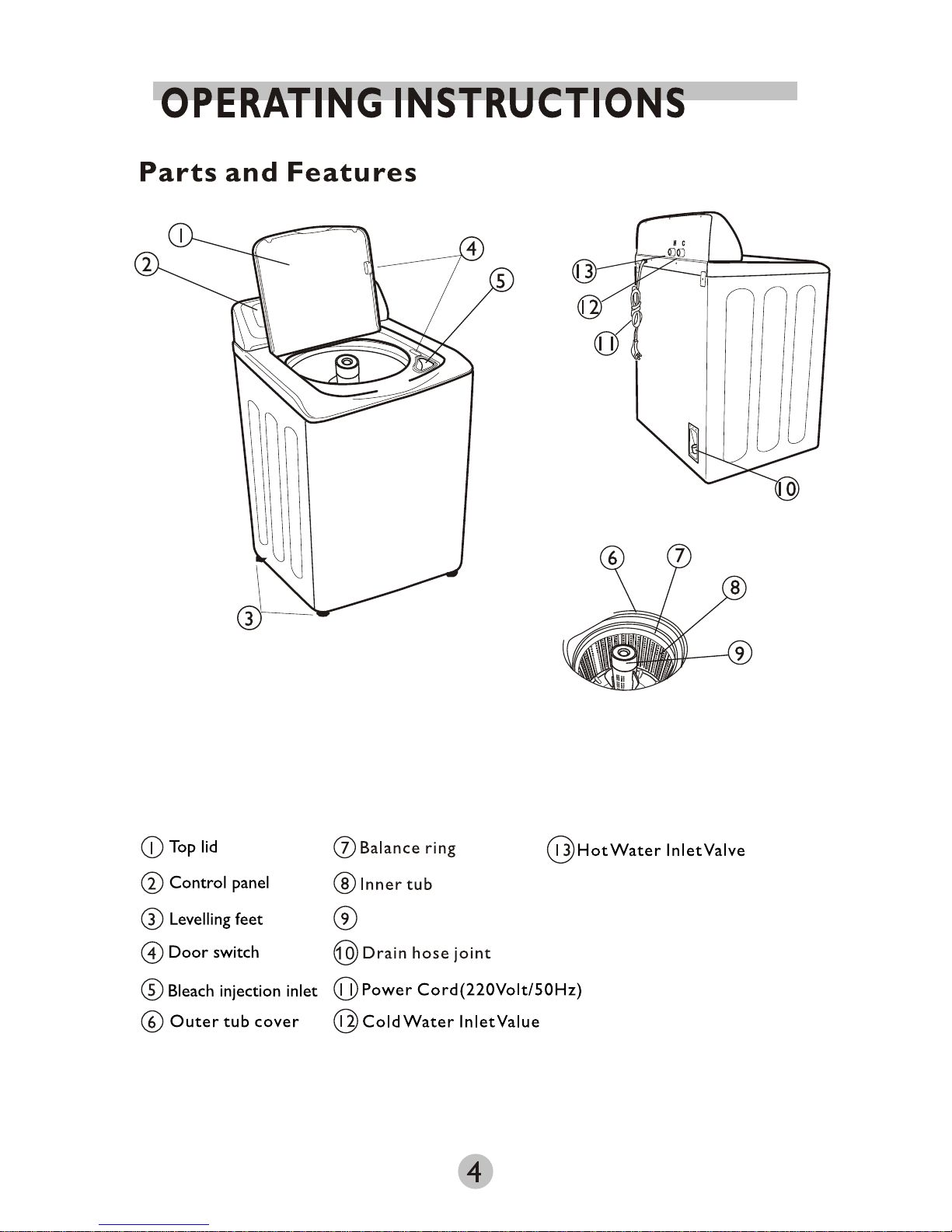

Parts and Features...........................................................................4

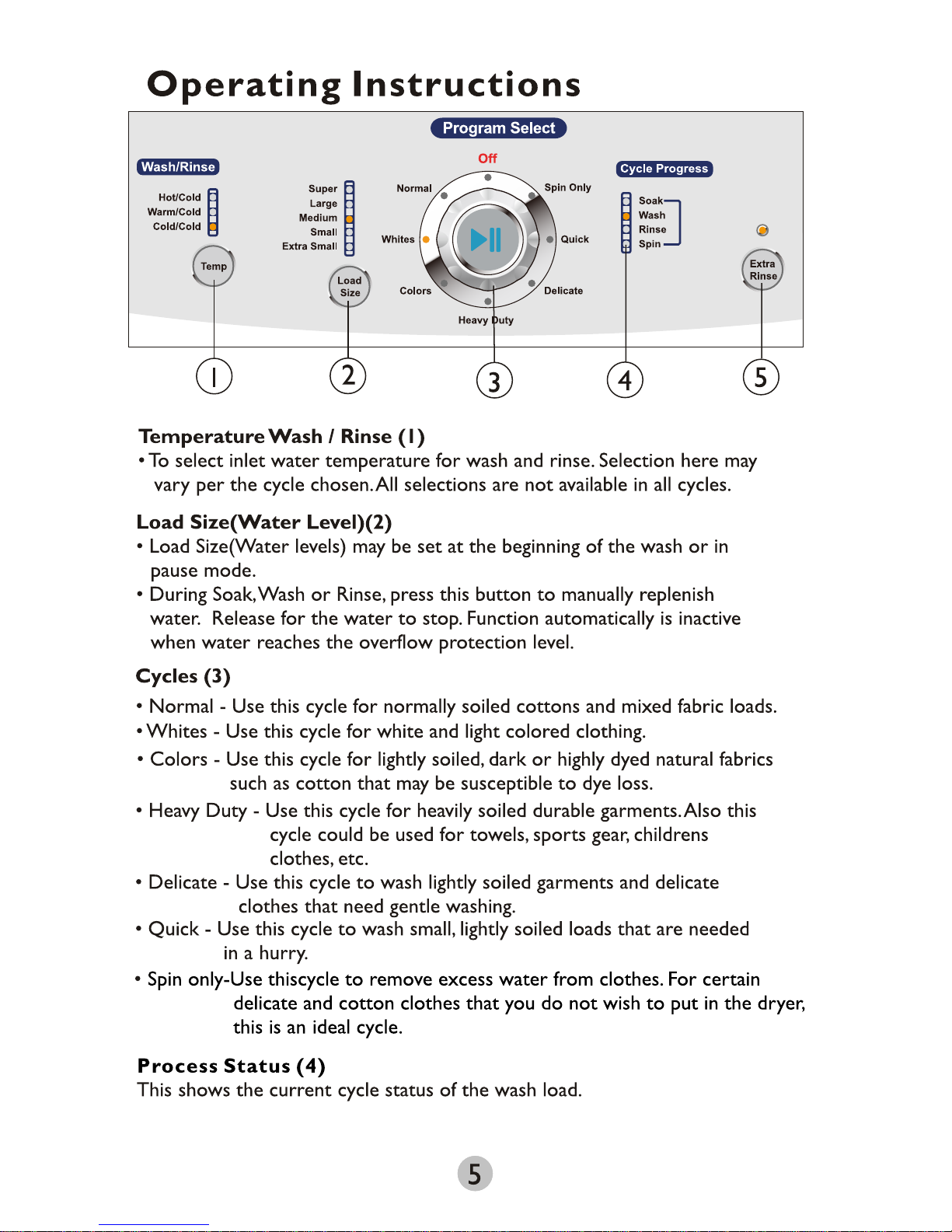

Operating instructions....................................................................5

CARE AND CLEANING GUIDE.......................................7

Cleaning and Maintenance..............................................................7

Moving & Vacationing .......................................... .. .. ... ........8

TROUBLE SHOOTING..................................................8

INSTALLATION INSTRUCTIONS..................................10

Tools and Materials Required.........................................................10

Unpacking Your Washer..................................................................11

Levelling Your Washer.....................................................................11

Steps for Installation......................................................................12

ELECTRICAL REQUIREMENTS.................................... 14

Power Interruptions.......................................................................14

SPECIFICATIONS............................................Back Cover

IMPORTANT SAFETY INSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or

injury when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2.This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not

play with the appliance.

3. Use this appliance only for its intended purpose as described in

this user and care guide.

4. Use only detergents or softeners recommended for use in this

appliance and keep them out of the reach of children.

5. This appliance must be properly installed in accordance with the

installation instructions before it is used.

6. Never unplug your appliance by pulling on the power cord.

Always grasp the plug firmly and pull straight out from the outlet.

7. Replace worn power cords, loose plugs and power outlets

immediately.

8. Unplug your appliance before cleaning or before making any

repairs. Repairs should only be done by authorised technician..

9. Do not operate your appliance when parts are missing or broken.

10. Do not tamper with controls.

11. Do not operate your appliance in the presence of explosive

fumes or toxic flammable vapours.

12. Do not use hot water that exceeds 60 C in temperature. This

refers to hot water entering the machine. If temperature

cannot be controlled, use WARM wash only.

13. Do not use this appliance to wash clothes which are stained,

spotted or washed in gasoline, dry cleaning solvents or any

other explosive or flammable substances that could ignite

and explode.

14. Do not add or mix any flammable or explosive substances to

the wash.

15. Do not try to remove clothes while the washer is in motion.

Wait until it comes to a complete stop.

16. The lid must be closed when the machine is in operation.

17. Do not use this appliance for commercial applications.

18. Do not operate this appliance unless all panels are properly intact.

19. The appliance is not to be used by children without adult supervision.

20. This appliance must be connected to an approved electrical outlet

with 220-240V power source.

21. Do not repair or replace any part of the appliance, this can only be

done by an authorised technician.

22. To reduce the risk of electric shock or fire, do not use extension

cords or adapters to connect the unit to electrical power source.

23.

24.Use the hoses provided.

For washing machines having ventilation openings in the base,

the installation instructions shall state that the openings must

not be obstructed by a carpet.

25. If this appliance is supplied from a cord extension set or electrical

portable outlet device, the cord extension set or electrical portable

outlet device must be positioned so that it is not subject to splashing

or ingress of moisture.

Agitator

Loading the Washer:

When loading the clothes into your washing machine, there are a few points to

remember:

* Separate the white from the colored items. Separate heavily soiled items from

light or delicate items.

* Carefully check all pockets and cuffs for small items.

* Remove pins and other sharp objects from clothing to avoid damages to the

interior parts.

* Pre-treat all stains and heavily soiled areas for better result.

* Load each item loosely. For better results, load smaller items in first, followed

by larger items.

* Do not overload the washer.

* When loading wet items, keep water level high enough so items can float easily

in the water.

* Close the lid after loading the laundry. With the lid open, the washer will not

start.

Extra Rinse (5)

Press button once to activate.•

Press again to deactivate.•

In this option the wash load will go through one extra rinse at the

end of the cycle.

•

An Extra Rinse will automatically be added to the Whites Cycle.•

Note: Please only use a low-sudsing or high-efficiency type detergent.

Bleach use and dispenser:

Bleaching of clothes can help remove stains, heavy soiling and kill

bacteria.

Bleach should not be used on silk, wool, rayon or drip dry clothes.

Bleach dispenser is located on the front corner under the lid.

Fill the dispenser with the manufacturer's recommended dosage

during the first water fill.

Be careful not to spill undiluted bleach onto the washer cabinet or

your clothes.

Note: Use only liquid bleach in dispenser.

Warning: Always unplug your washer to avoid electric shock before

cleaning. Ignoring this warning may result in injury. Before using cleaning

products, always read and follow manufacturer warnings to avoid

personal Injury or product damage.

CARE AND CLEANING GUIDE

Cleaning and Maintenance

* Use only a damp or sudsy cloth for cleaning the control panel.

* To avoid any kind of damage to cabinet finish, wipe washer cabinet as

needed. If you spill liquid/powdered softener bleach or detergent on the

cabinet, wipe cabinet immediately .

* Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach,

concentrated detergent, solvents or metal scouring pads. These

chemicals may dissolve, damage and/or discolor your washer.

* Leave lid open after washing to allow inside of washer to dry and assist

in preventing unwelcomed bad odours.

Moving & Vacationing

* Turn off water supply at the faucet and disconnect hoses. Drain water

from all hoses.

* Disconnect electrical plug.

* Dry inner wash tub. If moving washer disconnect drain hose.

* Turn the leveling legs clockwise all the way in.

* Move and store your washer in upright position only.

* To prevent mold or mildew, leave lid open so moisture inside machine

can evaporate.

* Insert transporting bolts if you are relocating the washer. Ensure

removal prior to usage.

If washer does not operate:

* Check the unit is plugged in. The plug may have come loose.

* Check if the electrical wall receptacle is of proper voltage.

* Check if the circuit breaker needs to be reset or if the fuse needs

replacing.

* Check if the washer is overloaded :load may need to be re-arranged or

redistributed evenly.

* Check if the lid is open. You may have to close the lid properly.

* The washer pauses in some cycles. This is normal in delicate or hand-

wash cycles which has short period of time. You will not hear washer

operation for a short period of time. When the soak time is over, it will

start automatically.

Problems with water:

* Not enough water coming out: Water faucet may need to be

completely turned on. Hoses may be tangled or kinked. Straighten out

hoses. Check water level selection, it may need to be readjusted.

TROUBLE SHOOTING

* Water temperature is incorrect: Check your water heater

temperature. Hot water needs to be at a temperature of at least 120 F-

140 F(49 C-60 C).Check to make sure the inlet hoses are properly

connected (E.g. Hot to hot & cold to cold).

* Water leaks: This may be due to incorrectiy installed drain hose or fill

hoses. Your home drain may be clogged . You may need to tighten hoses,

check the plumbing or call a plumber for assistance.

* Water will not drain: This may be due to not installing your drain hose

correctly. Check the position of the drain hose. In order to drain

properly, make sure that top of drain outlet is less than 5 ft. (1.5 m)

above the floor.

Washer is making noise:

* Washer may need to be reinstalled (Check washer installation

section).

* Washer load may need to be re-balanced, as the load may be uneven.

* Coins, loose change, buttons or other heavy objects could create

noise related sounds.

* Squealing sound: Due to overloaded wash tub.

* Vibration Noise: may be caused by not leveling washer properly on the

floor or uneven distribution of clothes in the tub.

° ° °

* The following sounds are normally heard during the

operation of the washer:

* Tumbling sounds: This is normal as the heavy wet clothes in

the washer are continuously being lossed around.

* Air rushing noise: This happens when the washer tub spins at

very high speeds.

* Wash and Rinse cycles going on and off will also make clicking

sounds.

Normal Operating Sounds
