Haier HWM130-0677 Manuel utilisateur

HWM130-0677

Washing Machine

USE & CARE GUIDE

MODEL:

TABLE OF CONTENTS

PAGE

2-3

Back Cover

IMPORTANT SAFETY INSTRUCTIONS.................

OPERATING INSTRUCTIONS.....................................

Parts and Features.........................................................

Operating instructions.....................................................

Normal Operating Sounds...............................................

Lint Filter ......................................................................

CARE AND CLEANING GUIDE.......................................

Cleaning and Maintenance.............................................

Moving & Vacationing.......................................... .. .. .. .....

TROUBLE SHOOTING................................................

INSTALLATION INSTRUCTIONS...................................

Tools and Materials Required.........................................

Unpacking Your Washer.................................................

Levelling Your Washer....................................................

Steps for Installation......................................................

ELECTRICAL REQUIREMENTS....................................

Power Interruptions.......................................................

SPECIFICATIONS ...........................................

Install the inner cover.....................................................

IMPORTANT SAFETY INSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or

injury when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in

this user and care guide.

3. Use only detergents or softeners recommended for use in this

appliance and keep them out of the reach of children.

4. This appliance must be properly installed in accordance with the

installation instructions before it is used.

5. Never unplug your appliance by pulling on the power cord.

Always grasp the plug firmly and pull straight out from the outlet.

6. Replace worn power cords, loose plugs and power outlets

immediately.

7. Unplug your appliance before cleaning or before making any

repairs. Repairs should only be done by authorised technician..

8. Do not operate your appliance when parts are missing or broken.

9. Do not tamper with controls.

10. Do not operate your appliance in the presence of explosive

fumes or toxic flammable vapours.

11. Do not use hot water that exceeds 60 C in temperature. This

refers to hot water entering the machine. If temperature

cannot be controlled, use WARM wash only.

12. Do not use this appliance to wash clothes which are stained,

spotted or washed in gasoline, dry cleaning solvents or any

other explosive or flammable substances that could ignite

and explode.

13. Do not add or mix any flammable or explosive substances to

the wash.

14. Do not try to remove clothes while the washer is in mo tion.

Wait until it come s to a complete stop.

15. The lid must be closed when the machine is in operation.

16. Do not use this appliance for comme rcial applications.

17. Do not operate this appliance unless all panels are properly intact.

18. The appliance is not to be used by children without adult supervision.

19. This appliance mu st be connected to an approved electrical outlet

with 240V power source.

20. Do not repair or replace any part of the appliance, this can only by

done by an authorised technician.

21. To reduce the risk of electric shock or fire, do not use extension

cords or adapters to connect the unit to electrical power source.

22. Ensure washer is kept free from obstacles.

23.Use the hoses provided.

Bleach injection inlet

Cabinet

Control panel

Control panel seat

Leveling legs

Top lid Door switch

Front door

Water

Level

Spin

Speed

Wash

Speed

Signal

Delay

Delay Time Estimated Time

Extra

Rinse Temp

Wash/Rinse

Cycles

Pause

Start

Hot/Cold

Warm/Cold

Cold/Cold

Warm/Warm

Process

Soak

Wash

Rinse

Spin

Light

Stain Wash

Heavy

Medium

Soil

Level

Quick wash

Delicate Casual

Wrinkle Control

Whites

Normal

Heavy Duty

Hand Wash

Colors

Inner cover

12 Balance ring

13 Inner tub

14 Paddle

Outer tub cove r

16 Drain hose

joint

Filter, Filter Cover

15 Pulsator

On/Off

Power

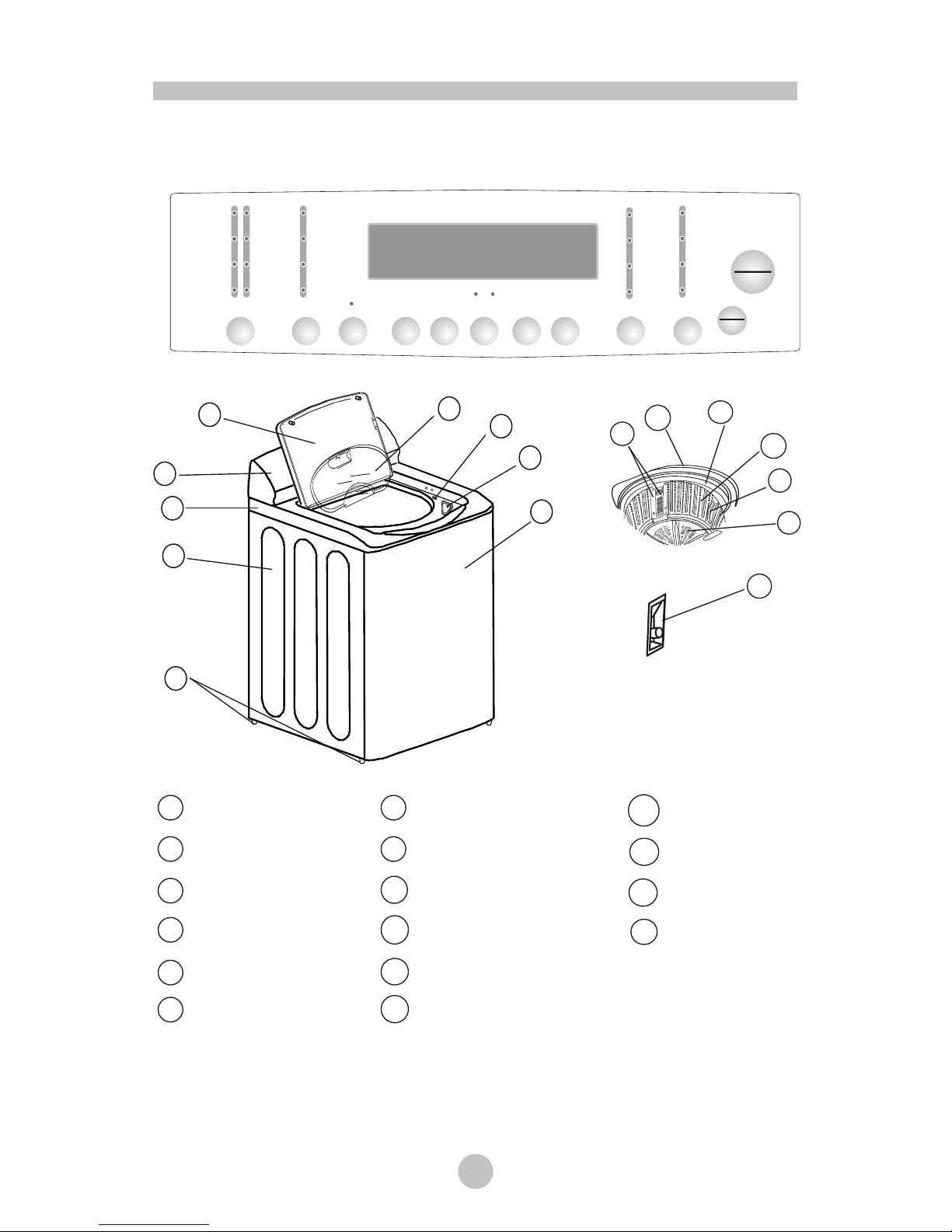

Parts and Features

OPERATING INSTRUCTIONS

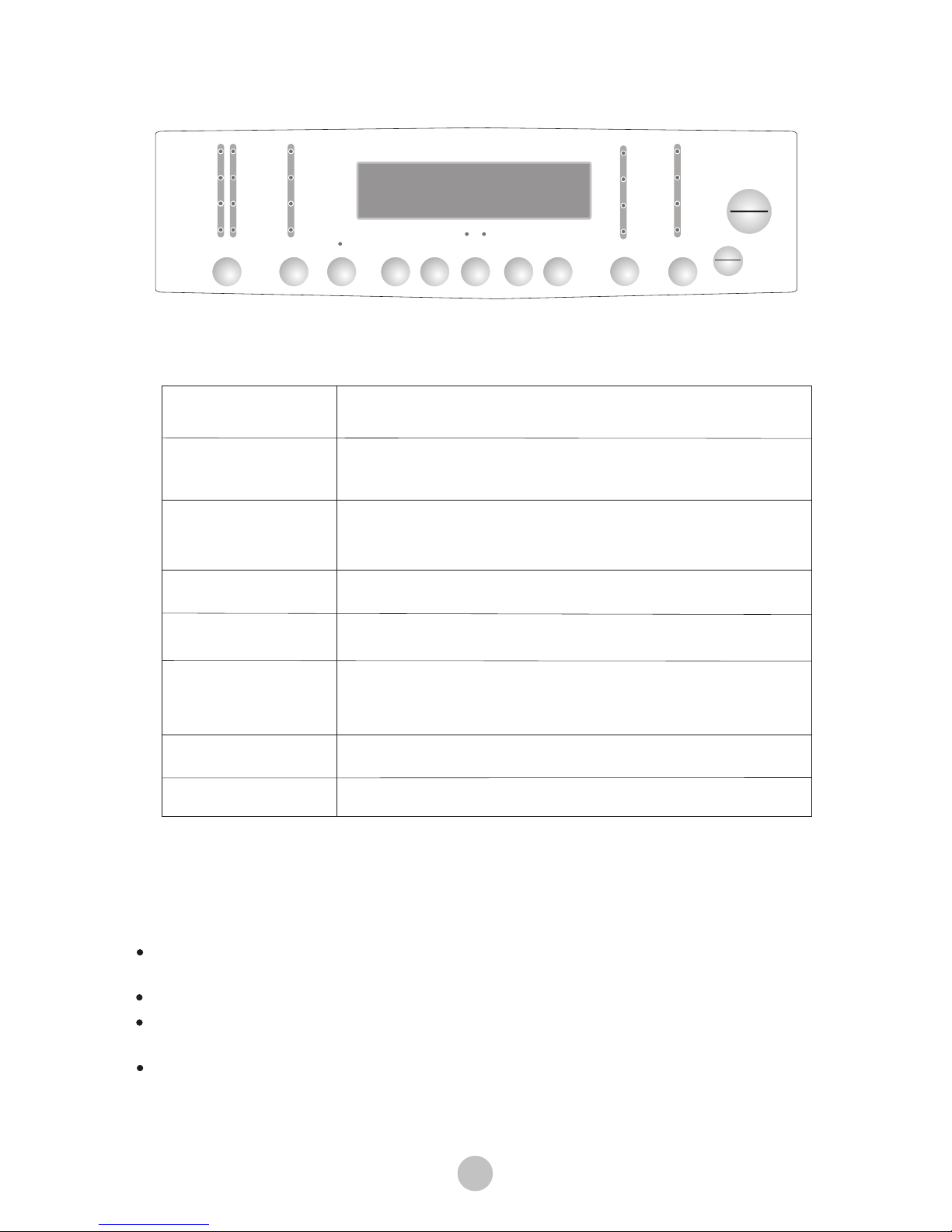

Operating Instructions

Heavy Duty

Whites

Normal

Colors

Cycles

Quick wash

Delicate Casual

Wrinkle Control

Hand Wash

Process

Soak

Wash

Rinse

Spin

Extra

Rinse

Wash

Speed

Delay Time

Spin

Speed Delay

Estimated Time

Water

Level

Signal

Light

Stain Wash

Heavy

Medium

Soil

Level

Temp

Wash/Rinse

Hot/Cold

Warm/Cold

Cold/Cold

Warm/Warm

On/Off

Power

Pause

Start

ABCDEGHIJKL

(A) Cycles

Wrinkle Control

Delicate Casual

Quick Wash

Hand Wash

Colours

Whites

Heavy Duty

Normal

Ideal for washing large and heavily soiled

wash loads

Suitable for washing cottons and linens and

loads which are moderately or heavily soiled

For washing color fabrics.

A gentle wash effect

For quick washing of . It

takes only 24-30 minutes without extra rinse

lightly soiled loads

For washing of delicate fabrics

Assists to reduce creasing and for easy ironing

(B)Process

Hand Wash, Quick Wash,

Delicate Casual and Wrinkle Control.

Water level indicator will shut off if only Spin option is selected.

Select the washing process suited to wash requirements.

Soak option will not work in the Cycles:

For clothes that are uneasy to wash and need

good rinse

(C)Extra Rinse

Once a program is selected, press this button to

Note: Extra Rinse should be used if only Rinse cycle is selected.

(D & E) Wash Speed/Spin Speed

For selecting the speed of washing or spinning.

add an extra rinse.

(F)Delay

When delay option is selected the indicator light will display a

minimum delay of 2 hours. Push button once for every additional

hour. Can be used up to 24 hours. The display will indicate the

number of hours until program starts.

(G) Water level

Water levels may be set at the beginning of the wash or when

machine is paused.

During Soak, Wash or Rinse press this button to manually

replenish water. Release button to stop fill. Function automatically is

inactive when water reaches the overflow protection level.

(H) Signal

Indicator volume can be adjusted to suit tone level (soft, loud or off).

(I) Soil Level

Pressing this button will alter the washing time to suit the soil level

of washing.

Wash cycle increases 2 minutes with each press of the button.

(J) Temp

Allows selection of water temperature to suit wash and rinse.

(K) Power On/Off

Push the button to turn machine on. Press again to turn off.

(L)Start/Pause

Once washer is powered and selections are chosen, push this

button once to start washing.

While machine is in operation, push this button once to pause cycle.

If unit is in Pause mode, push this button once to resume operation.

Delay Start and Estimated Time Indicator

This displays the time remaining in the cycle.

When Delay is activated, it displays remaining hours before cycle

starts.

Indicates fault codes or system failure in report mode

Loading the Washer:

Separate the white and coloured items. Separate heavily soiled

items from light delicates.

Carefully check all pockets and cuffs for small items.

(They can easily slide into the wash and may cuase damage)

Pre-treat all stains and heavily soiled areas for best results.

Load each item loosely.

Do not overload your washer.

When loading wet items, keep water level high enough so items

can float easily in the water.

Close the lid after loading the items. With the lid open, the washer

will not start.

Proper Use of Detergent:

It is good washing practice to add the detergent to the water before

you add the clothes so that the detergent can work effectively

through the water and your clothes.

Note: You can less or more detergent depending on the size of the

load, water type in your region, whether it is soft or hard and

whether the clothes are heavily soiled or lightly soiled.

Bleach Dispenser:

Bleach dispenser is located on the front corner under the lid.

Fill dispenser with manufacturer's recommended amount of bleach

during first water fill.

Note: Use only liquid bleach in dispenser.

Warning: Be careful not to spill undiluted bleach onto the washer

cabinet or your clothes. As it may damage your clothes

and/or the finish of the washer.

Use the manufacturer s chart, on product container

for recommended use of bleach.

The following sounds are normally heard during the operation

of the washer:

Tumbling sounds: This is normal as the heavy wet clothes in the

washer are continuously being lossed around.

Air rushing noise: This happens when the washer tub spins at

very high speeds.

Wash and Rinse cycles going on and off will also make clicking

sounds.

Softener

Please follow softener instructions for dose usage.

Before washing put the softener into the softener inlet.

Try to avoid adding softener if using delay wash option.

The softener may harden and may cause limited performance.

Normal Operating Sounds

Softener inlet

SOFTENER

Is located on the inner tub top rim.

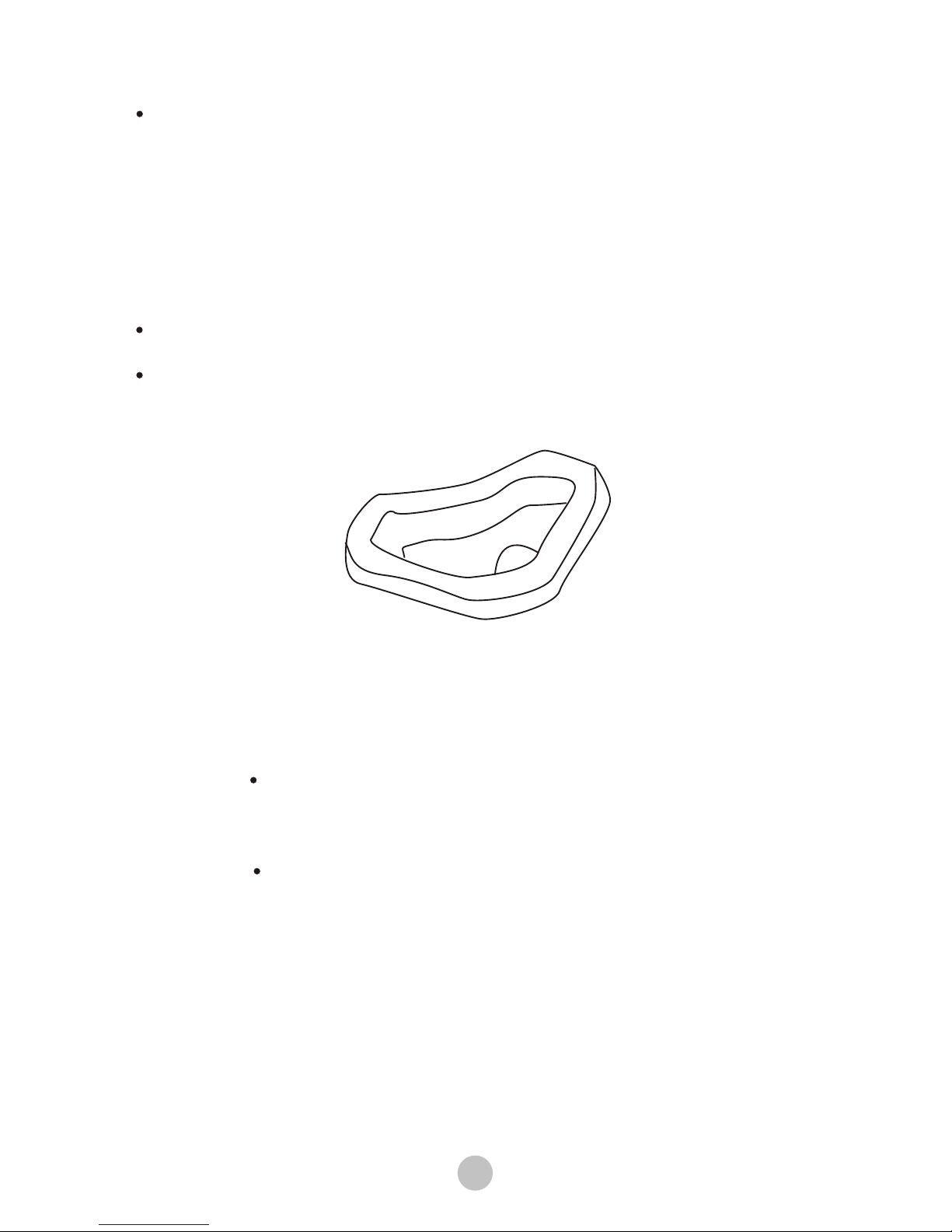

The lint filter mu st be used during washing.

Lint Filter

Install

Take off

It is recommended that it be cleaned after each wash.

1. Remove the lint filter by clicking outwards

2. Open the lint filter casing and wash

under running water

3. To reinstall the lint filter, locate

bottom into groove and push in

Autres manuels Haier Rondelle

Haier

Haier RWT350AW Manuel utilisateur

Haier

Haier HW80-B14266A Manuel utilisateur

Haier

Haier HWM40-32W Manuel utilisateur

Haier

Haier XPB80-50 Manuel utilisateur

Haier

Haier HW70-1402D Manuel utilisateur

Haier

Haier XPB60-287S Manuel utilisateur

Haier

Haier HW-E1260TVE ME Manuel utilisateur

Haier

Haier XQG50-QF800 Manuel utilisateur

Haier

Haier RS35 Manuel utilisateur

Haier

Haier HWM1270KFL Manuel utilisateur

Haier

Haier HWF75AW3 Manuel utilisateur

Haier

Haier XQG50-QF800 Manuel utilisateur

Haier

Haier HL800TX Guide de démarrage rapide

Haier

Haier HWM100-728 Manuel utilisateur

Haier

Haier HW70-1479S-F Manuel utilisateur

Haier

Haier HW-C1260TVE-E Manuel utilisateur

Haier

Haier HW90-BP14636 Manuel utilisateur

Haier

Haier HWM140-826S5 Manuel utilisateur

Haier

Haier JW-K42A Manuel utilisateur

Haier

Haier TEL6TL Manuel utilisateur

Haier

Haier HBS800TXV Manuel utilisateur

Haier

Haier HWM85-9288 Manuel utilisateur

Haier

Haier B628TX Instructions de montage

Haier

Haier GWT750AW Instructions de montage

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
