Haier 29F3A Manuel utilisateur

COLOUR TV RECEIVER

OWNER'S MANUAL

Please read this manual carefully

before operating the unit, and keep

it for future reference.

Digital Curtain Function

218 Channels Preset

Multiple Picture & Sound Modes

Soft Change Channel Function

DVD Terminals and S-video Terminal

SideAVTerminals

AVStereo

MAIN FUNCTIONS

The Owner's Manual for the Follow Models:

29F9K-T, 29F9K, 29F3A-T,29F3A, 29T9D

29T9D-T, 29F9D,29F9D-T

CONTENTS

Before Operation

Basic Operation

Others

Technical operation

Warning and Cautions

Installation

Antenna connection

Preparation for the remote control

Position of keys and plug-ins

Front and side panel

Back panel

the remote control

Power on and power off

Viewing TV programs

Program scan and screen display

Tuning

Automatic search. . .

Manual search

MFT

Skip

Adjusting the picture and the sound

S.C.C,count and mute

Setting the Timer

Timer off. .

Setting the other function

Language and screen protection

Curtain function,calendar display

Channel exchange

Setting the lock

Changing your password

Connecting Additional Equipments

Troubleshooting

Specifications

Using

Multiple picture modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . 1 3

Game

Game control buttons and method of playing the game

Multiple sound modesand setting thespeakers.

Sleep timer and timer on

Channels appointment

Setting the lock

Warning and Cautions

1. When you clean the TV set, please

pull out the power plug from AC outlet.

Don't clean the cabinet and the

screen with benzene, petrol and other

chemicals.

4. To prevent the TV set from firing

and electric shock, don't expose the

TV set to rain or moisture.

2. In order to prolong the using life of

the TV set, please place it on a

ventilated place.

5. Don't open the back cover,

otherwise it is possible to damage the

components in the TV set and harm

you.

3. Don't place the

TV set in the

sunshine or near

heat source.

6. When the TV set isn't going to be

used for long time or it is in thunder

and lightening, please pull out the

plug from AC outlet and the antenna

plug from the cover of the TV set.

Explanation on the display tube

In general, it is not needed to clean the tube surface. However, necessary,

it's surface can be cleaned with a dry cotton cloth after cutting off the power.

Don't use any cleanser. If using hard cloth, the tube surface will be damaged.

Installation

Antenna connection

Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV

system or an outdoor antenna .In different places, the suitable antenna type and position

are different.

300 twin-lead cable

Antenna adapter

75 coaxial cable

Plug

(additional purchase) AC power socket

Antenna input

75 standard

coaxial type

Mixer

additional

purchase

Note

* It is recommended that you'd better use 75

* Don't bind antenna cable and electric wire together.

coaxial cable to remove the

disturbance caused by airwave.

Preparation for the remote control

Battery installation Tips for remote operation

Remove the batteries cover. !The battery life should be about one year

under normal use.

! When the remote control will not be used

for a long period of time or when the

batteries are worn out, remove the batteries

to prevent leakage.

! Do not throw the batteries into a fire.

Dispose of used batteries in the specified

manner.

! Do not drop, dampen or disassemble the

remote control.

Insert two size AA batteries matching

the +/-polarities of the battery to the +/-

marks inside the battery compartment.

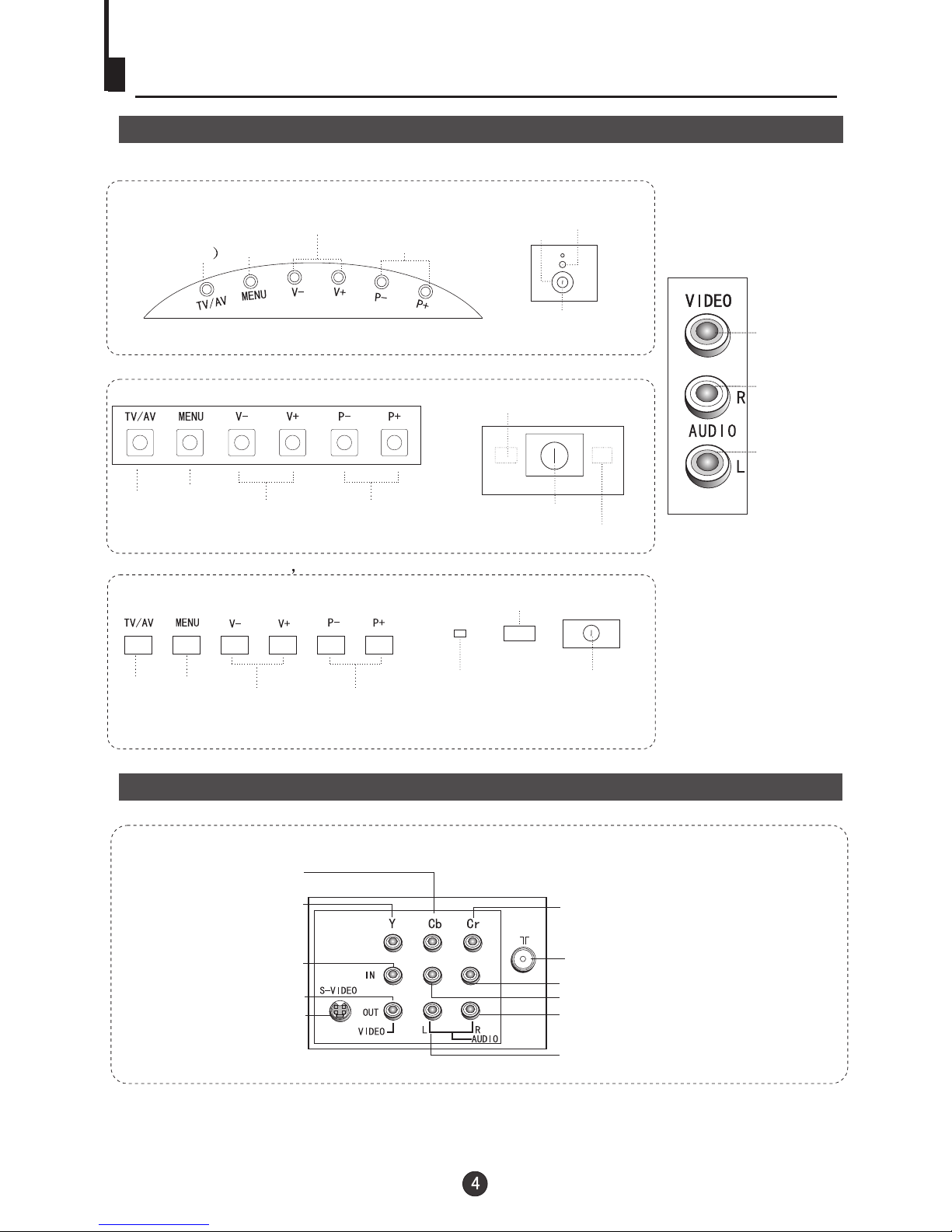

Position of Keys and Plug-ins

Back panel

Front and side panel

Video

Left audio

Antenna input socket

Video Cr input terminal

Audio left channelinput terminal

Audio right channelinput terminal

Audio left channeloutput terminal

Audio right channeloutput terminal

Video Cb input terminal

Video Yinput terminal

Video input terminal

Video output terminal

S-VIDEO input terminal

Right audio

TV/Video

(input selector MENU

Volume up/ down

Channel selector

Infrared sensor window

Power switch

Power indicator

Note: Please do not use the side and back AV terminals simultaneously.

Power switch

Menu Channel

position up/down

TV/AV

switch

Volume

up/ down

Signal receiver

Power indicator

The Models: 29F9K-T, 29F9K

The Models: 29F3A-T,29F3A

Power indicator

Signal receiver

Power switch

TV/AV

switch

Volume

up/ down Channel

position up/down

The Models: 29T9D-T 29T9D, 29F9D-T, 29F9D

Using the Remote Control

TV/AV

DISP SYSTEM SCAN

S.STD

P.STD

LOCK

PRE BACK

CALENDAR

LIGHT

EXIT

MODE

Buttons and Descriptions

TV and AV Exchange Button

Toexchanger between TVand

other available videoinputs

Mute Button

Press to conceal thesound of programs.

Screen Display Button

System Adjust Button

Direct-digit Choosing Button

Directly select channelnumbers

Lock Setting button

Menu Select/Adjust Button

Use this buttonto adjust the menu,

the volume andthe channels, aswell

as to controlthe game.

Program Play-forward Button

Calendar

Game Background SelectButton

Background Lamp ControlButton

(The model noincluding)

Start/Restart Game Button

Game Exit Button

Program Play-backward Button

Sound Mode Select Button

There are high, normal and low three

kinds of sound modes.

Digit Select Button

Change the channel position number

between one digit, two-digits and three

-digits.

Picture Mode SelectButton

There are DYNAMIC,STANDARD,

MILD,MEMORY, PICTURE MUTEand

COLOR MUTE sixmodes of picture.

Program Scan Button

DC Standby Button

Sleep TimerButton

GAME

CH+

CH-

VOL+

VOL- MENU

I/II

I/II Button (Themodel no including)

Power On and Power Off

Below are methods on how to power on/off the TV set with the switch on the TV and

on the remote control.

Power on/off

Connect/disconnect to the power

1. Connect the power supply wire, then press

power switch button, the red power indicator will

light, in several seconds the picture will appear

on the screen.

2. If the TV is in the state of standby, press the

button on the remote control.

3. Press the button on the remote control

to get into the standby state.

4. Press the button on the TV set to

completely turn off the TV.

NOTE

1. You can also press the 0-9

button to call off the standby

status instead of pressing the

DC Standby button. Press the

digit button of the preset channel

(limited to one digit) , you can

complete the selection of channel while you turn on the

TV set( To operate the preset of TV channel, please see

TUNING on page 9-12).

2. When you do not use the remote control, you can

directly press the the button on the television to call off

the standby status.

Power supply auto-off function

When the B.B(black background) is set ON,

and there is no signal , game screen protection

works, and ,in15 minutes later without any

operation, it will change into standby status.

DC Standby Button

Direct-digit Choosing Button

VOLUME

COLOR AUTO

SOUND BG

SELECT ADJUST

PRE BACK

SYSTEM

Viewing TV Programs

The channels amountto 218 .

Viewing TV programs

How to select the TV program

1. Use the direct-digit choosing button

2. Use CH+/- button

Press CH+ to increase the channel position number.

Press CH- to decrease the channel position number.

Press the button from 0-9 to select a one digit channel.

If you want to select a two-digits channel, press the

Digit Select button and change it into two-digits mode,

then press the number of the channel.

If you want to select a three-digits channel, press the

Digit Select button and change it into three-digits mode,

then press the number of the channel.

3. Use PRE button and BACK button

Press PRE button, you can go back to the channels you

viewed (as many as four).

Then, press Back button, you can return to the channels you

were watching just now (as many as four) .

For example, if you have viewed channel 1,2,3,4,5,6 after the

TV is powered on, and the channel you are watching now is

number 7, then press PRE button, you can view channel 6,5,

4,3, and you may press the Back button to return to channel 7.

If the channel position number you select is larger than 218,

the TV will use the first two number as the channel position.

Choose the proper volume you like

Press VOL+/- button to adjust the volume.

If the color of one channel is abnormal

It might be because the color has been

set improperly.You may follow the

instruction below toadjust it. Press

SYSTEM button, and you can see

the form.

Press CH+/- button, and move the indicator to COLOR,

and press VOL+ button to select the proper color(AUTO,PAL,

NTSC4.43 and NTSC3.58 will appear alternately).

Generally, please set to AUTO.

If the color of the picture is abnormal

CH+

CH-

VOL- VOL+

Direct-digit Choosing

button

Digit Select

button

Screen display

SCAN

½ÚÄ¿ä¯ÀÀ¼°ÆÁÄ»ÏÔÊ¾¹¦ÄÜ

Viewing TV Programs(coutinued)

Program scanning function is to let the television automatically scan all

preconcerted channel program(abouttwo seconds per channel).

Program scan and screen display

Program scanning function

1. If you want to scan the programs

and select your favorite channel ,

just press the SCAN button, then

the television will start scanning

from the present channel with a

rate of two seconds per channel

and until all the preconcerted

programs have been displayed

once, the TV set will return to the

starting channel.

2. If you want to terminate this

function during thescanning, press

the SCAN button again, and the

program will stay at the present channel.

DISP Usually, when you press the DISP button, the channel

number will appear on the top right corner of the screen

and press it again, the channel number will disappear .

Autres manuels pour 29F3A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier TV

Haier

Haier 1407 Manuel utilisateur

Haier

Haier 21F9B-S Manuel utilisateur

Haier

Haier HLC15B-A Manuel utilisateur

Haier

Haier 29F9B Manuel utilisateur

Haier

Haier L37A6A-A1 Manuel utilisateur

Haier

Haier 21FA12-T Manuel utilisateur

Haier

Haier HTR13 - 13" CRT TV Manuel utilisateur

Haier

Haier HTF20-A Manuel utilisateur

Haier

Haier 29FA10 Manuel utilisateur

Haier

Haier 21FA11 Manuel utilisateur

Haier

Haier HL19KN1 Manuel utilisateur

Haier

Haier HT-3788 Manuel utilisateur

Haier

Haier LT32R3B Manuel utilisateur

Haier

Haier ROHS-L20AV6-A0 Manuel utilisateur

Haier

Haier 21FA12 Manuel utilisateur

Haier

Haier HL42XK1 Manuel utilisateur

Haier

Haier 21FV6T Manuel utilisateur

Haier

Haier HLTDC15 - 15" LCD TV Manuel utilisateur

Haier

Haier HL26R1 - R-Series - 26" LCD TV Manuel utilisateur

Haier

Haier HLC19R1 - 19" LCD TV Manuel utilisateur

Haier

Haier HTF21S34 Manuel utilisateur

Haier

Haier 21FA10-AM Manuel utilisateur

Haier

Haier HLH26BBTV-01 Manuel utilisateur

Haier

Haier L32A9 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
