COLOUR TELEVISION

OPERATING

INSTRUCTIONS

◆Stage curtain for open and close effect

◆Digital I C bus control

◆Auto search tuning & 218 programs stored

◆Full infrared remote control

◆Multi-picture modes selection

◆Multi-function timer,appointing programme

0090504467

WARNING AND CAUTIONS

1. When you clean the TV set, please pull

out the power plug from AC outlet.

Or may result in electric shock, fire or

damage to the TV set. Don't clean the

cabinet and the screen with benzene,

petrol and other chemicals.

4. Do not place the TV set near rain

or moisture as it may cause an electric

shock, or the TV set to catch fire. The TV

set must only be used

in dry indoor location.

2. In order to prolong the using life of the

TV set, please place it at a well ventilated

location.

5. The back cover must only be removed

by a registered electrical service person.

Removing the back cover may result in

electric shock, fire or damage to

the TV set.

3. Don't place the TV

set in direct sunlight

or near heat source.

6. If the TV set is not going to be used for

long time, or there is a severe thunder &

lightening storm, it is recommended that

the TV set be disconnected from the AC

power outlet and the aerial plug

removed.

Explanation on the display tube

When the picture tube requires cleaning, please disconnect the power and use a

dry soft cotton cloth. Do not use any cleaner or abrasive cloth.

CONTENTS

Warning and cautions.................................................................................................1

Basic feature...............................................................................................................2

Technical specification...............................................................................................2

Preparing for operations.............................................................................................3

Function buttons and external sockets........................................................................4

AV connection............................................................................................................5

Remote controller guide.............................................................................................6

Power supply..............................................................................................................7

Tuning procedure.......................................................................................................7

Picture adjustment......................................................................................................9

Other functions.........................................................................................................10

Multi function timer.................................................................................................14

Lock function...........................................................................................................15

Trouble shooting guide............................................................................................17

Figure A Figure B

Antenna cable

with a plug

Figure C Figure D

Antenna feeder

Antenna adapter

75-300Ω

Coaxial cable(75Ω) twin-lead cable(300Ω)

Antenna connection

Connect an antenna to the antenna socket on

the TV set, We recommend using a Cable TV

system for better picture and audio quality.

1.If you use a coaxial cable(75Ω),insert the

antenna plug (see figure C) into 75Ωsocket

(see figure A).

2.If you use a twin-lead cable(300Ω),please

shape the cable as figure D, and connect the

leads to antenna adapter and then insert the

antenna adapter into the 75Ωsocket.(see

figure B)

Power source wire connection

Insert the power plug into AC outlet.

Install and replace batteries of the

remote control unit:

1.Place the remote control unit with the face

down, then open the battery cover of the

unit.

2.Place the two"AA"size batteries, matching

the + and - signs on each battery to the +

and -signs of the battery compartment.

3.Close the cover of the battery compartment.

NOTE:

(1)Don't drop or wet or dismantle the unit.

(2)If you don't intend to use the unit for a

long period or the electricity of the

batteries is used up, remove the batteries

to prevent batteries acid from leaking

into the battery compartment.

(3)Replace the two old batteries at the

same time.

(4)Don't use charge battery (Ni-cd )and

don't mix battery type.

(5)Don't throw your batteries into a fire.

Dispose of your batteries in a required

place.

Antenna

PREPARING FOR OPERATIONS

BASIC FEATURE

●I C bus control

●218 programs stored

●Display full functions on the screen and infrared remote control

●Multi picture modes and sound modes selection

●Auto searching, function selecting and program number skipping

●Multi function timer

●Progammes scanning

●Game, Multi-function lock

●Stage curtain for open and close effect

TECHNICAL SPECIFICATION

1.POWE R SUPPLY: See rating plate

2.COLOUR SYSTEM: PAL SECAM N TSC4.43/3.58(AV)

3.AUDIO SYSTEM: B/G D/K I

4.CRT: 21"

5.ANTENNA INPUT : 75Ω Standard Coaxial Cable

6.SOUND OUTPUT POWE R: 3W

7.POWE R CONSUMP TION: See rating plate

8.NET WEIGHT(kg): 24.5

9.NET DIME NSION(mm): 638×485×458

Supplied accessories:

Infrared remote control handset 1

Battery(AA) 2

Operating instruction 1

Design and specifications are subject to change without notice.

VIDEO

L AUDIO R

YCb Cr

OUT

G R

DVD(with DVD component)

Direction of signal

white（left audio）

red（C /right audio ）

blue（C ）

green

（video）

（Y）

yellow

S-VIDEO

VCR (without S-VIDEO TERMINAL)

YW R

To a dio ut

u o

VCR (with S-VIDEO TERMINAL)

W R

O-VI OT S DEO UTPUT

TO VIDEO OUTPUT

T componen out

Note:

1.When receive s-video signal, you must remove video signal; when receive

video signal, you must remove s-video signal.

2.When receive side video signal, you must remove back video signal; when

receive back video signal, you must remove side video signal.

AV CONNECTION

1.Front panel

①Remote sensor:Let the remote controller aim here, the set can receive remote

control signal.

②Power switch:Press the button to turn on the TV set . Press the button again to

turn off the TV set.

③Power indicator: The indicator lights when power on.

④Menu button

⑤Program up/down button

⑥Volume up/down button

⑦TV/AV

①

②

③

⑤⑥⑦

④

2.The sockets on the rear panel

①Antenna socket

②Audio/Video socket

③S-Video socket

④DVD component socket

3.The socket on the

side panel

⑤Video input socket

⑥Audio(L) input socket

⑦

Audio(R) input socket

VIDEO

L AUDIO R

S-VIDEO

①

③

④

YCb Cr

OUT

⑤

⑥

⑦

AUDIO2

VIDEO2

FUNCTION BUTTONS AND EXTERNAL SOCKETS

POWER SUPPLY

1.Power supply (switch on/off to set main power supply).

Press power switch button and the TV set shall be under normal receiving condition.

Press it again and the power shall be off.

2.Standby button (remote control power supply).

Press the button and the TV set enters standby condition, press it again and the TV set

enters normal receiving condition.

1.Preparation

Connect the aerial and power supply

wire, press power switch button, the

power indicator will light after a few

seconds.

2.Auto-search

The TV set will automatically search all

programs, after the search is finished, all

fine tuned programs will be stored automatically.

(1)Press [MENU] button, let TUNING menu display on the screen.

(2)Press [-CH+] buttons to select AUTO MEMORY item.

(3)Press [VOL+] button, the TV set will begin to search programs from program

number 0. After the search is finished, program number 0 will display on the

screen.

(4)During auto-search, if you want to stop searching, press [VOL-] button.

3.Semi-Auto search

You can preset the program you need to the pointed channel.

TUNING PROCEDURE

POSITION 1

BAND UHF

SKIP OFF

SEARCH UP

MFT DOWN

AUTO MEMORY

SELECT ADJUST

TUNING

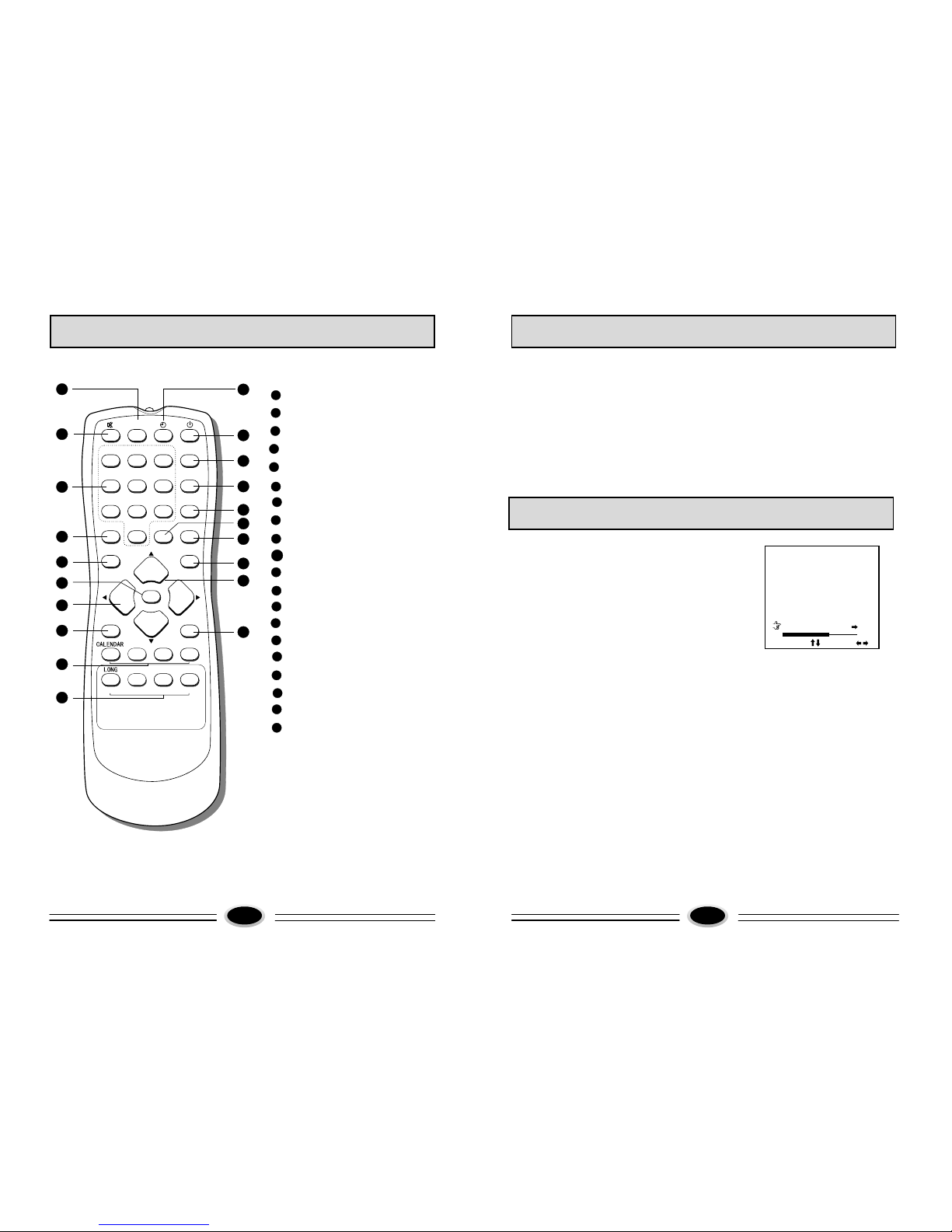

Remote control functions

TV/AV exchanging button

Mute button

Numeric button

One/two/three digital buttons

Picture mode selection

Volume up/dwon button

1 2 3

4 5 6

7 8 9

TV/AV

SCAN

LOCK

SYSTEM

DISPLAY

-/-- BAR

CH+

RESTART

WIDE

PRE

FIRE

MIX

SHORT

SECOND

EXIT

LIGHT

NARROW

BACK

SELC.PIC SELC.VOL

CH-

VOL- VOL+

7Recall

8Calendar/game selection

Second timer button

Volume mode selection

12 Display

13 Invalid button

14 System preset button

Lock preset button

Scan button

DC standby button

18 Sleep timer

Programme promote

Note :Because there is no bar function in the TV,"LONG", "SHORT",

“WIDE", "NARROW" buttons are invalid.

6 7

Program number up/down button

Menu button

REMOTE CONTROLLER GUIDE

VHFL VHFH UHF

TUNING PROCEDURE

(1)Press [MENU] button, let TUNING menu display on the screen.

(2)Press [-CH+] buttons to select SEARCH item.

(3)Press [-VOL+] buttons to change channel number into pointed channel

number.

(4)Press [-VOL+] buttons, when the TV set has searched a program, stop

searching, if the program isn't the one you need, press [-VOL +] buttons

again, the set will search continually until it has searched the program you

need. And pointed program is stored in pointed channel.

4.Selecting band

In the semi-auto search mode, if the signal you want to search isn't on

the present band, you can change the band to improve searching speed.

(1)Press [MENU] button, let TUNING menu display on the screen.

(2)Press [-CH+] buttons to select BAND item.

(3)Press [-VOL+] buttons to select the band you need.

5.Fine tuning

Because of some reasons, if auto searching effect of program

isn't good, please fine tune your TV set.

(1)Press [-CH+] buttons to select MFT item.

(2)Press and hold [-VOL +] buttons until the effects of the picture

and audio are good.

6.Skip

The function can skip the TV program which you don't need.

(1)Press [-CH+] buttons or numeric button, then select the program

number which you want to skip. (for example: channel 002)

(2)Press [MENU] button, and select TUNING menu.

(3)Press [-CH+] buttons to select SKIP item.

(4)Press [-VOL+] buttons to preset SKIP ON mode.

Note: When a certain program number is in SKIP ON mode, the program

number will not appear when you select program with the [-CH+]

buttons, but program number will appear with numeric button.

When a certain program number is in the SKIP OFF mode, the

program number will appear when you select program with [-CH+] buttons.

Press [MENU] button and select PICTURE menu.

Press [-CH+] buttons and select an item.

Press [-VOL+] buttons to adjust the value of the item function.

Brightness adjustment:

Press [-CH+] buttons to select BRIGHT item.

Press [-VOL+] buttons to adjust brightness.

Contrast adjustment:

Press [-CH+] buttons to select CONTRAST item.

Press [-VOL+] buttons to adjust contrast.

Colour adjustment:

Press [-CH+] buttons to select COLOR item.

Press [-VOL+] buttons to adjust colour.

Sharpness adjustment:

Press [-CH+] buttons to select SHARP item.

Press [-VOL+] buttons to adjust sharpness.

Background selection:

Press [-VOL+] buttons to select a background on or off..

PICTURE ADJUSTMENT

CONTRAST 100

BRIGHT 50

COLOR 50

SHARP 50

B.B OFF

SELECT ADJUST


OTHER FUNCTIONS

2.FUNCTION 2

1.FUNCTION 1

The function can select OSD language, curtain mode,volume mode and volume

memory mode.

(1)Press [MENU] button and select FUNCTION1 menu.

(2)Press [-CH+] buttons and select an item.

(3)Press [-VOL+] buttons to set function of the item .

(1)Press [MENU] button and select FUNCTION2 menu.

(2)Press [-CH+] buttons and select an item.

(3)Press [-VOL+] buttons to set function of the item .

Note:

(1)If you select COUNT item , you can get

the total time of receiving TV program

(except standby time).

(2)Soft-exchanging channel No. function:

Select S.C.C ON, so when you exchange channel No.,

the picture will fade in/out.

Note:

(1)When you select VOL STORE ON, the TV set can hold the same volume with

changing channel No. .(The channel No. must be 1 between 50.)

(2)When you select CURTAIN item, you can select three curtain modes: I, II and

III.

LANG. ENGLISH

CURTAIN

LOW VOL 20

NORMAL VOL 40

HIGH VOL 60

VOL STORE OFF

SELECT ADJUST

FUNCTION1

SELECT ADJUST

SUBMARINE

POS.EX

S.C.C OFF

COUNT 13:21

FUNCTION2

3.POS.EX item:

Press [VOL+] button to enter its sub-menu(digits

In POS.EX and

EX.POS2 items are present channel No.).

Press [-CH+] buttons to select EX.POS2 item.

Press [CH+] button to put into channel No.(for

example:9).

Press [-CH+] buttons to select EXCHANGE

item,

press [VOL+] button to approve. The program

in channel No. 1 will change with the program

in channel No.9.

OTHER FUNCTIONS

POS.EX.

EX.POS1 23

EX.POS2 23

EXCHANGE ？

RETURN

POS.EX.

EX.POS1 1

EX.POS2 9

EXCHANGE ？

RETURN

When you select“SUBMARINE”game item, enter game mode and the other

buttons (except [GAME],[VOL-/+],[CH+/-]， ) are invalid.

Play game:

Instructions of game controlling buttons

2.Press red game button and game begin,

use the remote controller to operate yellow

battle ship. Yellow battle ship bump one of

green ship or blue ship or purple ship or red

ship or blue shot. and game is over. Yellow ship

use [MENU] button or blue [FIRE] button shoot shots.

The shot bump green ship or blue ship or purple

ship or blue shot and win 100scores,the shot

bump or red ship, and win 1000 scores.

3.During game or game is over, press red button

and game can restart. Ship obtaining highest

scores wins.

SCORE 000

SCORE 5800

GAME OVER

1.Press [MENU] button，make FUNCT ION2 menu

display,and press[ -CH+] buttons, select SUBMARINE

item, then press [VOL+] button ,enter SUBMARINE

game mode.

CH+

FIRE

CH-

VOL- VOL+

RESTART

MIX

EXIT

LIGHT

FIRE

Fire button

Up/down

button

Left/right

button

Fire button

Selection buttons of

game background

Game restart button

Game exit button

OTHER FUNCTIONS

CALENDAR

OTHER FUNCTIONS

3.System selection:

(1)Press [SYSTEM] button and OSD is as figure.

(2)Press [-CH+] buttons and select an item.

(3)Press [-VOL+] buttons to select a system(color system or

sound system) you need.

COLOR AUTO

SOUND B/G

SELECT ADJUST

4.Picture mode selection:

Press [SELC.PIC] button and select a

picture mode you need:

DY NAMIC

MILD

MEMORY

COLOR MUTE

5.Calendar function:

(1)Press [CALENDAR] button and OSD is

as figure (Press the button again, the OSD

disappears.).

(2)Press [-CH+] buttons to select year,

press [-VOL+] buttons to select month.

STANDARD

PICTURE MUTE

OCT 200 2

YEAR M O NTH

6 7 8 9 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

SU MO TU WE TH FR SA

4 5

Press [MENU] button and select TIMER menu.

(1)Clock

Press [-CH+] buttons and select CLOCK item;

Press [-VOL+] buttons to set present time.

Note: At first, you must set CLOCK item,

then you can set other items.

(2)On-timer and off-timer

Press [-CH+] buttons to select ON-TIMER

or OFF-TIMER item, press [-VOL+] buttons

to set.(ON-TIMER/OFF-TIMER can be set to ONCE or EVERY or OFF.)

(3)Appointing time

Press [-CH+] buttons and select appointing time item.

Press [CH-] button and enter "appointing program" sub-menu.

Press [-VOL+] buttons and select a channel No.(for example :100).

Press [CH-] button and enter APPOINTMENT TIME mode, then press

[-VOL+] buttons to preset time.

(Note:

1.Press [-VOL+] buttons once and time changes

with one minute unit; press and hold [-VOL+]

buttons and time changes with 10 minutes unit.

2.When it is appointing time, the TV set changes

channel No. into appointing channel No. .

3.The function is valid only in TV mode.)

Press [DISPLAY] button and exit APPOINTMENT

menu.

MULTI FUNCTION TIMER

OFF TIMER OFF

0:00

ON TIMER OFF

0:00

POS 0

CLOCK 0:50

APPOINTMENT

SELECT ADJUST

APPOINTMENT

POS. TIME

001 0:01

002 0:02

003 0:03

004 0:04

005 0:05

006 0:06

SELECT ADJUST

TIMER

定时关机功能

The password of the TV set is preset "0000" in

manufacture, if you want to change the password,

you can fill in four digits.

Changing password

3.Press numeric buttons and fill in

four digits.

1.Press [LOCK] button, and

OSD is as the right figure.

4.You can fill in new password.

LOCK OR UNLOCK

PASSWORD: ----

LOCK OR UNLOCK

CHANGE PASS

SEARCH LOCK OFF

POS LOCK OFF

AV LOCK OFF

TIMER LOCK OFF

CHILD LOCK OFF

ALL CLEAR OFF

CHANGE PASS:

NEW PASS: ----

LOCK

1 2 3

4 5 6

7 8 9

CH+

CH-

VOL+VOL-

2.Press "0" button

directly for four times,

enter LOCK PRESET menu.

Press [CH+/- ] buttons and

select "CHANGE PASS" item,

then press [VOL+] button and

enter "CHANGE PASS"

sub-menu.

CLOCK FUNCTION

FIRE

The TV set can lock search, channel number,

AV, timer and child lock items, if you need to lock

them.

Lock preset

3.Press [CH+/-] buttons

select "SEARCH LOCK"

item, and press [VOL+]

button to select "ON" or

“OFF".

1.Press LOCK button, and

OSD is as the right figure.

LOCK

1 2 3

4 5 6

7 8 9

CH+

CH-

VOL+VOL-

LOCK OR UNLOCK

PASSWORD: ----

LOCK OR UNLOCK

CHANGE PASS

SEARCH LOCK OFF

POS LOCK OFF

AV LOCK OFF

TIMER LOCK OFF

CHILD LOCK OFF

ALL CLEAR OFF

CHANGE PASS:

NEW PASS: ----

Note:

1.After locking channel or AV, screen is black, no

picture and no sound.

2.After locking child lock, the buttons on the TV set

are invalid.

3.After locking channel search or timer, if you want

to enter menu, you need to fill in password.

2.Press "0" button directly

for four times (or press the

four-digit password you have

changed),enter LOCK

PRESET menu.

CLOCK FUNCTION

Note:1.If the problem can not be fixed after you check above items. DO NOT attempt

to remove the back cover by yourself.

2.If the snapping sound from the cabinet of the TV set can be heard occasionally

because of temperature changing of environment, it is normal, you can use it

reassuringly.

TROUBLE SHOOTING GUIDE

BREAKDOWN PHENOMENON

PICTURE SOUND

CHECKING

The direction and connection of the

antenna

Direction, station and connection

of the antenna

Interference from electric

appliance. Automobile、Motor,

Vehicle Fluorescence lamp etc.

Volume, Sound mute

The power plug isn't plugged in AC

Outlet. The main power isn't turned

on. The setting up of contrast, brig-

htness and volume.

Adjust color control

Adjust channel again

Moving the TV set or using magnetic electric appli-

ance near TV, Which will lead to color spot on sc-

reen. Please remove the electric appliance and cut

off power. After 120 minutes turn the TV on, the pic-

ture will be recovered.

The following problems are not always caused by hardware failure,

please use the follow trouble shooting guide before you call

for service:

Picture with Snow

Color Spot

No Color

No Picture

Normal

Disturb

Double or Triple Image

Noise

Normal

Noise

No Sound

Normal Volume

Normal or Weak Volume

Normal Volume

Scramble

FIRE

Autres manuels pour 21F9B-S

Ce manuel convient aux modèles suivants

Autres manuels Haier TV

Haier

Haier DX-LTDVD19-09 Manuel utilisateur

Haier

Haier HTX25S31, HTX29S31S, HTX34S31 Manuel utilisateur

Haier

Haier HTX20S32 Manuel utilisateur

Haier

Haier HLC19R - 19" LCD TV Manuel utilisateur

Haier

Haier HTX20S32 Manuel utilisateur

Haier

Haier 21FA11 Manuel utilisateur

Haier

Haier HP-2999 Manuel utilisateur

Haier

Haier LT22R3COW Manuel utilisateur

Haier

Haier HTN20R15 Manuel utilisateur

Haier

Haier 21T9G Manuel utilisateur

Haier

Haier 29F9B-P Manuel utilisateur

Haier

Haier LV1913 Manuel utilisateur

Haier

Haier 55dr3505 Manuel utilisateur

Haier

Haier 21F9K-T Manuel d'instructions et de sécurité

Haier

Haier LE55B1381 Manuel utilisateur

Haier

Haier HT-2599 Manuel utilisateur

Haier

Haier L32C1120 Instructions de montage

Haier

Haier 29F9D Manuel utilisateur

Haier

Haier 21FA11-AM Manuel utilisateur

Haier

Haier 19T51 Manuel utilisateur

Haier

Haier 25F3A Manuel utilisateur

Haier

Haier L42A9-AK Manuel utilisateur

Haier

Haier 29FV6 Manuel utilisateur

Haier

Haier HTF21S32 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
