Haier LET22T1000F Manuel utilisateur

LED LCD TV RECEIVER

USER MANUAL

Please read this manual carefully before using

your television and keep this manual in a good

place for future reference.

MODEL:

LET22T1000F

LET24T1000F

LET26T1000F

02 Introduction

03 Remote Control

Main Parameter …………………………………………………………………

Control Panel ……………………………………………………………………

Rear/Side Sockets ………………………………………………………………

Connecting your TV ………………………………………………………………

Remote Control …………………………………………………………………

05 Trouble shooting

Trouble shooting ………………………………………………………………

04 Operation

Installation Guide …………………………………………………………………

01 Safety and warnings

Welcome …………………………………………………………………………

Important information ……………………………………………………………

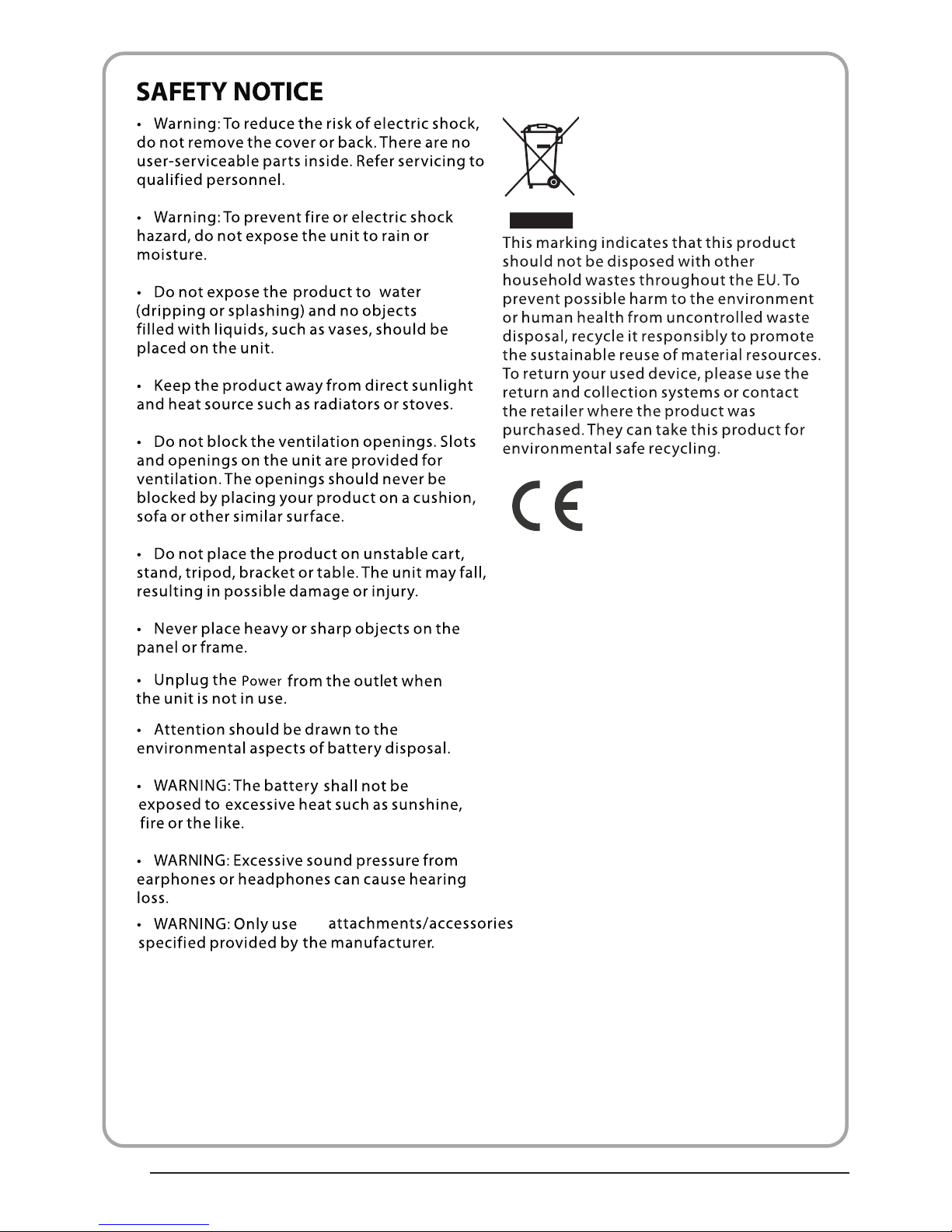

Safety notice ……………………………………………………………………

Warnings and cautions …………………………………………………………

Specification ……………………………………………………………………

P.05

P.10

P.11

P.13

P.23

P.15

P.02

P.03

P.05

P.25

Common interface …………………………………………………………………P.12

Base Stand Assembly Instruction …………………………………………… P.08

Wall Mounting Installation Guidelines ……………………………………… P.09

P.02

Thanks

for buying this 22"/24"/26"

LED LCD TV. This guide will help you set up and begin using your TV.

Now you can get started!

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.

FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN

THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF

CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE

CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR

SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE

THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT

DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

This TV is optimised for use in the United Kingdom. It is not certified to work in other

countries and some features and signal inputs may not work as described in the

documentation.

22" Full HD 1080P Digital LED LCD TV

Remote control

AAA ba x2

Instruction Manual

Quick start guide

ttery

Stand

24" Full HD 1080P Digital LED LCD TV

Remote control

AAA ba x2

Instruction Manual

Quick start guide

ttery

Stand

26" HD Ready Digital LED LCD TV

Remote control

Instruction Manual

AAA ba x2ttery

Quick start guide

Stand

P.03

the

UK Only 13A Plug Connection.

If your TV is connected to the mains supply using a 3 pin 13 amp plug, the voltage rating is 220-

240 volts and should be protected by a 3 amp fuse in the plug.

Should the fuse require replacement for any reason, the fuse must be replaced with a fuse

rated at 3 amps and manufactured and approved to Bs1362.

If the mains plug is unsuitable for the socket outlet in your home or is removed for any other

reason, then the cut off plug should have its fuse removed and be disposed of safely to prevent

the hazard of electric shock.

There is a danger of electric shock if the cut off plug is inserted into any 13 amp socket outlet.

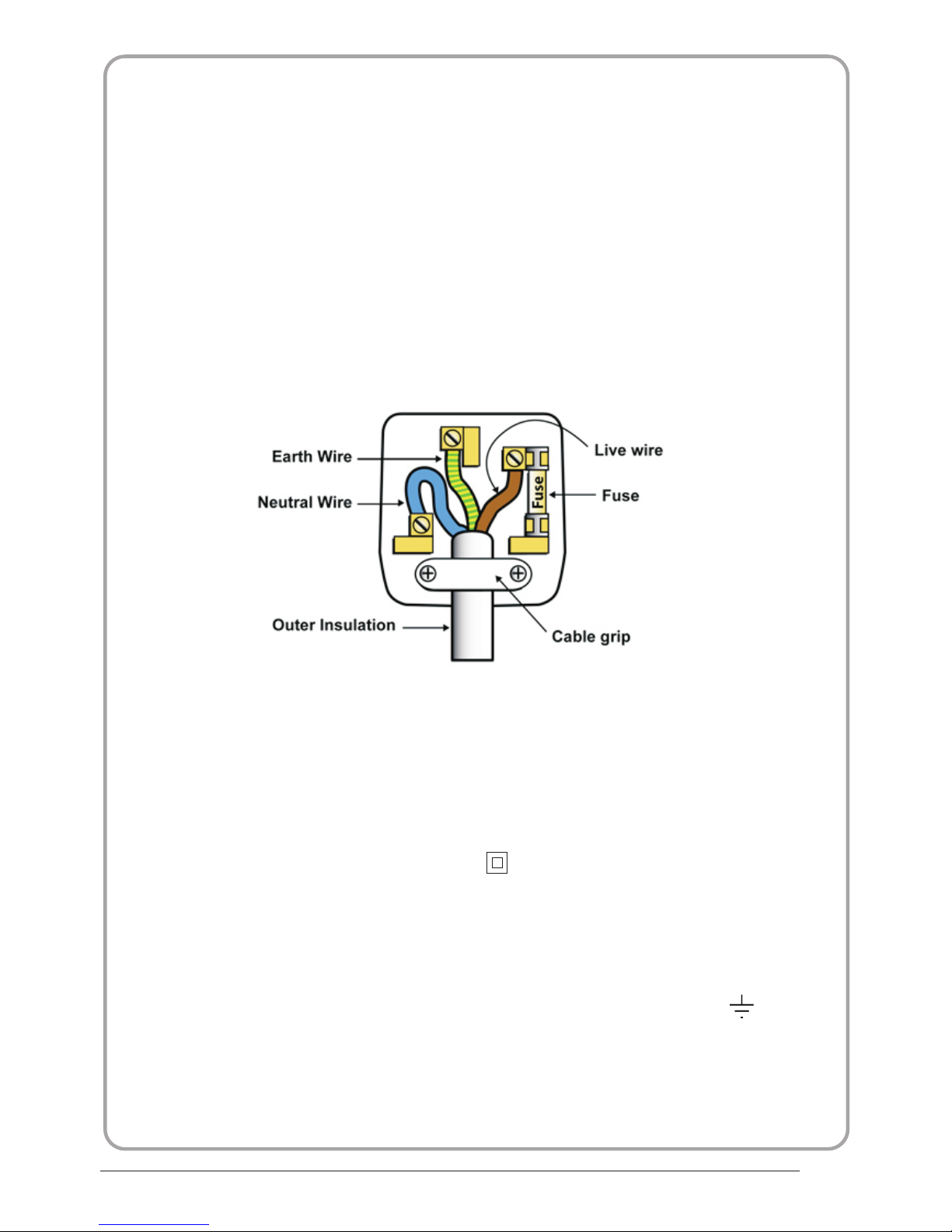

How to wire a 13 amp plug.

Important

The wires in the mains lead on a TV are colour coded in accordance with the following code.

Green and yellow Earth Not required on TV's as they are double insulated.

Blue Neutral

Brown Live

Double insulated appliances

Appliance with double insulation, have a symbol than means that they do not have an earth

wire (green and yellow), so on these appliances only have two wires a blue and a brown.

If the colours do not correspond with the markings identifying the terminals in your plug,

proceed as follows.

The green and yellow wire, not required on double insulated appliances, must be connected to

the terminal in the plug which is marked with the letter E or with the earth symbol or

coloured green and yellow.

The blue wire must be connected to the terminal marked N or coloured Blue or Black

The brown wire must be connected to the terminal marked L or coloured Brown or Red

P.04

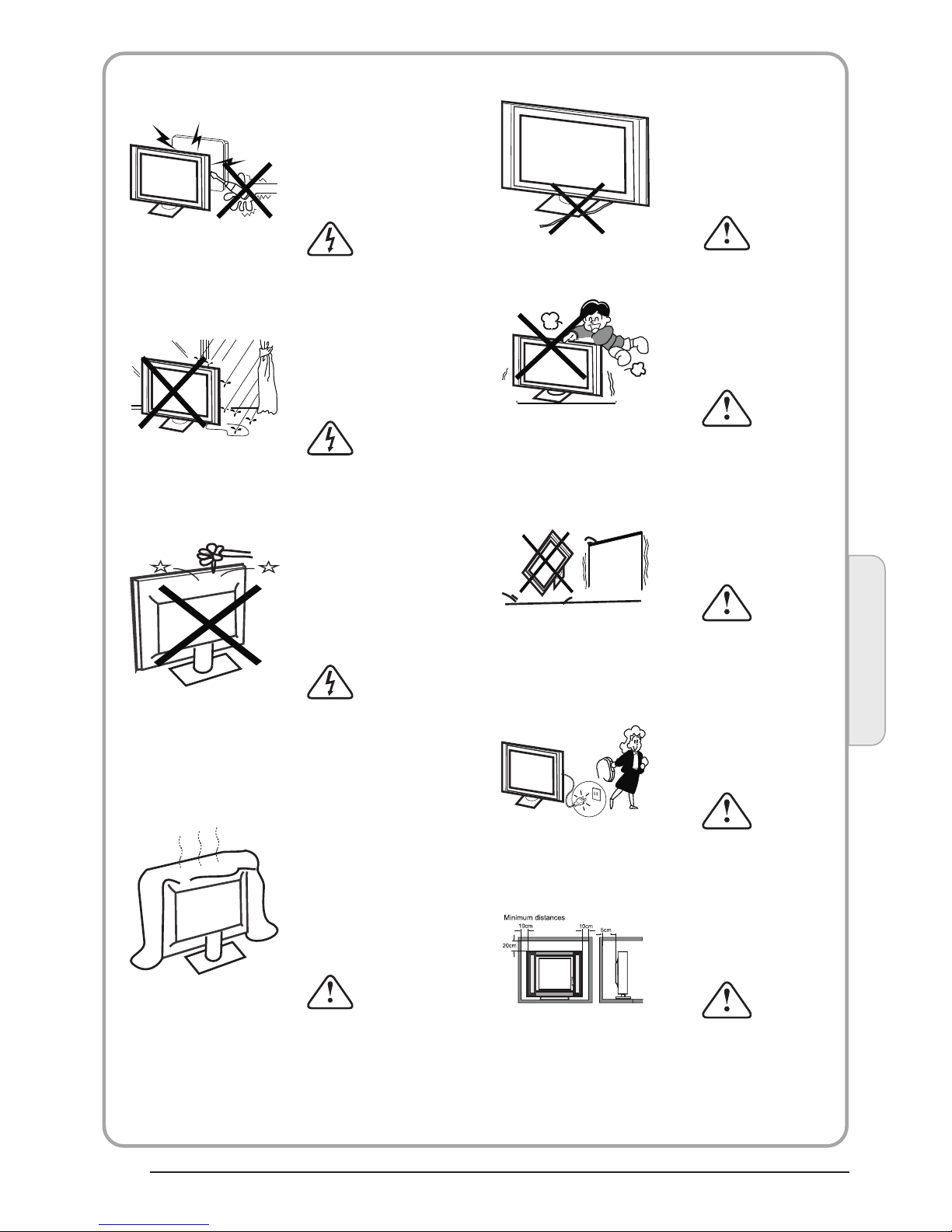

WARNINGS AND CAUTIONS

Warning

High voltages are used in the operation

of this television receiver. Do not remove

the cabinet back from your set. Refer

servicing to qualified service personnel.

Warning

To prevent fire or electrical shock

hazard, do not expose the television

receiver to rain or moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings.

Never spill any kind of liquid on the

television receiver.

Caution

Do not block the ventilation holes in the

back cover. Adequate ventilation is

essential to prevent failure of electrical

components.

Caution

Do not trap the power supply cord under

the television receiver.

Caution

Never stand on, lean on, or suddenly push

the television or its stand. You should pay

special attention to children. Serious injury

may result if it should fall.

Caution

Do not place your television on an unstable

cart, stand, shelf or table. Serious injury to

an individual , and damage to the

television, may result if it should fall.

Caution

When the television receiver is not

used for an extended period of time, it

is advisable to disconnect the AC power

cord from the AC outlet.

Dim:5 15*320 mm(不包括底座）

Caution

If the television is to be built into a

compartment or similar enclosure, the

minimum distances must be maintained.

Heat build-up can reduce the service life of

your television, and can also be dangerous.

Safety and warnings

P.05

Introduction

INSTALLATIONCAUTION

*Locate the TV in the room where light

does not strike the screen directly.

*Total darkness or a reflection on the

picture screen can cause eyestrain. Soft

and indirect lighting is recommended for

comfortable viewing.

*Allow enough space between the TV and

the wall to permit ventilation.

*Avoid excessively warm locations to

prevent possible damage to the cabinet or

premature component failure.

*Do not cover the ventilation openings

when using theTV.

Main parameter

Main features

4 NICAM；

3 HDMI interface and SCART

Interface；

5 T；ime-shift

High luminance, wide viewing

angle；

Used as Television, display terminal,

PC display；

Panel

TV System PAL-B/G、I、D/K

SECAM- B/G 、D/K、L、 L

Video Signal System PAL/SECAM

Input Power Voltage AC 100-240V 50/60Hz

Power consumption

Audio Output Power （THD 7%）2x3W

Signal Input Analog RGB(PC) x1; PC audio x1

High-Definition Multimedia Interface (HDMI)x2

Video Input x1

Audio Input x1

YPb Prx1

SCARTx1

30W

CI x 1

USB x 1

RF Co-Ax x 1

Standby Power consumption <0.5W

40W

Horizontal definition（TV line）Composite Video input >=350

YPbPr >=400

Signal output Headphone x 1

S/PDIF x 1

Never tamper with any components inside

the TV, or any other adjustment controls not

described in this manual. All LED-TV's are

high voltage electrical equipment.

When you clean dust or any water drops off

the SCREEN or CABINET or around any of

the buttons or connectors, the power cabled

should be removed from the power socket.

Wipe the TV with a soft, dry, dust free cloth.

During thunderstorms, unplug the power

cable and aerial / antenna cable to prevent

damage to your TV and any other devices

connected to it.

All repairs to this TV should only be

performed by qualified TV service

personnel.

55W

38W

P.06

PRESET MODE

02 Introduction

1024x768

1280x1024

640x480 60 31.47

800x600 60 37.88

48.36

63.98

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

1360x768 60 47.7

1920x1080

(Olny for 21.5",23.6") 60 66.64

P.07

P.08

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness

or a reflection on the screen can cause eyestrain. Soft and indirect lighting is

recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Please don’t rotate the TV.

Avoid excessively warm locations to prevent possible damage to the cabinet or

premature component failure.

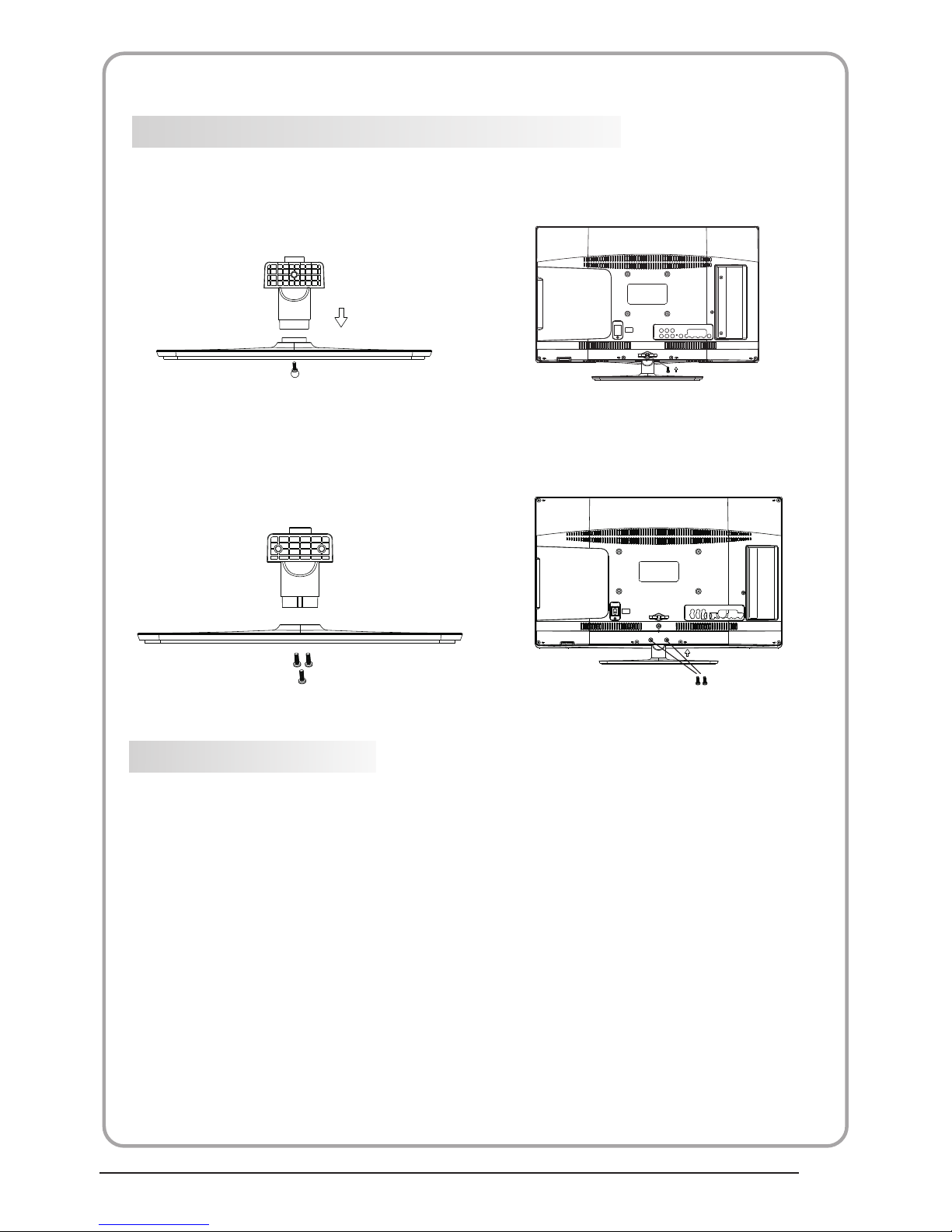

Base Stand Assembly Instruction

1. Insert the stand support pillar into the

stand as the arrow indicated direction,

and then fastened with one screw.

2. Insert the stand Ass'y into back cover

as the arrow indicated direction,and

then fastened with one screw.

1. Insert the stand support pillar into the

stand as the arrow indicated direction,

and then fastened with three screws.

2. Insert the stand Ass'y into back cover

as the arrow indicated direction,and

then fastened with two screws.

(22",24") (22",24")

(26") (26")

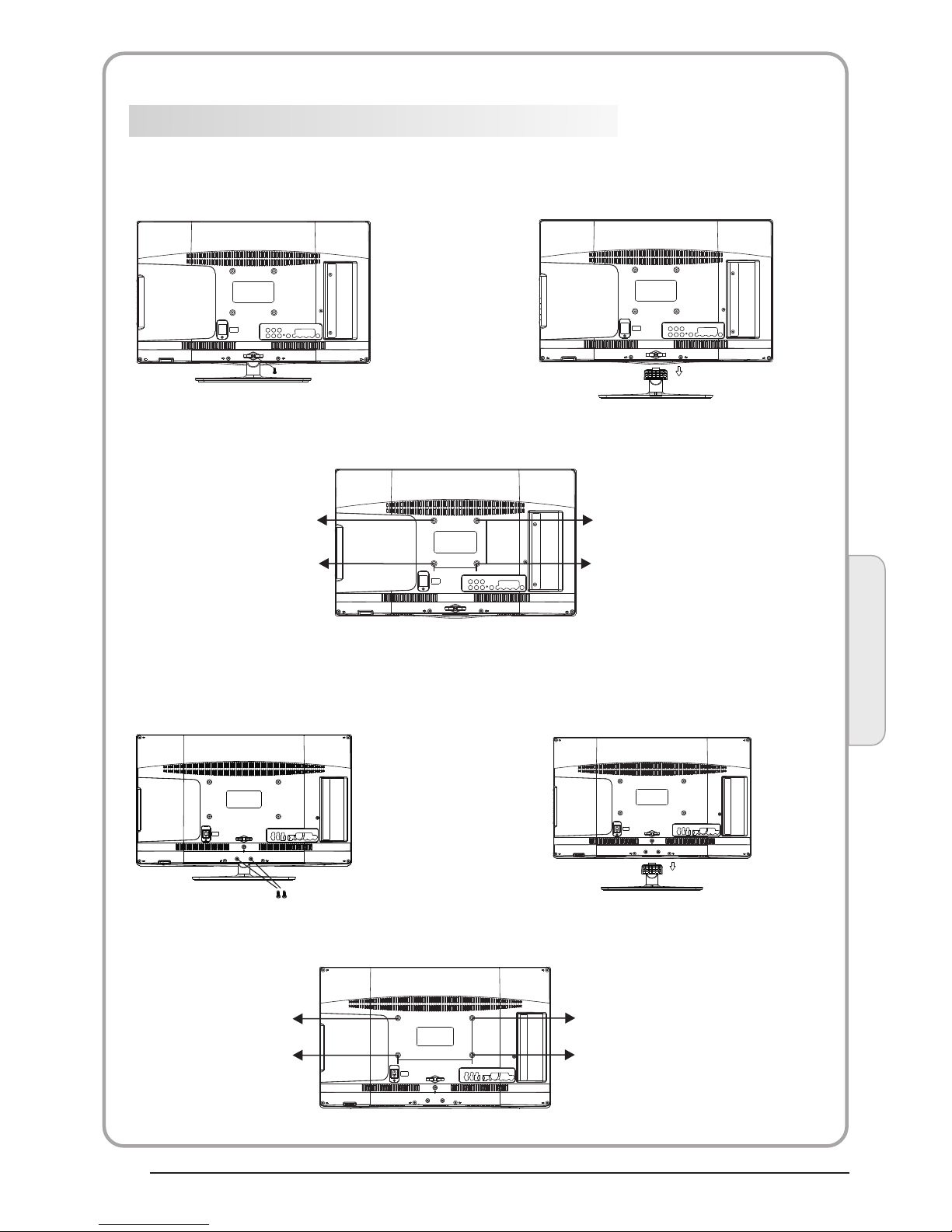

WALL MOUNTING INSTALLATION GUIDELINES

02 Introduction

P.09

2.Remove the screws from the lower part of

the television, where the base joins to the TV,

and take away the stand (put the stand

somewhere safe for future use).

1.Place the LED LCD Television onto a

solid surface. Please place some soft

material over the front of the screen to

protect it from any damage.

(22",24")

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)

via the four VESA standard holes on the back of the television.

M4X5

100mm

(22",24")

2.Remove the screws from the lower part of

the television, where the base joins to the TV,

and take away the stand (put the stand

somewhere safe for future use).

1.Place the LED LCD Television onto a

solid surface. Please place some soft

material over the front of the screen to

protect it from any damage.

M4X5

200mm

100mm

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)

via the four VESA standard holes on the back of the television.

(22",24")

(26") (26")

(26")

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Récepteur TV

Haier

Haier 15F6B Manuel utilisateur

Haier

Haier 21FB1 Manuel utilisateur

Haier

Haier LET19C600F Manuel utilisateur

Haier

Haier LE55D20FM Manuel utilisateur

Haier

Haier 34F9K Manuel utilisateur

Haier

Haier L20AV6-A0 Manuel utilisateur

Haier

Haier D34FV6 Manuel utilisateur

Haier

Haier 29F5D Manuel utilisateur

Haier

Haier D29FA11-AKM Manuel utilisateur

Haier

Haier 29FA10-AM Manuel utilisateur

Haier

Haier 21F3A Manuel utilisateur

Haier

Haier L39Z10A Manuel utilisateur

Haier

Haier 29F9D-P Manuel utilisateur

Haier

Haier SV-HD1918W Manuel utilisateur

Haier

Haier 21F3A Manuel utilisateur

Haier

Haier LT15T1WW Manuel utilisateur

Haier

Haier LT19A1 Manuel utilisateur

Haier

Haier L26A9A Manuel utilisateur

Haier

Haier 21F3A Manuel utilisateur

Haier

Haier 21F3A Manuel utilisateur

Haier

Haier LET19C400F Manuel utilisateur

Haier

Haier LET32T1000HFM Manuel utilisateur

Haier

Haier LET19C430 Manuel utilisateur

Haier

Haier 21F7A Manuel utilisateur

Manuels Récepteur TV populaires d'autres marques

NEC

NEC PX-TUAN-01 Manuel utilisateur

Edision

Edision Piccollino Manuel utilisateur

Matsui

Matsui DTR1 Manuel utilisateur

Dyon

Dyon Raptor Manuel utilisateur

Strong

Strong SRT 2401 Mode d'emploi

TerraTec

TerraTec CINERGY DT USB XS DIVERSITY Manuel d'instructions

TechniSat

TechniSat DigiCom 1 Manuel utilisateur

Triax

Triax CR 317 Manuel utilisateur

DirecTV

DirecTV D10-300 Manuel utilisateur

Motorola

Motorola VIP2502W Manuel utilisateur

ActionTec

ActionTec WirelessTV Manuel utilisateur

Motorola

Motorola VIP1200 Series Manuel utilisateur

Xoro

Xoro HRT 1300 Manuel utilisateur

Motorola

Motorola DH6200 Manuel utilisateur

Manhattan

Manhattan Plaza DS-100 Manuel utilisateur

Micro Prose

Micro Prose MPI-500 Manuel utilisateur

TechniSat

TechniSat DIGIT ISIO S Manuel d'instructions

Rextor

Rextor 3488 Manuel utilisateur
